| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T05_9000002420_16387cztM0_level2.evt | modeM0/AS1A05_069T05_9000002420_16387cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,094,720 | 71,807,040 |
| Size | 459.8 MB | 68.5 MB |
| Events in quadrant A | 3,285,690 | 440,690 |
| Events in quadrant B | 3,604,884 | 448,982 |
| Events in quadrant C | 3,297,835 | 425,196 |
| Events in quadrant D | 3,968,714 | 404,218 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13688 | 3 |
| B | 0 | 14609 | 2 |
| C | 0 | 13751 | 2 |
| D | 0 | 16271 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6525 | 115 | 1.762452% |
| B | 6525 | 164 | 2.513410% |
| C | 6525 | 127 | 1.946360% |
| D | 6525 | 294 | 4.505747% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7511 | 6526 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7511 | 6526 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7511 | 6527 | 0 | 0 | 0.00% | 0.00% |  |

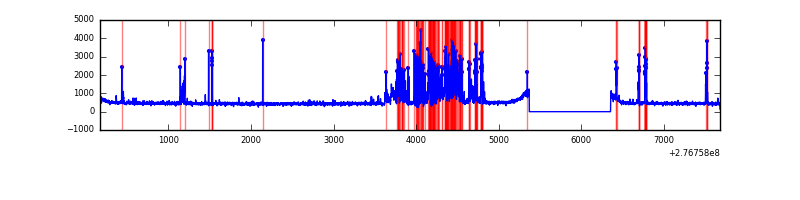

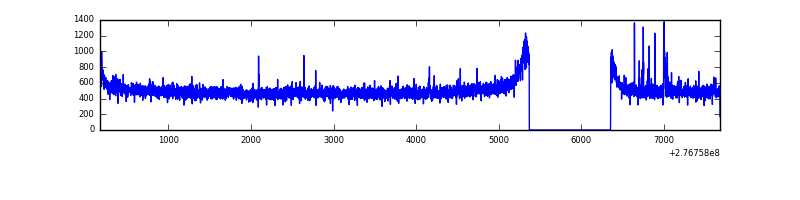

| D | 7511 | 6526 | 193 | 193 | 2.57% | 2.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 37717 | 222.85 | 830 | 813 | 165.6 |
| A | 15 | 223 | 31731 | 186.71 | 830 | 813 | 165.6 |
| A | 9 | 143 | 11959 | 67.31 | 830 | 813 | 165.6 |
| B | 0 | 189 | 93485 | 583.55 | 833 | 813 | 158.8 |
| B | 15 | 35 | 67812 | 421.89 | 833 | 813 | 158.8 |
| B | 0 | 198 | 44084 | 272.47 | 833 | 813 | 158.8 |
| C | 14 | 238 | 121625 | 656.91 | 789 | 793 | 183.9 |
| C | 3 | 233 | 88695 | 477.89 | 789 | 793 | 183.9 |
| C | 13 | 61 | 5633 | 26.31 | 789 | 793 | 183.9 |
| D | 10 | 70 | 947017 | 4898.81 | 790 | 769 | 193.2 |
| D | 2 | 234 | 23037 | 115.28 | 790 | 769 | 193.2 |
| D | 2 | 120 | 15908 | 78.38 | 790 | 769 | 193.2 |

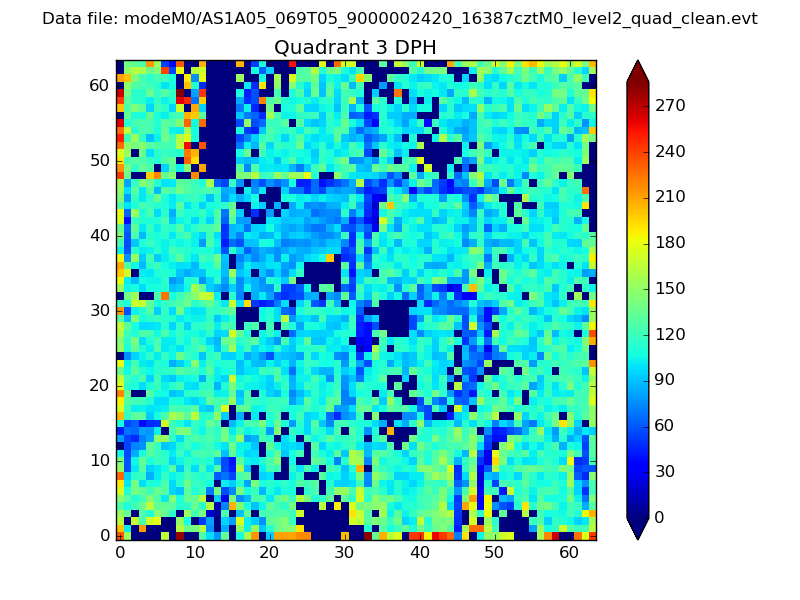

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

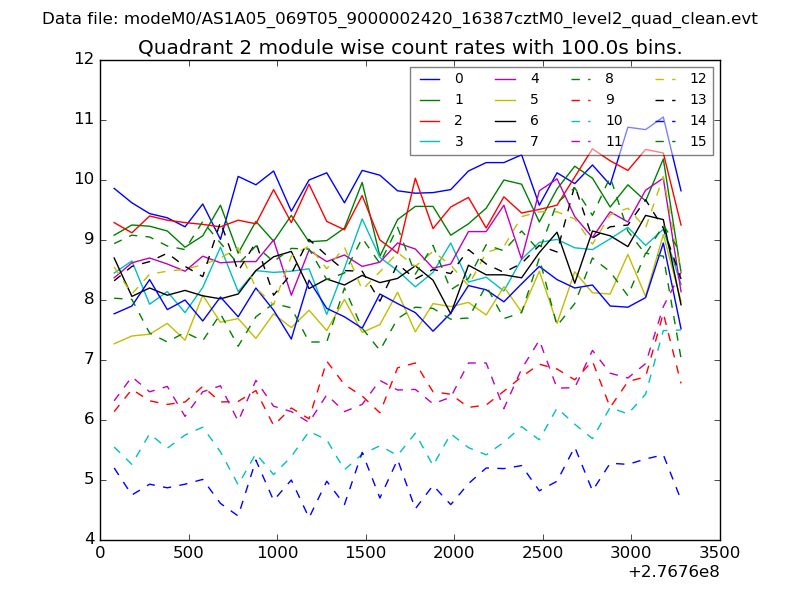

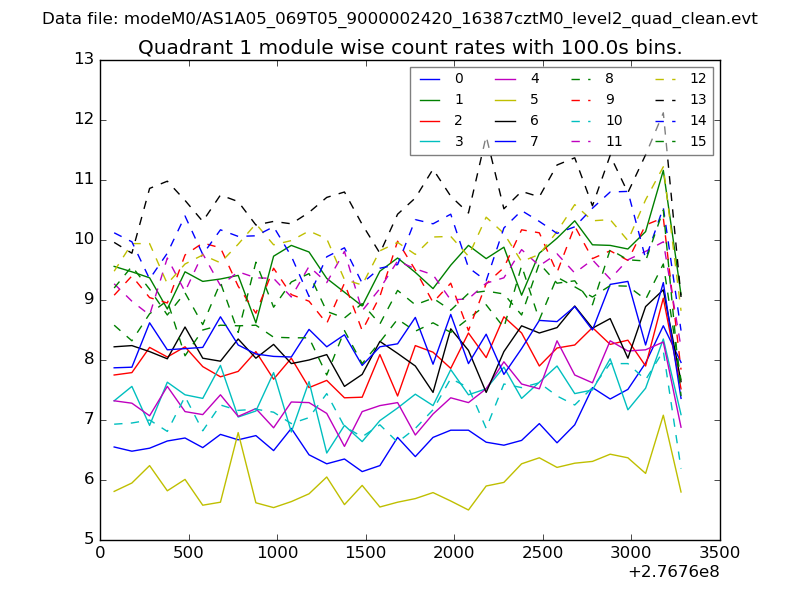

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

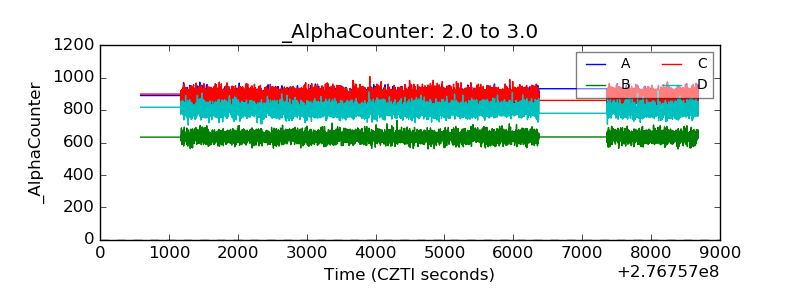

| Alpha Counter |  |

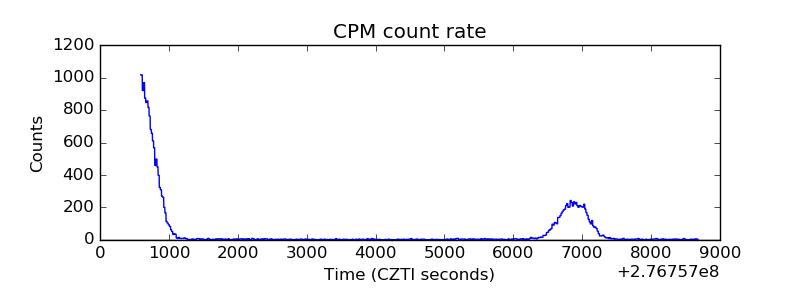

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

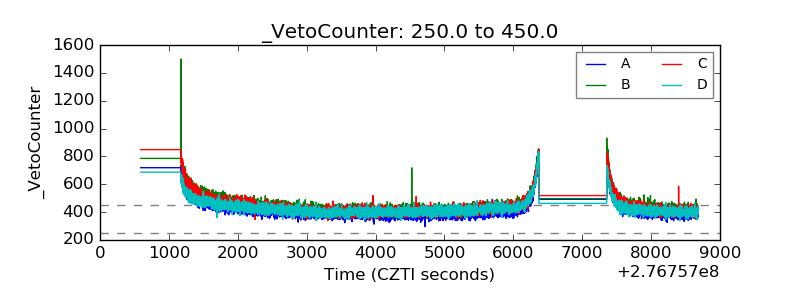

| Veto Counter |  |
