| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T02_9000002422_16396cztM0_level2.evt | modeM0/AS1A05_069T02_9000002422_16396cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,428,160 | 91,347,840 |
| Size | 435.3 MB | 87.1 MB |
| Events in quadrant A | 3,249,563 | 587,177 |
| Events in quadrant B | 3,554,858 | 602,522 |
| Events in quadrant C | 3,292,445 | 572,398 |
| Events in quadrant D | 3,283,399 | 549,771 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13836 | 3 |
| B | 0 | 14962 | 2 |
| C | 0 | 14188 | 2 |
| D | 0 | 14361 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6517 | 25 | 0.383612% |
| B | 6517 | 46 | 0.705846% |
| C | 6517 | 61 | 0.936014% |
| D | 6517 | 88 | 1.350315% |

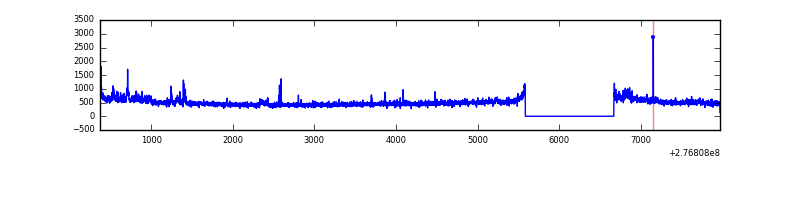

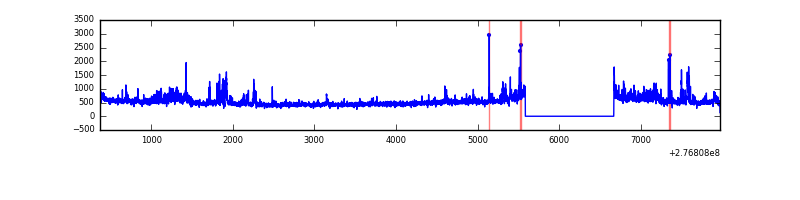

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7603 | 6519 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7603 | 6519 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7603 | 6519 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7603 | 6519 | 56 | 56 | 0.74% | 0.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 125545 | 791.42 | 783 | 767 | 157.7 |
| A | 15 | 223 | 71263 | 447.13 | 783 | 767 | 157.7 |
| A | 15 | 239 | 41031 | 255.38 | 783 | 767 | 157.7 |
| B | 0 | 189 | 177813 | 1178.58 | 789 | 770 | 150.2 |
| B | 15 | 35 | 120864 | 799.47 | 789 | 770 | 150.2 |
| B | 10 | 16 | 30340 | 196.85 | 789 | 770 | 150.2 |
| C | 3 | 233 | 206712 | 1162.34 | 757 | 761 | 177.2 |
| C | 14 | 238 | 116023 | 650.51 | 757 | 761 | 177.2 |
| C | 10 | 169 | 10332 | 54.02 | 757 | 761 | 177.2 |
| D | 10 | 70 | 185830 | 1005.32 | 757 | 735 | 184.1 |
| D | 12 | 218 | 104958 | 566.07 | 757 | 735 | 184.1 |
| D | 1 | 20 | 49696 | 265.93 | 757 | 735 | 184.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

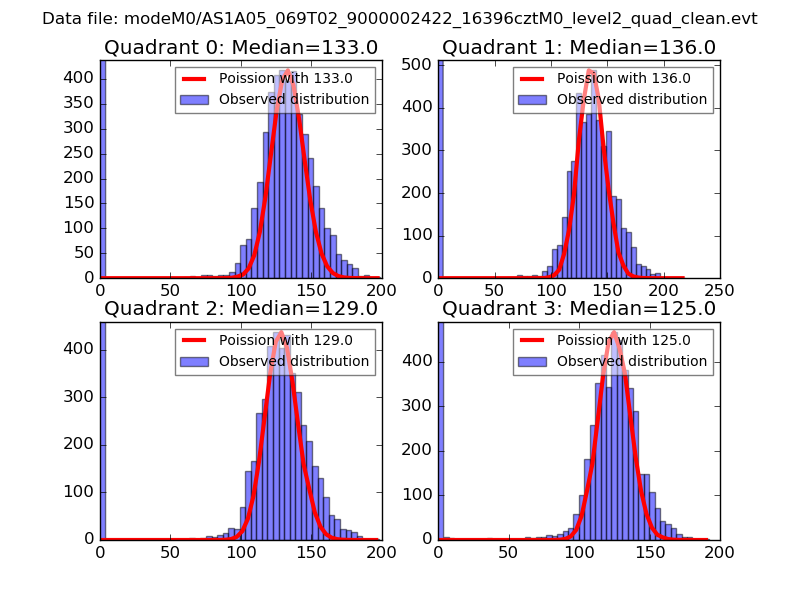

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

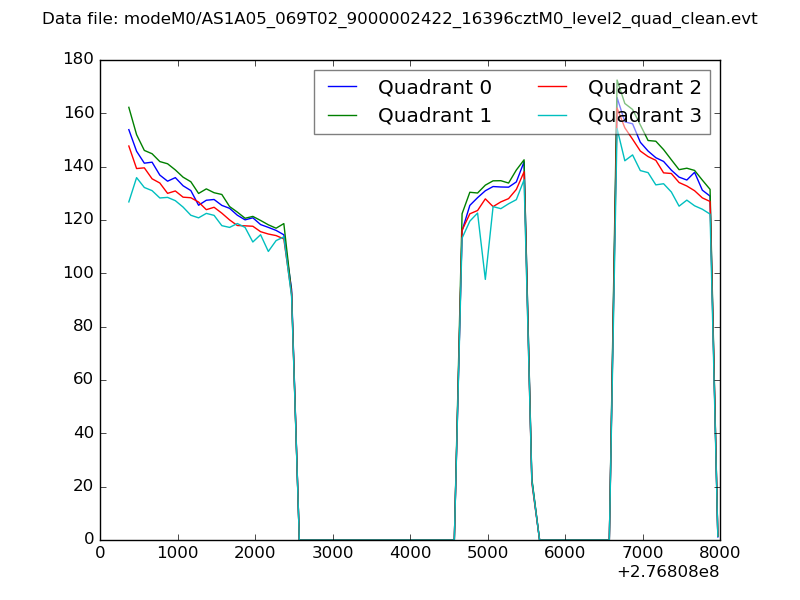

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

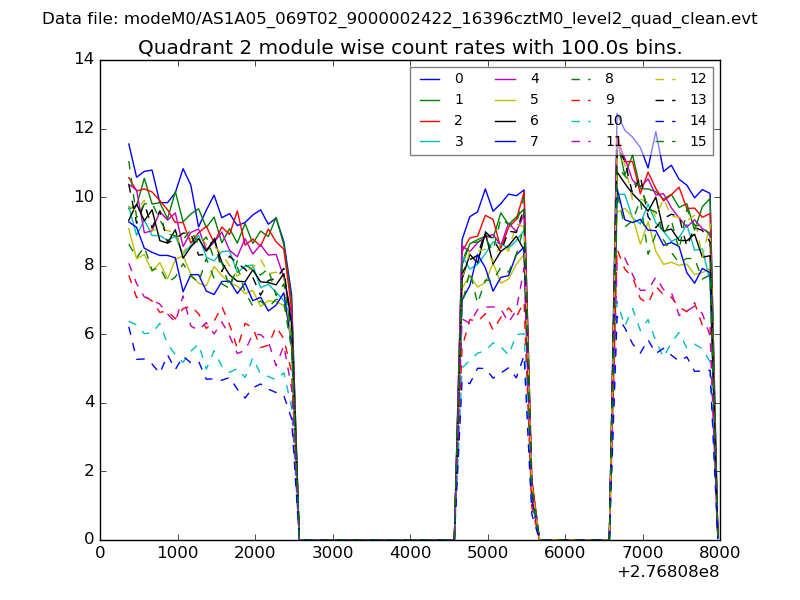

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

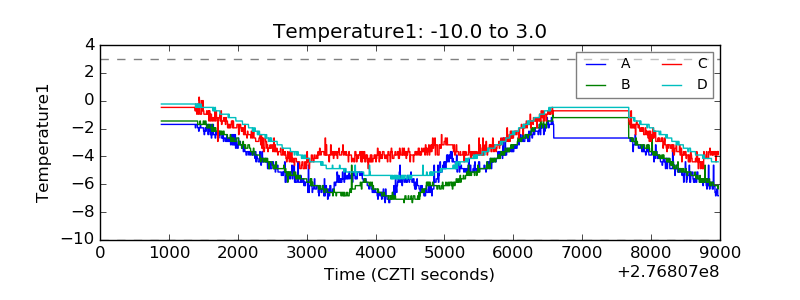

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

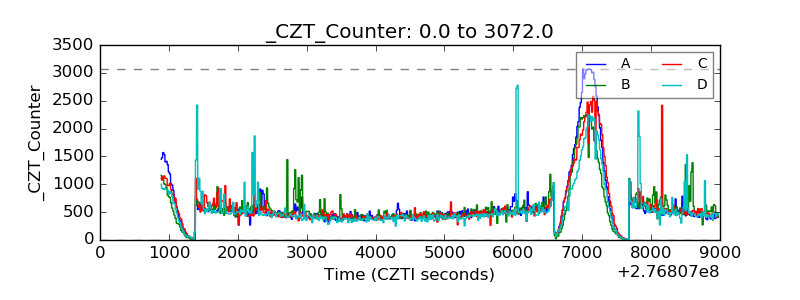

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

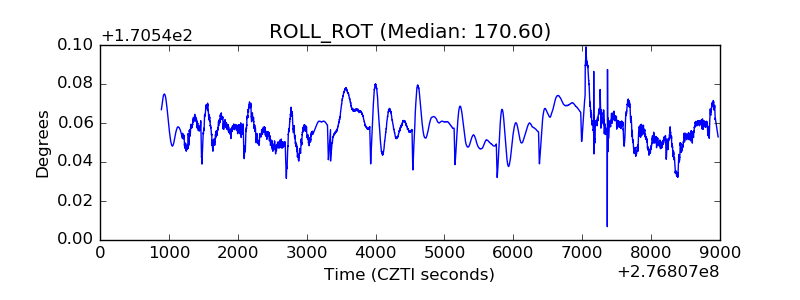

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
