| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T02_9000002422_16397cztM0_level2.evt | modeM0/AS1A05_069T02_9000002422_16397cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,684,800 | 91,215,360 |
| Size | 422.2 MB | 87.0 MB |
| Events in quadrant A | 3,112,564 | 588,854 |
| Events in quadrant B | 3,467,845 | 608,610 |
| Events in quadrant C | 3,174,312 | 575,909 |
| Events in quadrant D | 3,224,482 | 549,936 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13247 | 3 |
| B | 0 | 14515 | 2 |
| C | 0 | 13340 | 2 |
| D | 0 | 13911 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6290 | 20 | 0.317965% |
| B | 6290 | 43 | 0.683625% |
| C | 6290 | 54 | 0.858506% |
| D | 6290 | 67 | 1.065183% |

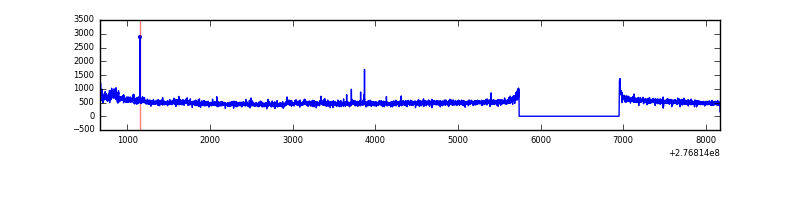

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7501 | 6292 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7501 | 6292 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7501 | 6292 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7501 | 6292 | 55 | 55 | 0.73% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 119347 | 770.71 | 772 | 758 | 153.9 |
| A | 15 | 223 | 20088 | 125.63 | 772 | 758 | 153.9 |
| A | 0 | 226 | 6725 | 38.78 | 772 | 758 | 153.9 |
| B | 0 | 189 | 116457 | 786.28 | 782 | 765 | 147.1 |
| B | 15 | 35 | 94797 | 639.07 | 782 | 765 | 147.1 |
| B | 10 | 16 | 52712 | 353.05 | 782 | 765 | 147.1 |
| C | 3 | 233 | 125723 | 713.21 | 749 | 756 | 175.2 |
| C | 14 | 238 | 115675 | 655.86 | 749 | 756 | 175.2 |
| C | 10 | 169 | 11971 | 64.01 | 749 | 756 | 175.2 |
| D | 10 | 70 | 149913 | 817.84 | 746 | 725 | 182.4 |
| D | 12 | 218 | 132670 | 723.32 | 746 | 725 | 182.4 |
| D | 7 | 38 | 28764 | 153.71 | 746 | 725 | 182.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

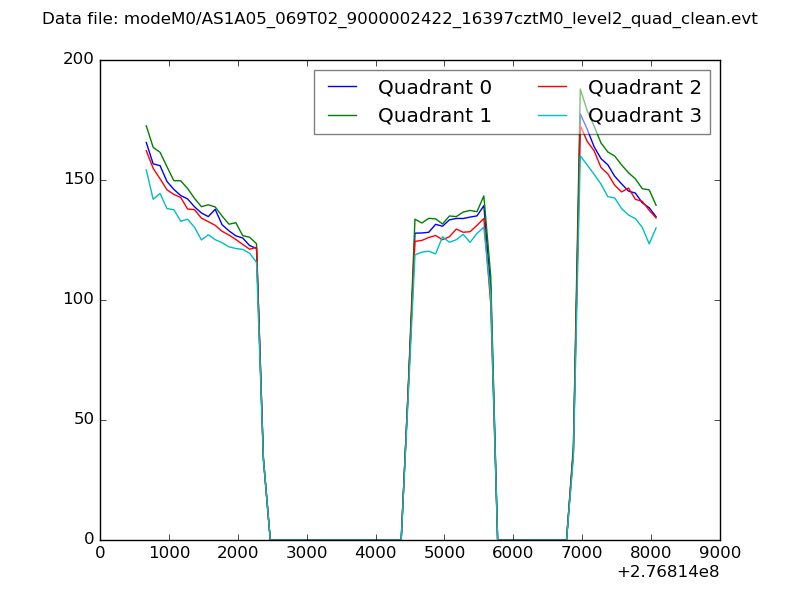

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

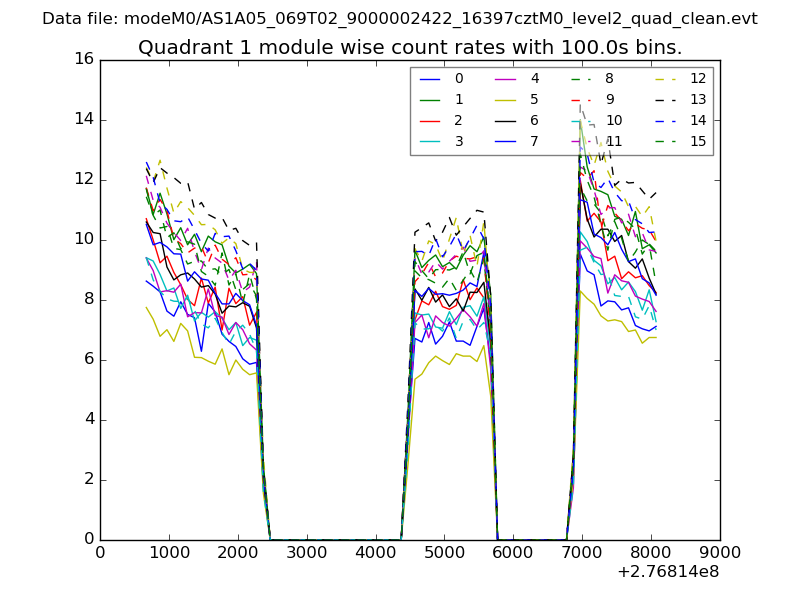

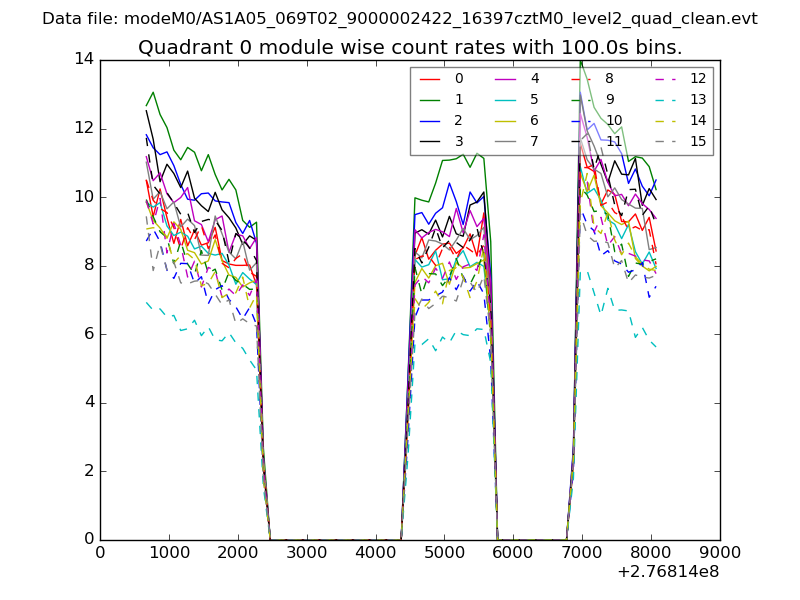

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

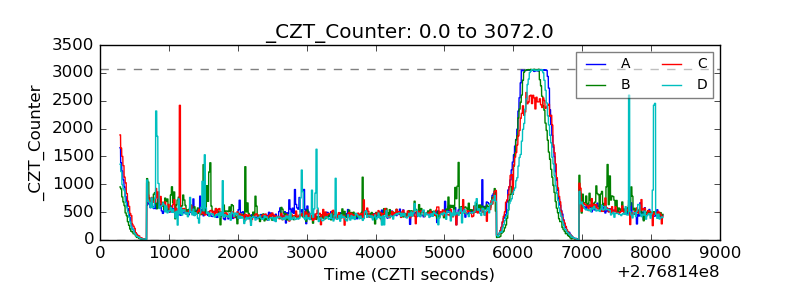

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

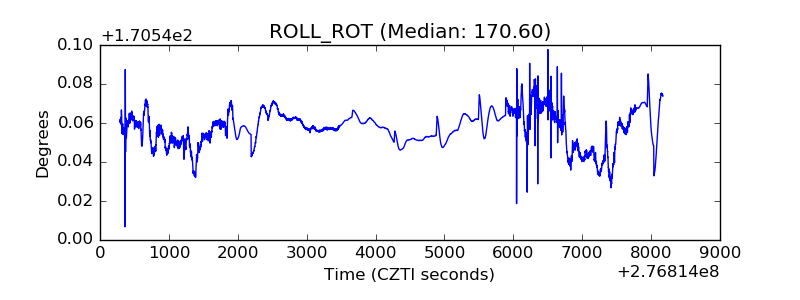

| _ROLL_ROT |  |
| _Roll_DEC |  |

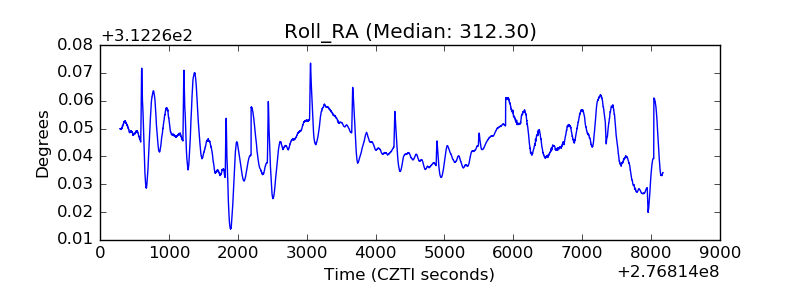

| _Roll_RA |  |
| Veto Counter |  |
