| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T02_9000002422_16401cztM0_level2.evt | modeM0/AS1A05_069T02_9000002422_16401cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,908,160 | 67,055,040 |
| Size | 467.2 MB | 63.9 MB |
| Events in quadrant A | 3,382,522 | 402,379 |
| Events in quadrant B | 3,823,469 | 408,506 |
| Events in quadrant C | 3,568,414 | 386,082 |
| Events in quadrant D | 3,615,887 | 374,595 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14024 | 3 |
| B | 0 | 15297 | 2 |
| C | 0 | 14600 | 2 |
| D | 0 | 15032 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6583 | 94 | 1.427920% |
| B | 6583 | 174 | 2.643172% |
| C | 6583 | 116 | 1.762115% |
| D | 6583 | 77 | 1.169679% |

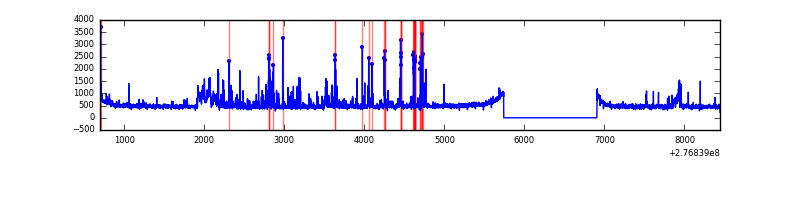

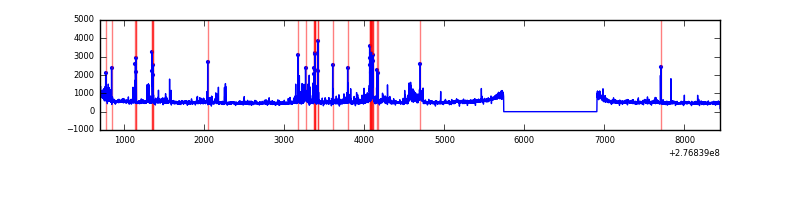

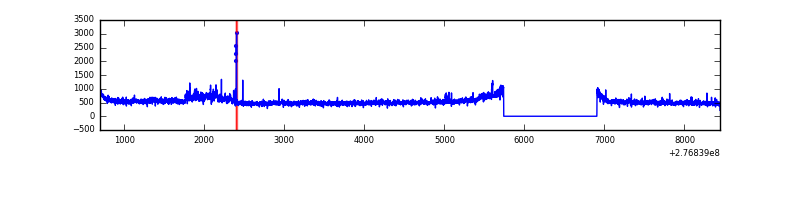

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7749 | 6585 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7749 | 6585 | 35 | 35 | 0.45% | 0.53% |  |
| C | 7749 | 6584 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7749 | 6585 | 38 | 38 | 0.49% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 125024 | 731.48 | 847 | 829 | 169.8 |
| A | 0 | 226 | 7397 | 38.68 | 847 | 829 | 169.8 |
| A | 12 | 194 | 6261 | 31.99 | 847 | 829 | 169.8 |
| B | 0 | 229 | 176564 | 1096.88 | 847 | 826 | 160.2 |
| B | 4 | 216 | 79552 | 491.37 | 847 | 826 | 160.2 |
| B | 0 | 189 | 58772 | 361.67 | 847 | 826 | 160.2 |
| C | 3 | 233 | 290943 | 1556.12 | 803 | 809 | 186.4 |
| C | 14 | 238 | 125720 | 669.96 | 803 | 809 | 186.4 |
| C | 10 | 169 | 17908 | 91.71 | 803 | 809 | 186.4 |
| D | 12 | 218 | 159519 | 821.15 | 807 | 785 | 193.3 |
| D | 2 | 16 | 119282 | 613.0 | 807 | 785 | 193.3 |
| D | 10 | 70 | 87553 | 448.86 | 807 | 785 | 193.3 |

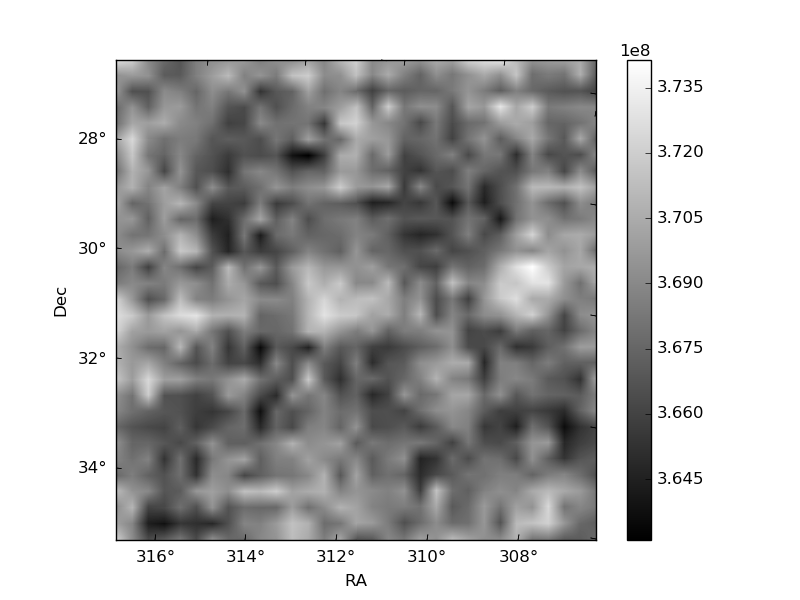

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

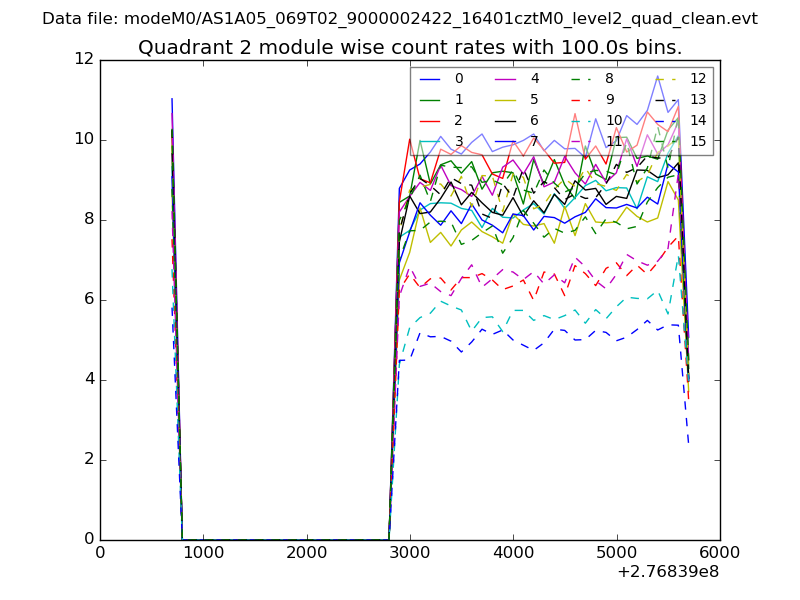

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

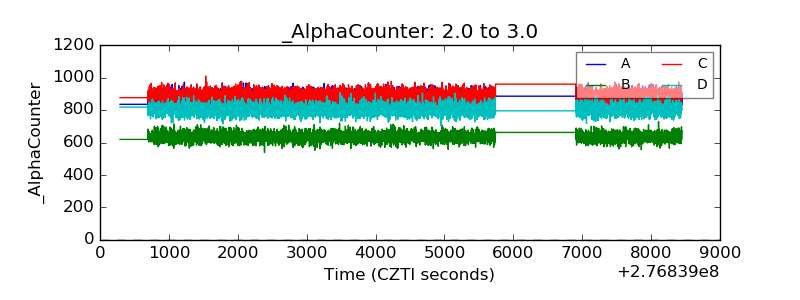

| Alpha Counter |  |
| _CPM_Rate |  |

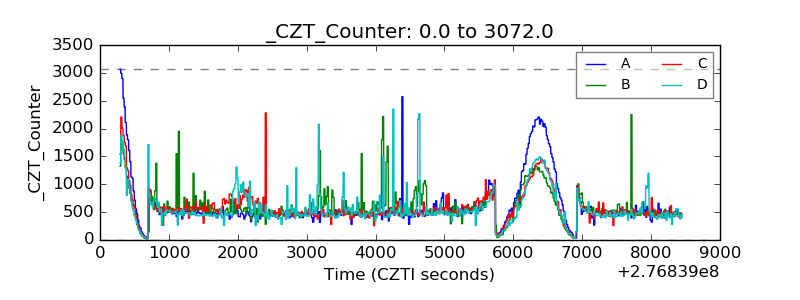

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

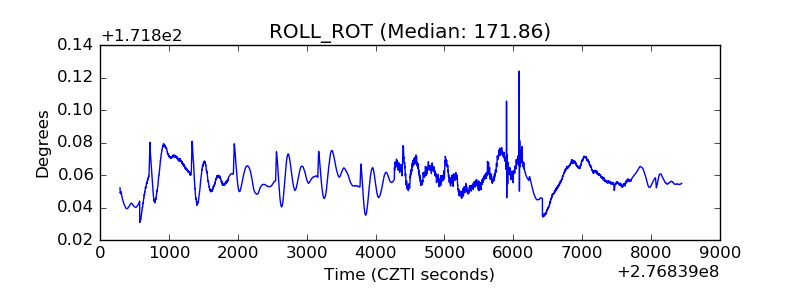

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
