| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T02_9000002422_16403cztM0_level2.evt | modeM0/AS1A05_069T02_9000002422_16403cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,798,720 | 94,328,640 |
| Size | 527.2 MB | 90.0 MB |
| Events in quadrant A | 3,851,853 | 587,126 |
| Events in quadrant B | 4,404,718 | 595,083 |
| Events in quadrant C | 3,914,013 | 569,815 |
| Events in quadrant D | 4,034,297 | 555,106 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16594 | 4 |
| B | 0 | 18098 | 3 |
| C | 0 | 16578 | 3 |
| D | 0 | 17368 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7903 | 252 | 3.188663% |
| B | 7903 | 335 | 4.238897% |
| C | 7903 | 286 | 3.618879% |
| D | 7903 | 221 | 2.796406% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

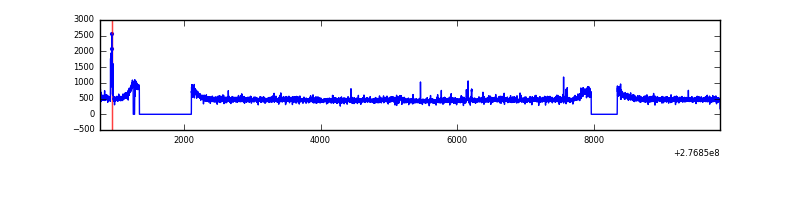

| A | 9064 | 7905 | 2 | 2 | 0.02% | 0.03% |  |

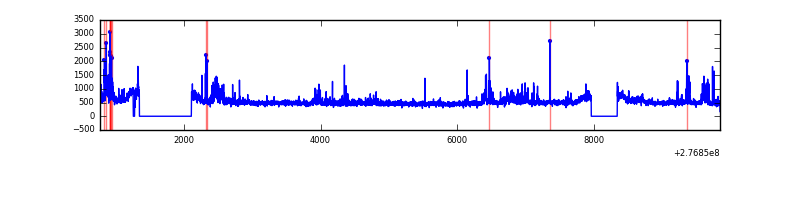

| B | 9064 | 7905 | 13 | 13 | 0.14% | 0.16% |  |

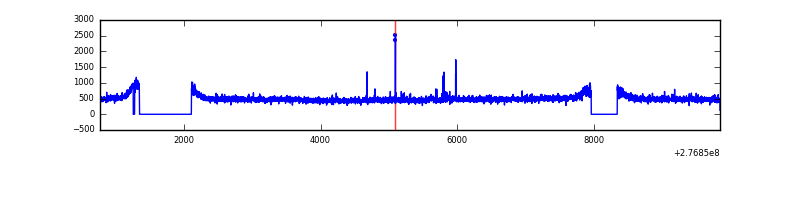

| C | 9064 | 7906 | 2 | 2 | 0.02% | 0.03% |  |

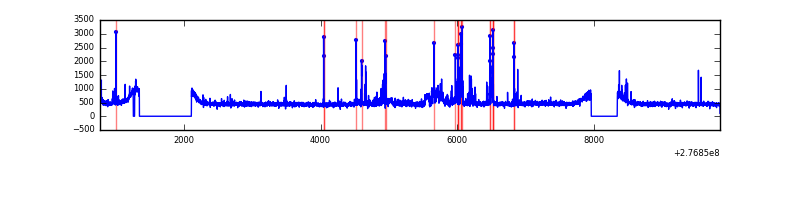

| D | 9064 | 7906 | 22 | 22 | 0.24% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 56662 | 280.83 | 983 | 958 | 198.4 |
| A | 15 | 239 | 16042 | 76.04 | 983 | 958 | 198.4 |
| A | 0 | 226 | 8613 | 38.59 | 983 | 958 | 198.4 |
| B | 15 | 35 | 342501 | 1810.74 | 983 | 958 | 188.6 |
| B | 0 | 189 | 63509 | 331.62 | 983 | 958 | 188.6 |
| B | 0 | 198 | 61882 | 323.0 | 983 | 958 | 188.6 |
| C | 14 | 238 | 143277 | 644.05 | 942 | 944 | 221.0 |
| C | 3 | 233 | 56931 | 253.34 | 942 | 944 | 221.0 |
| C | 10 | 169 | 19021 | 81.8 | 942 | 944 | 221.0 |
| D | 10 | 70 | 114260 | 484.75 | 954 | 924 | 233.8 |
| D | 2 | 122 | 95188 | 403.18 | 954 | 924 | 233.8 |
| D | 12 | 218 | 86459 | 365.84 | 954 | 924 | 233.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

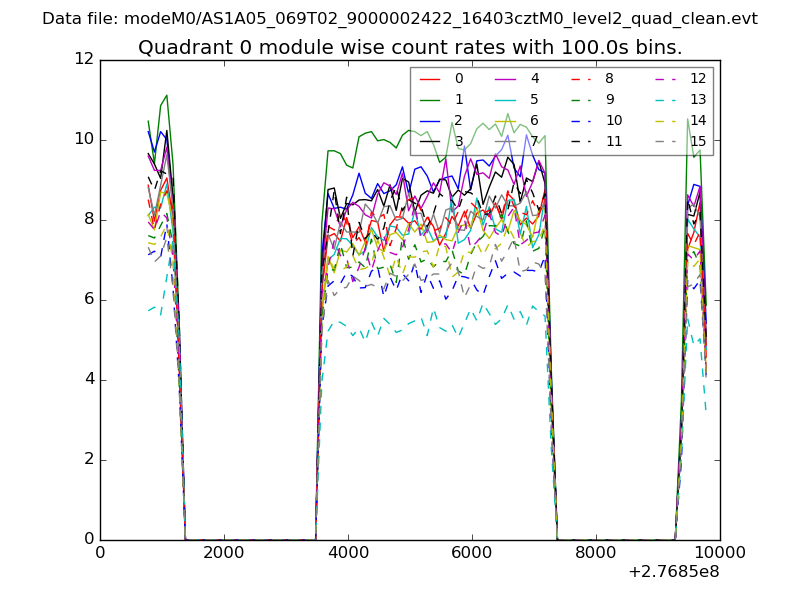

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

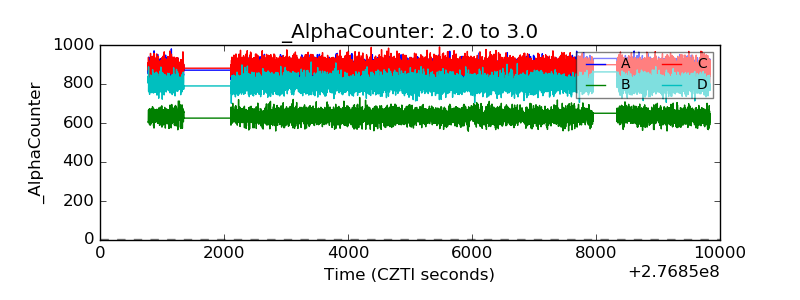

| Alpha Counter |  |

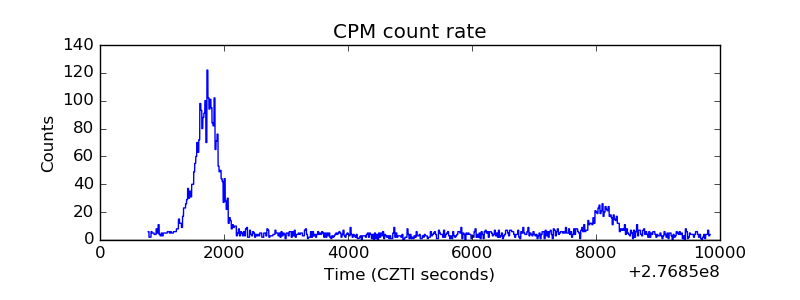

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

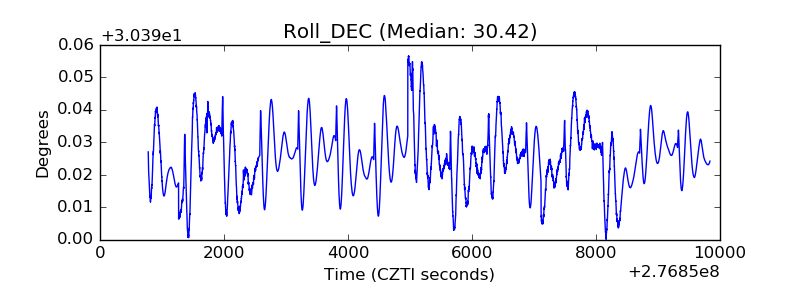

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
