| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T02_9000002422_16404cztM0_level2.evt | modeM0/AS1A05_069T02_9000002422_16404cztM0_level2_quad_clean.evt |
| Size (bytes) | 598,311,360 | 93,481,920 |
| Size | 570.6 MB | 89.2 MB |
| Events in quadrant A | 4,577,007 | 569,313 |
| Events in quadrant B | 4,617,587 | 582,470 |
| Events in quadrant C | 4,159,654 | 556,009 |
| Events in quadrant D | 4,196,496 | 540,860 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19140 | 2 |
| B | 0 | 18998 | 1 |
| C | 0 | 17787 | 1 |
| D | 0 | 18258 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8386 | 547 | 6.522776% |
| B | 8386 | 471 | 5.616504% |
| C | 8386 | 462 | 5.509182% |
| D | 8386 | 376 | 4.483663% |

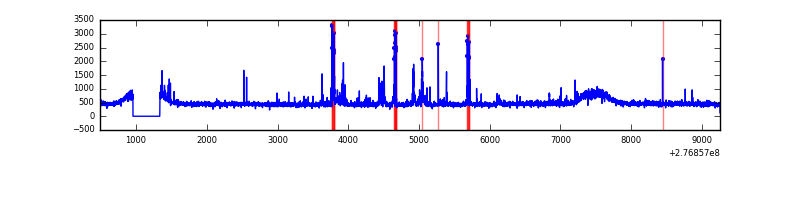

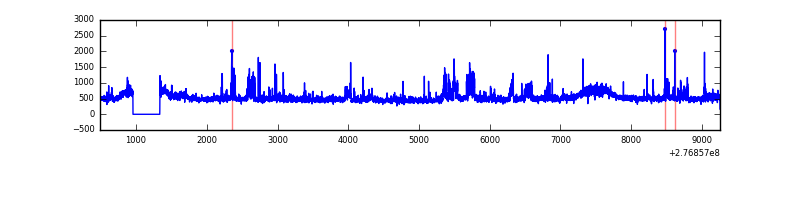

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8767 | 8387 | 88 | 88 | 1.00% | 1.05% |  |
| B | 8767 | 8387 | 3 | 3 | 0.03% | 0.04% |  |
| C | 8767 | 8388 | 8 | 8 | 0.09% | 0.10% |  |
| D | 8767 | 8388 | 29 | 29 | 0.33% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 559604 | 2644.74 | 1040 | 1014 | 211.2 |
| A | 15 | 223 | 11066 | 47.59 | 1040 | 1014 | 211.2 |
| A | 0 | 226 | 9255 | 39.02 | 1040 | 1014 | 211.2 |
| B | 15 | 35 | 289912 | 1424.31 | 1046 | 1017 | 202.8 |
| B | 0 | 198 | 65021 | 315.55 | 1046 | 1017 | 202.8 |
| B | 10 | 16 | 39993 | 192.16 | 1046 | 1017 | 202.8 |
| C | 14 | 238 | 151746 | 640.76 | 999 | 1003 | 235.3 |
| C | 0 | 207 | 57454 | 239.96 | 999 | 1003 | 235.3 |
| C | 3 | 233 | 34868 | 143.95 | 999 | 1003 | 235.3 |
| D | 10 | 70 | 160628 | 641.33 | 1019 | 986 | 248.9 |
| D | 12 | 218 | 103017 | 409.89 | 1019 | 986 | 248.9 |
| D | 1 | 52 | 51483 | 202.86 | 1019 | 986 | 248.9 |

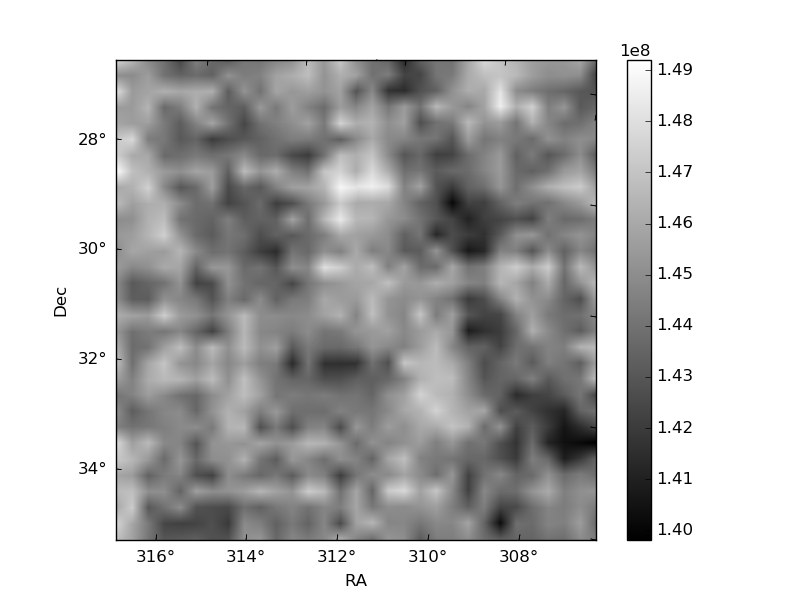

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

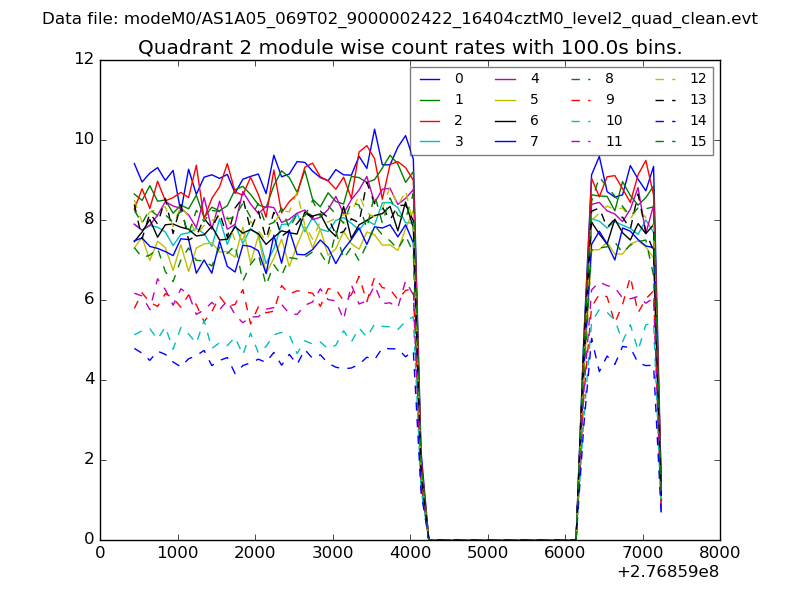

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

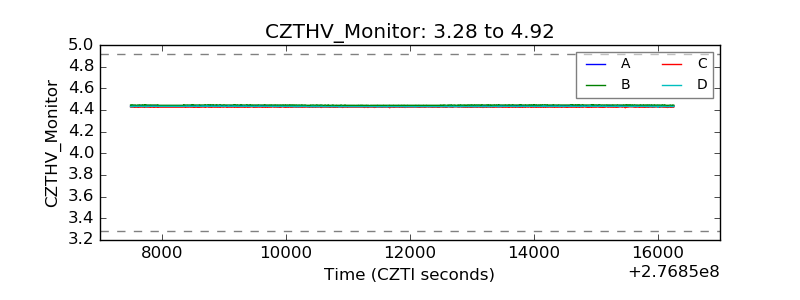

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

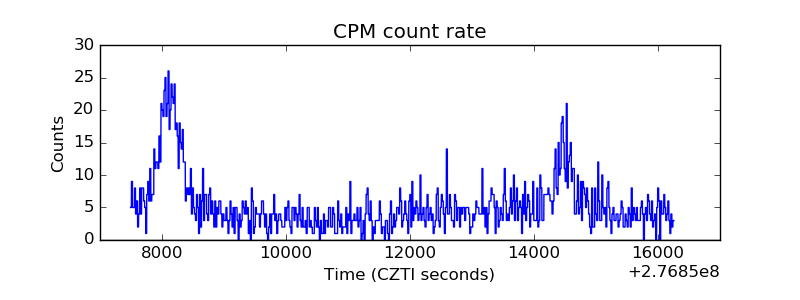

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

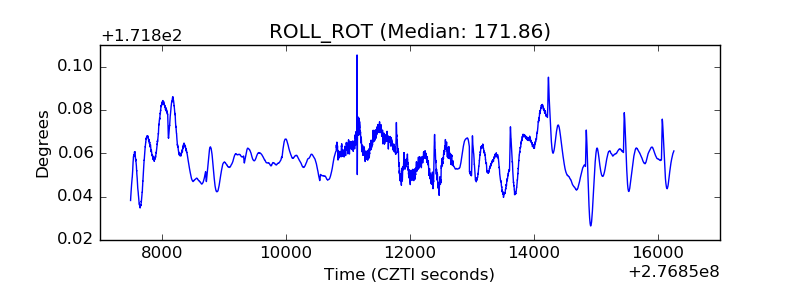

| _ROLL_ROT |  |

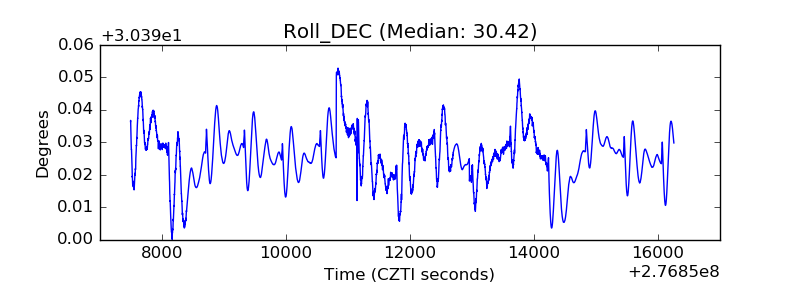

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
