| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T01_9000002424_16409cztM0_level2.evt | modeM0/AS1A05_069T01_9000002424_16409cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,387,840 | 89,426,880 |
| Size | 486.7 MB | 85.3 MB |
| Events in quadrant A | 3,237,226 | 583,271 |
| Events in quadrant B | 3,518,744 | 593,753 |
| Events in quadrant C | 3,260,191 | 564,077 |
| Events in quadrant D | 4,993,402 | 507,000 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13976 | 3 |
| B | 0 | 14742 | 2 |
| C | 0 | 13950 | 2 |
| D | 0 | 19491 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6591 | 36 | 0.546199% |
| B | 6591 | 72 | 1.092399% |
| C | 6591 | 90 | 1.365498% |
| D | 6591 | 734 | 11.136398% |

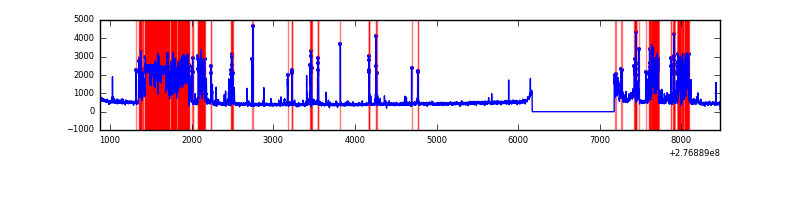

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

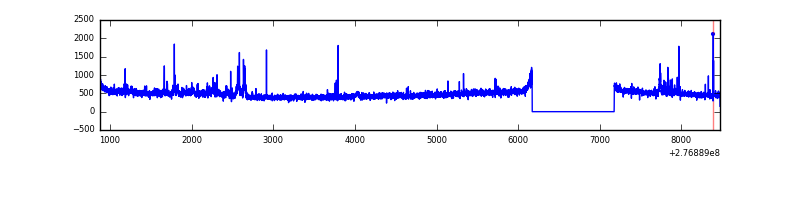

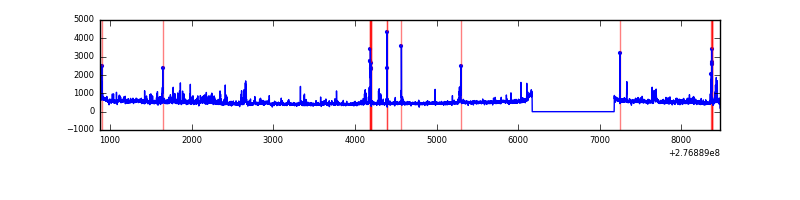

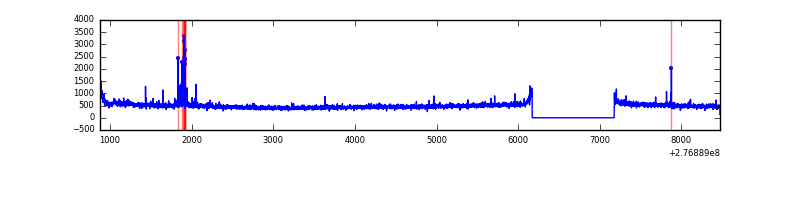

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7597 | 6593 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7597 | 6593 | 19 | 19 | 0.25% | 0.29% |  |
| C | 7597 | 6592 | 11 | 11 | 0.14% | 0.17% |  |
| D | 7597 | 6593 | 626 | 626 | 8.24% | 9.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 140998 | 873.58 | 792 | 776 | 160.5 |
| A | 9 | 143 | 35661 | 217.33 | 792 | 776 | 160.5 |
| A | 15 | 223 | 11807 | 68.72 | 792 | 776 | 160.5 |
| B | 0 | 189 | 103170 | 672.97 | 794 | 773 | 152.2 |
| B | 0 | 244 | 44579 | 287.9 | 794 | 773 | 152.2 |
| B | 10 | 16 | 44200 | 285.41 | 794 | 773 | 152.2 |
| C | 14 | 238 | 114723 | 633.58 | 763 | 768 | 179.9 |
| C | 3 | 233 | 74747 | 411.32 | 763 | 768 | 179.9 |
| C | 0 | 207 | 53368 | 292.45 | 763 | 768 | 179.9 |
| D | 7 | 38 | 1204120 | 6739.87 | 735 | 718 | 178.5 |
| D | 12 | 218 | 549504 | 3073.57 | 735 | 718 | 178.5 |
| D | 10 | 70 | 337169 | 1884.35 | 735 | 718 | 178.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

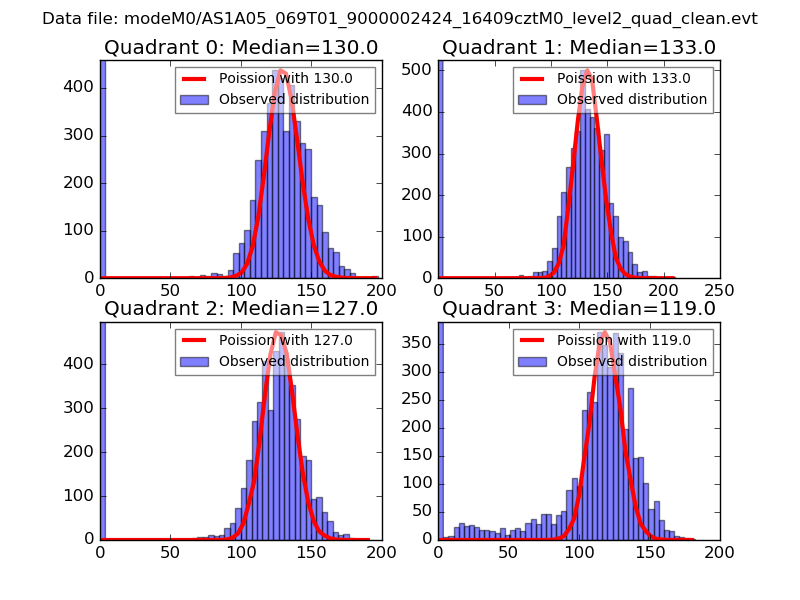

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

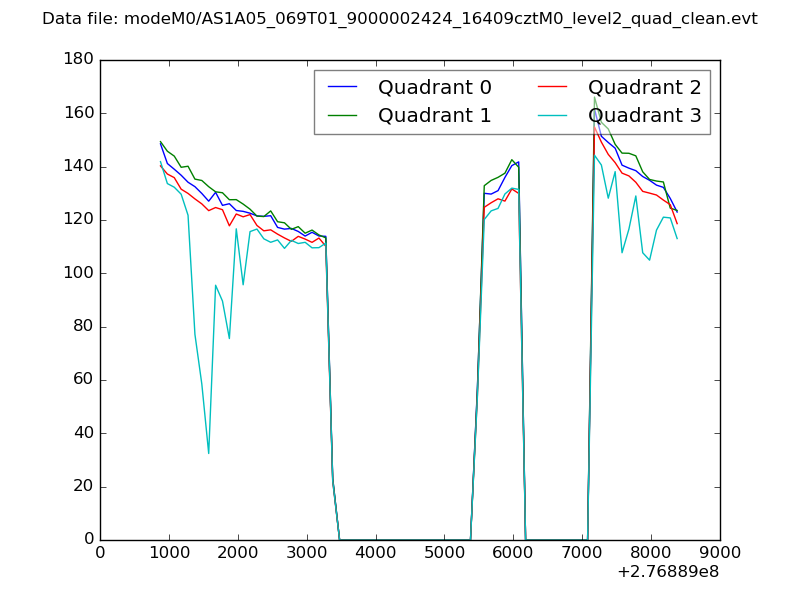

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

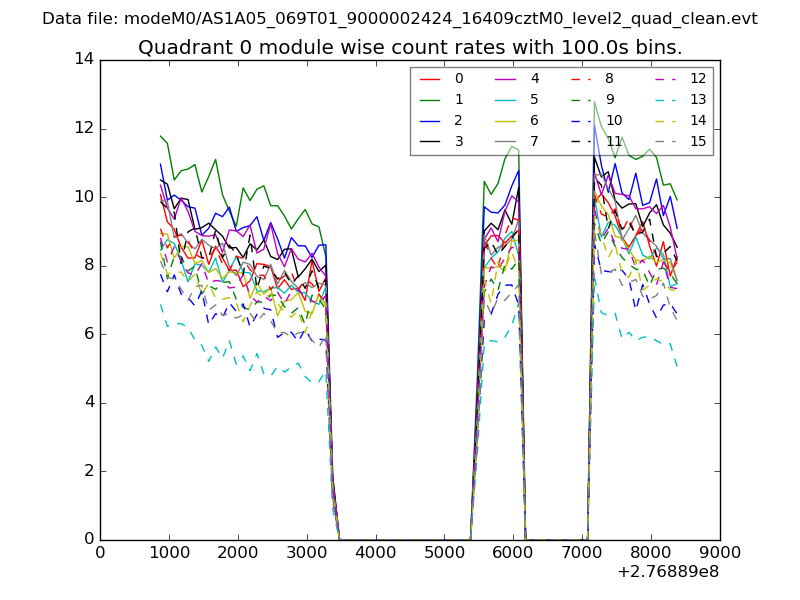

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

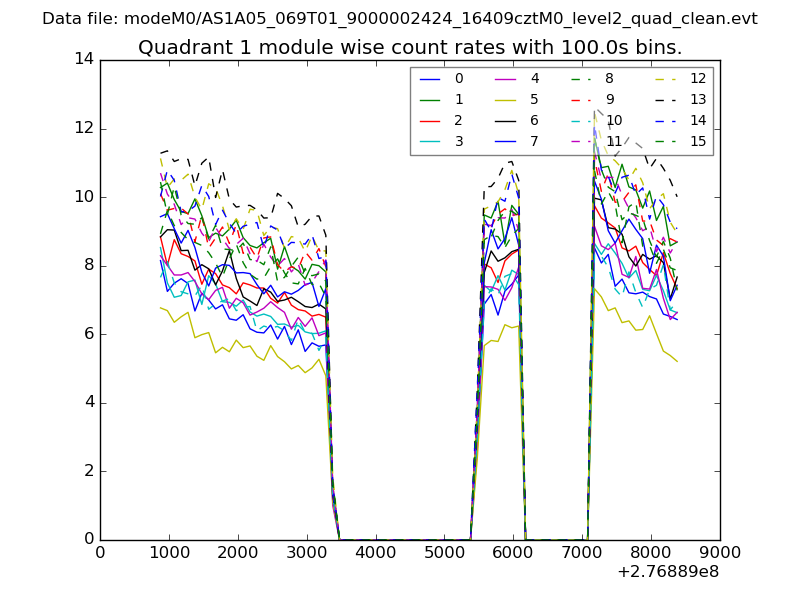

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

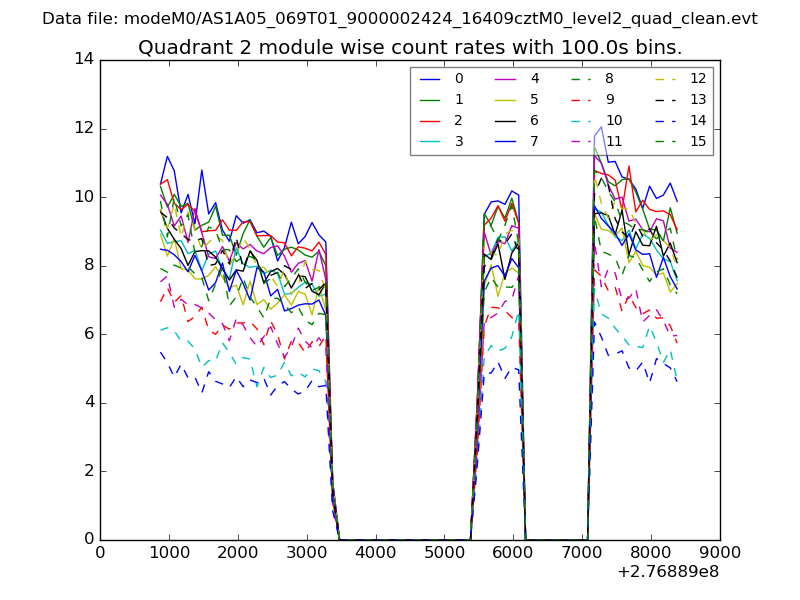

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

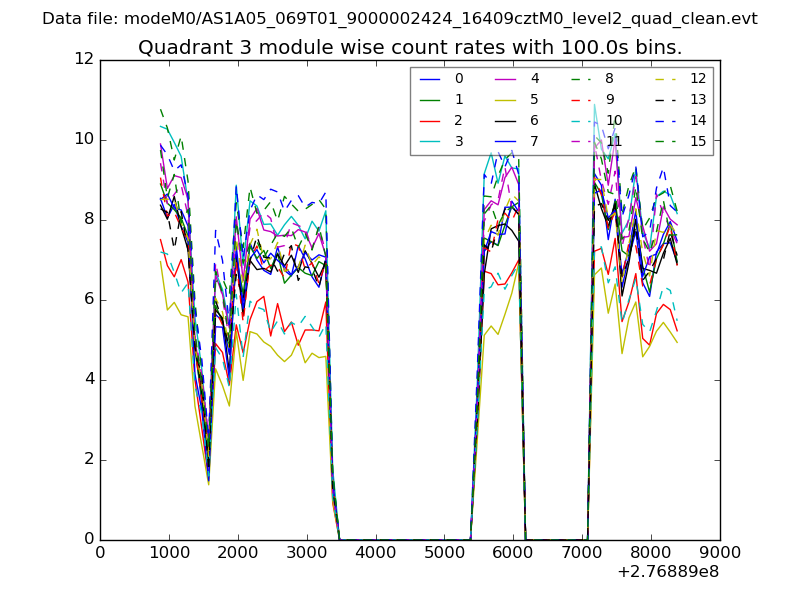

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

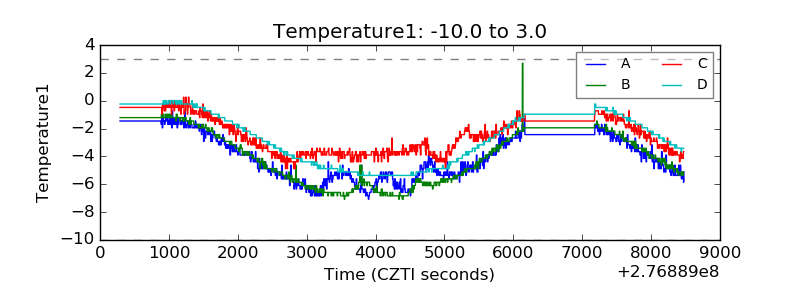

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

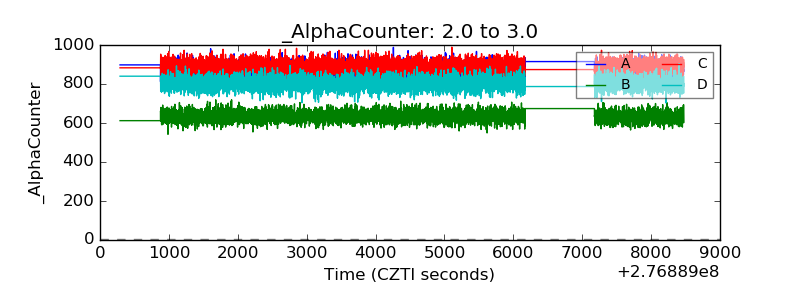

| Alpha Counter |  |

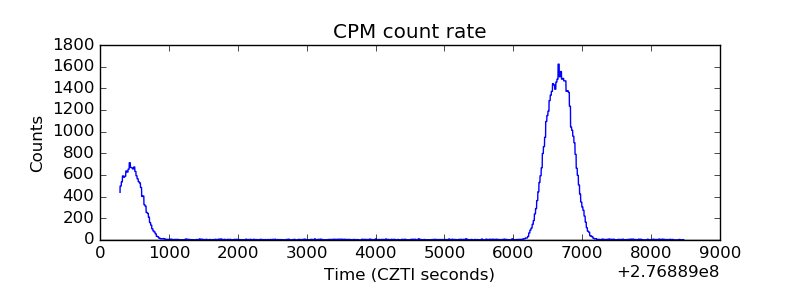

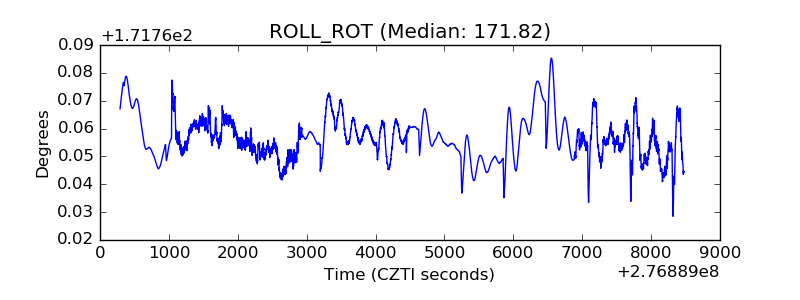

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

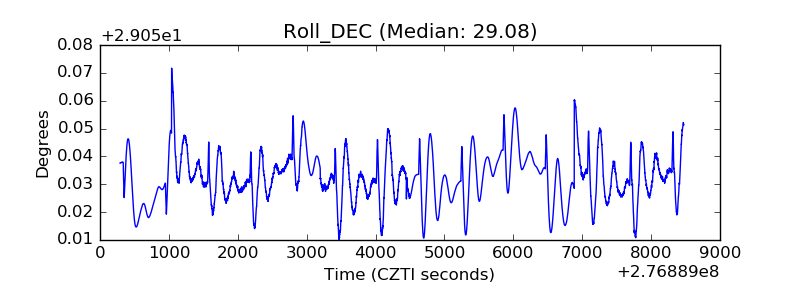

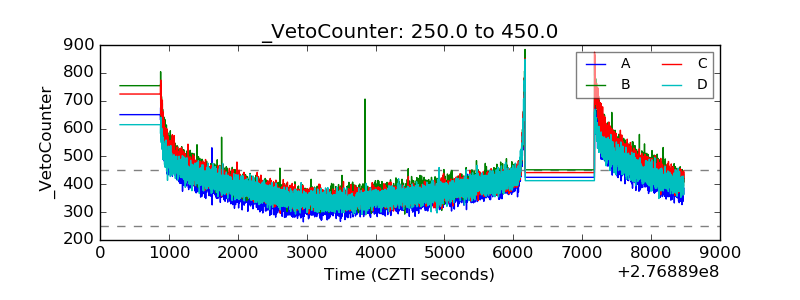

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
