| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T01_9000002424_16417cztM0_level2.evt | modeM0/AS1A05_069T01_9000002424_16417cztM0_level2_quad_clean.evt |
| Size (bytes) | 630,244,800 | 96,373,440 |
| Size | 601.0 MB | 91.9 MB |
| Events in quadrant A | 3,884,869 | 605,794 |
| Events in quadrant B | 4,741,120 | 609,344 |
| Events in quadrant C | 4,077,251 | 583,457 |
| Events in quadrant D | 5,840,093 | 562,092 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16712 | 3 |
| B | 0 | 19102 | 2 |
| C | 0 | 16995 | 2 |
| D | 0 | 22907 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8027 | 198 | 2.466675% |
| B | 8027 | 337 | 4.198331% |
| C | 8027 | 228 | 2.840414% |
| D | 8027 | 264 | 3.288900% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9598 | 8029 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9598 | 8029 | 35 | 35 | 0.36% | 0.44% |  |
| C | 9598 | 8029 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9598 | 8029 | 70 | 70 | 0.73% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8813 | 38.57 | 1006 | 982 | 203.0 |
| A | 12 | 194 | 7410 | 31.66 | 1006 | 982 | 203.0 |
| A | 3 | 137 | 7063 | 29.95 | 1006 | 982 | 203.0 |
| B | 15 | 35 | 293151 | 1495.39 | 1007 | 979 | 195.4 |
| B | 0 | 244 | 197497 | 1005.81 | 1007 | 979 | 195.4 |
| B | 0 | 198 | 77129 | 389.75 | 1007 | 979 | 195.4 |
| C | 14 | 238 | 145804 | 640.3 | 964 | 970 | 226.2 |
| C | 7 | 247 | 103899 | 455.04 | 964 | 970 | 226.2 |
| C | 3 | 233 | 63446 | 276.2 | 964 | 970 | 226.2 |
| D | 1 | 20 | 1861378 | 7918.88 | 966 | 940 | 234.9 |
| D | 7 | 38 | 86401 | 363.76 | 966 | 940 | 234.9 |
| D | 10 | 70 | 77449 | 325.66 | 966 | 940 | 234.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

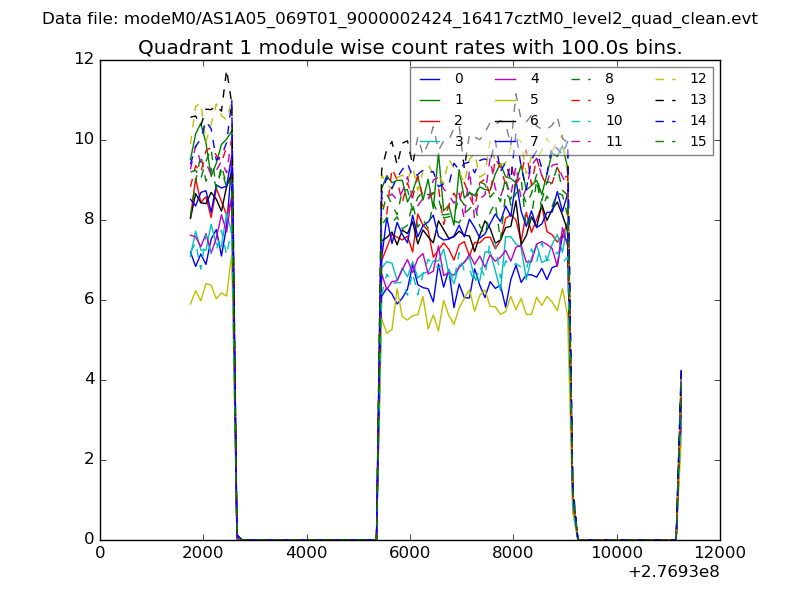

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

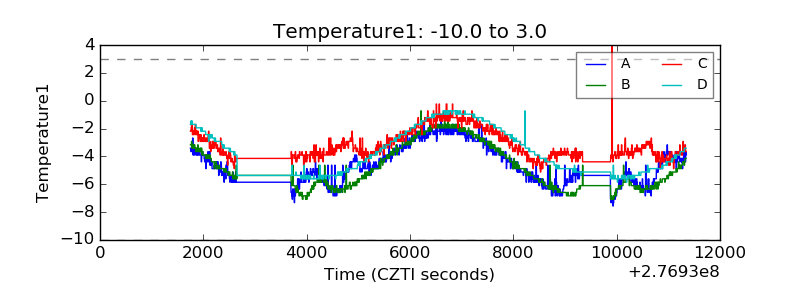

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

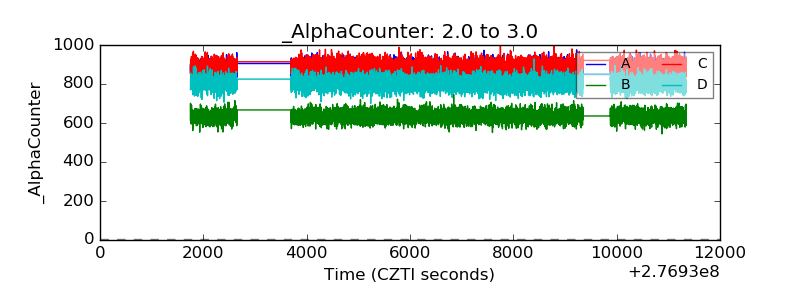

| Alpha Counter |  |

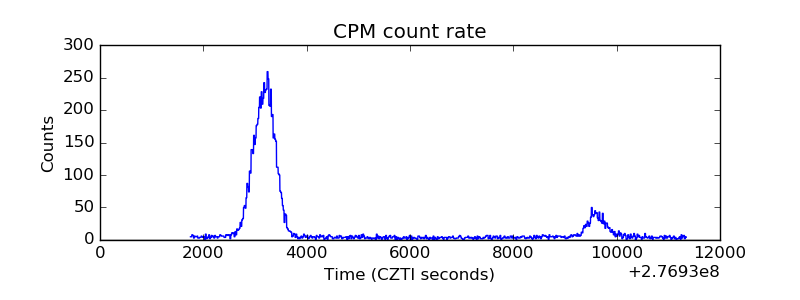

| _CPM_Rate |  |

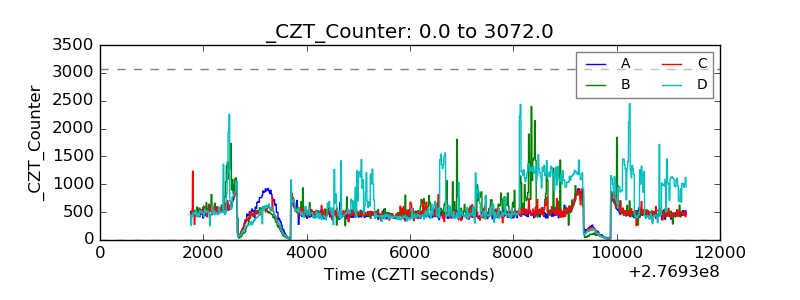

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

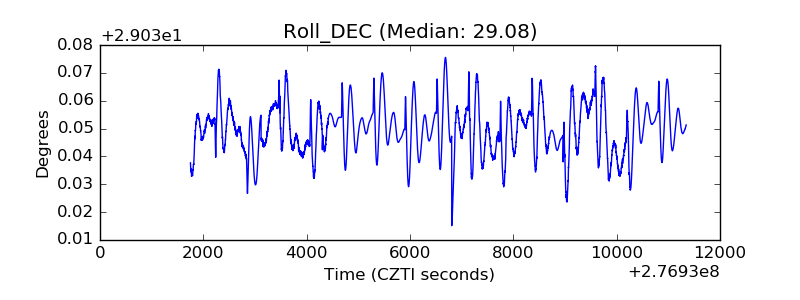

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
