| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T01_9000002424_16419cztM0_level2.evt | modeM0/AS1A05_069T01_9000002424_16419cztM0_level2_quad_clean.evt |
| Size (bytes) | 563,336,640 | 92,531,520 |
| Size | 537.2 MB | 88.2 MB |
| Events in quadrant A | 3,999,353 | 573,105 |
| Events in quadrant B | 3,967,563 | 590,256 |
| Events in quadrant C | 3,774,062 | 559,251 |
| Events in quadrant D | 4,794,176 | 540,888 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16965 | 2 |
| B | 0 | 16647 | 1 |
| C | 0 | 16147 | 1 |
| D | 0 | 19594 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7748 | 279 | 3.600929% |
| B | 7748 | 218 | 2.813629% |
| C | 7748 | 227 | 2.929788% |
| D | 7748 | 192 | 2.478059% |

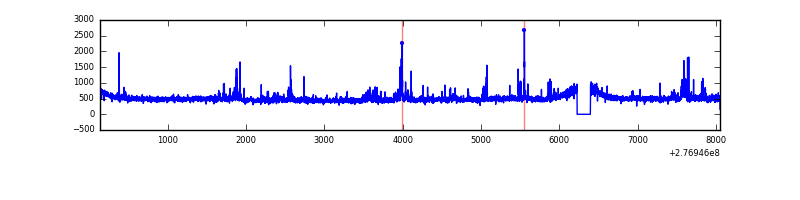

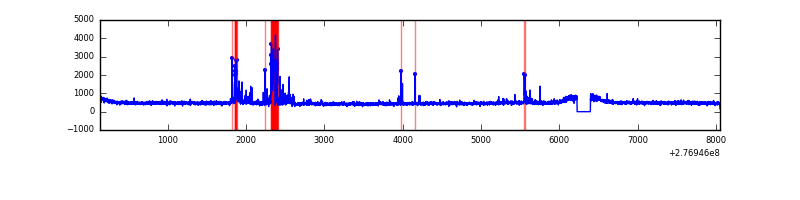

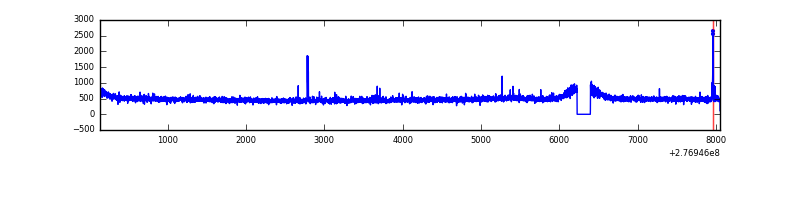

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

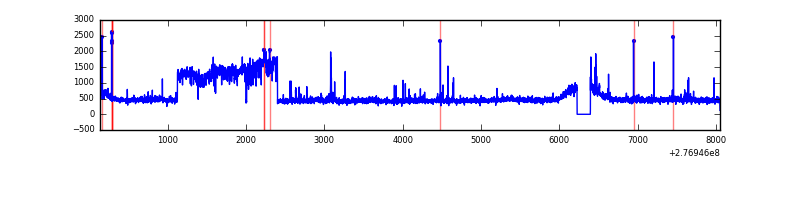

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7919 | 7749 | 71 | 71 | 0.90% | 0.92% |  |
| B | 7919 | 7749 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7919 | 7750 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7919 | 7749 | 11 | 11 | 0.14% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 384475 | 2006.97 | 939 | 918 | 191.1 |
| A | 0 | 226 | 8311 | 38.68 | 939 | 918 | 191.1 |
| A | 12 | 194 | 6850 | 31.04 | 939 | 918 | 191.1 |
| B | 15 | 35 | 70443 | 384.05 | 944 | 917 | 181.0 |
| B | 0 | 198 | 50154 | 271.98 | 944 | 917 | 181.0 |
| B | 4 | 173 | 40954 | 221.16 | 944 | 917 | 181.0 |
| C | 14 | 238 | 139869 | 653.95 | 904 | 909 | 212.5 |
| C | 3 | 233 | 35582 | 163.17 | 904 | 909 | 212.5 |
| C | 7 | 247 | 24946 | 113.12 | 904 | 909 | 212.5 |
| D | 1 | 20 | 1154482 | 5124.47 | 916 | 886 | 225.1 |
| D | 12 | 218 | 70509 | 309.28 | 916 | 886 | 225.1 |
| D | 1 | 52 | 64947 | 284.57 | 916 | 886 | 225.1 |

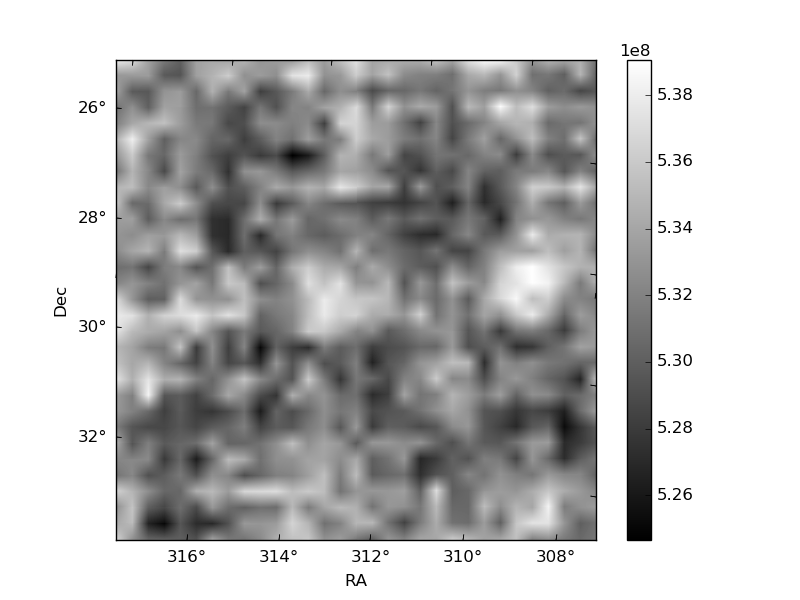

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

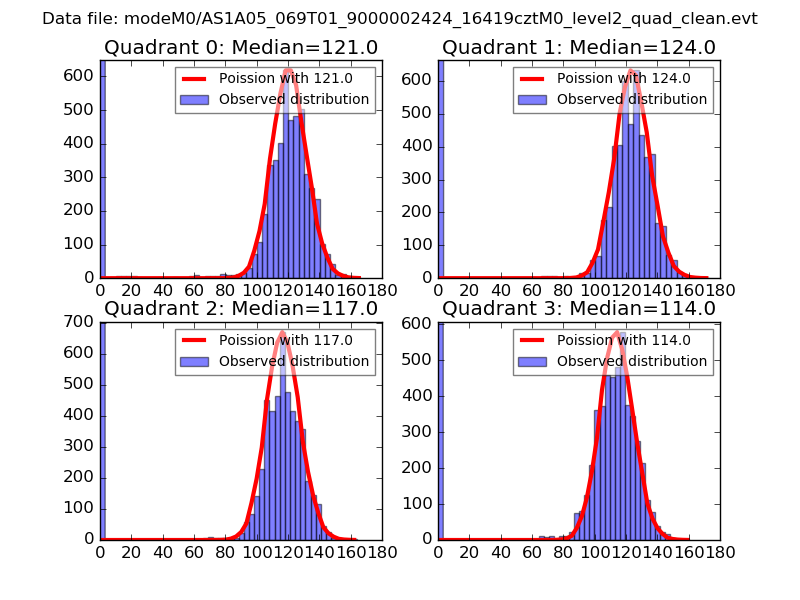

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

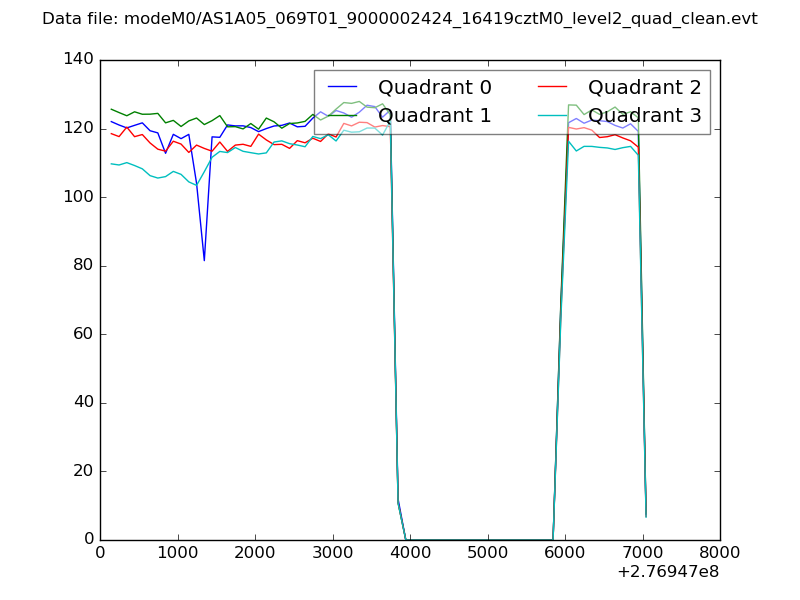

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

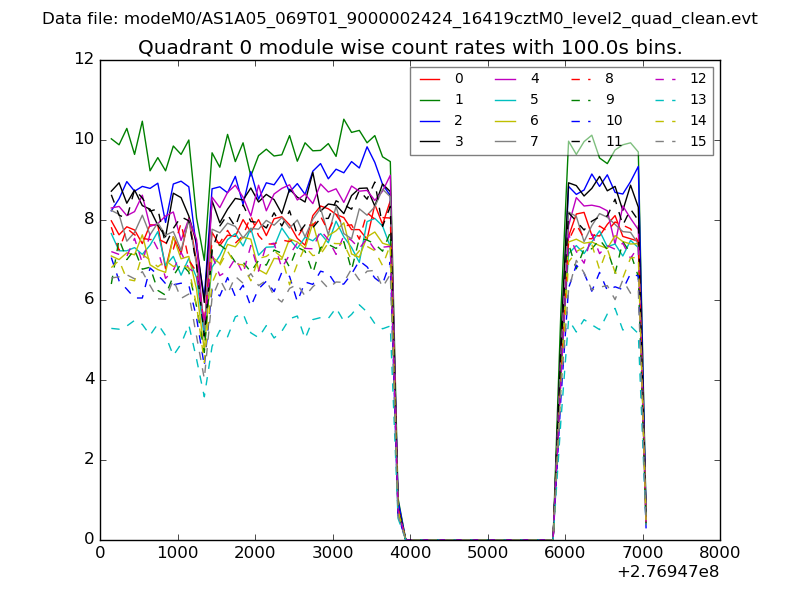

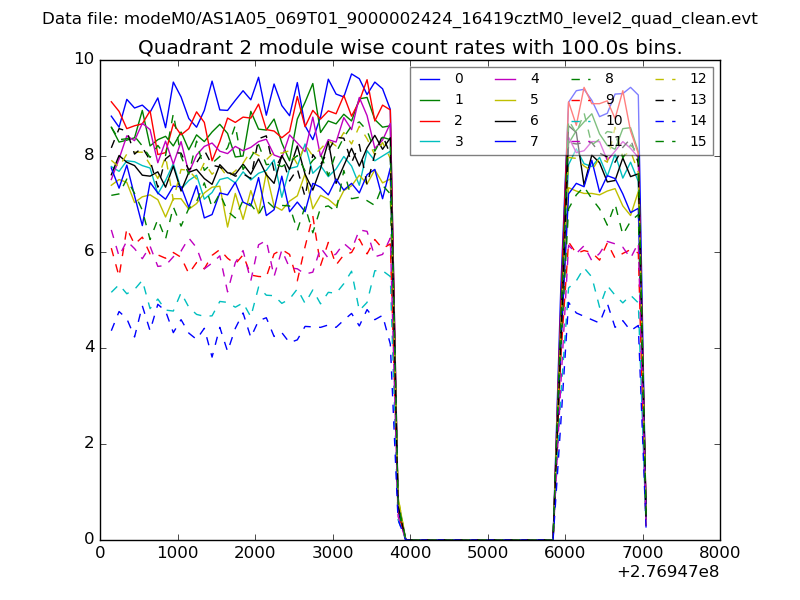

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

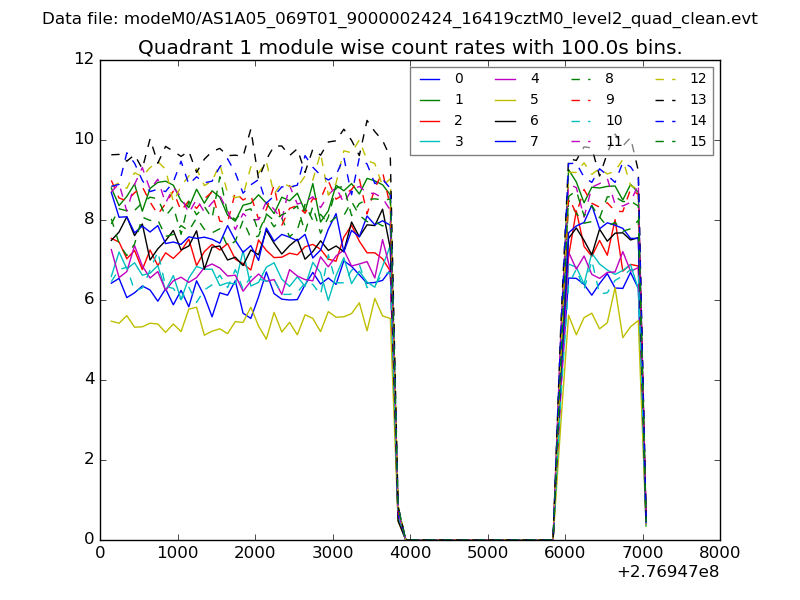

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

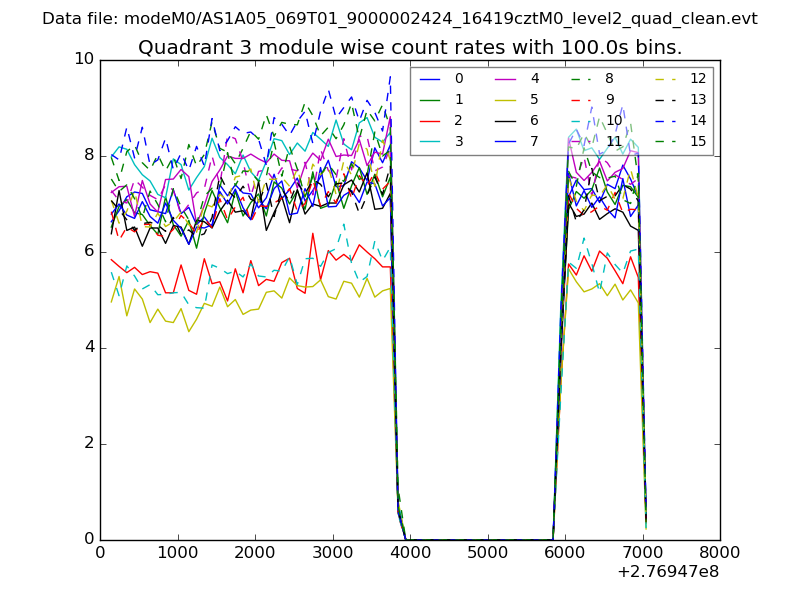

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

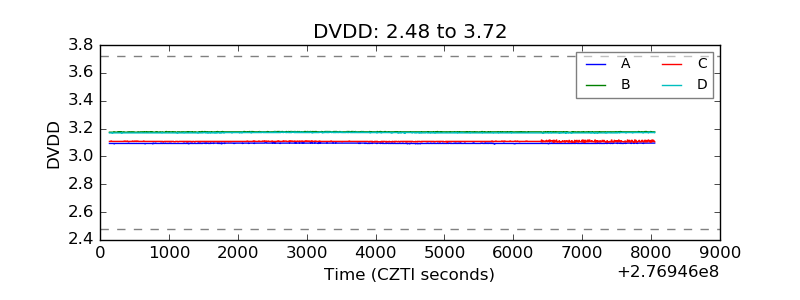

| D_VDD |  |

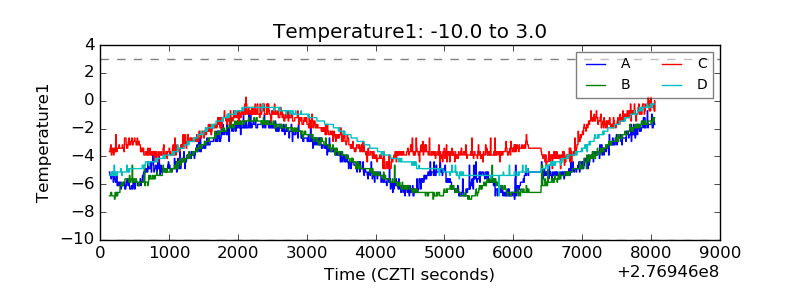

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

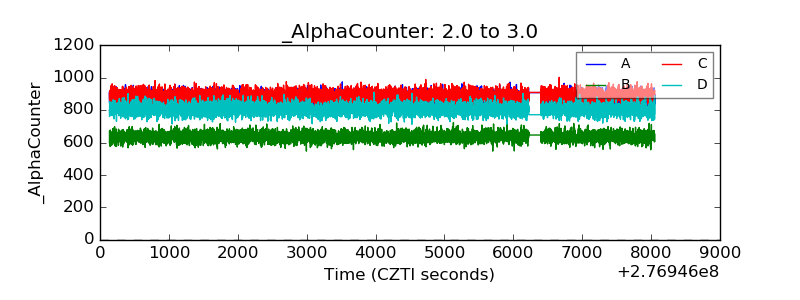

| Alpha Counter |  |

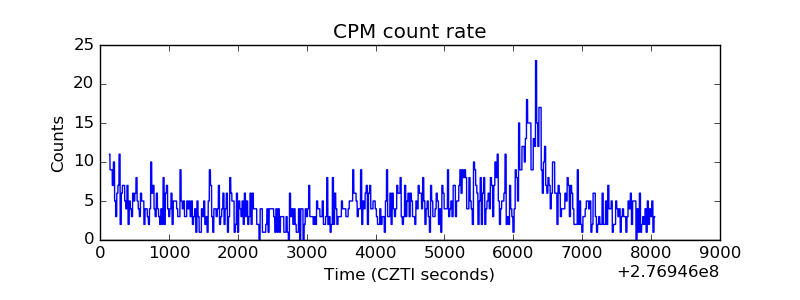

| _CPM_Rate |  |

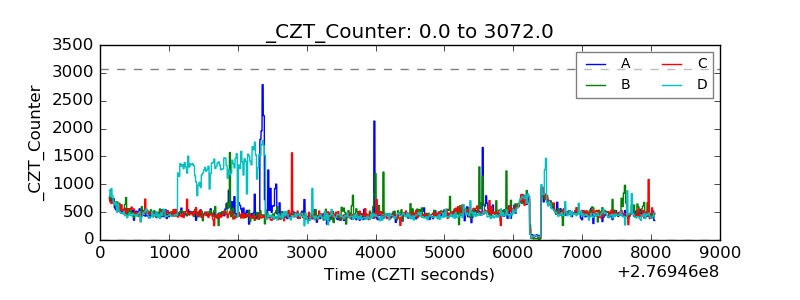

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

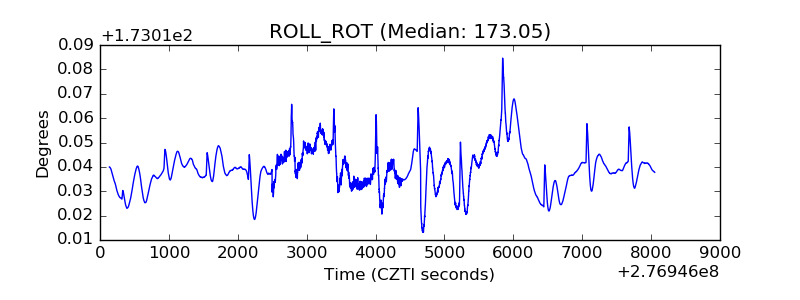

| _ROLL_ROT |  |

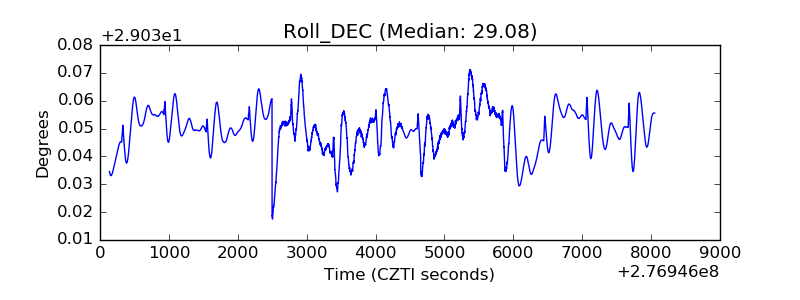

| _Roll_DEC |  |

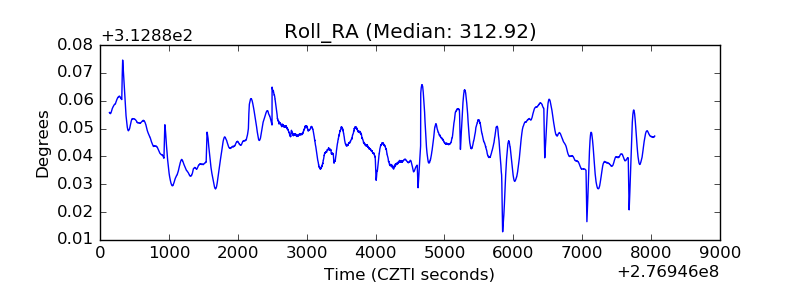

| _Roll_RA |  |

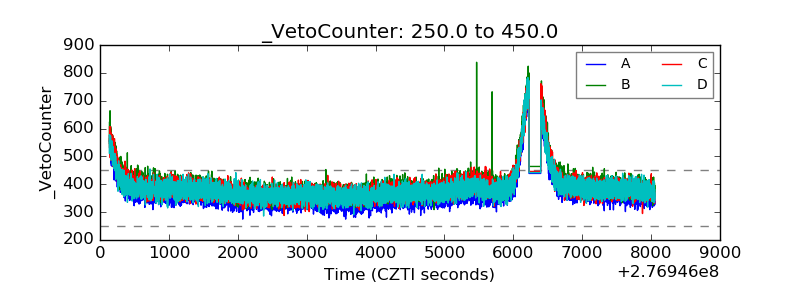

| Veto Counter |  |
