| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T03_9000002426_16422cztM0_level2.evt | modeM0/AS1A05_069T03_9000002426_16422cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,056,553,920 | 172,912,320 |
| Size | 1007.6 MB | 164.9 MB |
| Events in quadrant A | 7,448,484 | 1,070,350 |
| Events in quadrant B | 7,638,677 | 1,099,039 |
| Events in quadrant C | 8,189,071 | 1,042,368 |
| Events in quadrant D | 7,730,121 | 1,013,195 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 298 | 0 |
| B | 0 | 298 | 0 |
| C | 0 | 298 | 0 |
| D | 0 | 298 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31936 | 4 |
| B | 0 | 32046 | 3 |
| C | 0 | 33707 | 3 |
| D | 0 | 33133 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14660 | 408 | 2.783083% |
| B | 14660 | 251 | 1.712142% |
| C | 14660 | 355 | 2.421555% |
| D | 14660 | 358 | 2.442019% |

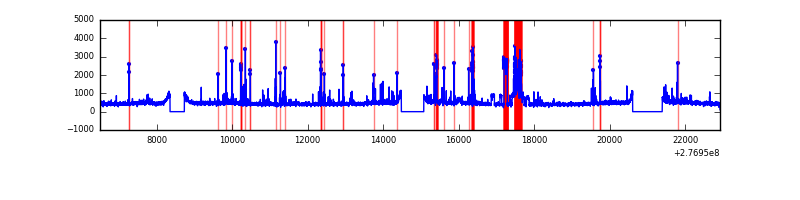

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16421 | 14661 | 98 | 98 | 0.60% | 0.67% |  |
| B | 16421 | 14662 | 26 | 26 | 0.16% | 0.18% |  |
| C | 16421 | 14663 | 23 | 23 | 0.14% | 0.16% |  |
| D | 16421 | 14662 | 220 | 220 | 1.34% | 1.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 633524 | 1777.5 | 1753 | 1711 | 355.5 |
| A | 15 | 223 | 62821 | 171.92 | 1753 | 1711 | 355.5 |
| A | 15 | 239 | 20896 | 53.97 | 1753 | 1711 | 355.5 |
| B | 15 | 35 | 247373 | 726.34 | 1760 | 1712 | 338.2 |
| B | 0 | 198 | 116068 | 338.12 | 1760 | 1712 | 338.2 |
| B | 0 | 244 | 97764 | 284.0 | 1760 | 1712 | 338.2 |
| C | 3 | 233 | 1114851 | 2802.92 | 1687 | 1695 | 397.1 |
| C | 14 | 238 | 258034 | 645.46 | 1687 | 1695 | 397.1 |
| C | 3 | 9 | 173452 | 432.48 | 1687 | 1695 | 397.1 |
| D | 10 | 70 | 514455 | 1238.92 | 1702 | 1649 | 413.9 |
| D | 1 | 20 | 299755 | 720.21 | 1702 | 1649 | 413.9 |
| D | 12 | 218 | 146407 | 349.73 | 1702 | 1649 | 413.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

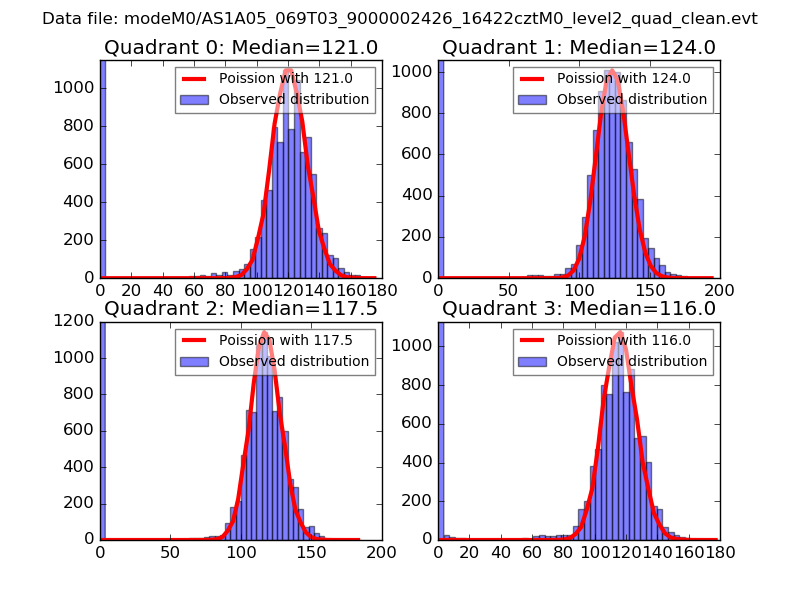

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

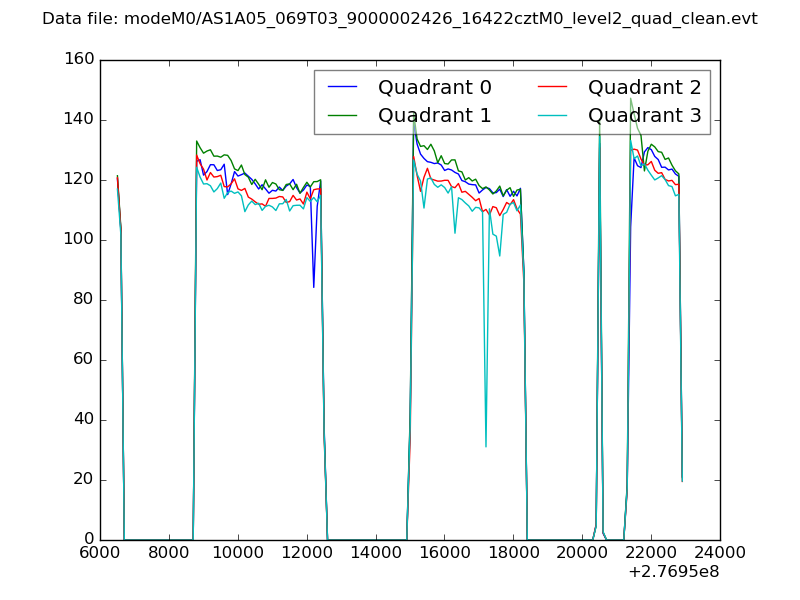

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

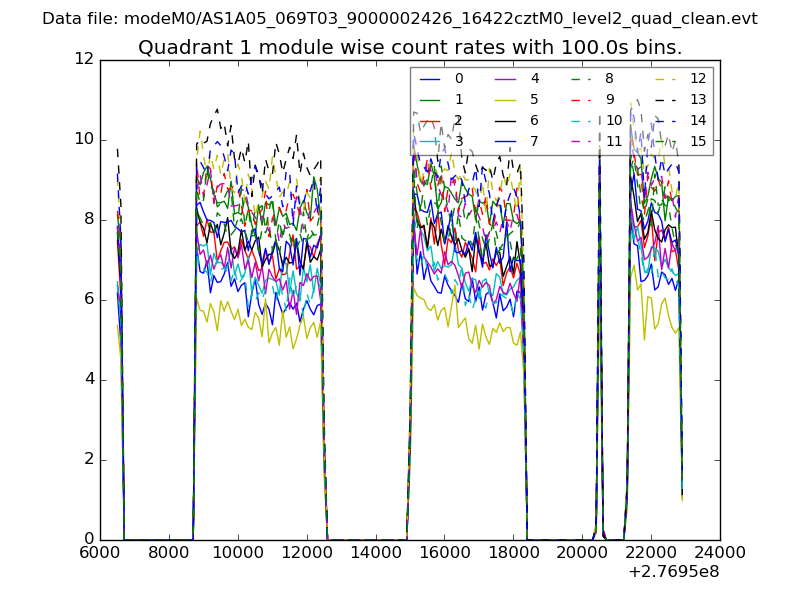

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

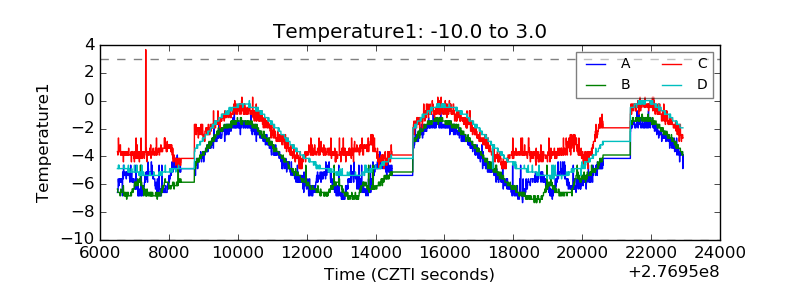

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

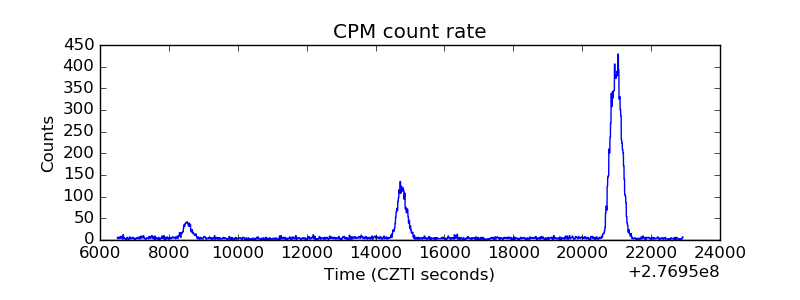

| _CPM_Rate |  |

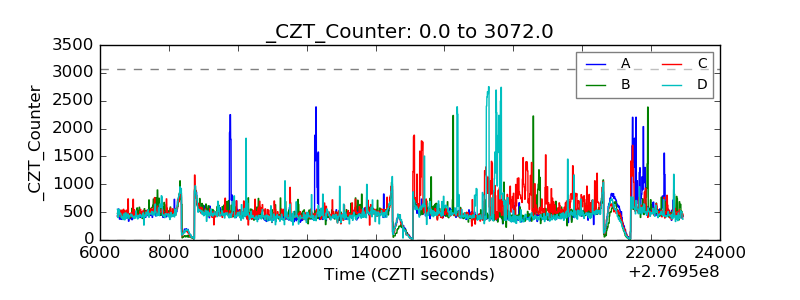

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

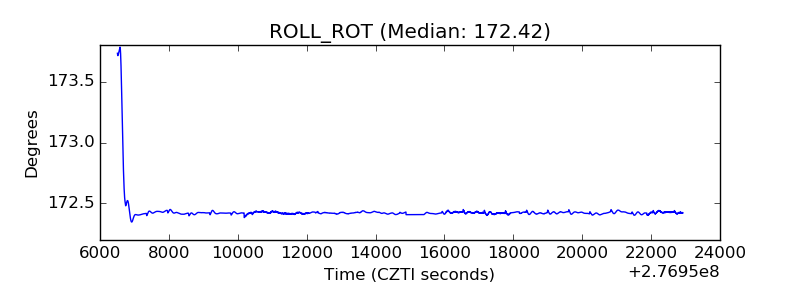

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
