| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T03_9000002426_16430cztM0_level2.evt | modeM0/AS1A05_069T03_9000002426_16430cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,333,120 | 71,052,480 |
| Size | 469.5 MB | 67.8 MB |
| Events in quadrant A | 3,385,152 | 430,759 |
| Events in quadrant B | 3,829,772 | 439,114 |
| Events in quadrant C | 3,386,952 | 415,848 |
| Events in quadrant D | 3,850,360 | 395,417 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14211 | 4 |
| B | 0 | 15494 | 3 |
| C | 0 | 14195 | 3 |
| D | 0 | 16049 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6741 | 148 | 2.195520% |
| B | 6741 | 221 | 3.278445% |
| C | 6741 | 163 | 2.418039% |
| D | 6741 | 232 | 3.441626% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

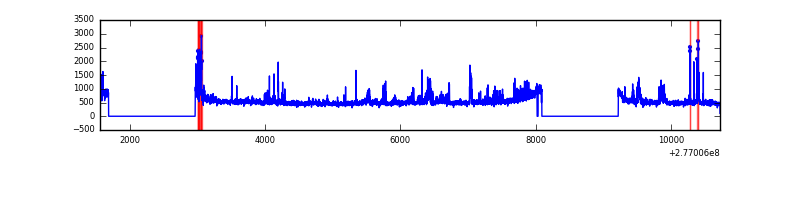

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9167 | 6744 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9167 | 6744 | 18 | 18 | 0.20% | 0.27% |  |
| C | 9167 | 6744 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9167 | 6744 | 87 | 87 | 0.95% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 31478 | 176.2 | 864 | 847 | 173.8 |
| A | 15 | 223 | 23545 | 130.57 | 864 | 847 | 173.8 |
| A | 15 | 239 | 8871 | 46.16 | 864 | 847 | 173.8 |
| B | 15 | 35 | 198473 | 1199.42 | 866 | 845 | 164.8 |
| B | 0 | 189 | 74811 | 448.91 | 866 | 845 | 164.8 |
| B | 4 | 173 | 70177 | 420.78 | 866 | 845 | 164.8 |
| C | 14 | 238 | 125436 | 644.87 | 823 | 831 | 193.2 |
| C | 3 | 233 | 40316 | 204.35 | 823 | 831 | 193.2 |
| C | 7 | 247 | 13958 | 67.94 | 823 | 831 | 193.2 |
| D | 12 | 218 | 374989 | 1866.15 | 821 | 796 | 200.5 |
| D | 5 | 222 | 264477 | 1315.02 | 821 | 796 | 200.5 |
| D | 2 | 122 | 76645 | 378.27 | 821 | 796 | 200.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

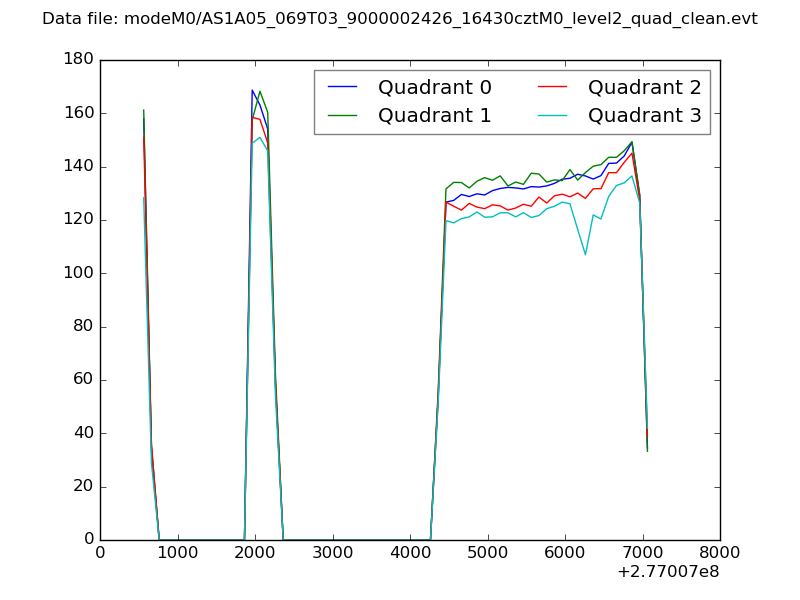

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

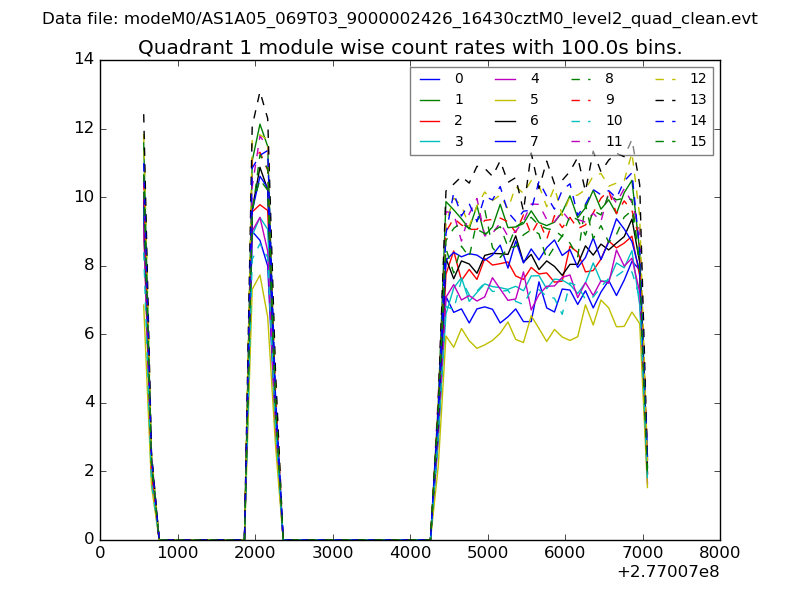

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

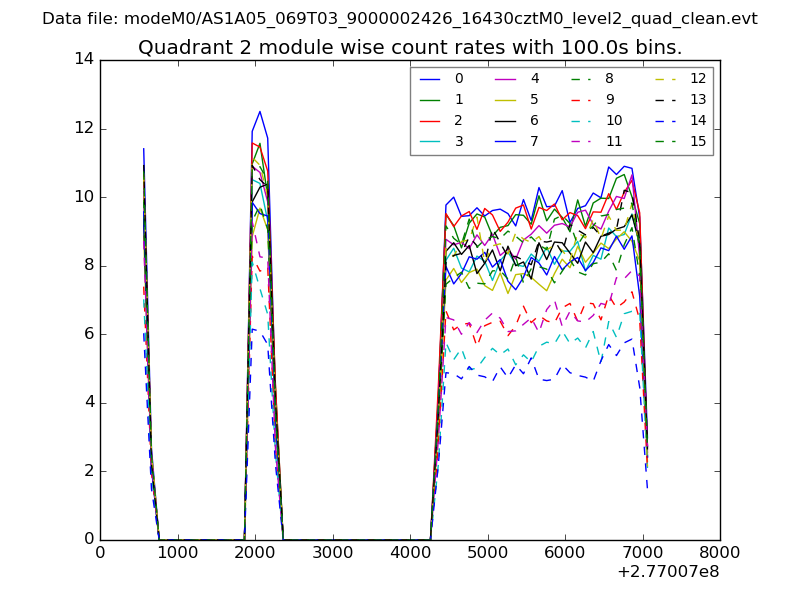

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

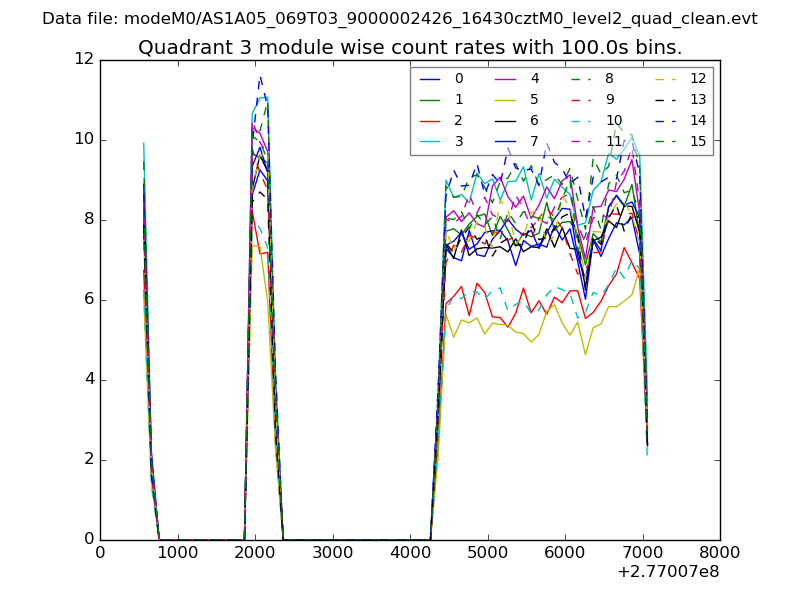

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

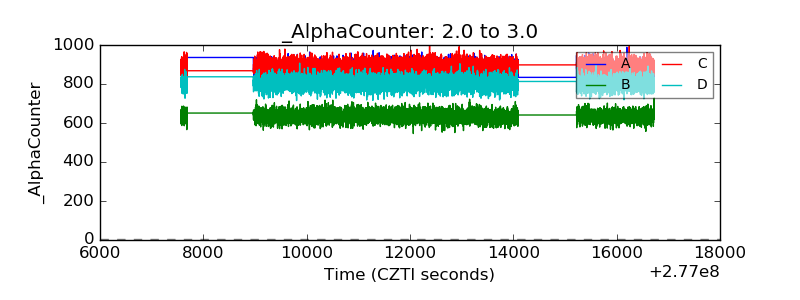

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

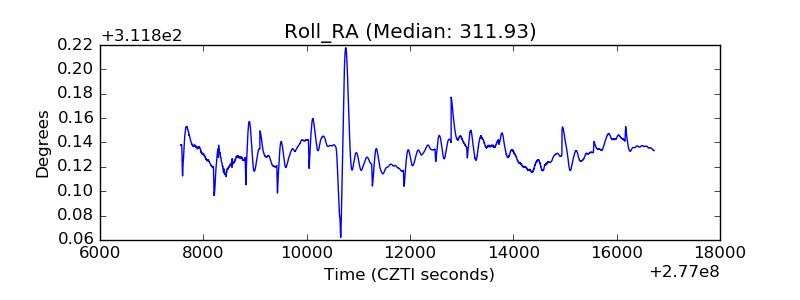

| _Roll_RA |  |

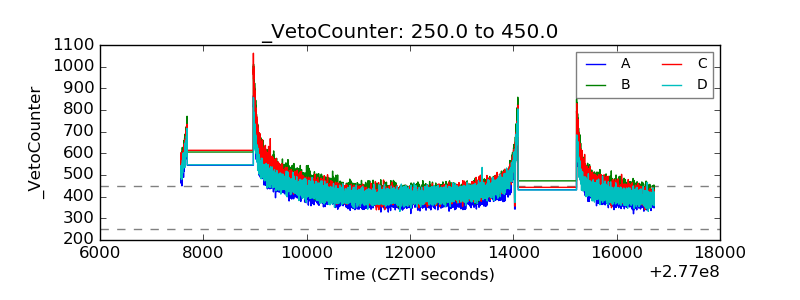

| Veto Counter |  |
