| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T04_9000002428_16438cztM0_level2.evt | modeM0/AS1A05_069T04_9000002428_16438cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,312,320 | 88,303,680 |
| Size | 479.0 MB | 84.2 MB |
| Events in quadrant A | 3,274,394 | 567,428 |
| Events in quadrant B | 3,516,481 | 581,230 |
| Events in quadrant C | 4,199,655 | 539,597 |
| Events in quadrant D | 3,780,079 | 531,696 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14167 | 3 |
| B | 0 | 14649 | 2 |
| C | 0 | 16795 | 2 |
| D | 0 | 15787 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6510 | 64 | 0.983103% |
| B | 6510 | 68 | 1.044547% |
| C | 6510 | 265 | 4.070661% |
| D | 6510 | 175 | 2.688172% |

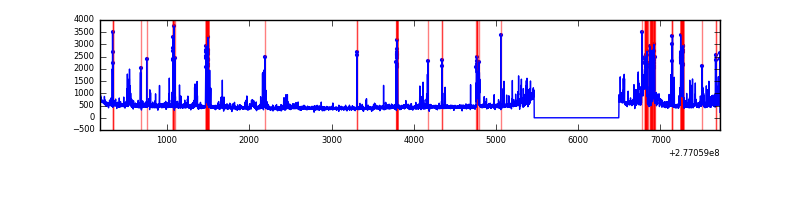

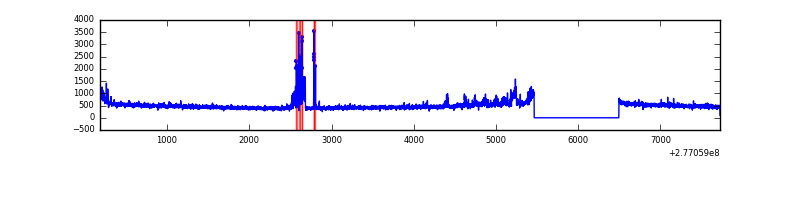

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6511 | 14 | 14 | 0.19% | 0.22% |  |
| B | 7541 | 6511 | 14 | 14 | 0.19% | 0.22% |  |
| C | 7541 | 6512 | 40 | 40 | 0.53% | 0.61% |  |
| D | 7541 | 6511 | 128 | 128 | 1.70% | 1.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 230913 | 1462.92 | 779 | 763 | 157.3 |
| A | 3 | 1 | 29249 | 181.07 | 779 | 763 | 157.3 |
| A | 15 | 223 | 15329 | 92.59 | 779 | 763 | 157.3 |
| B | 15 | 35 | 152723 | 1013.58 | 782 | 761 | 149.9 |
| B | 3 | 209 | 47328 | 310.6 | 782 | 761 | 149.9 |
| B | 4 | 173 | 46162 | 302.82 | 782 | 761 | 149.9 |
| C | 3 | 233 | 990214 | 5652.79 | 745 | 749 | 175.0 |
| C | 4 | 254 | 153708 | 873.85 | 745 | 749 | 175.0 |
| C | 14 | 238 | 120406 | 683.6 | 745 | 749 | 175.0 |
| D | 12 | 218 | 437796 | 2382.72 | 753 | 729 | 183.4 |
| D | 5 | 222 | 189715 | 1030.28 | 753 | 729 | 183.4 |
| D | 1 | 52 | 117554 | 636.88 | 753 | 729 | 183.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

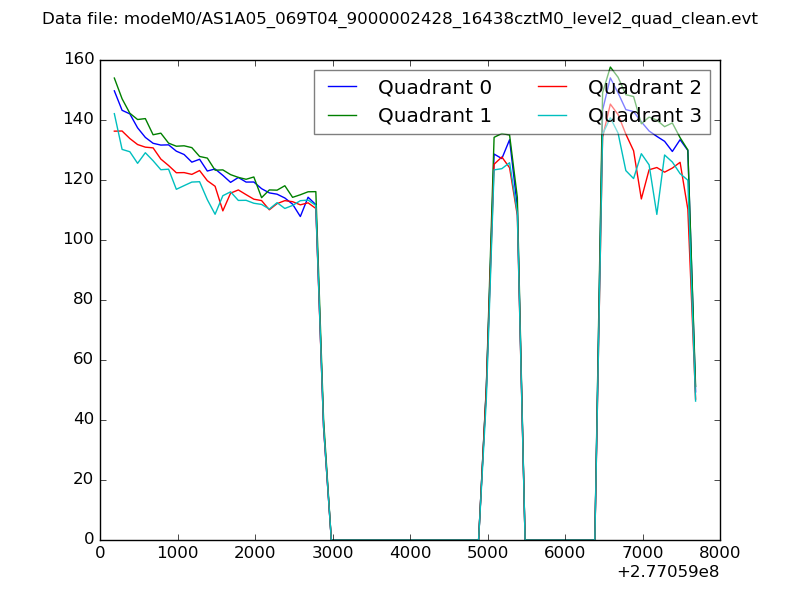

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

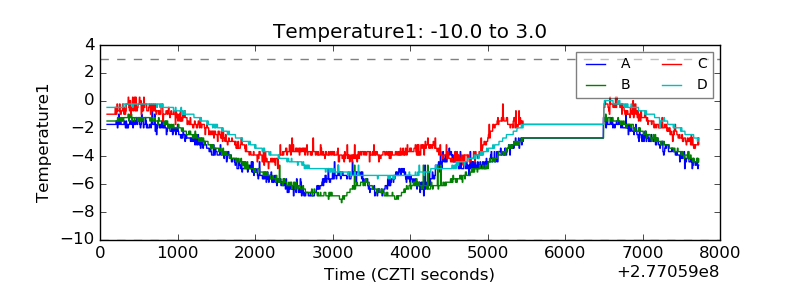

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

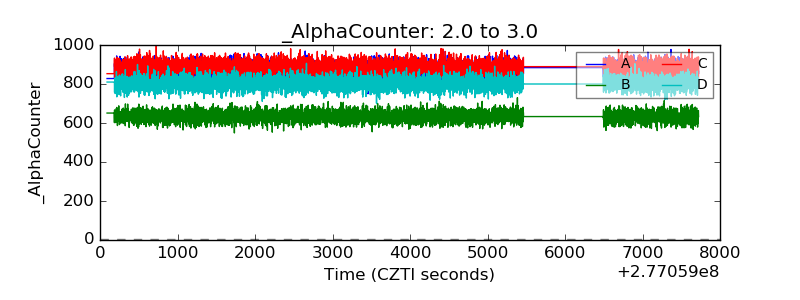

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

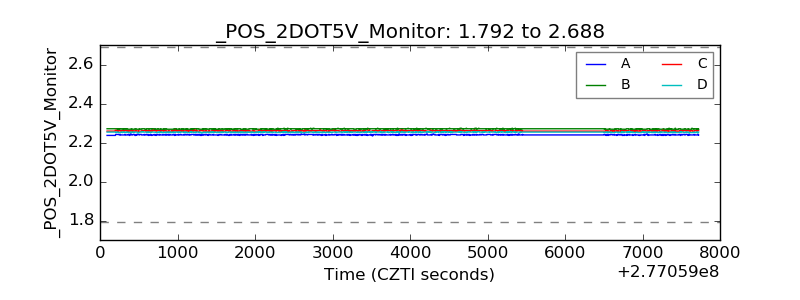

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

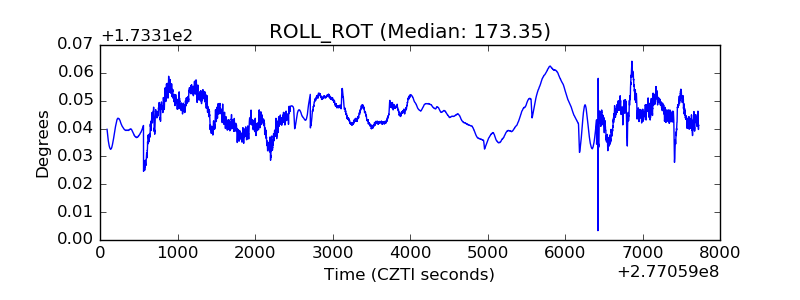

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

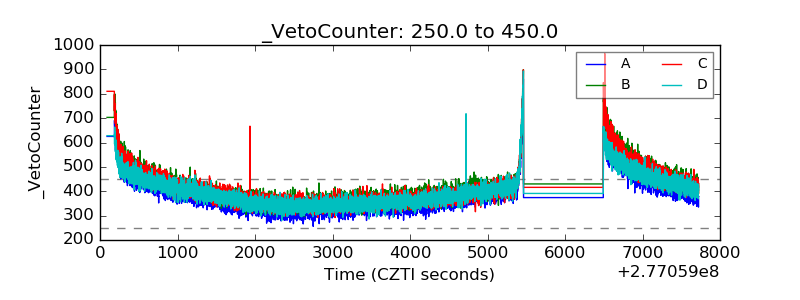

| Veto Counter |  |
