| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_007T04_9000002430_16448cztM0_level2.evt | modeM0/AS1C04_007T04_9000002430_16448cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,408,320 | 96,215,040 |
| Size | 507.7 MB | 91.8 MB |
| Events in quadrant A | 3,951,800 | 590,768 |
| Events in quadrant B | 4,266,143 | 612,044 |
| Events in quadrant C | 3,791,043 | 596,795 |
| Events in quadrant D | 3,594,325 | 580,767 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16726 | 4 |
| B | 0 | 17529 | 3 |
| C | 0 | 16084 | 3 |
| D | 0 | 16057 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7664 | 258 | 3.366388% |
| B | 7664 | 224 | 2.922756% |
| C | 7664 | 232 | 3.027140% |
| D | 7665 | 160 | 2.087410% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

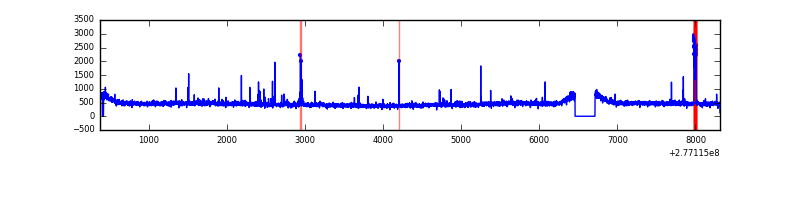

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7935 | 7666 | 79 | 79 | 1.00% | 1.03% |  |
| B | 7935 | 7667 | 17 | 17 | 0.21% | 0.22% |  |
| C | 7935 | 7666 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7936 | 7667 | 27 | 27 | 0.34% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 350681 | 1858.57 | 932 | 912 | 188.2 |
| A | 3 | 1 | 13928 | 69.16 | 932 | 912 | 188.2 |
| A | 0 | 226 | 8290 | 39.2 | 932 | 912 | 188.2 |
| B | 15 | 35 | 183206 | 1017.71 | 937 | 912 | 179.1 |
| B | 0 | 229 | 101147 | 559.59 | 937 | 912 | 179.1 |
| B | 7 | 220 | 84564 | 467.01 | 937 | 912 | 179.1 |
| C | 14 | 238 | 138910 | 657.89 | 896 | 899 | 209.8 |
| C | 3 | 233 | 125821 | 595.49 | 896 | 899 | 209.8 |
| C | 0 | 207 | 33424 | 155.04 | 896 | 899 | 209.8 |
| D | 2 | 33 | 73381 | 323.21 | 911 | 880 | 224.3 |
| D | 10 | 70 | 38250 | 166.59 | 911 | 880 | 224.3 |
| D | 2 | 234 | 28598 | 123.57 | 911 | 880 | 224.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

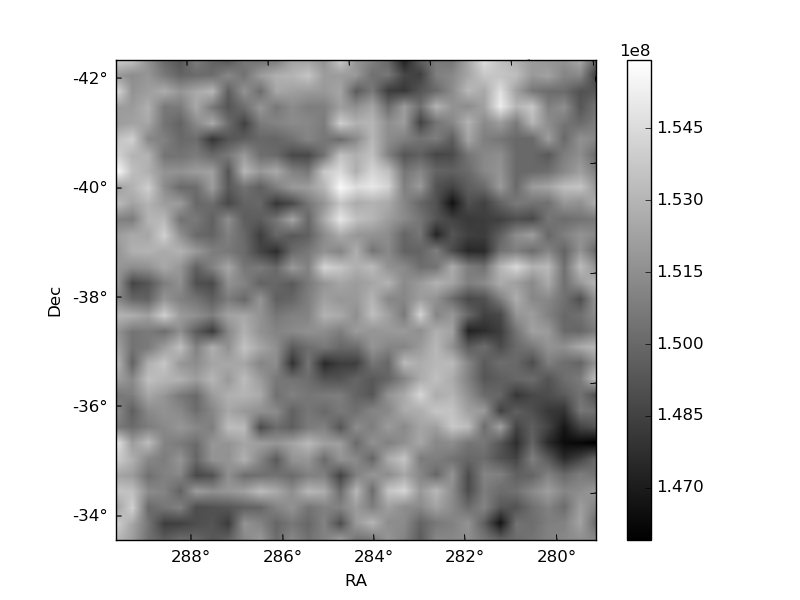

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

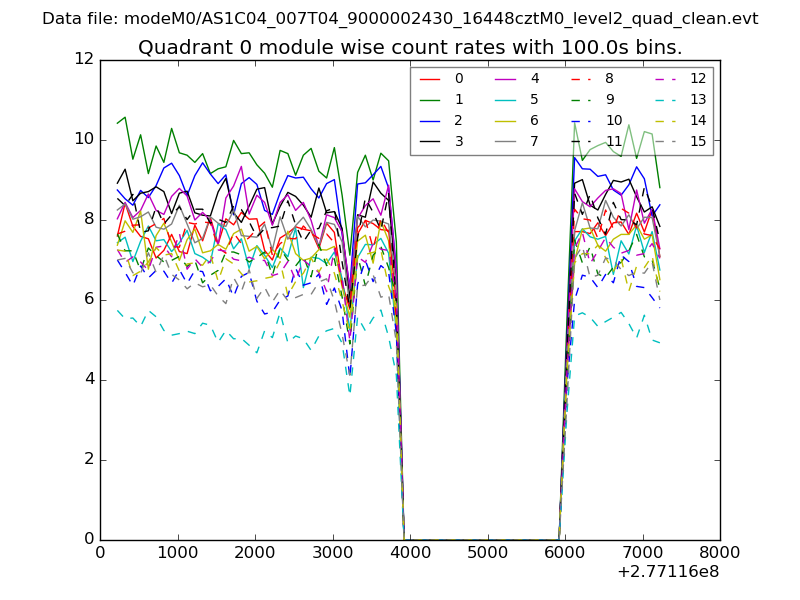

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

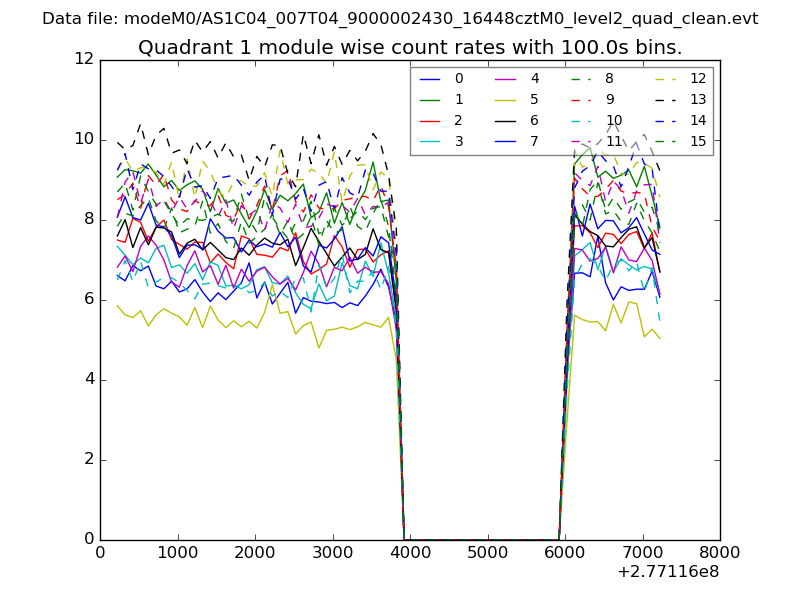

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

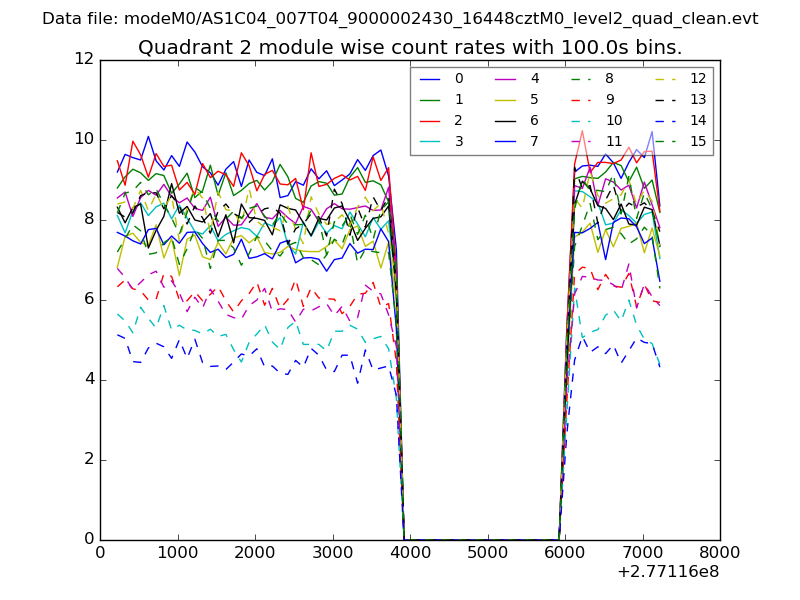

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

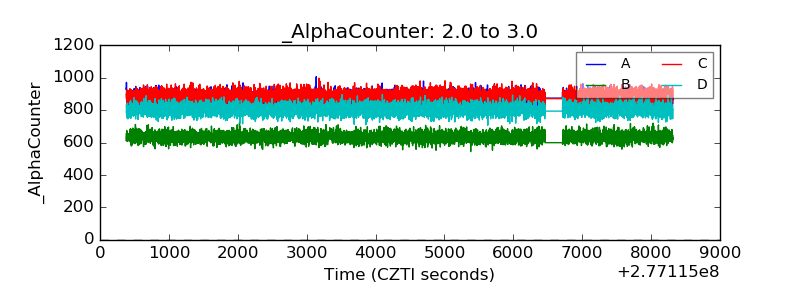

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

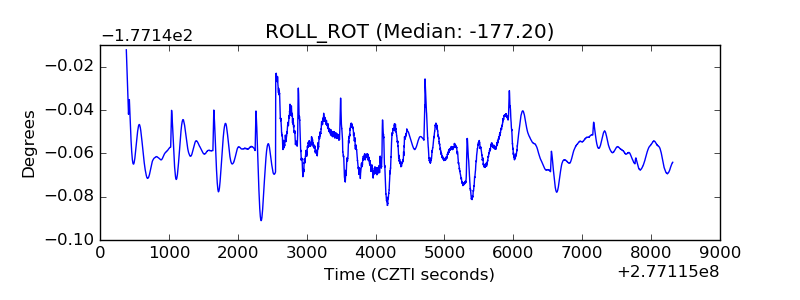

| _ROLL_ROT |  |

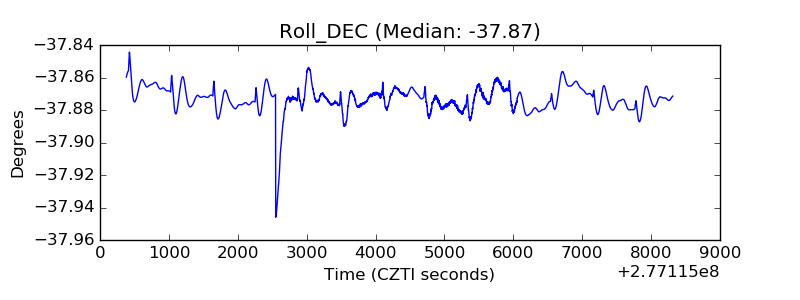

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
