| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_007T04_9000002430_16454cztM0_level2.evt | modeM0/AS1C04_007T04_9000002430_16454cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,614,720 | 88,462,080 |
| Size | 462.2 MB | 84.4 MB |
| Events in quadrant A | 3,159,531 | 568,051 |
| Events in quadrant B | 3,606,408 | 582,409 |
| Events in quadrant C | 3,173,478 | 562,348 |
| Events in quadrant D | 4,303,001 | 519,874 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13689 | 3 |
| B | 0 | 14804 | 2 |
| C | 0 | 13384 | 2 |
| D | 0 | 17412 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6393 | 34 | 0.531832% |
| B | 6393 | 96 | 1.501642% |
| C | 6393 | 68 | 1.063663% |
| D | 6393 | 381 | 5.959643% |

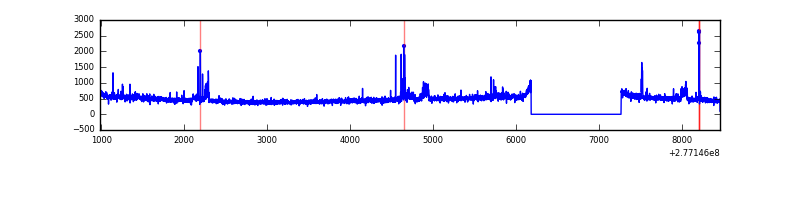

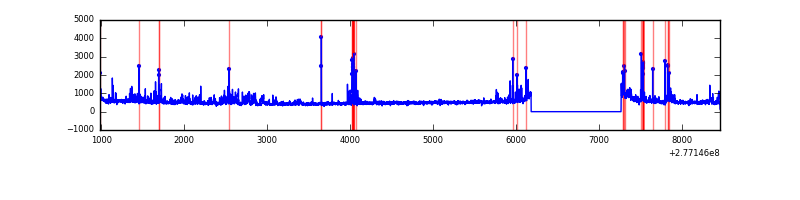

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7479 | 6395 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7479 | 6394 | 42 | 42 | 0.56% | 0.66% |  |
| C | 7479 | 6395 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7479 | 6395 | 301 | 301 | 4.02% | 4.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 163910 | 1035.39 | 776 | 760 | 157.6 |
| A | 13 | 248 | 7165 | 40.65 | 776 | 760 | 157.6 |
| A | 0 | 226 | 6902 | 38.98 | 776 | 760 | 157.6 |
| B | 15 | 35 | 168391 | 1117.28 | 781 | 764 | 150.0 |
| B | 10 | 16 | 60361 | 397.23 | 781 | 764 | 150.0 |
| B | 4 | 216 | 59083 | 388.71 | 781 | 764 | 150.0 |
| C | 3 | 233 | 142068 | 809.75 | 743 | 746 | 174.5 |
| C | 14 | 238 | 114577 | 652.24 | 743 | 746 | 174.5 |
| C | 7 | 247 | 14543 | 79.05 | 743 | 746 | 174.5 |
| D | 12 | 218 | 1002585 | 5653.61 | 725 | 704 | 177.2 |
| D | 1 | 52 | 257045 | 1446.53 | 725 | 704 | 177.2 |
| D | 2 | 33 | 200012 | 1124.69 | 725 | 704 | 177.2 |

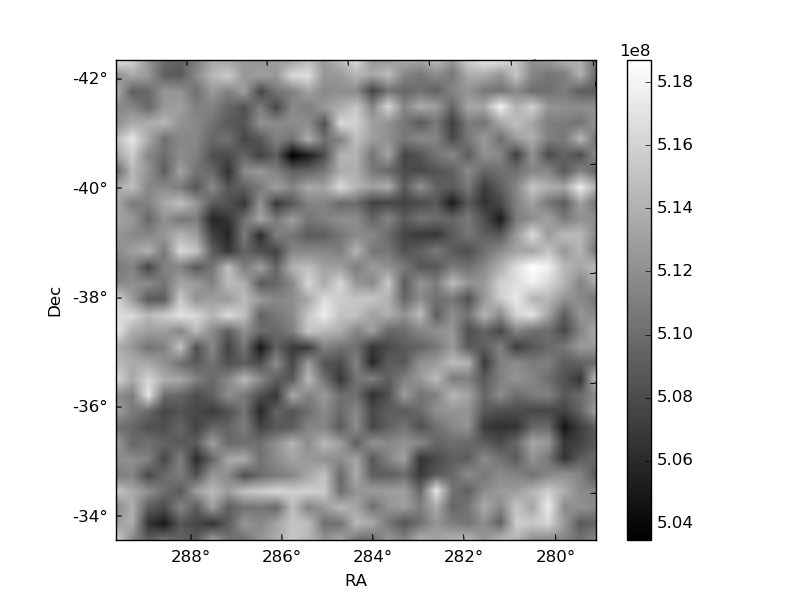

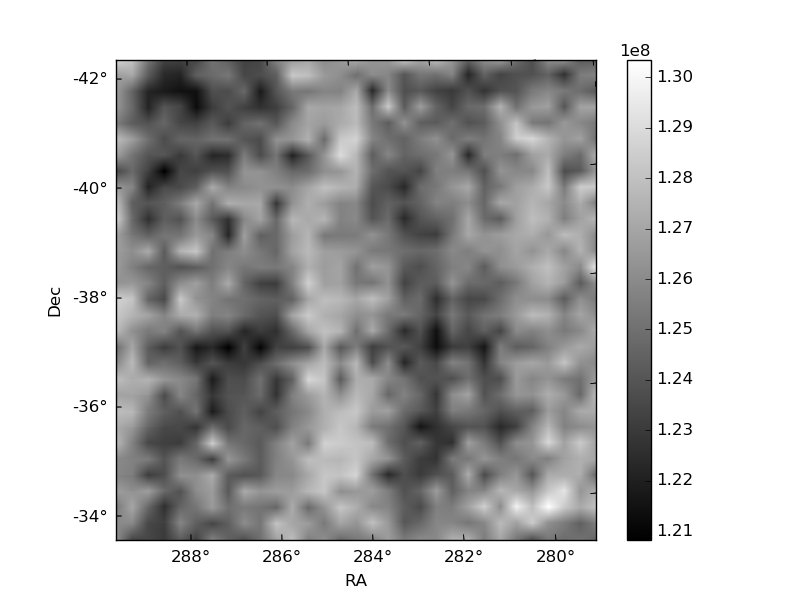

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

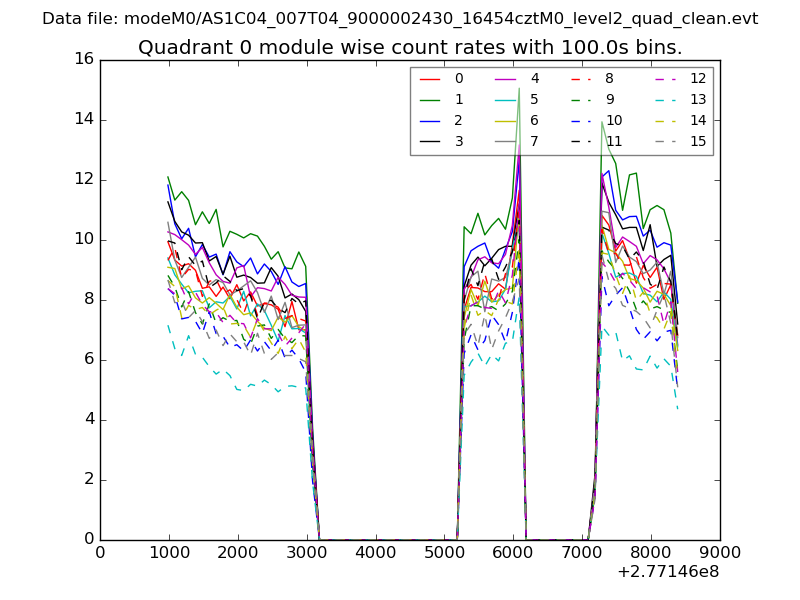

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

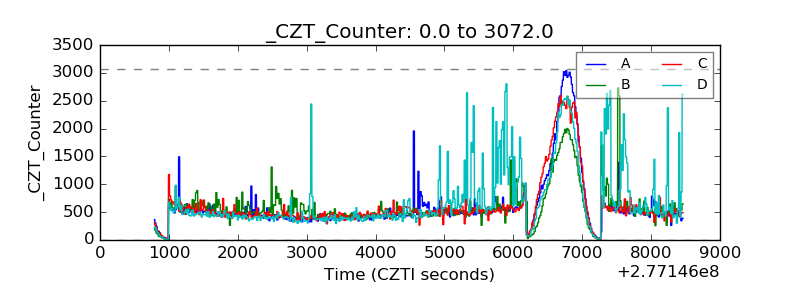

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

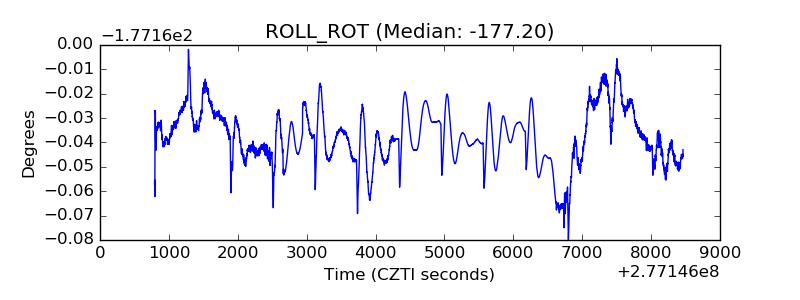

| _ROLL_ROT |  |

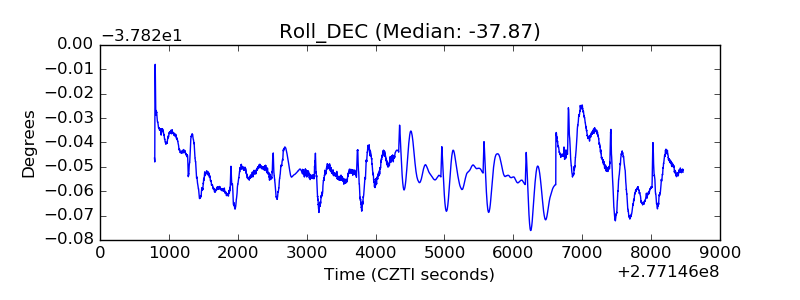

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
