| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_007T04_9000002430_16455cztM0_level2.evt | modeM0/AS1C04_007T04_9000002430_16455cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,809,280 | 90,118,080 |
| Size | 472.8 MB | 85.9 MB |
| Events in quadrant A | 3,106,885 | 583,612 |
| Events in quadrant B | 3,681,739 | 601,357 |
| Events in quadrant C | 3,146,776 | 579,078 |
| Events in quadrant D | 4,652,134 | 524,524 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13301 | 3 |
| B | 0 | 14986 | 2 |
| C | 0 | 13216 | 2 |
| D | 0 | 18137 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6309 | 30 | 0.475511% |
| B | 6309 | 96 | 1.521636% |
| C | 6309 | 51 | 0.808369% |
| D | 6309 | 431 | 6.831511% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7515 | 6310 | 14 | 14 | 0.19% | 0.22% |  |
| B | 7515 | 6311 | 44 | 44 | 0.59% | 0.70% |  |
| C | 7515 | 6311 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7515 | 6311 | 398 | 398 | 5.30% | 6.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 102946 | 655.29 | 779 | 765 | 155.9 |
| A | 0 | 226 | 6906 | 39.38 | 779 | 765 | 155.9 |
| A | 12 | 194 | 5792 | 32.24 | 779 | 765 | 155.9 |
| B | 15 | 35 | 143353 | 958.42 | 787 | 770 | 148.8 |
| B | 0 | 244 | 138381 | 925.0 | 787 | 770 | 148.8 |
| B | 4 | 173 | 54398 | 360.48 | 787 | 770 | 148.8 |
| C | 14 | 238 | 118826 | 674.08 | 749 | 753 | 175.2 |
| C | 3 | 233 | 56959 | 320.88 | 749 | 753 | 175.2 |
| C | 0 | 207 | 50193 | 282.26 | 749 | 753 | 175.2 |
| D | 2 | 33 | 778804 | 4406.14 | 724 | 704 | 176.6 |
| D | 12 | 218 | 565801 | 3199.97 | 724 | 704 | 176.6 |
| D | 1 | 52 | 487806 | 2758.31 | 724 | 704 | 176.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

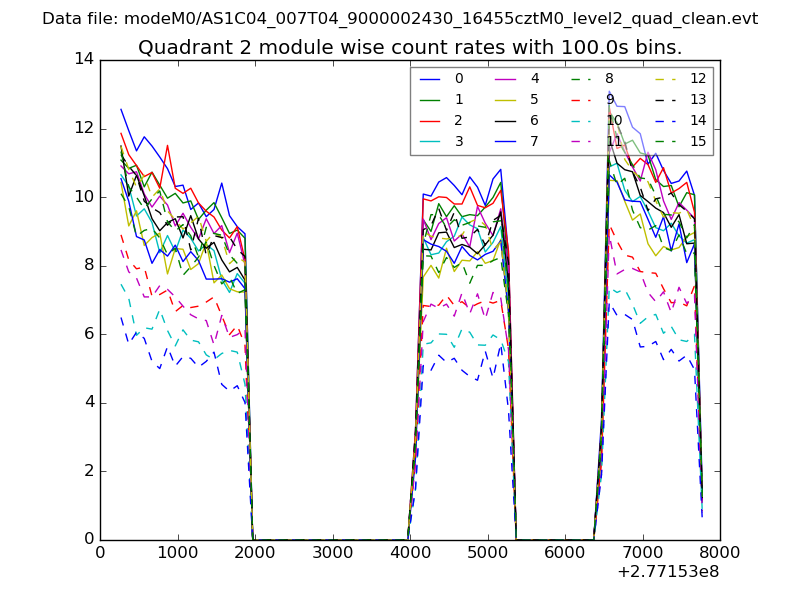

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

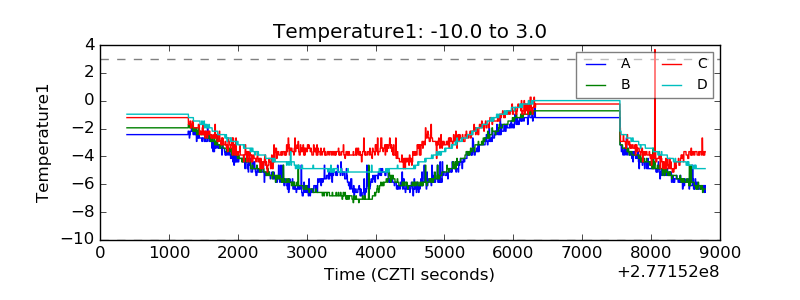

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

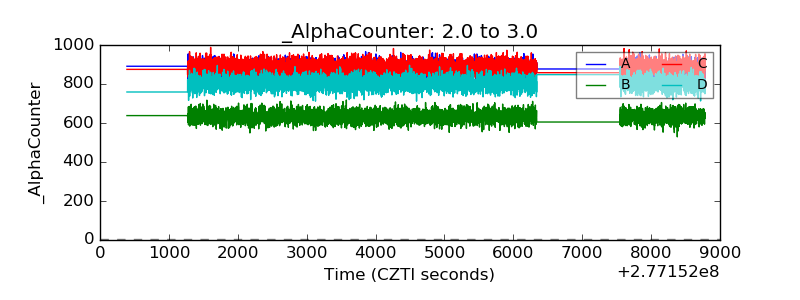

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

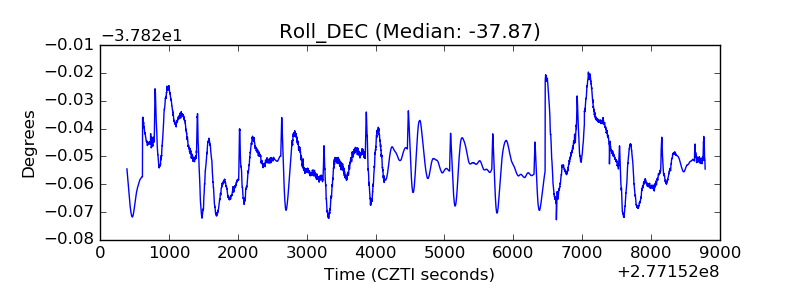

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
