| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_007T04_9000002430_16458cztM0_level2.evt | modeM0/AS1C04_007T04_9000002430_16458cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,083,840 | 58,608,000 |
| Size | 536.0 MB | 55.9 MB |
| Events in quadrant A | 3,020,092 | 348,306 |
| Events in quadrant B | 3,415,206 | 358,520 |
| Events in quadrant C | 3,151,065 | 348,412 |
| Events in quadrant D | 7,022,657 | 292,277 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12595 | 2 |
| B | 0 | 13784 | 1 |
| C | 0 | 12738 | 1 |
| D | 0 | 24980 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6106 | 37 | 0.605961% |
| B | 6106 | 87 | 1.424828% |
| C | 6106 | 84 | 1.375696% |
| D | 6106 | 1283 | 21.012119% |

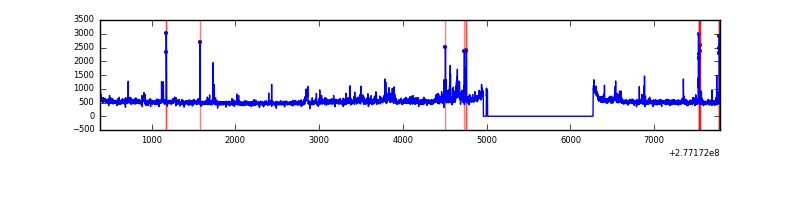

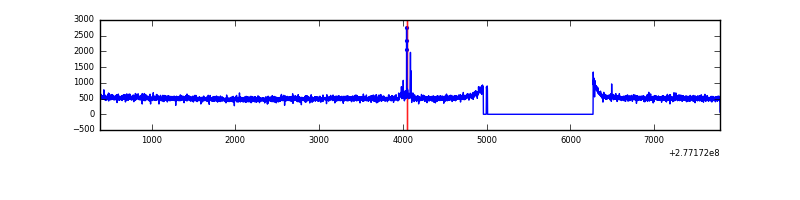

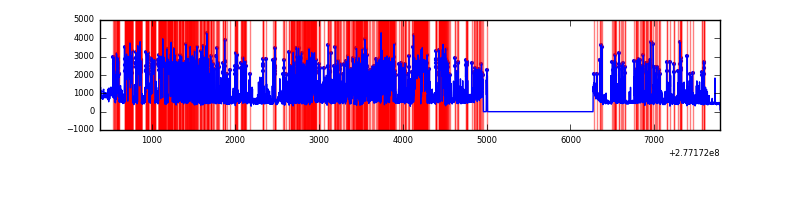

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

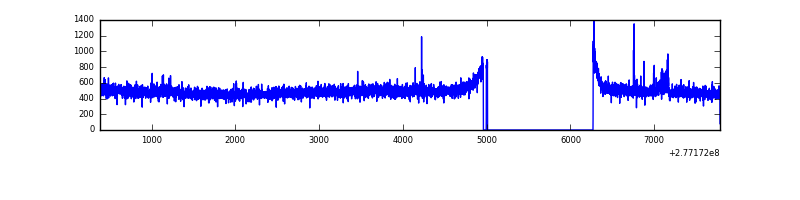

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7402 | 6108 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7401 | 6107 | 20 | 20 | 0.27% | 0.33% |  |
| C | 7402 | 6108 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7402 | 6108 | 1164 | 1164 | 15.73% | 19.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 24534 | 152.42 | 776 | 763 | 156.0 |
| A | 3 | 1 | 11834 | 70.99 | 776 | 763 | 156.0 |
| A | 0 | 226 | 6902 | 39.36 | 776 | 763 | 156.0 |
| B | 15 | 35 | 71334 | 478.35 | 783 | 764 | 147.5 |
| B | 7 | 220 | 48555 | 323.95 | 783 | 764 | 147.5 |
| B | 4 | 173 | 42879 | 285.47 | 783 | 764 | 147.5 |
| C | 14 | 238 | 119254 | 677.82 | 756 | 762 | 174.8 |
| C | 3 | 233 | 43664 | 245.41 | 756 | 762 | 174.8 |
| C | 0 | 207 | 18898 | 103.74 | 756 | 762 | 174.8 |
| D | 1 | 52 | 4276472 | 25557.51 | 693 | 675 | 167.3 |
| D | 2 | 33 | 54453 | 321.44 | 693 | 675 | 167.3 |
| D | 5 | 222 | 31755 | 185.77 | 693 | 675 | 167.3 |

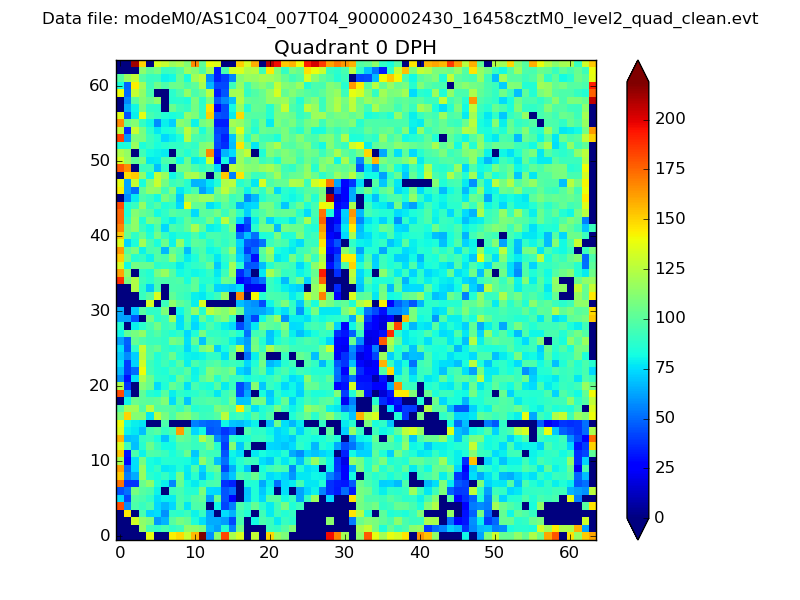

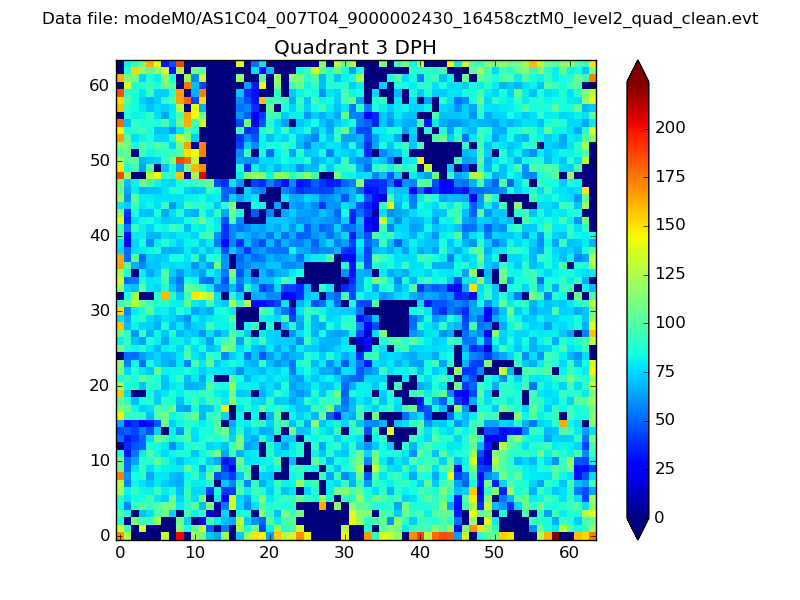

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

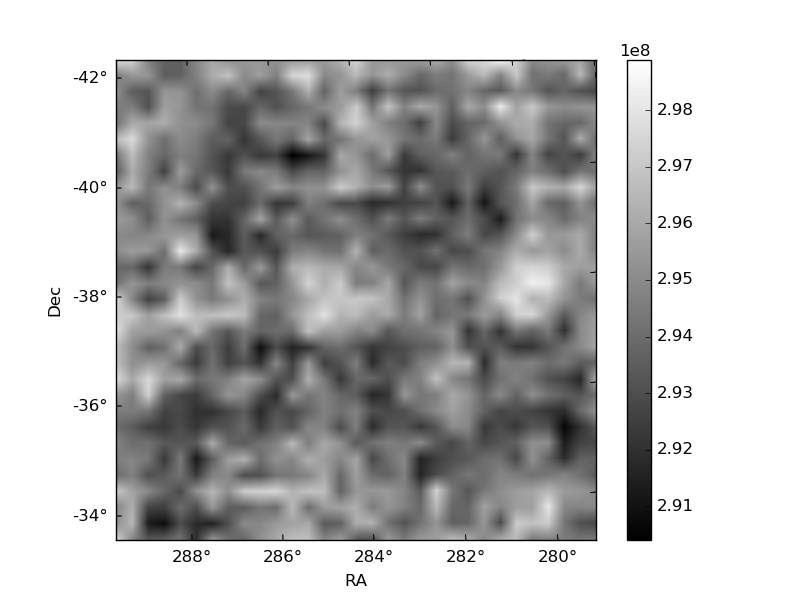

| Plot type | Count rate plots | Images |
|---|---|---|

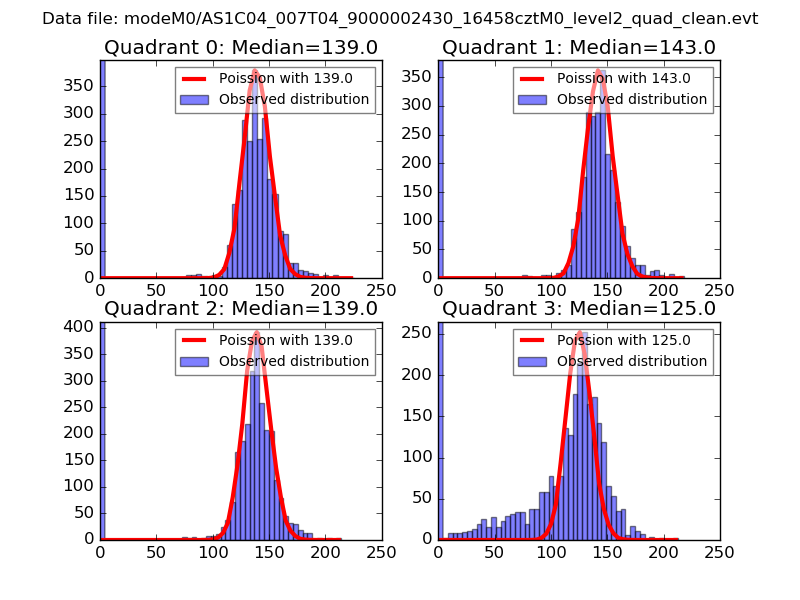

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

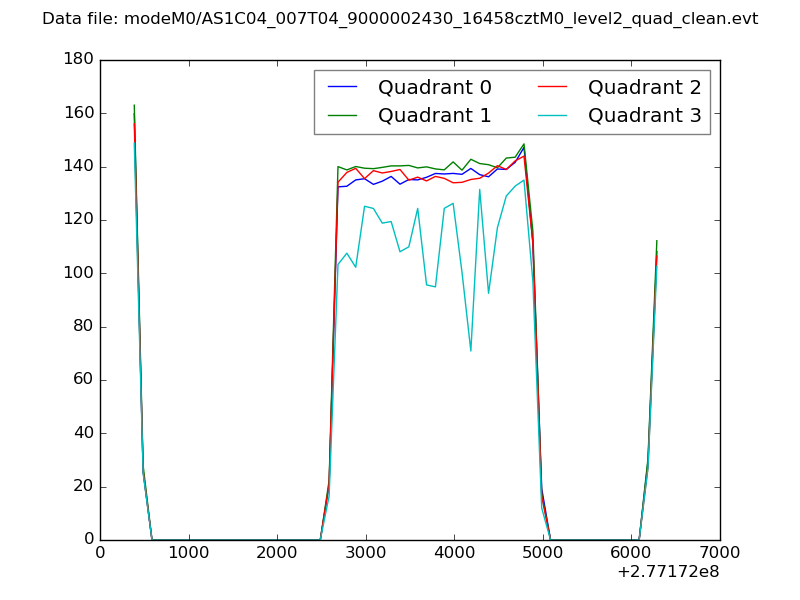

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

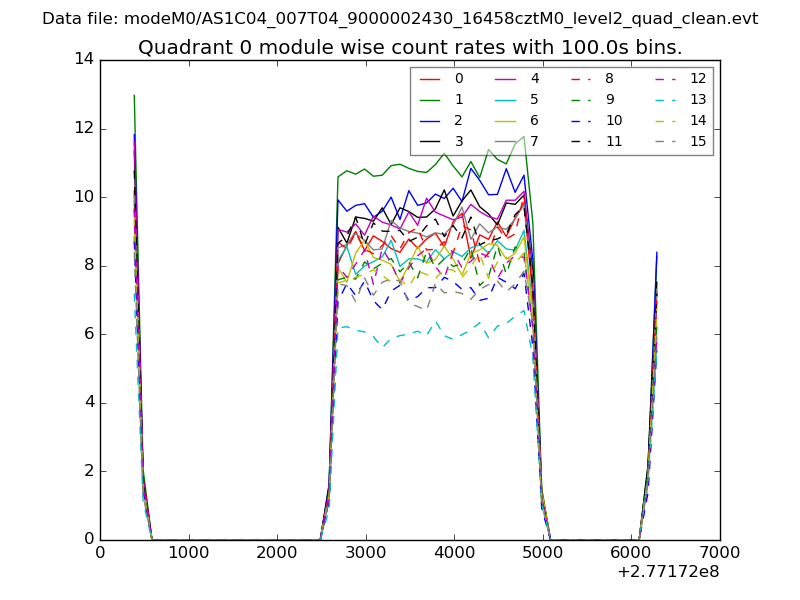

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

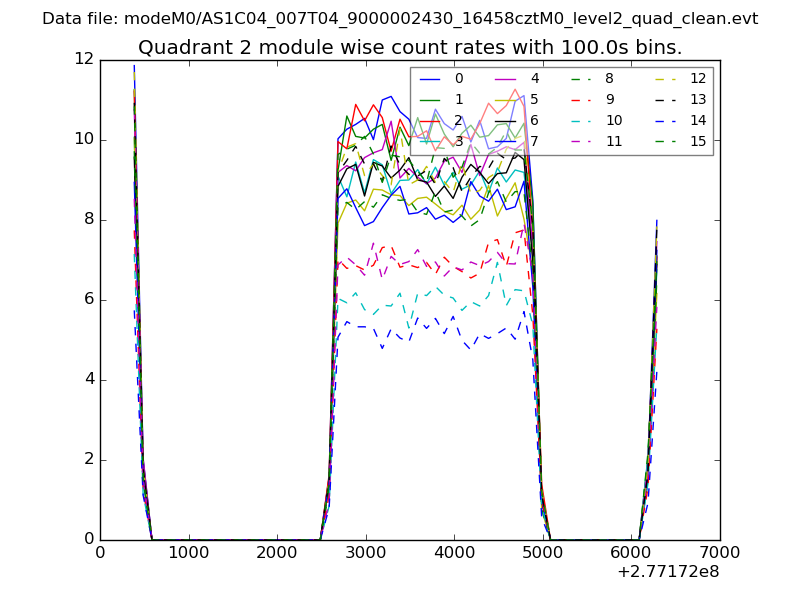

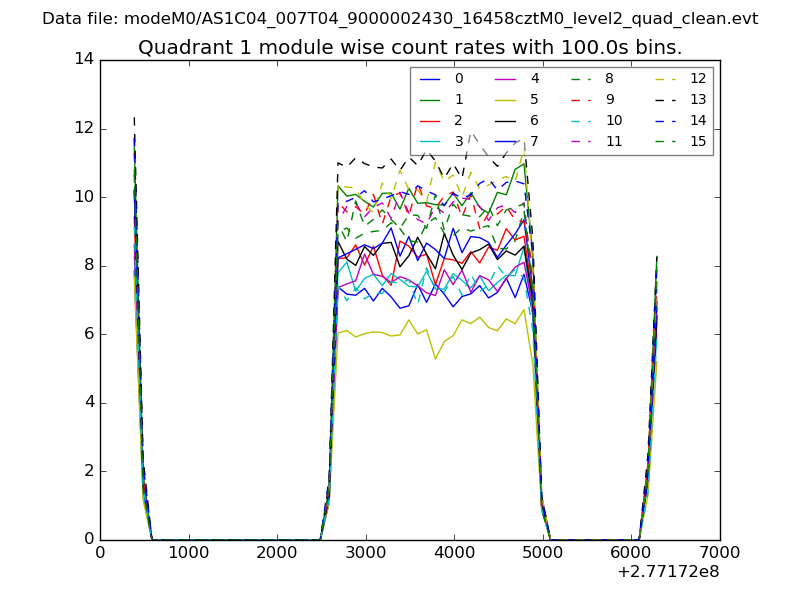

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

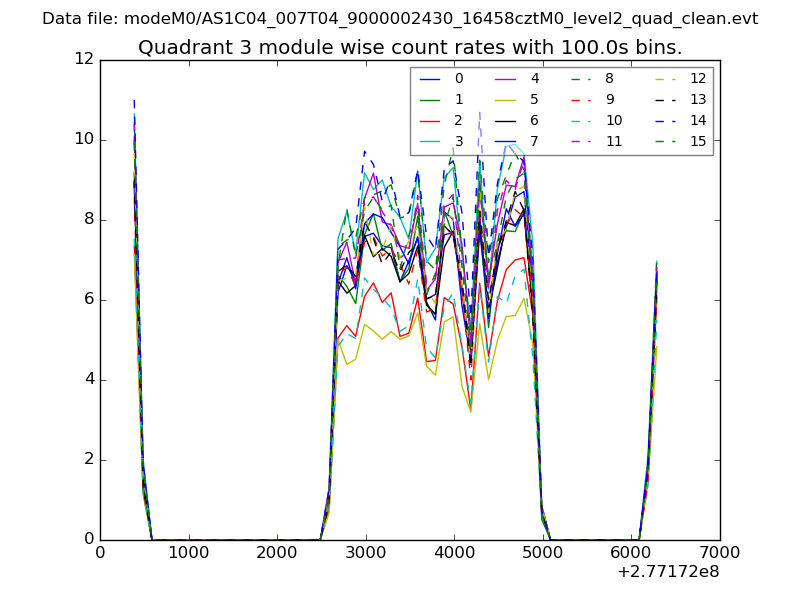

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

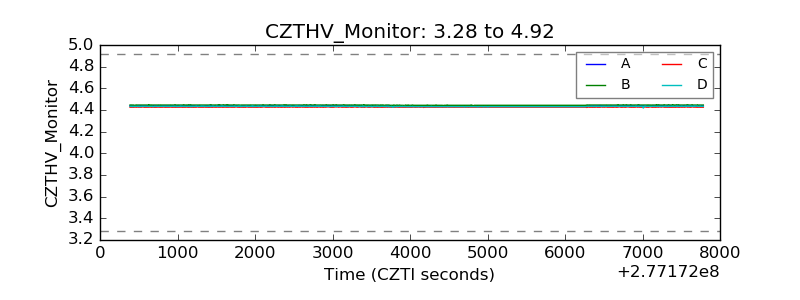

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

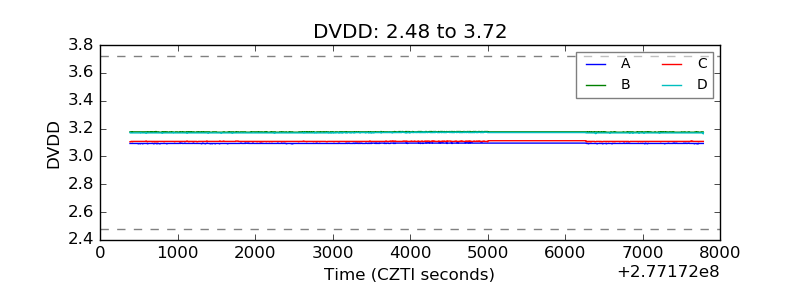

| D_VDD |  |

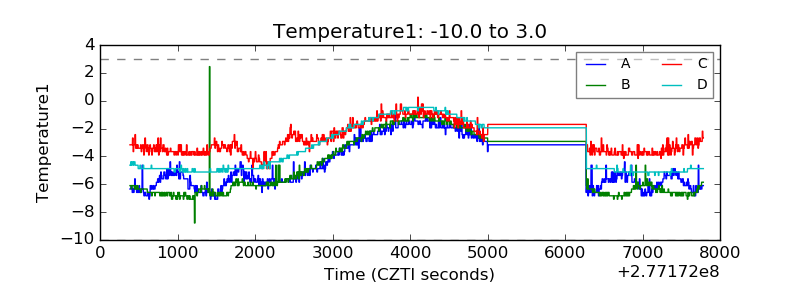

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

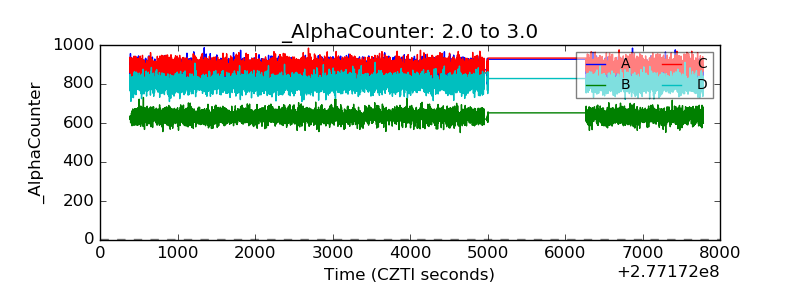

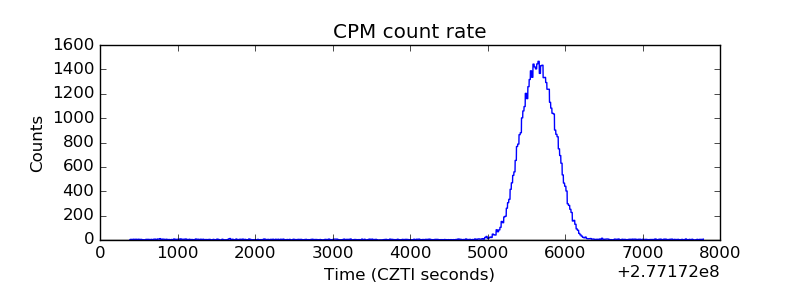

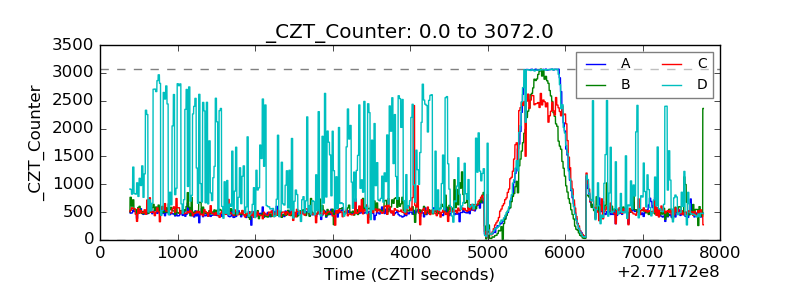

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

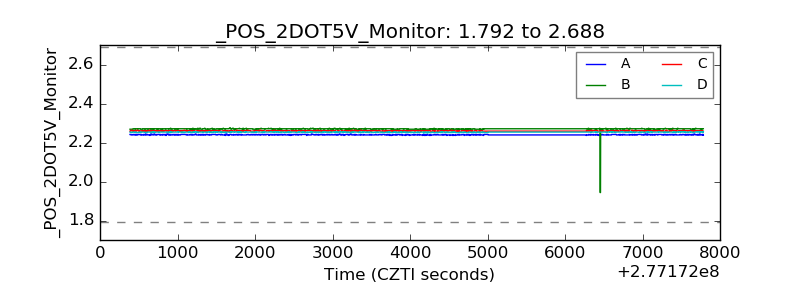

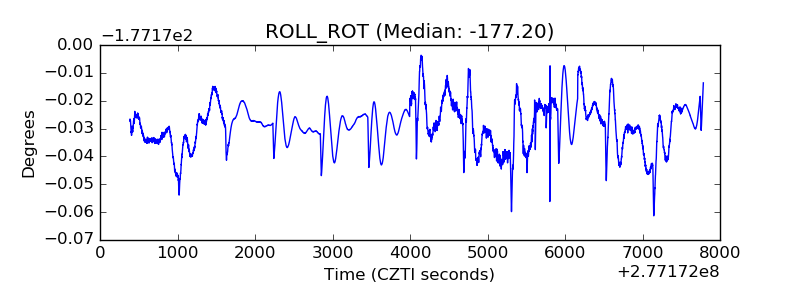

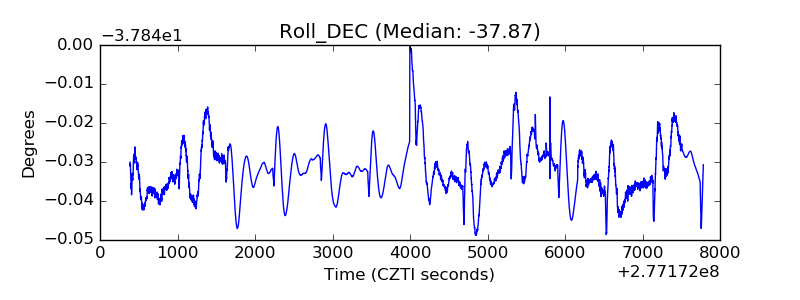

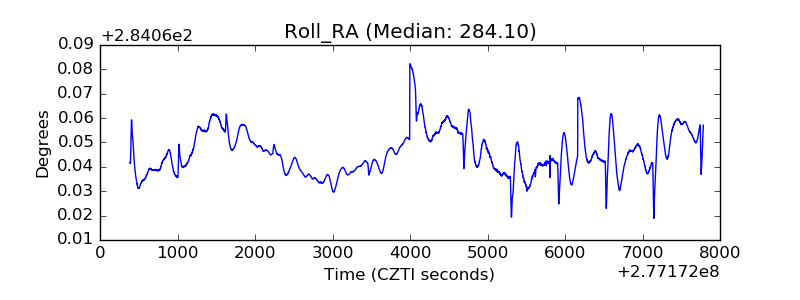

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

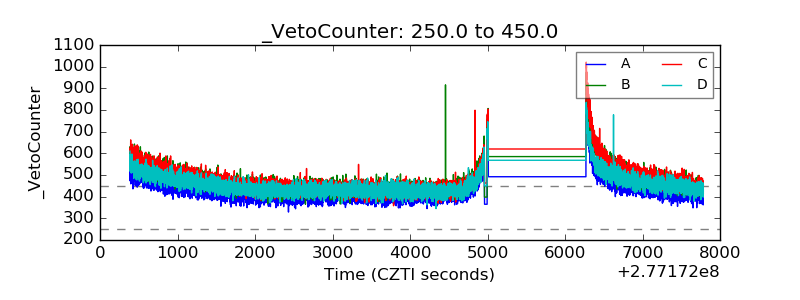

| Veto Counter |  |
