| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_007T04_9000002430_16459cztM0_level2.evt | modeM0/AS1C04_007T04_9000002430_16459cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,044,160 | 67,435,200 |
| Size | 466.4 MB | 64.3 MB |
| Events in quadrant A | 3,225,000 | 398,411 |
| Events in quadrant B | 3,618,131 | 406,494 |
| Events in quadrant C | 3,343,201 | 399,473 |
| Events in quadrant D | 4,183,243 | 384,090 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13569 | 3 |
| B | 0 | 14586 | 2 |
| C | 0 | 13646 | 2 |
| D | 0 | 16758 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6490 | 51 | 0.785824% |
| B | 6490 | 173 | 2.665639% |
| C | 6490 | 120 | 1.848998% |
| D | 6490 | 178 | 2.742681% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7621 | 6491 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7621 | 6492 | 38 | 38 | 0.50% | 0.59% |  |
| C | 7621 | 6491 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7621 | 6491 | 130 | 130 | 1.71% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 55619 | 333.06 | 821 | 806 | 164.6 |
| A | 3 | 1 | 12513 | 71.14 | 821 | 806 | 164.6 |
| A | 0 | 226 | 7420 | 40.19 | 821 | 806 | 164.6 |
| B | 15 | 35 | 177791 | 1127.12 | 824 | 803 | 157.0 |
| B | 4 | 173 | 56911 | 357.31 | 824 | 803 | 157.0 |
| B | 15 | 201 | 50743 | 318.03 | 824 | 803 | 157.0 |
| C | 14 | 238 | 123028 | 657.96 | 800 | 805 | 185.8 |
| C | 3 | 233 | 80429 | 428.63 | 800 | 805 | 185.8 |
| C | 7 | 247 | 12458 | 62.73 | 800 | 805 | 185.8 |
| D | 1 | 52 | 771728 | 3988.99 | 799 | 778 | 193.3 |
| D | 5 | 222 | 273451 | 1410.84 | 799 | 778 | 193.3 |
| D | 2 | 33 | 80989 | 415.02 | 799 | 778 | 193.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

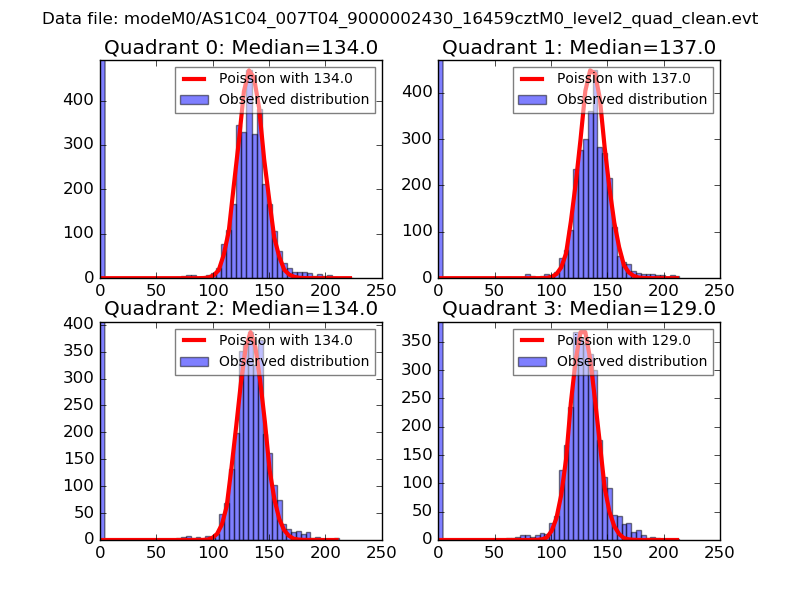

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

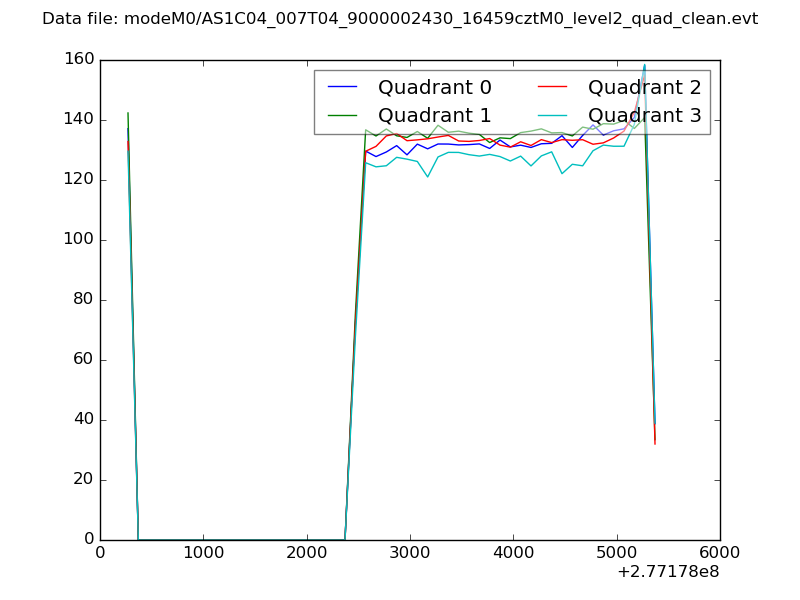

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

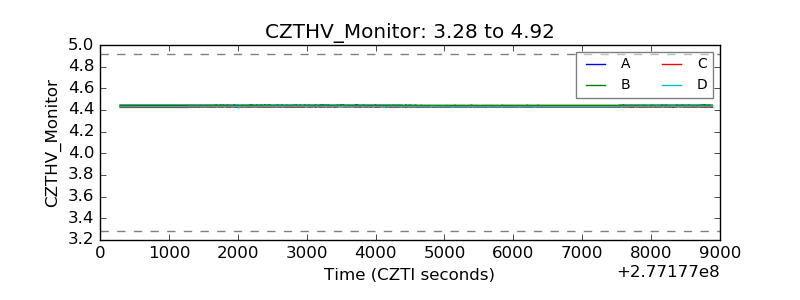

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

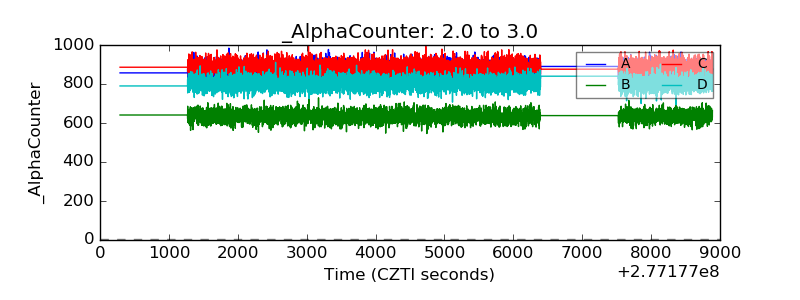

| Alpha Counter |  |

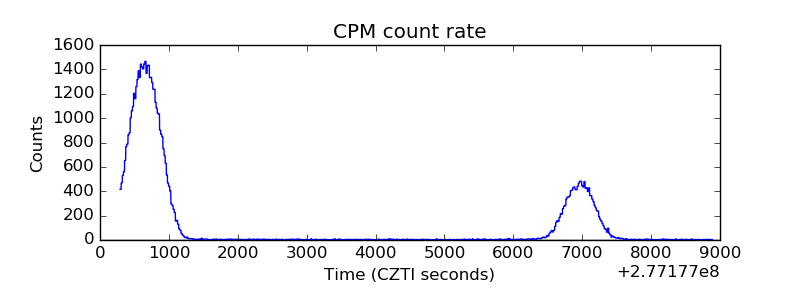

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

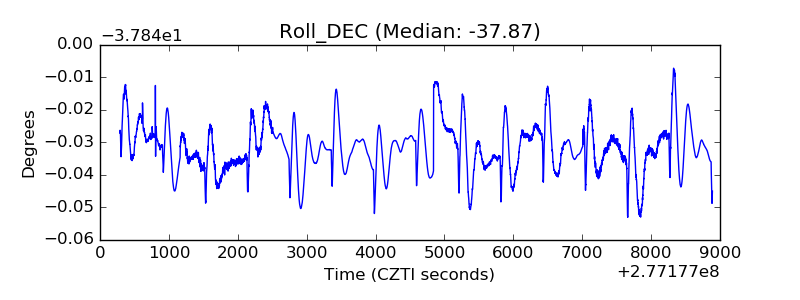

| _Roll_DEC |  |

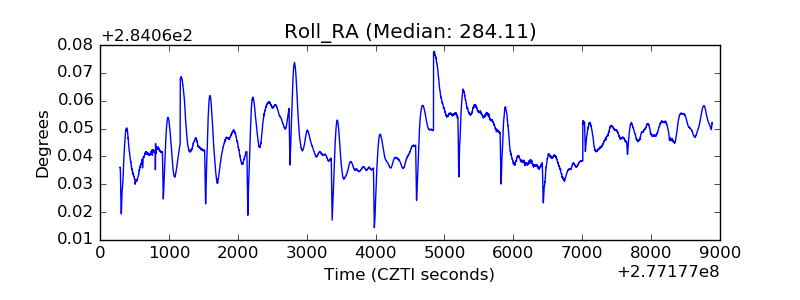

| _Roll_RA |  |

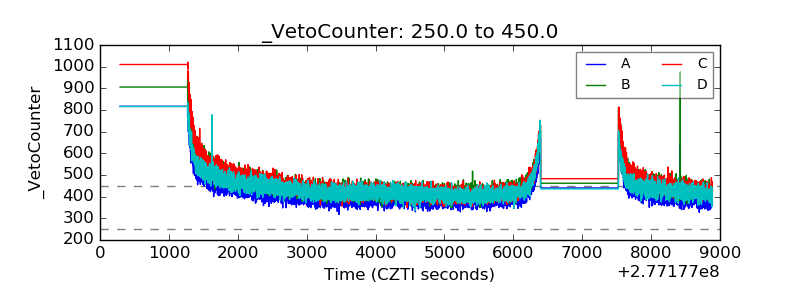

| Veto Counter |  |
