| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_108T01_9000002438_16476cztM0_level2.evt | modeM0/AS1A05_108T01_9000002438_16476cztM0_level2_quad_clean.evt |
| Size (bytes) | 117,820,800 | 4,726,080 |
| Size | 112.4 MB | 4.5 MB |
| Events in quadrant A | 815,355 | 6,616 |
| Events in quadrant B | 923,725 | 6,101 |
| Events in quadrant C | 925,710 | 5,887 |
| Events in quadrant D | 792,897 | 6,655 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3483 | 2 |
| B | 0 | 3739 | 1 |
| C | 0 | 3698 | 1 |
| D | 0 | 3456 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1583 | 113 | 7.138345% |
| B | 1583 | 117 | 7.391030% |
| C | 1583 | 127 | 8.022742% |
| D | 1583 | 84 | 5.306380% |

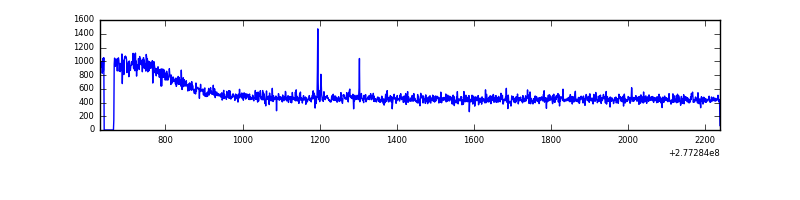

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1609 | 1584 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1609 | 1584 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1609 | 1584 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1609 | 1584 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 5257 | 110.63 | 210 | 204 | 45.7 |
| A | 0 | 226 | 1792 | 34.77 | 210 | 204 | 45.7 |
| A | 3 | 137 | 1612 | 30.83 | 210 | 204 | 45.7 |
| B | 10 | 16 | 51353 | 1164.48 | 210 | 203 | 43.9 |
| B | 4 | 48 | 34218 | 774.39 | 210 | 203 | 43.9 |
| B | 15 | 35 | 5390 | 118.09 | 210 | 203 | 43.9 |
| C | 3 | 233 | 79113 | 1559.1 | 205 | 205 | 50.6 |
| C | 14 | 238 | 30870 | 605.89 | 205 | 205 | 50.6 |
| C | 7 | 247 | 14125 | 275.04 | 205 | 205 | 50.6 |
| D | 2 | 234 | 6098 | 110.55 | 209 | 202 | 53.3 |
| D | 1 | 52 | 3132 | 54.94 | 209 | 202 | 53.3 |
| D | 13 | 168 | 2411 | 41.42 | 209 | 202 | 53.3 |

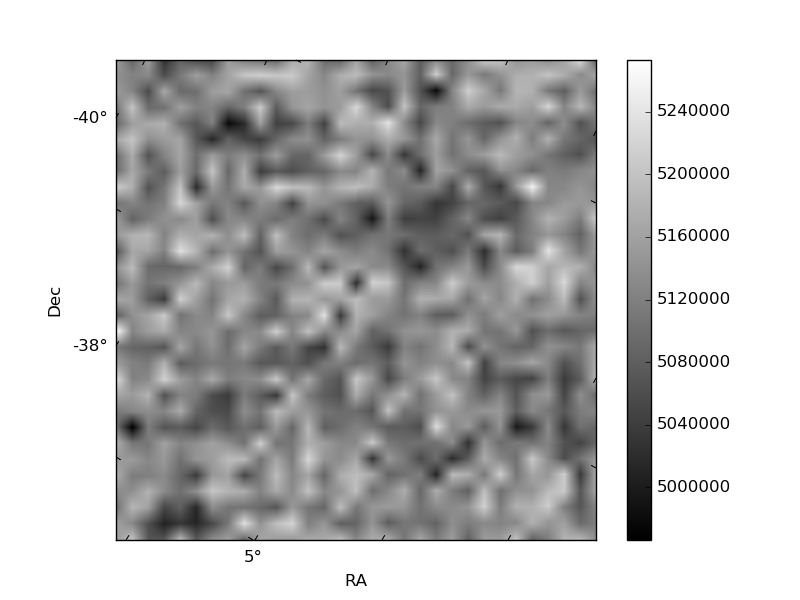

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

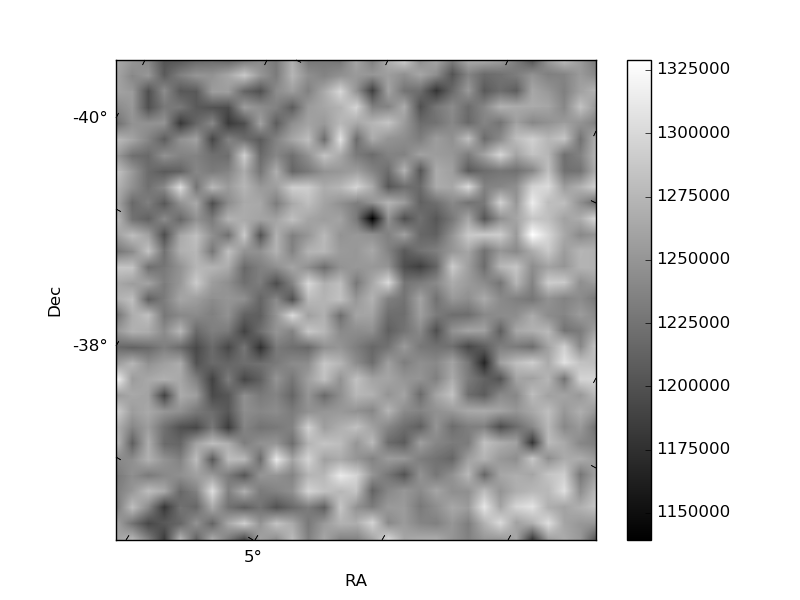

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

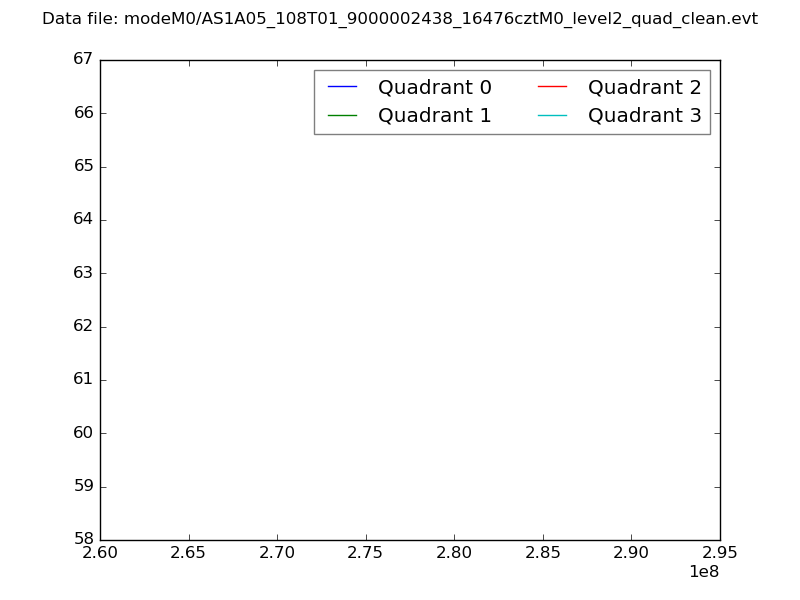

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

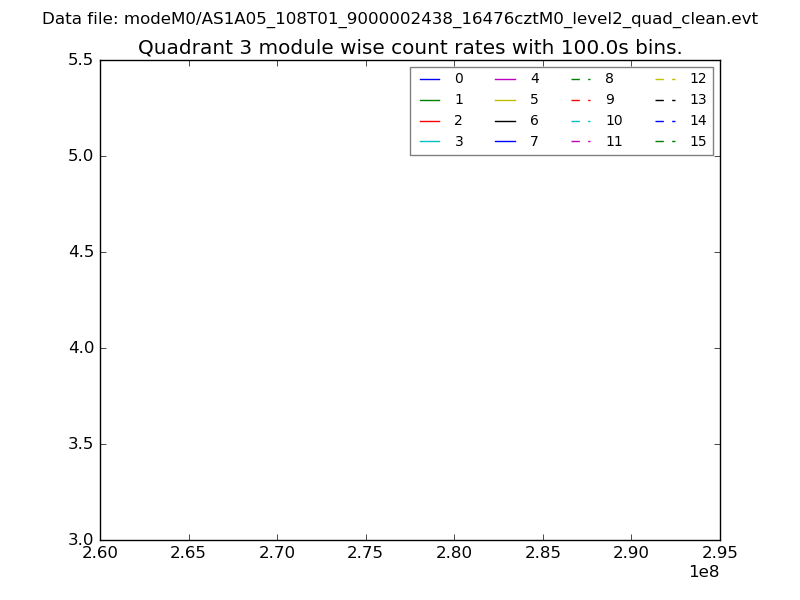

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

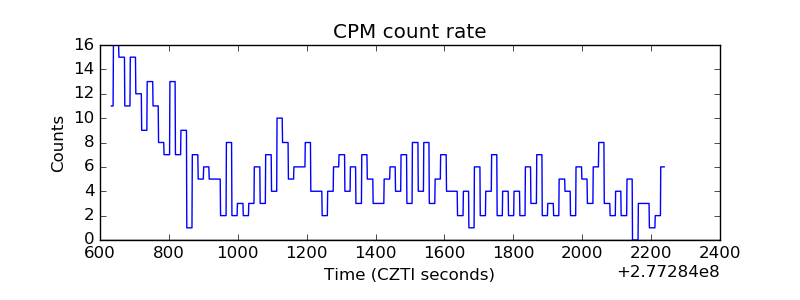

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

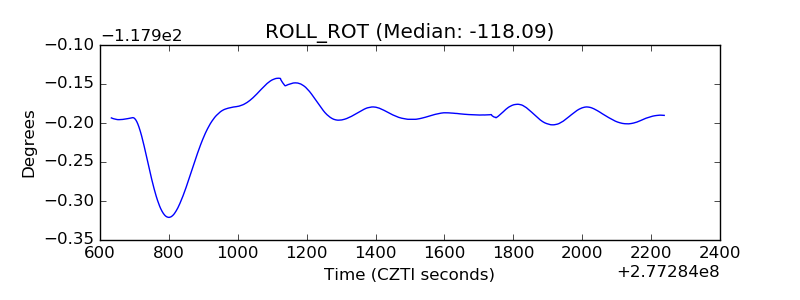

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

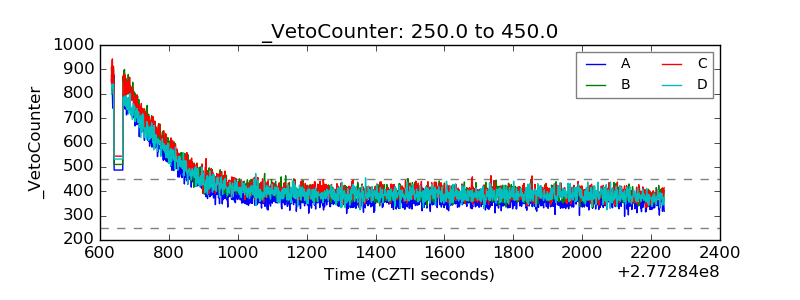

| Veto Counter |  |
