| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_108T01_9000002438_16488cztM0_level2.evt | modeM0/AS1A05_108T01_9000002438_16488cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,547,520 | 85,878,720 |
| Size | 450.7 MB | 81.9 MB |
| Events in quadrant A | 3,433,217 | 535,870 |
| Events in quadrant B | 3,685,967 | 554,909 |
| Events in quadrant C | 3,609,381 | 530,847 |
| Events in quadrant D | 3,130,722 | 515,008 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14591 | 3 |
| B | 0 | 15098 | 2 |
| C | 0 | 14670 | 2 |
| D | 0 | 13812 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6651 | 36 | 0.541272% |
| B | 6651 | 58 | 0.872049% |
| C | 6651 | 55 | 0.826943% |
| D | 6651 | 26 | 0.390919% |

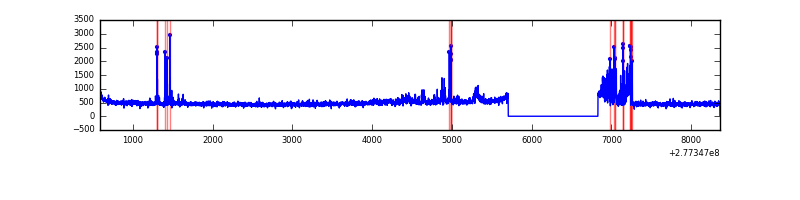

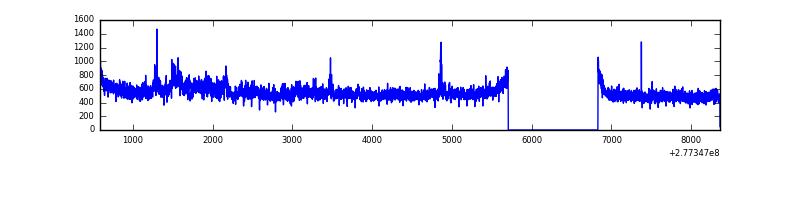

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7777 | 6653 | 24 | 24 | 0.31% | 0.36% |  |
| B | 7777 | 6653 | 12 | 12 | 0.15% | 0.18% |  |
| C | 7777 | 6653 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7777 | 6653 | 8 | 8 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 340011 | 2114.8 | 804 | 788 | 160.4 |
| A | 0 | 226 | 6861 | 37.86 | 804 | 788 | 160.4 |
| A | 12 | 194 | 5865 | 31.65 | 804 | 788 | 160.4 |
| B | 5 | 65 | 300254 | 1948.57 | 813 | 794 | 153.7 |
| B | 4 | 173 | 46443 | 297.04 | 813 | 794 | 153.7 |
| B | 0 | 189 | 40109 | 255.82 | 813 | 794 | 153.7 |
| C | 3 | 233 | 388836 | 2130.91 | 787 | 794 | 182.1 |
| C | 14 | 238 | 120906 | 659.59 | 787 | 794 | 182.1 |
| C | 7 | 247 | 28411 | 151.65 | 787 | 794 | 182.1 |
| D | 13 | 168 | 72629 | 370.91 | 788 | 764 | 193.8 |
| D | 13 | 248 | 32721 | 164.94 | 788 | 764 | 193.8 |
| D | 2 | 234 | 23779 | 118.78 | 788 | 764 | 193.8 |

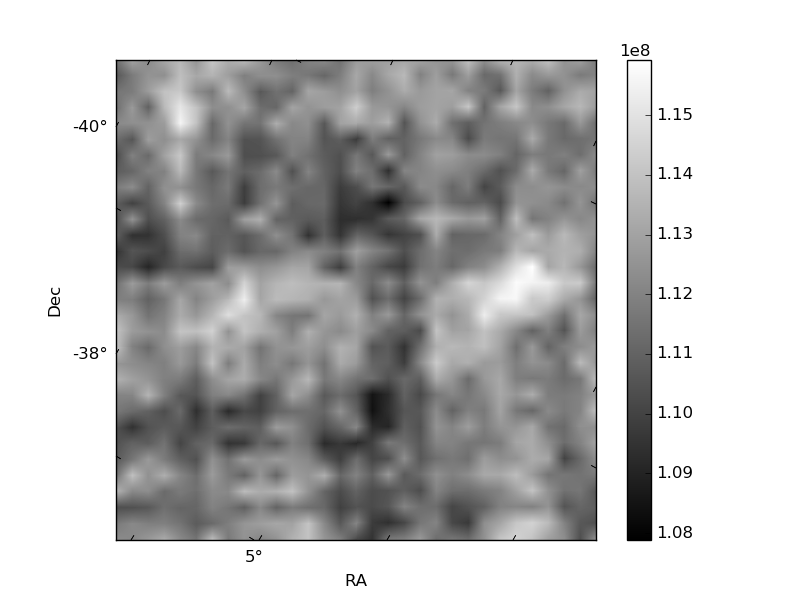

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

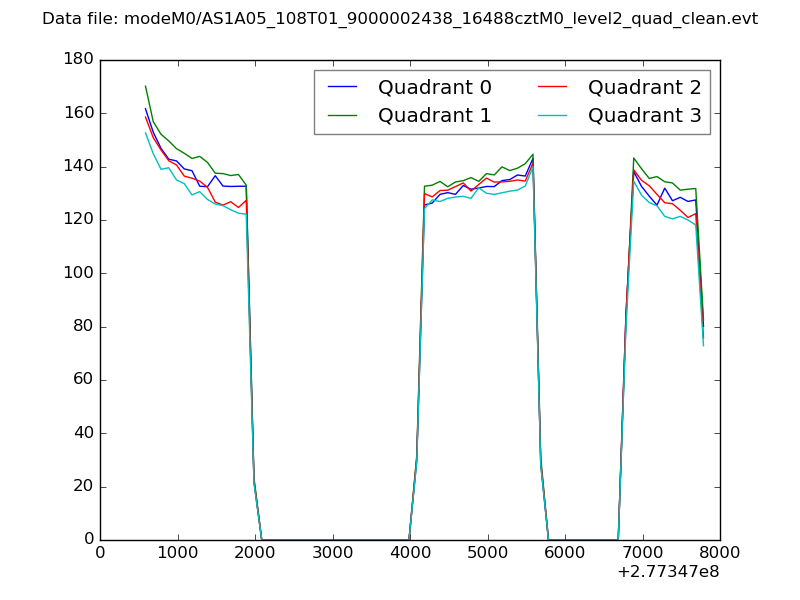

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

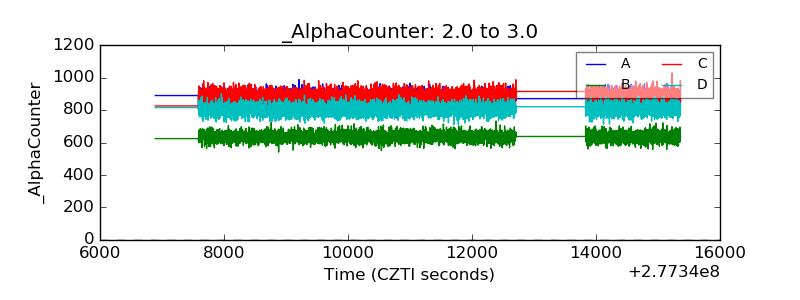

| Alpha Counter |  |
| _CPM_Rate |  |

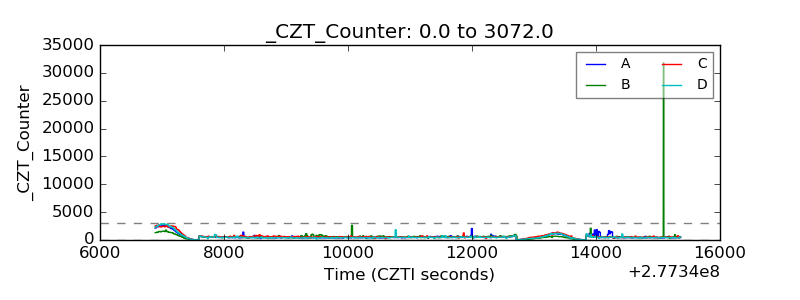

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

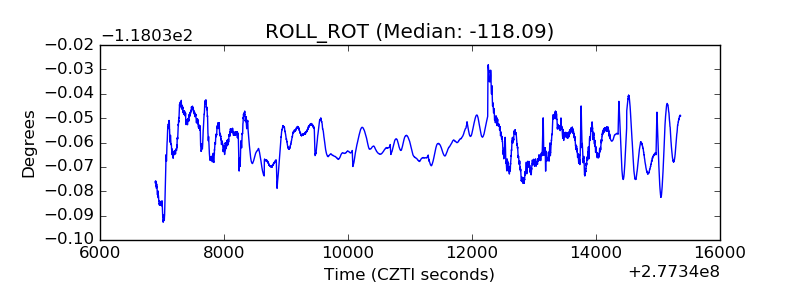

| _ROLL_ROT |  |

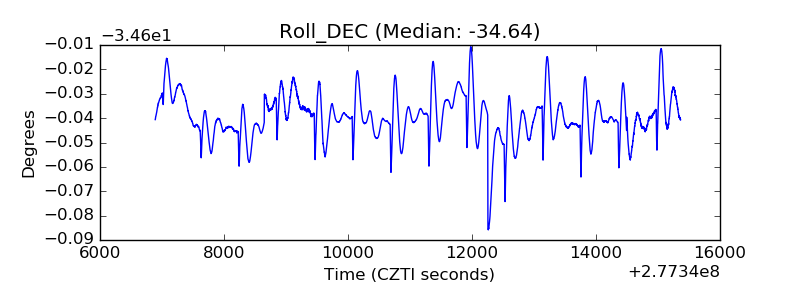

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
