| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_108T01_9000002438_16490cztM0_level2.evt | modeM0/AS1A05_108T01_9000002438_16490cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,099,520 | 81,276,480 |
| Size | 482.7 MB | 77.5 MB |
| Events in quadrant A | 4,086,772 | 489,991 |
| Events in quadrant B | 3,776,845 | 502,910 |
| Events in quadrant C | 3,549,824 | 483,844 |
| Events in quadrant D | 3,419,934 | 478,014 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17156 | 3 |
| B | 0 | 15967 | 2 |
| C | 0 | 15223 | 2 |
| D | 0 | 15442 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7266 | 246 | 3.385632% |
| B | 7266 | 155 | 2.133223% |
| C | 7266 | 154 | 2.119461% |
| D | 7266 | 123 | 1.692816% |

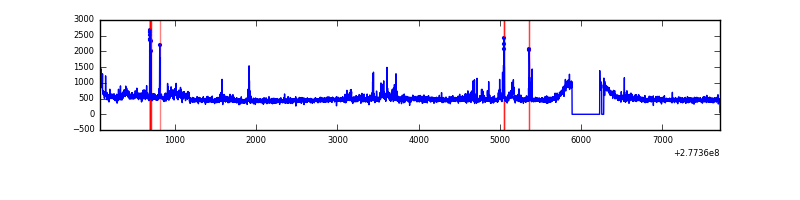

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

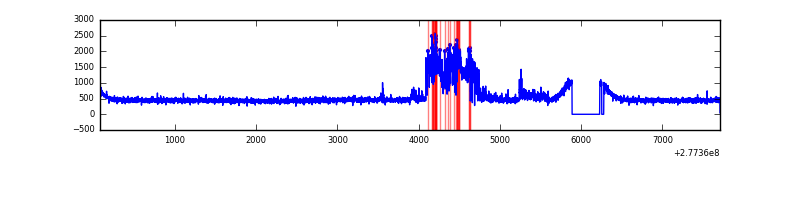

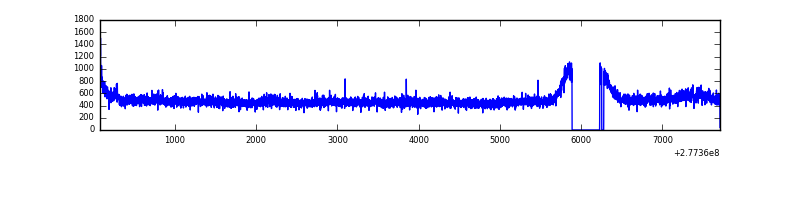

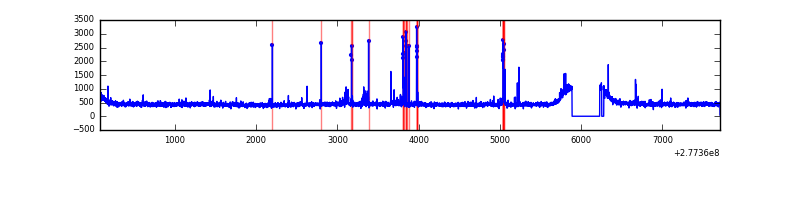

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7632 | 7268 | 34 | 34 | 0.45% | 0.47% |  |
| B | 7632 | 7267 | 14 | 14 | 0.18% | 0.19% |  |
| C | 7632 | 7267 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7632 | 7268 | 28 | 28 | 0.37% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 753373 | 4271.74 | 866 | 848 | 176.2 |
| A | 0 | 226 | 7521 | 37.88 | 866 | 848 | 176.2 |
| A | 3 | 137 | 6497 | 32.07 | 866 | 848 | 176.2 |
| B | 5 | 65 | 136159 | 796.24 | 873 | 849 | 169.9 |
| B | 4 | 48 | 72169 | 419.68 | 873 | 849 | 169.9 |
| B | 0 | 189 | 58385 | 338.57 | 873 | 849 | 169.9 |
| C | 14 | 238 | 128875 | 643.93 | 843 | 848 | 198.8 |
| C | 3 | 233 | 113234 | 565.27 | 843 | 848 | 198.8 |
| C | 7 | 247 | 19956 | 96.11 | 843 | 848 | 198.8 |
| D | 13 | 248 | 115781 | 553.34 | 852 | 825 | 207.7 |
| D | 12 | 218 | 36843 | 173.37 | 852 | 825 | 207.7 |
| D | 2 | 234 | 26056 | 121.45 | 852 | 825 | 207.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

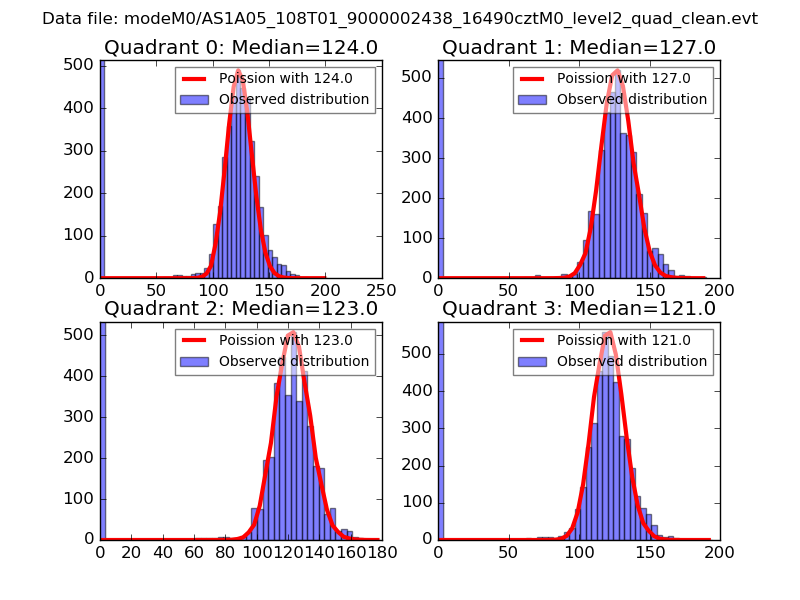

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

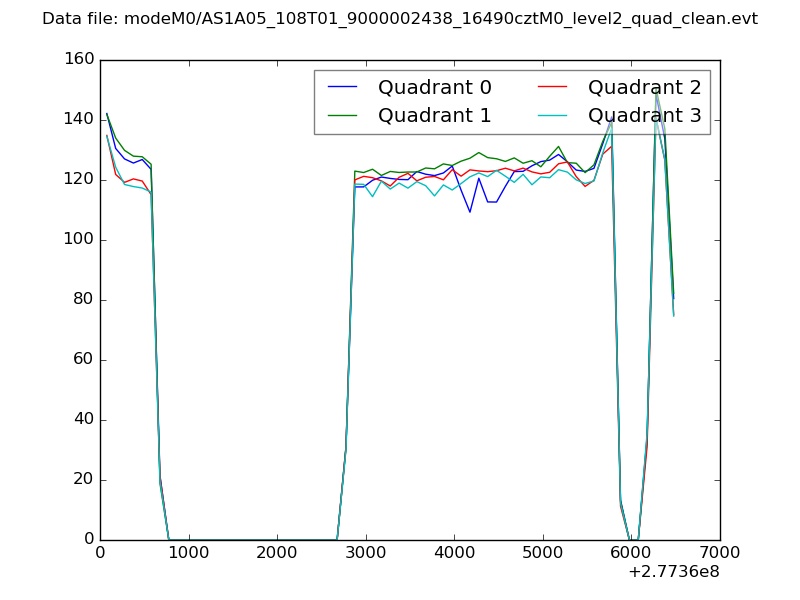

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

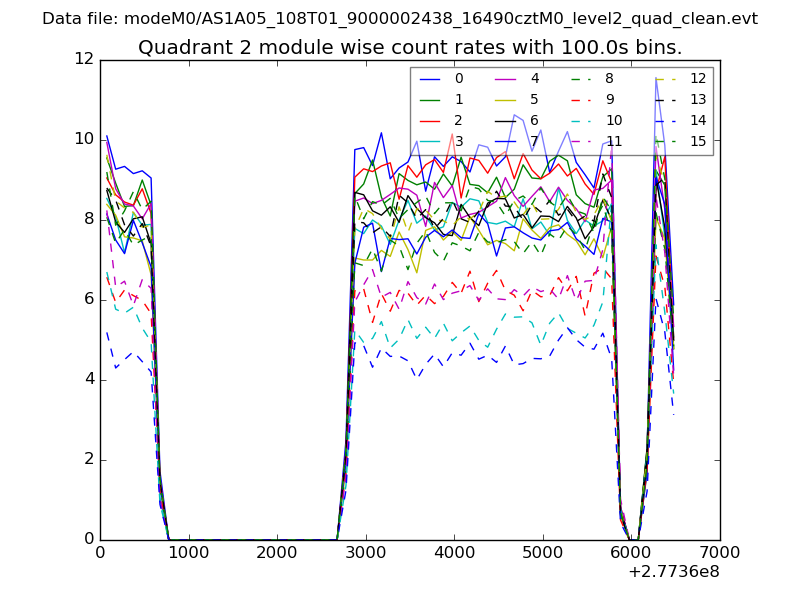

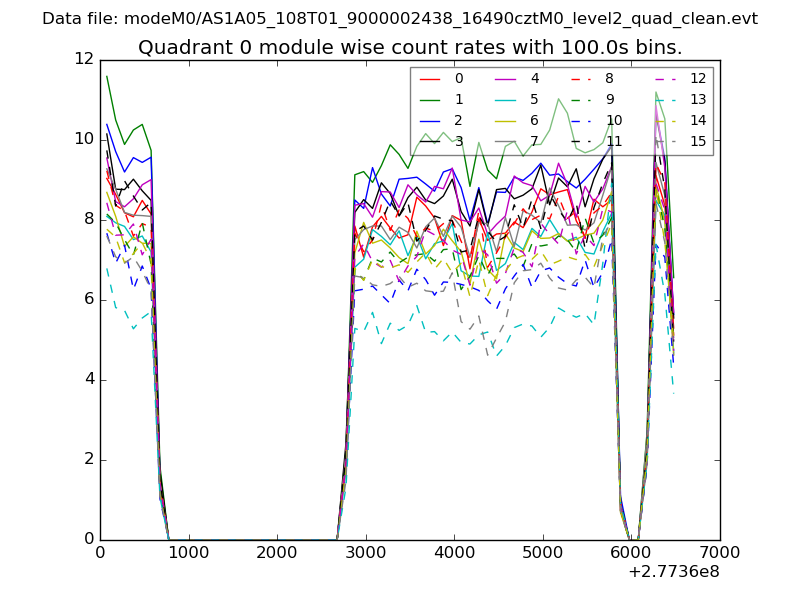

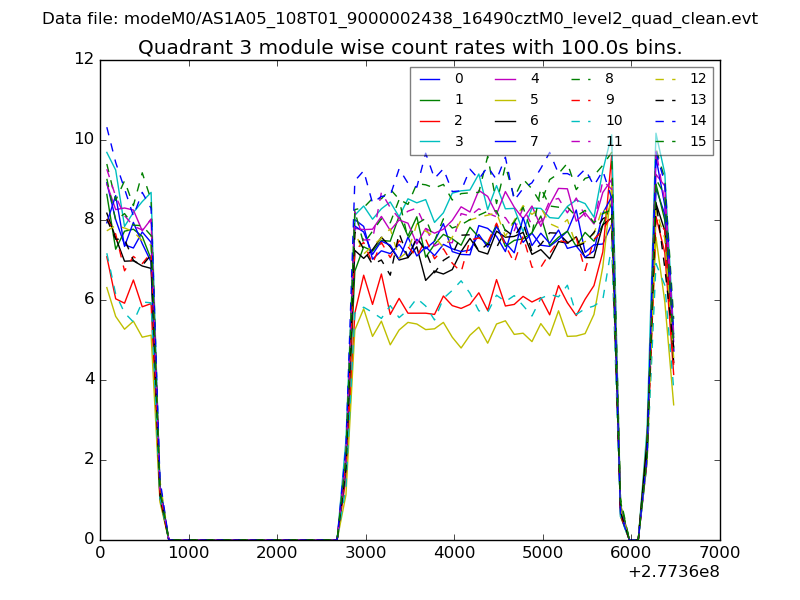

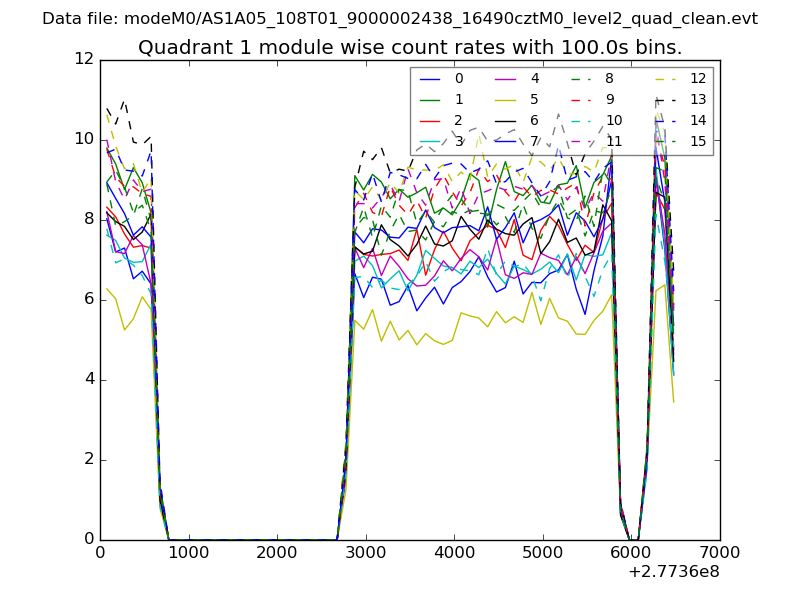

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

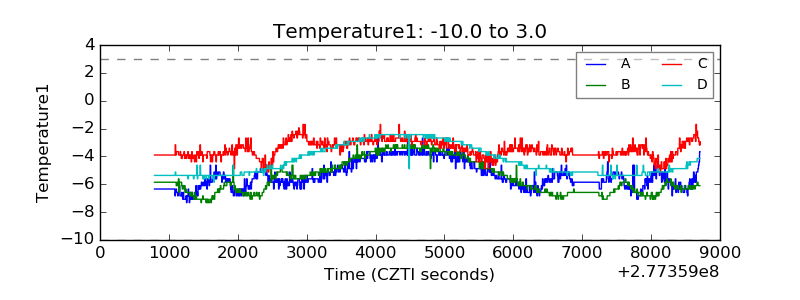

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

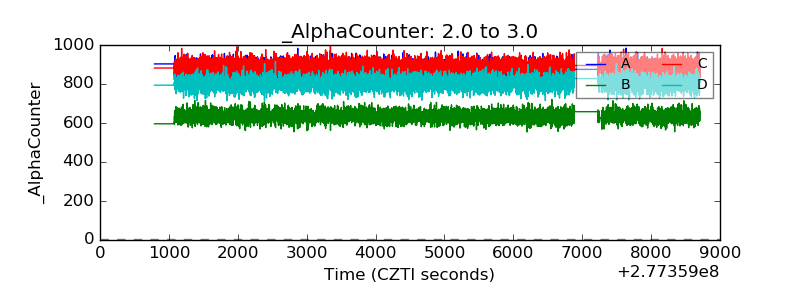

| Alpha Counter |  |
| _CPM_Rate |  |

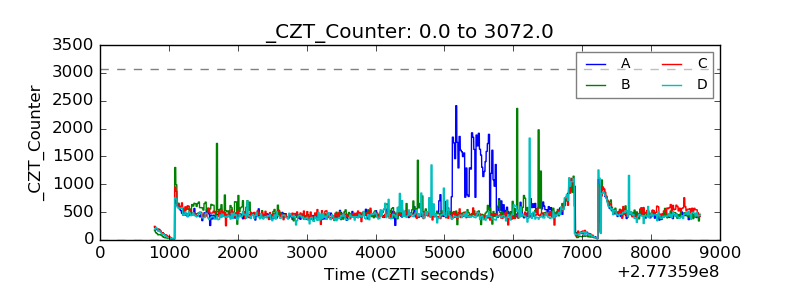

| CZT Counter |  |

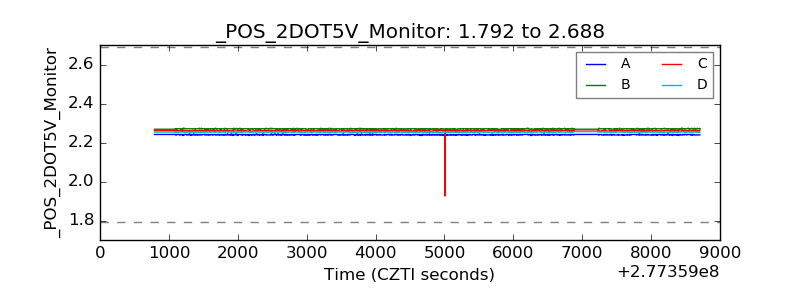

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

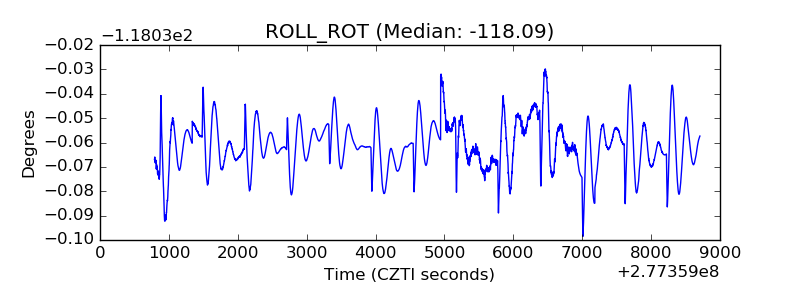

| _ROLL_ROT |  |

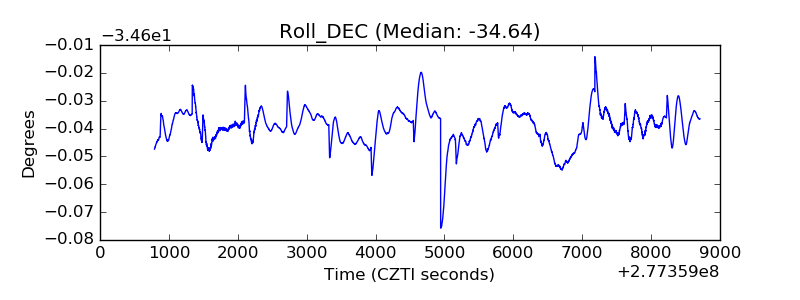

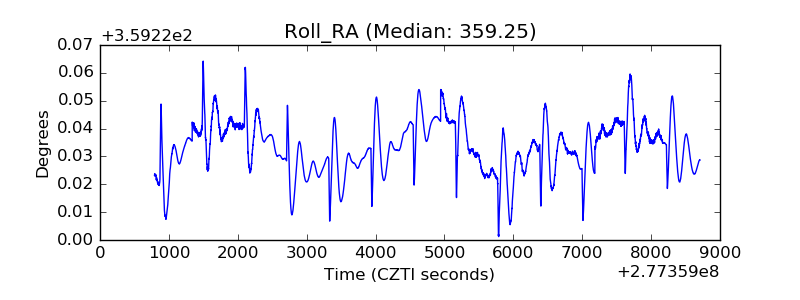

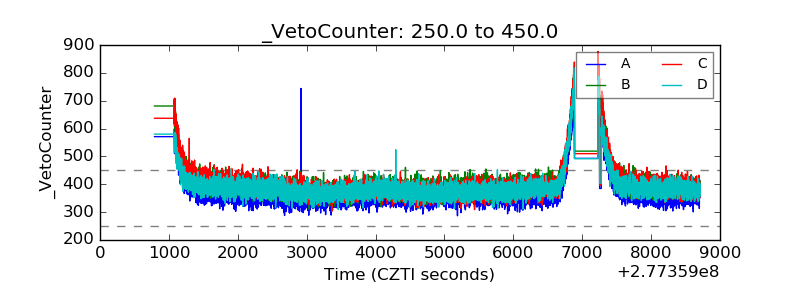

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
