| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000002440_16500cztM0_level2.evt | modeM0/AS1A05_174T01_9000002440_16500cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,135,360 | 97,839,360 |
| Size | 446.4 MB | 93.3 MB |
| Events in quadrant A | 3,382,807 | 633,950 |
| Events in quadrant B | 3,469,793 | 659,529 |
| Events in quadrant C | 3,453,981 | 617,675 |
| Events in quadrant D | 3,426,231 | 595,185 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14237 | 3 |
| B | 0 | 14434 | 2 |
| C | 0 | 14139 | 2 |
| D | 0 | 14447 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6551 | 49 | 0.747977% |
| B | 6551 | 67 | 1.022745% |
| C | 6551 | 70 | 1.068539% |
| D | 6551 | 75 | 1.144863% |

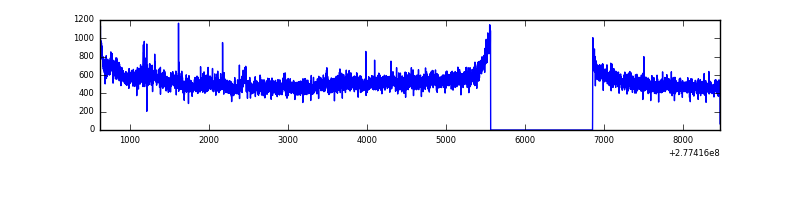

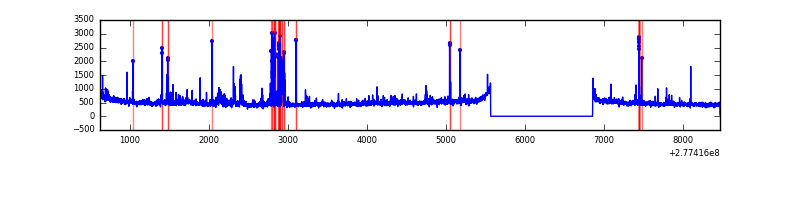

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7842 | 6553 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7842 | 6552 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7842 | 6552 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7842 | 6553 | 43 | 43 | 0.55% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 199072 | 1189.46 | 827 | 810 | 166.7 |
| A | 0 | 226 | 7264 | 38.72 | 827 | 810 | 166.7 |
| A | 12 | 194 | 5954 | 30.86 | 827 | 810 | 166.7 |
| B | 15 | 35 | 56129 | 351.68 | 837 | 818 | 157.3 |
| B | 0 | 198 | 47781 | 298.61 | 837 | 818 | 157.3 |
| B | 3 | 209 | 43485 | 271.29 | 837 | 818 | 157.3 |
| C | 3 | 233 | 225516 | 1213.67 | 795 | 803 | 185.2 |
| C | 14 | 238 | 125995 | 676.16 | 795 | 803 | 185.2 |
| C | 13 | 61 | 5568 | 25.74 | 795 | 803 | 185.2 |
| D | 13 | 249 | 143093 | 741.7 | 794 | 773 | 191.9 |
| D | 12 | 218 | 120580 | 624.37 | 794 | 773 | 191.9 |
| D | 5 | 222 | 48816 | 250.37 | 794 | 773 | 191.9 |

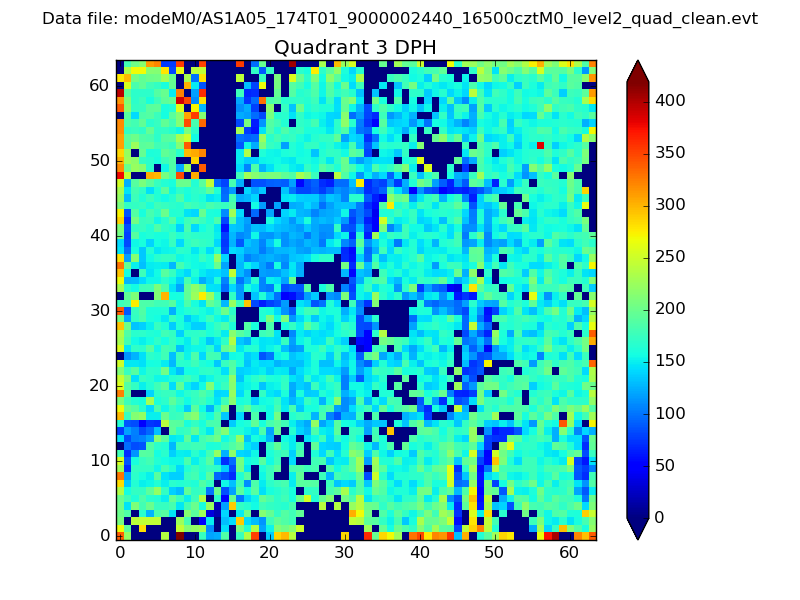

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

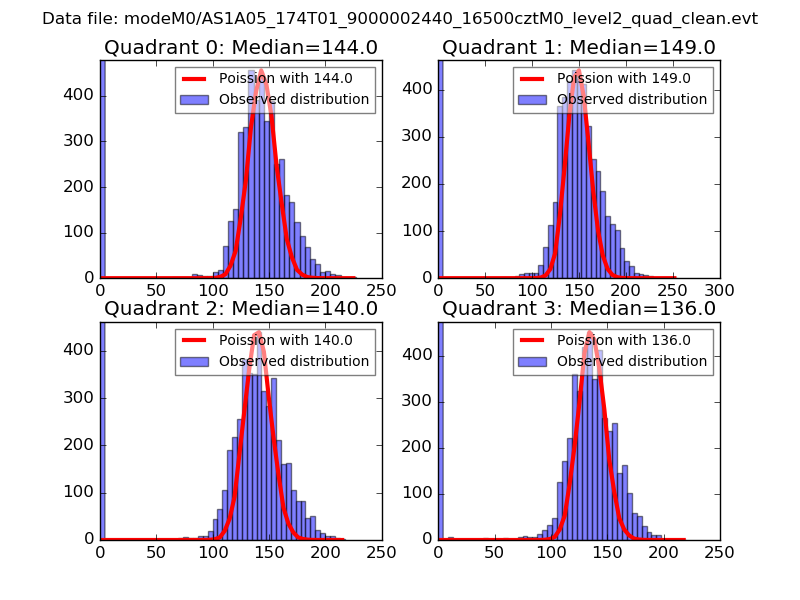

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

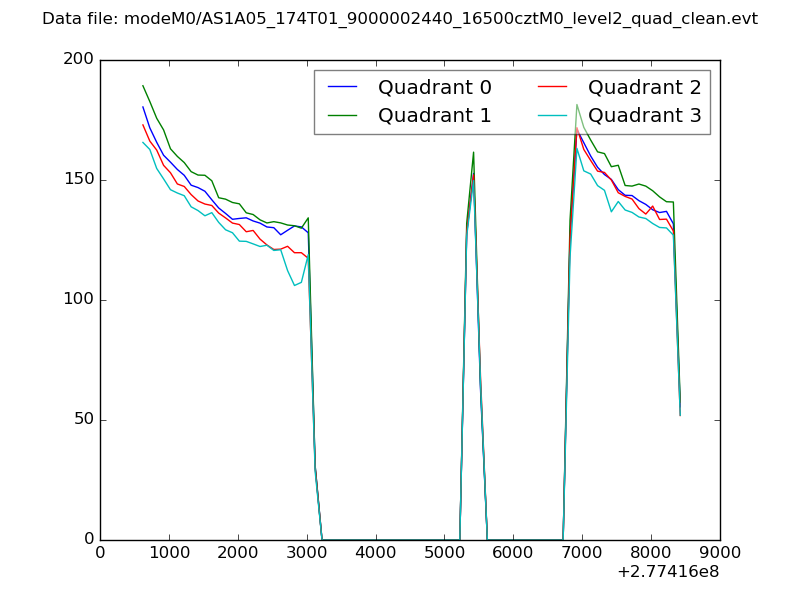

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

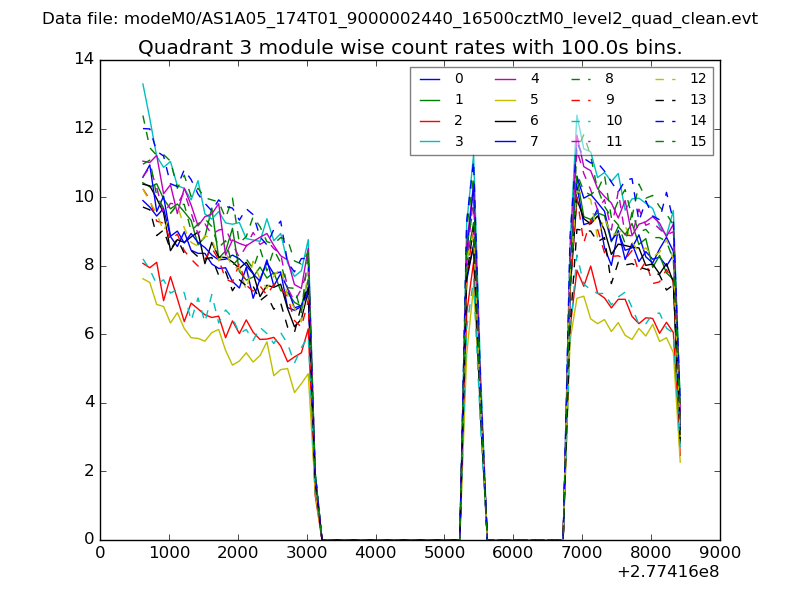

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

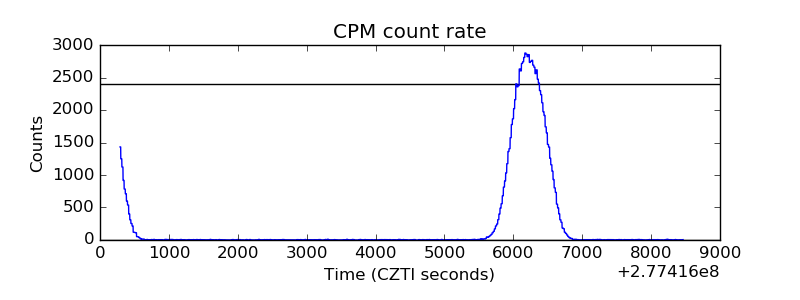

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

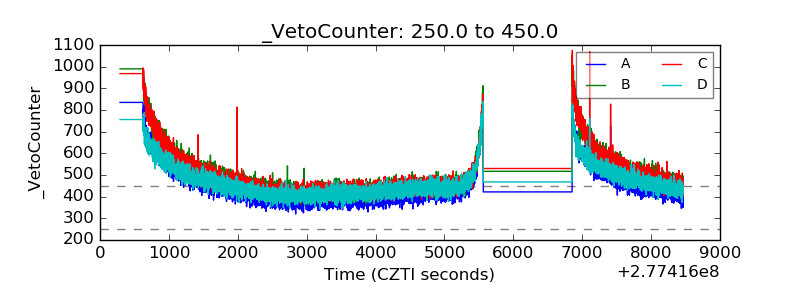

| Veto Counter |  |
