| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000002440_16504cztM0_level2.evt | modeM0/AS1A05_174T01_9000002440_16504cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,549,760 | 91,843,200 |
| Size | 477.4 MB | 87.6 MB |
| Events in quadrant A | 3,678,600 | 571,253 |
| Events in quadrant B | 3,839,265 | 582,943 |
| Events in quadrant C | 3,713,454 | 559,113 |
| Events in quadrant D | 3,422,100 | 549,821 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15942 | 3 |
| B | 0 | 16082 | 2 |
| C | 0 | 15526 | 2 |
| D | 0 | 15524 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7449 | 104 | 1.396161% |
| B | 7449 | 126 | 1.691502% |
| C | 7449 | 130 | 1.745201% |
| D | 7449 | 56 | 0.751779% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8980 | 7452 | 31 | 31 | 0.35% | 0.42% |  |
| B | 8980 | 7450 | 21 | 21 | 0.23% | 0.28% |  |
| C | 8980 | 7452 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8980 | 7451 | 7 | 7 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 231393 | 1286.12 | 891 | 871 | 179.2 |
| A | 15 | 223 | 19797 | 105.59 | 891 | 871 | 179.2 |
| A | 0 | 226 | 7656 | 37.85 | 891 | 871 | 179.2 |
| B | 10 | 16 | 105675 | 608.0 | 897 | 874 | 172.4 |
| B | 15 | 35 | 55979 | 319.69 | 897 | 874 | 172.4 |
| B | 4 | 48 | 47249 | 269.04 | 897 | 874 | 172.4 |
| C | 3 | 233 | 195890 | 961.3 | 864 | 867 | 202.9 |
| C | 14 | 238 | 133118 | 651.88 | 864 | 867 | 202.9 |
| C | 7 | 247 | 13860 | 64.04 | 864 | 867 | 202.9 |
| D | 5 | 222 | 52696 | 244.09 | 869 | 843 | 212.4 |
| D | 13 | 249 | 29418 | 134.51 | 869 | 843 | 212.4 |
| D | 2 | 234 | 25214 | 114.72 | 869 | 843 | 212.4 |

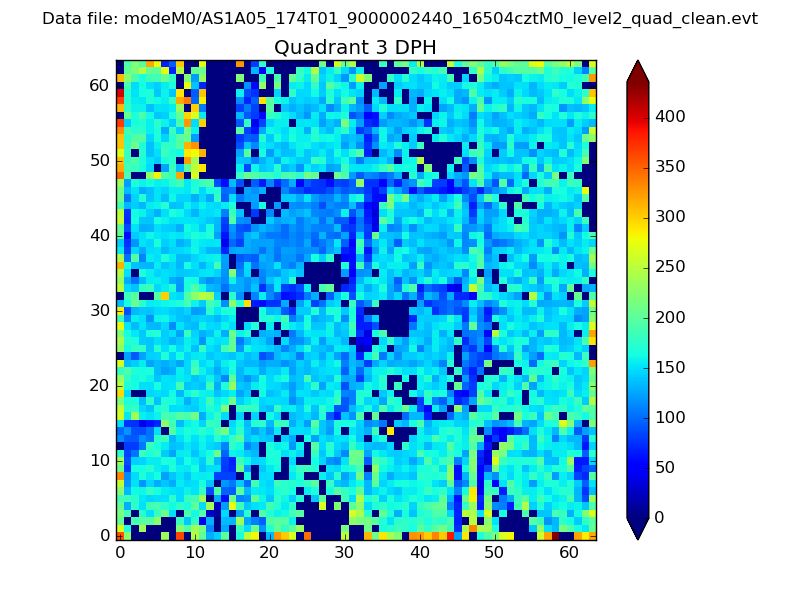

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

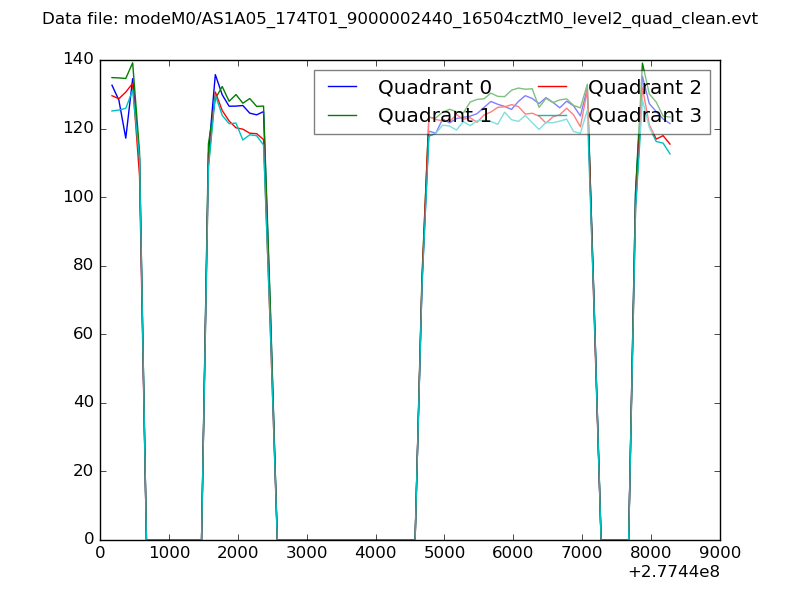

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

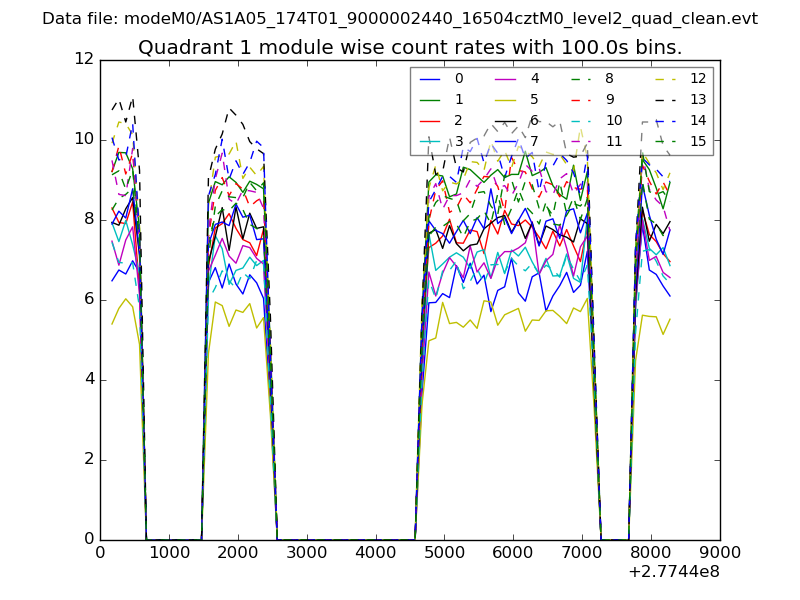

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

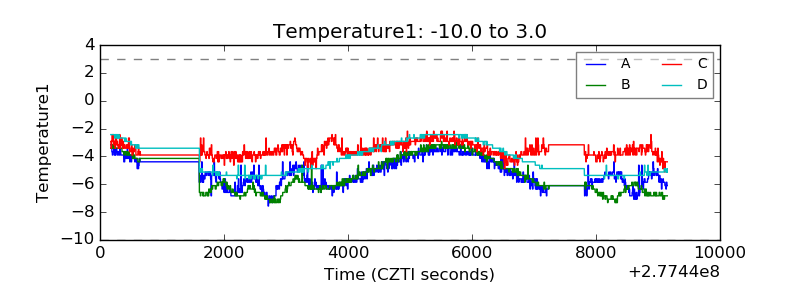

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

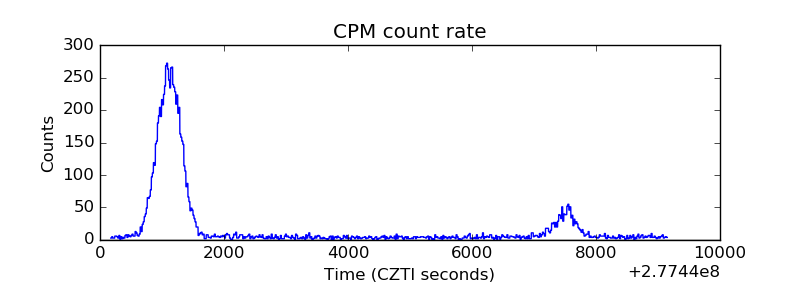

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
