| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000002440_16509cztM0_level2.evt | modeM0/AS1A05_174T01_9000002440_16509cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,320,992,640 | 243,826,560 |
| Size | 1.2 GB | 232.5 MB |
| Events in quadrant A | 10,041,919 | 1,522,880 |
| Events in quadrant B | 9,812,602 | 1,552,426 |
| Events in quadrant C | 9,847,449 | 1,498,389 |
| Events in quadrant D | 8,996,173 | 1,478,589 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 394 | 0 |
| B | 0 | 394 | 0 |
| C | 0 | 394 | 0 |
| D | 0 | 394 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42379 | 8 |
| B | 0 | 41476 | 4 |
| C | 0 | 41342 | 8 |
| D | 0 | 40615 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19346 | 360 | 1.860850% |
| B | 19347 | 396 | 2.046829% |
| C | 19345 | 428 | 2.212458% |
| D | 19347 | 300 | 1.550628% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

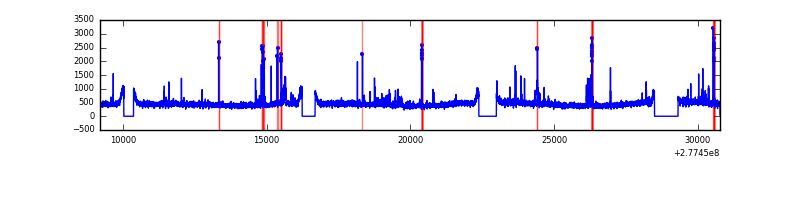

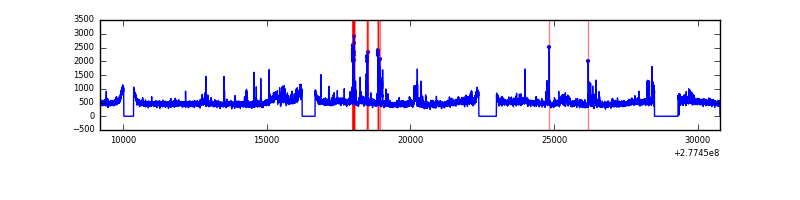

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21568 | 19348 | 33 | 33 | 0.15% | 0.17% |  |
| B | 21568 | 19348 | 13 | 13 | 0.06% | 0.07% |  |
| C | 21568 | 19348 | 0 | 0 | 0.00% | 0.00% |  |
| D | 21568 | 19348 | 41 | 41 | 0.19% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1106400 | 2354.25 | 2306 | 2247 | 469.0 |
| A | 15 | 223 | 35048 | 69.94 | 2306 | 2247 | 469.0 |
| A | 3 | 1 | 30688 | 60.64 | 2306 | 2247 | 469.0 |
| B | 15 | 35 | 238371 | 529.23 | 2313 | 2251 | 446.2 |
| B | 10 | 16 | 120640 | 265.35 | 2313 | 2251 | 446.2 |
| B | 4 | 48 | 112520 | 247.15 | 2313 | 2251 | 446.2 |
| C | 3 | 233 | 440658 | 840.39 | 2220 | 2234 | 521.7 |
| C | 7 | 247 | 423350 | 807.21 | 2220 | 2234 | 521.7 |
| C | 14 | 238 | 337501 | 642.65 | 2220 | 2234 | 521.7 |
| D | 5 | 222 | 185730 | 334.23 | 2256 | 2189 | 549.2 |
| D | 10 | 70 | 177133 | 318.57 | 2256 | 2189 | 549.2 |
| D | 2 | 234 | 69818 | 123.15 | 2256 | 2189 | 549.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

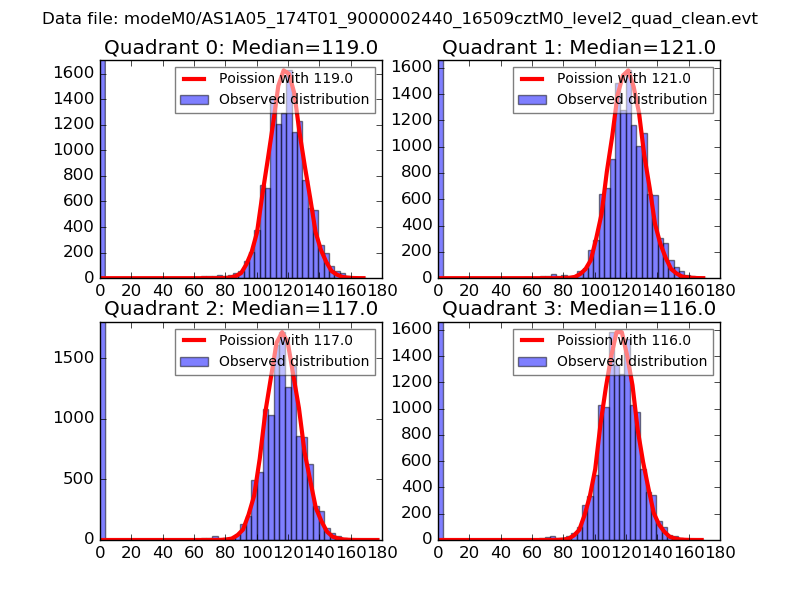

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

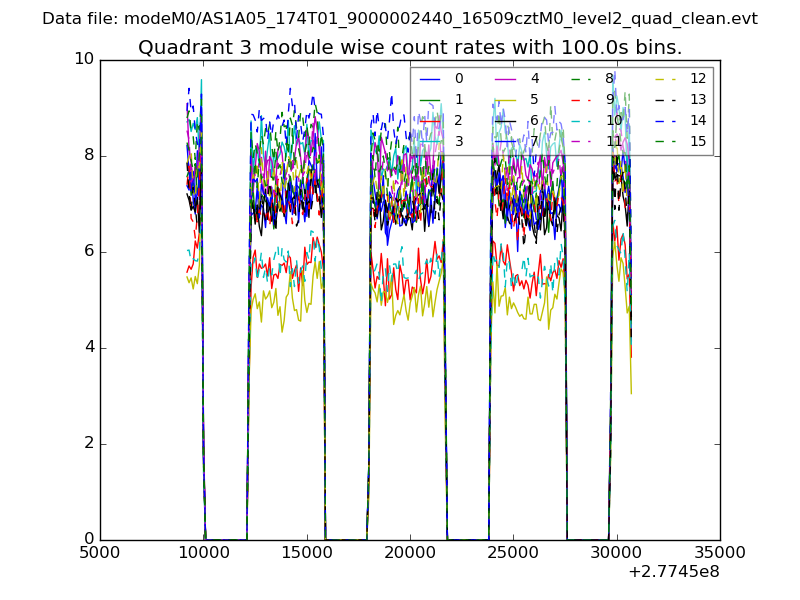

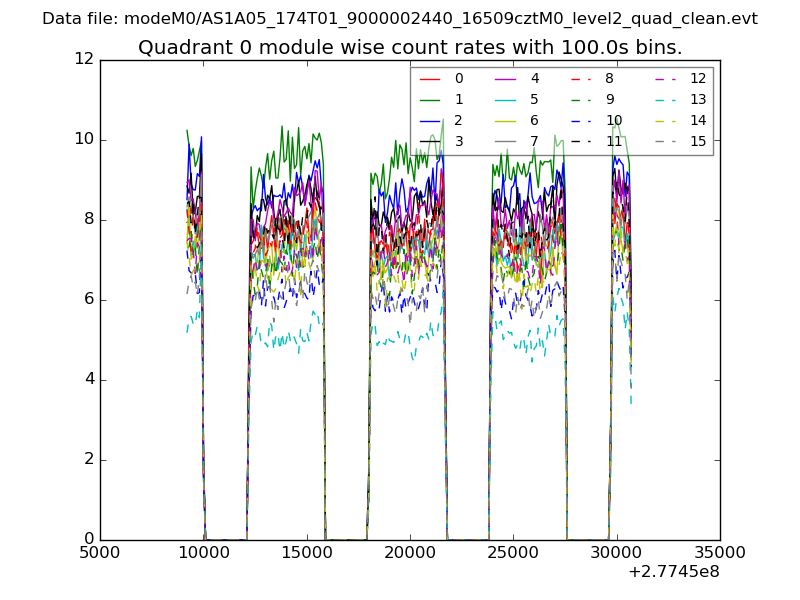

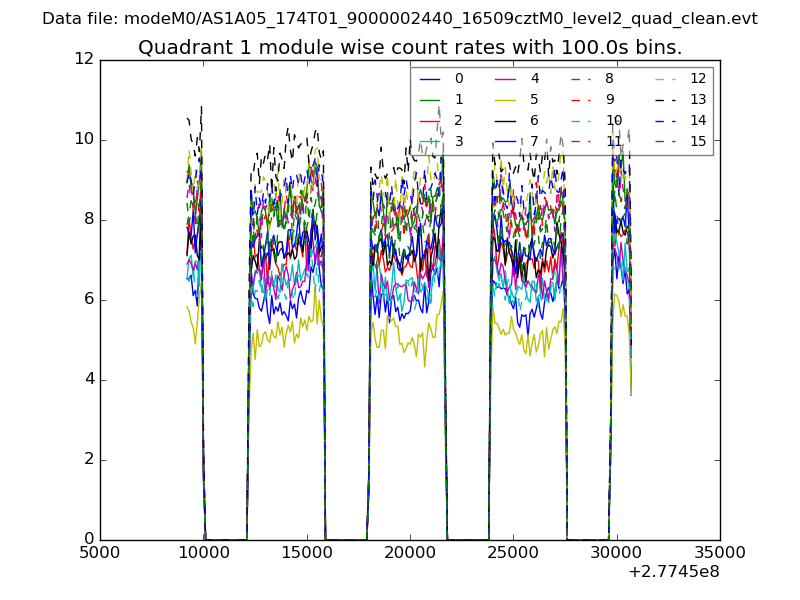

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

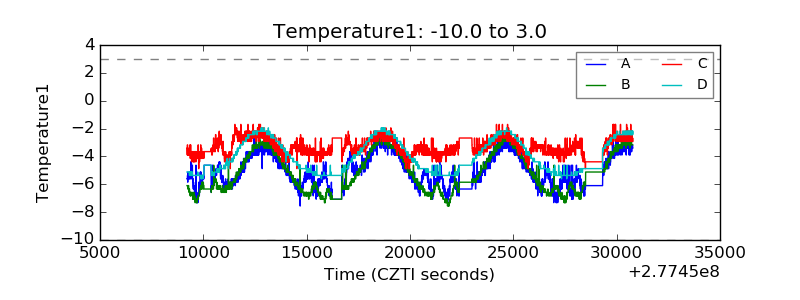

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

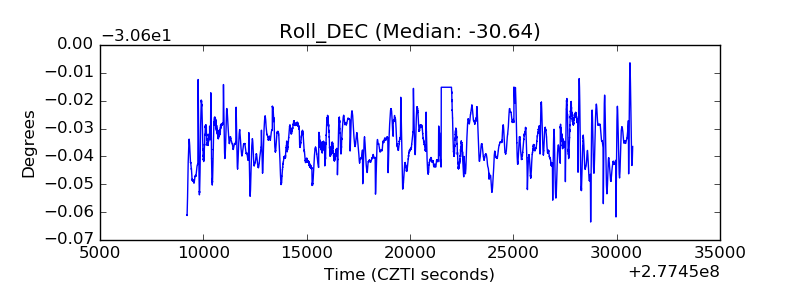

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
