| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000002440_16510cztM0_level2.evt | modeM0/AS1A05_174T01_9000002440_16510cztM0_level2_quad_clean.evt |
| Size (bytes) | 407,327,040 | 95,135,040 |
| Size | 388.5 MB | 90.7 MB |
| Events in quadrant A | 3,000,302 | 621,249 |
| Events in quadrant B | 2,999,152 | 633,407 |
| Events in quadrant C | 3,046,035 | 602,788 |
| Events in quadrant D | 2,871,696 | 594,125 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12949 | 2 |
| B | 0 | 12926 | 1 |
| C | 0 | 13164 | 1 |
| D | 0 | 12861 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6158 | 53 | 0.860669% |
| B | 6158 | 48 | 0.779474% |
| C | 6158 | 69 | 1.120494% |
| D | 6158 | 54 | 0.876908% |

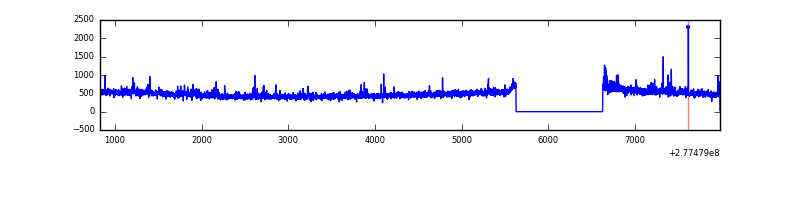

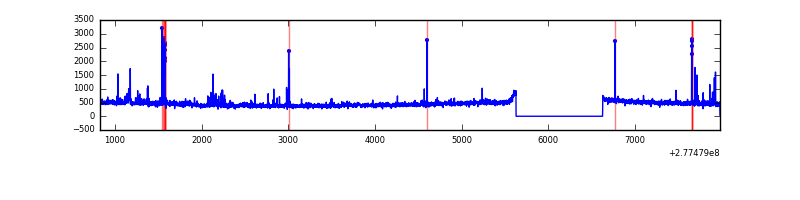

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7159 | 6159 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7159 | 6159 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7159 | 6159 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7159 | 6159 | 15 | 15 | 0.21% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 131974 | 878.6 | 737 | 724 | 149.4 |
| A | 15 | 223 | 25959 | 168.92 | 737 | 724 | 149.4 |
| A | 0 | 226 | 6442 | 38.28 | 737 | 724 | 149.4 |
| B | 15 | 35 | 30152 | 207.63 | 738 | 720 | 141.8 |
| B | 4 | 48 | 29116 | 200.32 | 738 | 720 | 141.8 |
| B | 12 | 111 | 17238 | 116.53 | 738 | 720 | 141.8 |
| C | 3 | 233 | 194168 | 1172.03 | 700 | 701 | 165.1 |
| C | 14 | 238 | 106581 | 641.42 | 700 | 701 | 165.1 |
| C | 7 | 247 | 17018 | 98.85 | 700 | 701 | 165.1 |
| D | 10 | 70 | 70451 | 401.51 | 709 | 686 | 173.8 |
| D | 12 | 144 | 46138 | 261.58 | 709 | 686 | 173.8 |
| D | 1 | 52 | 23317 | 130.25 | 709 | 686 | 173.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

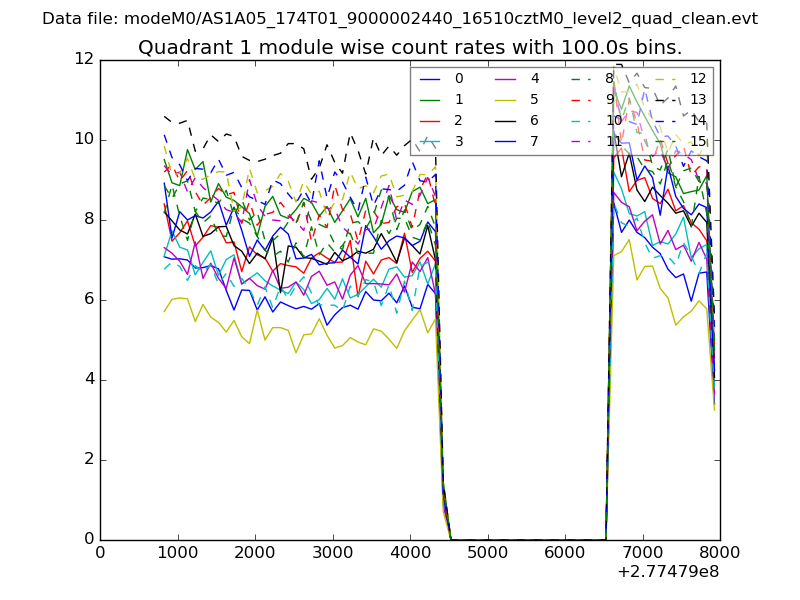

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

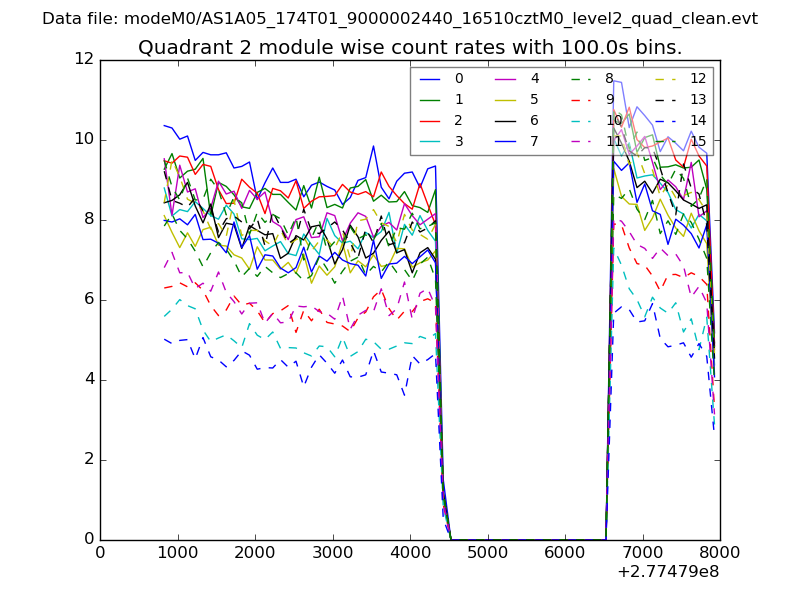

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

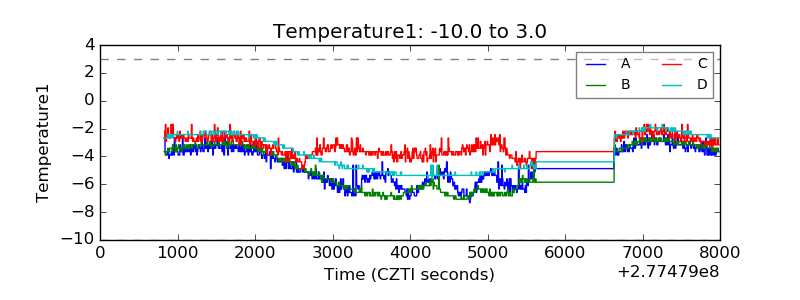

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

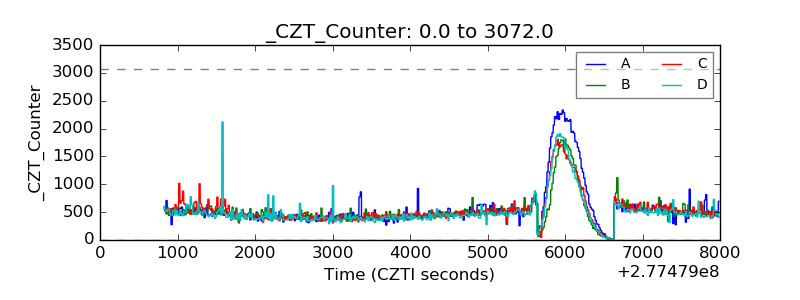

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

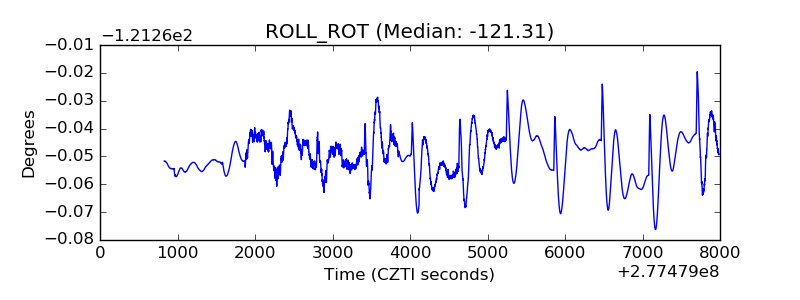

| _ROLL_ROT |  |

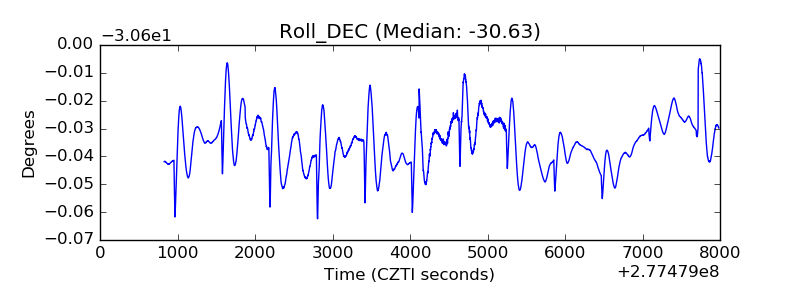

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
