| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000002440_16512cztM0_level2.evt | modeM0/AS1A05_174T01_9000002440_16512cztM0_level2_quad_clean.evt |
| Size (bytes) | 441,048,960 | 101,894,400 |
| Size | 420.6 MB | 97.2 MB |
| Events in quadrant A | 3,290,743 | 668,905 |
| Events in quadrant B | 3,271,672 | 684,156 |
| Events in quadrant C | 3,284,894 | 641,551 |
| Events in quadrant D | 3,062,781 | 632,663 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14054 | 1 |
| B | 0 | 14085 | 0 |
| C | 0 | 13978 | 0 |
| D | 0 | 13725 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6574 | 62 | 0.943109% |
| B | 6574 | 69 | 1.049589% |
| C | 6574 | 88 | 1.338607% |
| D | 6574 | 58 | 0.882263% |

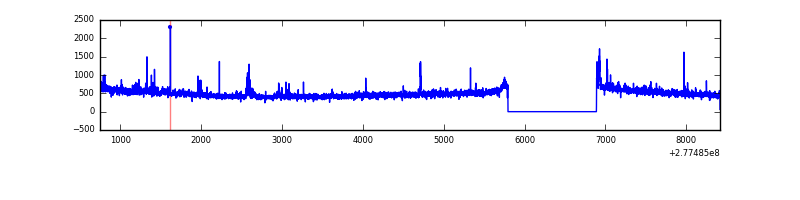

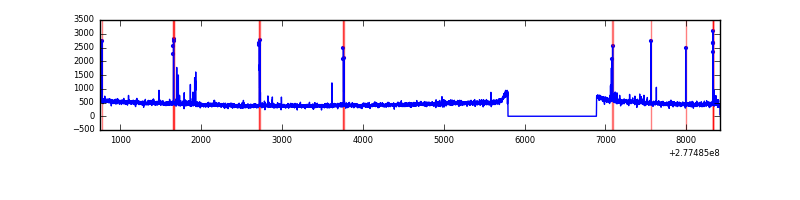

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7670 | 6575 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7670 | 6575 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7670 | 6575 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7670 | 6575 | 19 | 19 | 0.25% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 168402 | 1026.43 | 804 | 787 | 163.3 |
| A | 15 | 223 | 22877 | 135.27 | 804 | 787 | 163.3 |
| A | 3 | 1 | 8414 | 46.71 | 804 | 787 | 163.3 |
| B | 15 | 35 | 49109 | 310.97 | 806 | 787 | 155.4 |
| B | 12 | 111 | 18491 | 113.93 | 806 | 787 | 155.4 |
| B | 0 | 198 | 16833 | 103.26 | 806 | 787 | 155.4 |
| C | 3 | 233 | 182530 | 1024.28 | 760 | 766 | 177.5 |
| C | 14 | 238 | 119270 | 667.8 | 760 | 766 | 177.5 |
| C | 7 | 247 | 19189 | 103.82 | 760 | 766 | 177.5 |
| D | 10 | 70 | 64924 | 343.99 | 771 | 751 | 186.6 |
| D | 1 | 52 | 30562 | 159.8 | 771 | 751 | 186.6 |
| D | 2 | 234 | 22575 | 116.99 | 771 | 751 | 186.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

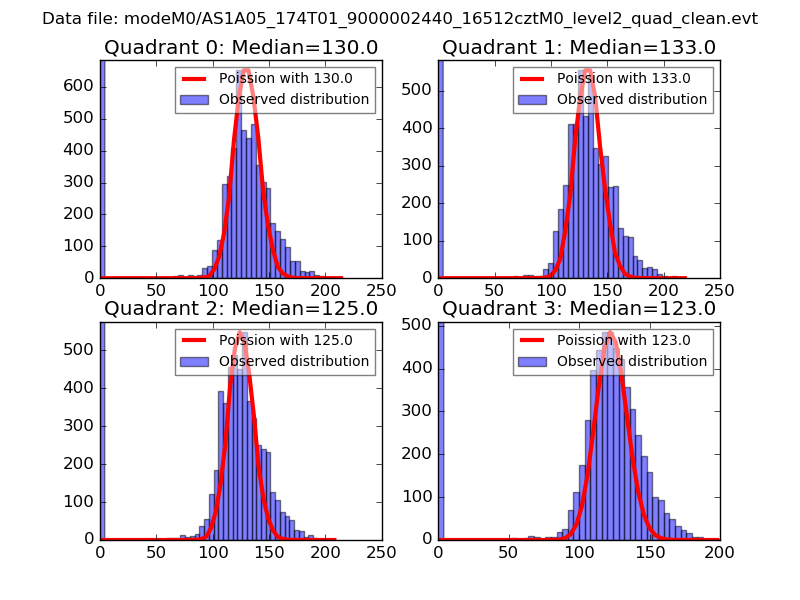

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

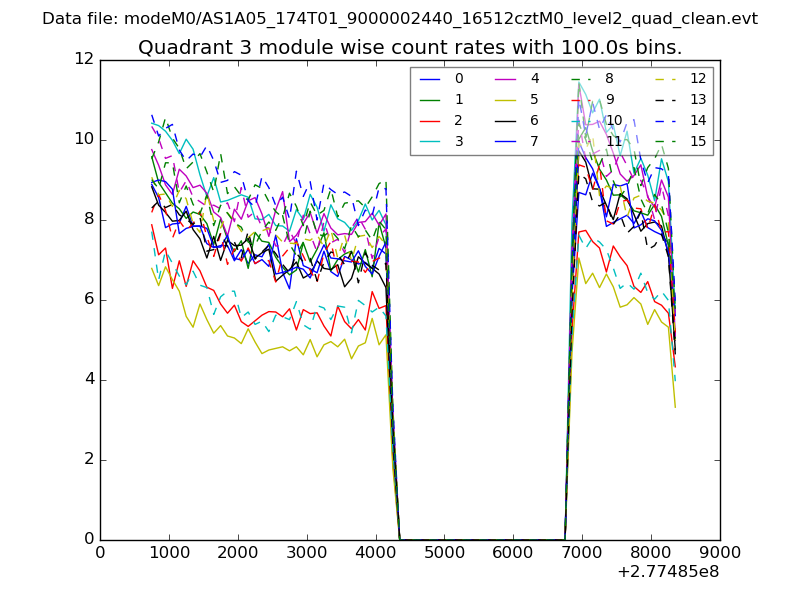

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

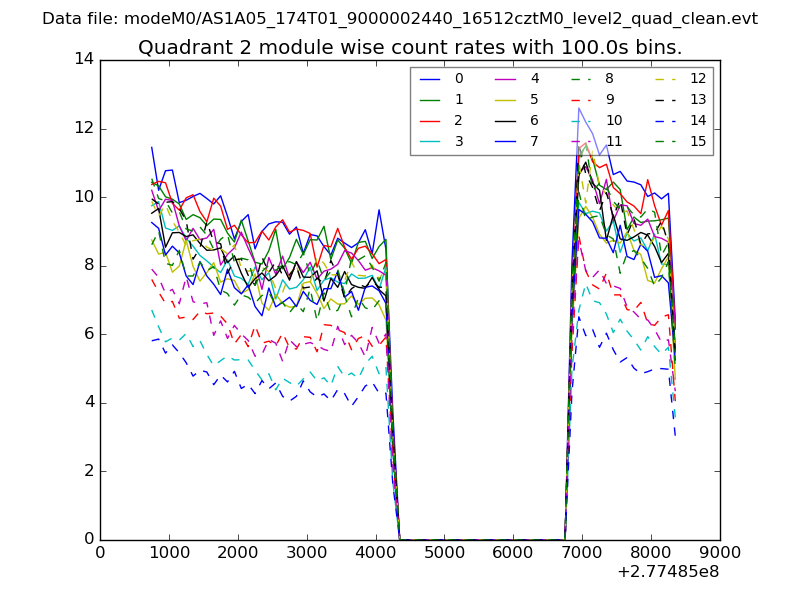

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

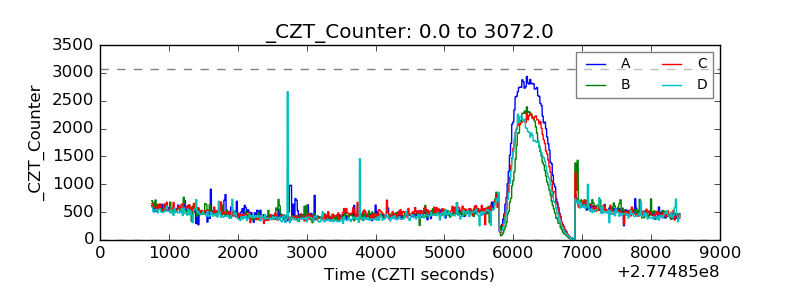

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

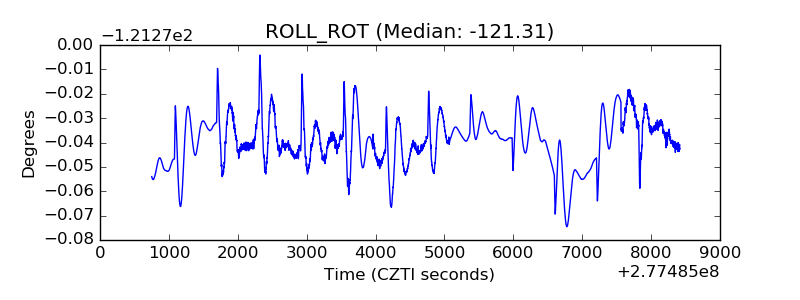

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

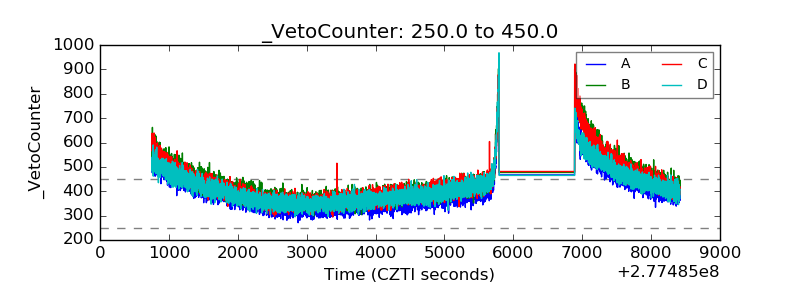

| Veto Counter |  |
