| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000002440_16514cztM0_level2.evt | modeM0/AS1A05_174T01_9000002440_16514cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,387,200 | 95,244,480 |
| Size | 436.2 MB | 90.8 MB |
| Events in quadrant A | 3,566,217 | 617,614 |
| Events in quadrant B | 3,356,882 | 643,573 |
| Events in quadrant C | 3,267,969 | 598,235 |
| Events in quadrant D | 3,226,661 | 578,992 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14819 | 3 |
| B | 0 | 13935 | 2 |
| C | 0 | 13672 | 2 |
| D | 0 | 13824 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6392 | 55 | 0.860451% |
| B | 6392 | 57 | 0.891740% |
| C | 6392 | 52 | 0.813517% |
| D | 6392 | 35 | 0.547559% |

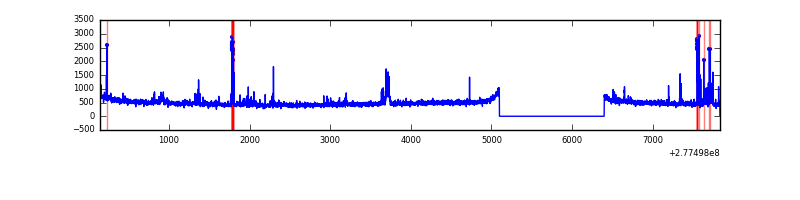

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7693 | 6393 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7693 | 6393 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7693 | 6393 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7693 | 6393 | 25 | 25 | 0.32% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 428325 | 2654.98 | 806 | 793 | 161.0 |
| A | 15 | 223 | 29753 | 179.84 | 806 | 793 | 161.0 |
| A | 15 | 239 | 9015 | 51.06 | 806 | 793 | 161.0 |
| B | 15 | 35 | 37892 | 239.98 | 817 | 799 | 154.6 |
| B | 5 | 236 | 36742 | 232.54 | 817 | 799 | 154.6 |
| B | 0 | 198 | 28180 | 177.15 | 817 | 799 | 154.6 |
| C | 14 | 238 | 121665 | 674.46 | 771 | 776 | 179.2 |
| C | 3 | 233 | 119836 | 664.25 | 771 | 776 | 179.2 |
| C | 7 | 247 | 21315 | 114.59 | 771 | 776 | 179.2 |
| D | 10 | 70 | 122764 | 652.01 | 772 | 750 | 187.1 |
| D | 1 | 52 | 111602 | 592.36 | 772 | 750 | 187.1 |
| D | 5 | 222 | 69439 | 367.05 | 772 | 750 | 187.1 |

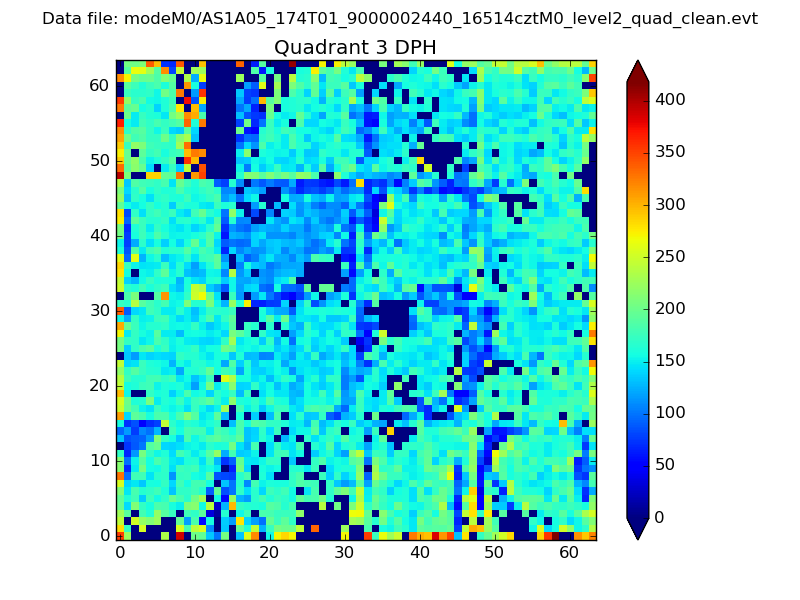

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

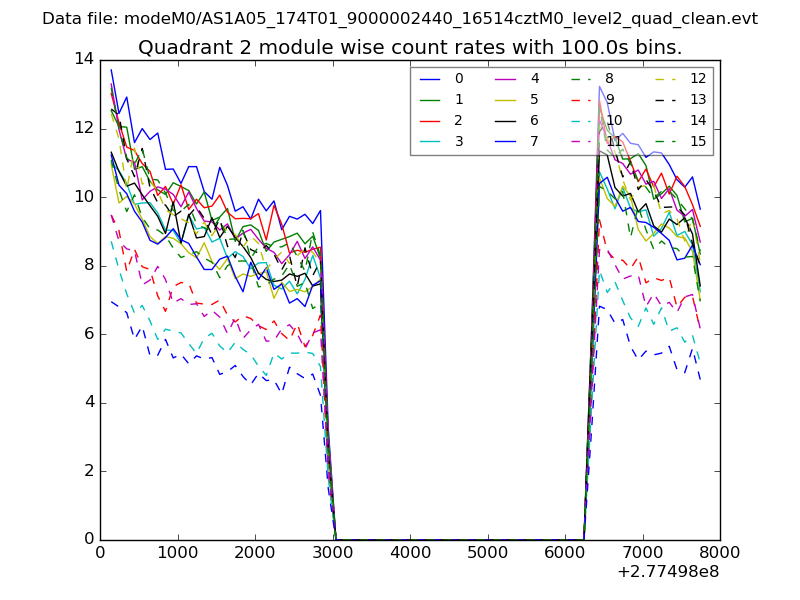

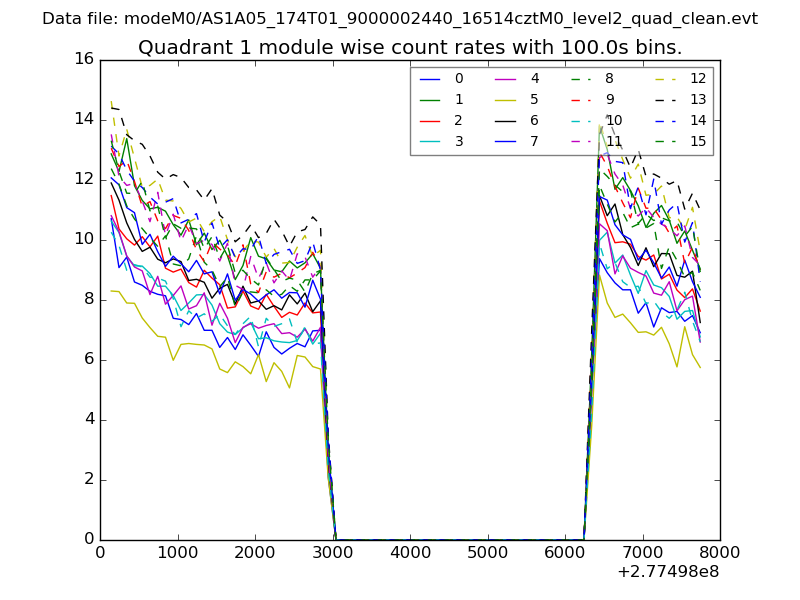

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

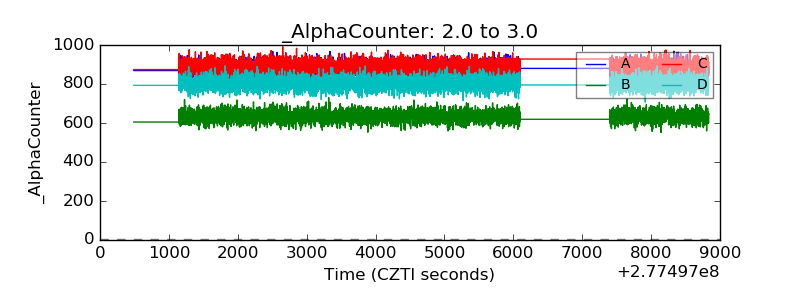

| Alpha Counter |  |

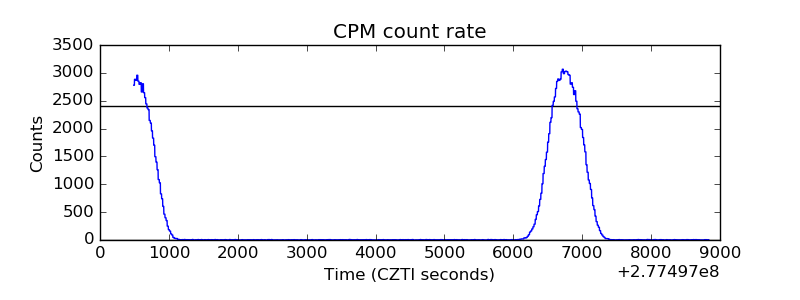

| _CPM_Rate |  |

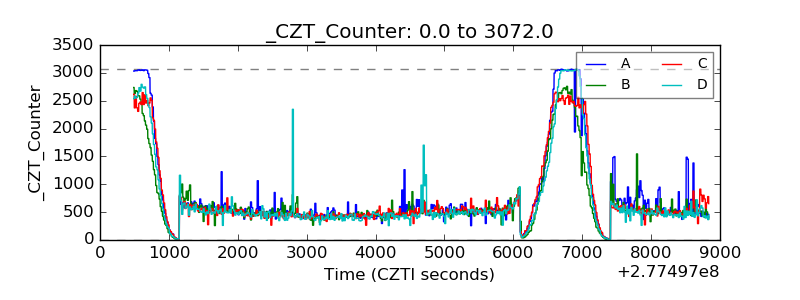

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

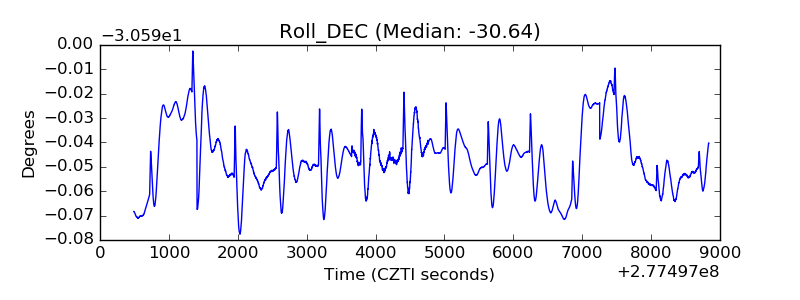

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
