| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_018T01_9000002442_16530cztM0_level2.evt | modeM0/AS1T03_018T01_9000002442_16530cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,309,760 | 81,302,400 |
| Size | 422.8 MB | 77.5 MB |
| Events in quadrant A | 3,099,286 | 508,919 |
| Events in quadrant B | 3,398,828 | 530,318 |
| Events in quadrant C | 3,348,590 | 507,100 |
| Events in quadrant D | 3,159,617 | 484,705 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12974 | 3 |
| B | 0 | 13863 | 2 |
| C | 0 | 13614 | 2 |
| D | 0 | 13419 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6178 | 18 | 0.291356% |
| B | 6178 | 31 | 0.501781% |
| C | 6178 | 53 | 0.857883% |
| D | 6178 | 54 | 0.874069% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7529 | 6180 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7529 | 6180 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7529 | 6180 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7529 | 6180 | 32 | 32 | 0.43% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 69142 | 432.96 | 787 | 775 | 157.9 |
| A | 0 | 226 | 6825 | 38.31 | 787 | 775 | 157.9 |
| A | 15 | 223 | 5938 | 32.7 | 787 | 775 | 157.9 |
| B | 10 | 16 | 56354 | 372.18 | 799 | 781 | 149.3 |
| B | 0 | 198 | 49789 | 328.21 | 799 | 781 | 149.3 |
| B | 0 | 168 | 43946 | 289.08 | 799 | 781 | 149.3 |
| C | 3 | 233 | 263916 | 1480.73 | 760 | 765 | 177.7 |
| C | 14 | 238 | 119277 | 666.86 | 760 | 765 | 177.7 |
| C | 13 | 61 | 5357 | 25.84 | 760 | 765 | 177.7 |
| D | 1 | 52 | 122672 | 661.55 | 756 | 736 | 184.3 |
| D | 7 | 38 | 57211 | 306.4 | 756 | 736 | 184.3 |
| D | 10 | 70 | 48966 | 261.67 | 756 | 736 | 184.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

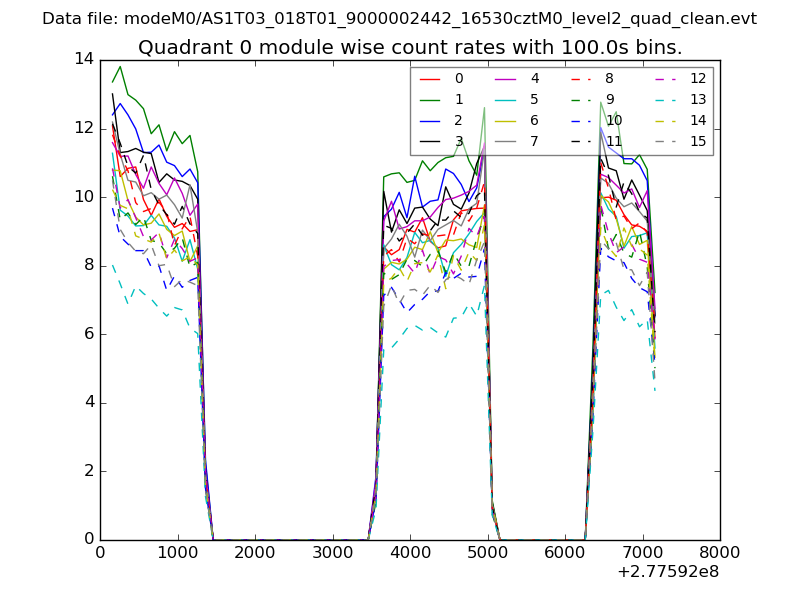

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

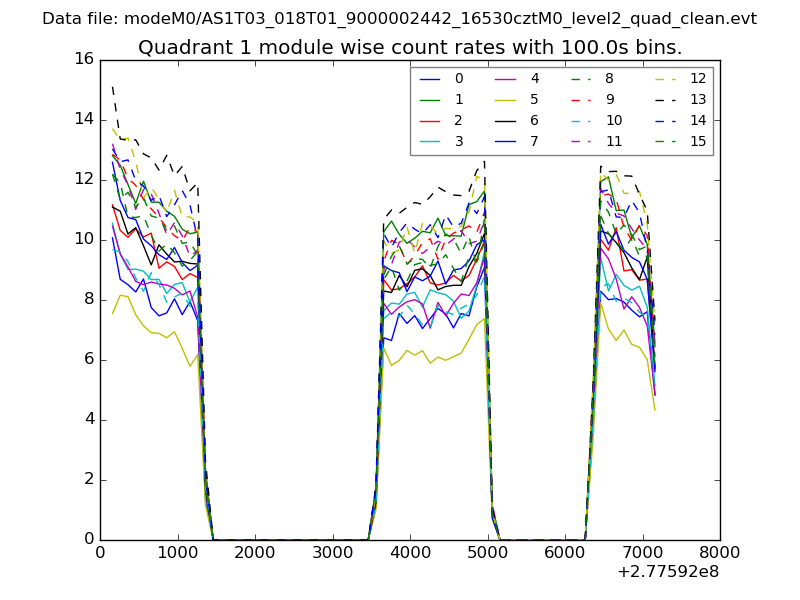

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

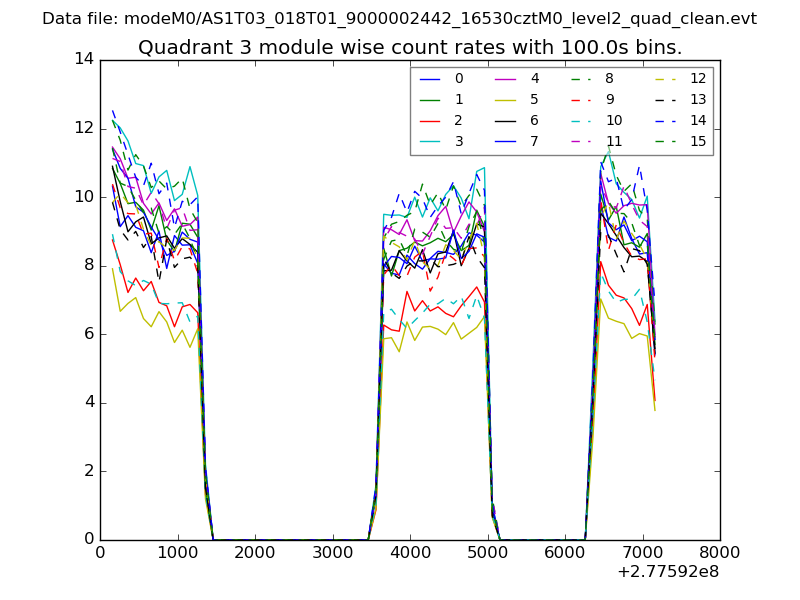

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

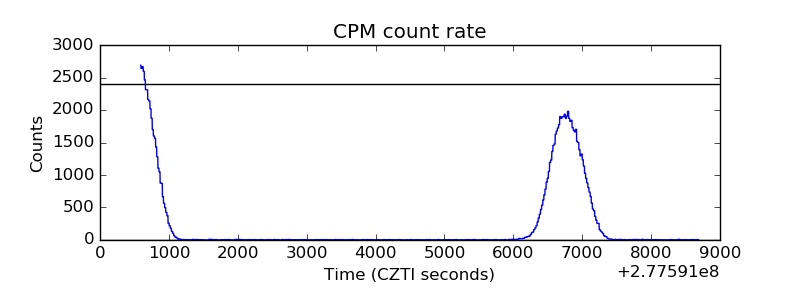

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

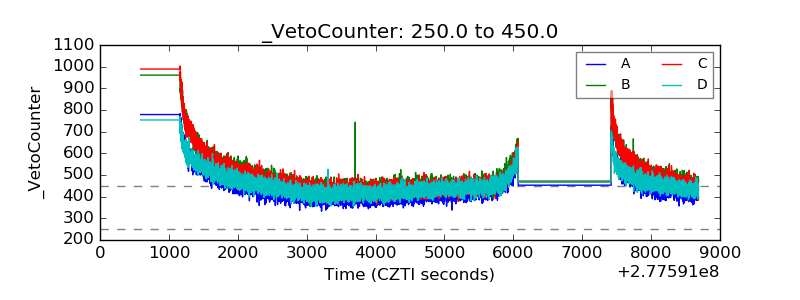

| Veto Counter |  |
