| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_018T01_9000002442_16546cztM0_level2.evt | modeM0/AS1T03_018T01_9000002442_16546cztM0_level2_quad_clean.evt |
| Size (bytes) | 595,897,920 | 73,215,360 |
| Size | 568.3 MB | 69.8 MB |
| Events in quadrant A | 3,386,447 | 439,708 |
| Events in quadrant B | 3,636,006 | 450,322 |
| Events in quadrant C | 6,707,951 | 430,774 |
| Events in quadrant D | 3,857,055 | 423,223 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14345 | 3 |
| B | 0 | 15089 | 2 |
| C | 0 | 24270 | 2 |
| D | 0 | 16041 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6790 | 35 | 0.515464% |
| B | 6790 | 77 | 1.134021% |
| C | 6790 | 939 | 13.829161% |
| D | 6790 | 48 | 0.706922% |

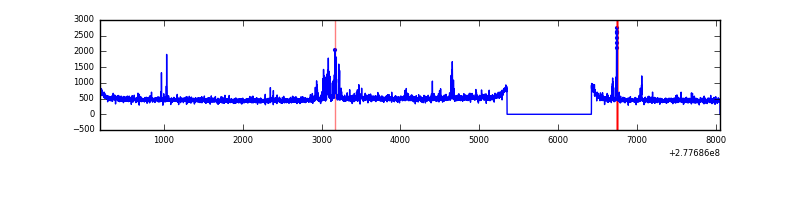

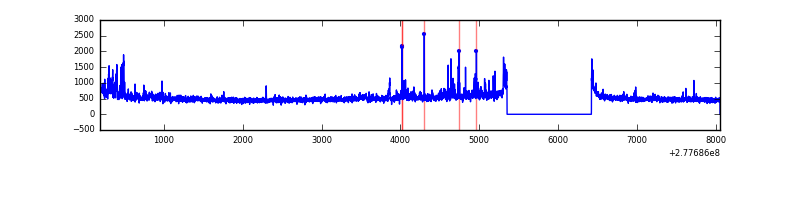

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7861 | 6791 | 8 | 8 | 0.10% | 0.12% |  |
| B | 7861 | 6792 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7861 | 6791 | 672 | 672 | 8.55% | 9.90% |  |
| D | 7861 | 6791 | 32 | 32 | 0.41% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 156848 | 924.36 | 833 | 817 | 168.8 |
| A | 3 | 1 | 25882 | 148.49 | 833 | 817 | 168.8 |
| A | 0 | 226 | 7334 | 38.61 | 833 | 817 | 168.8 |
| B | 15 | 35 | 145789 | 911.41 | 841 | 820 | 159.1 |
| B | 0 | 198 | 51758 | 320.24 | 841 | 820 | 159.1 |
| B | 0 | 229 | 37732 | 232.06 | 841 | 820 | 159.1 |
| C | 3 | 233 | 3490030 | 19017.68 | 786 | 792 | 183.5 |
| C | 14 | 238 | 122384 | 662.72 | 786 | 792 | 183.5 |
| C | 7 | 247 | 32243 | 171.42 | 786 | 792 | 183.5 |
| D | 1 | 52 | 625695 | 3143.92 | 809 | 783 | 198.8 |
| D | 2 | 33 | 61930 | 307.63 | 809 | 783 | 198.8 |
| D | 10 | 70 | 50186 | 248.54 | 809 | 783 | 198.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

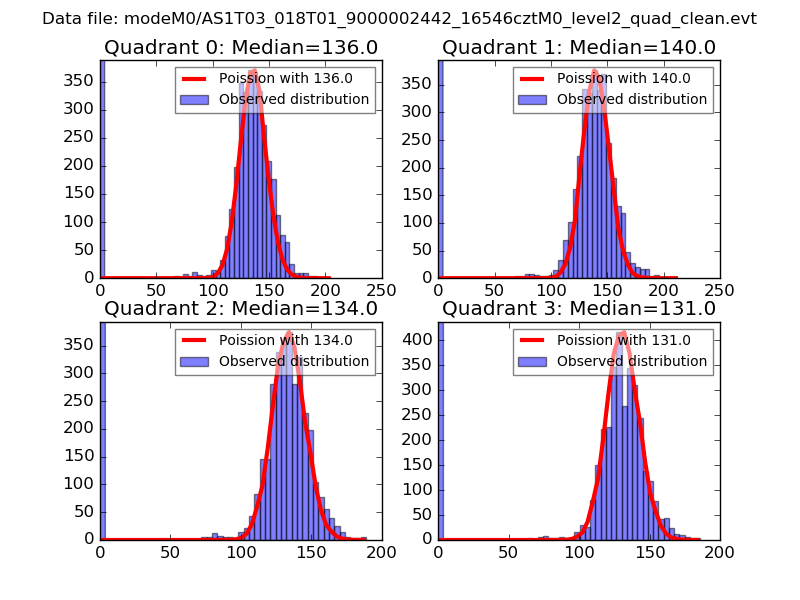

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

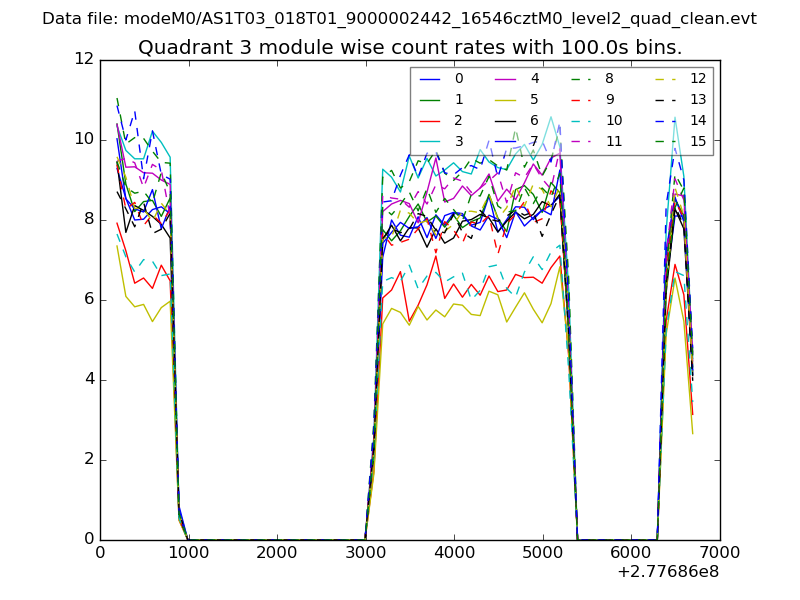

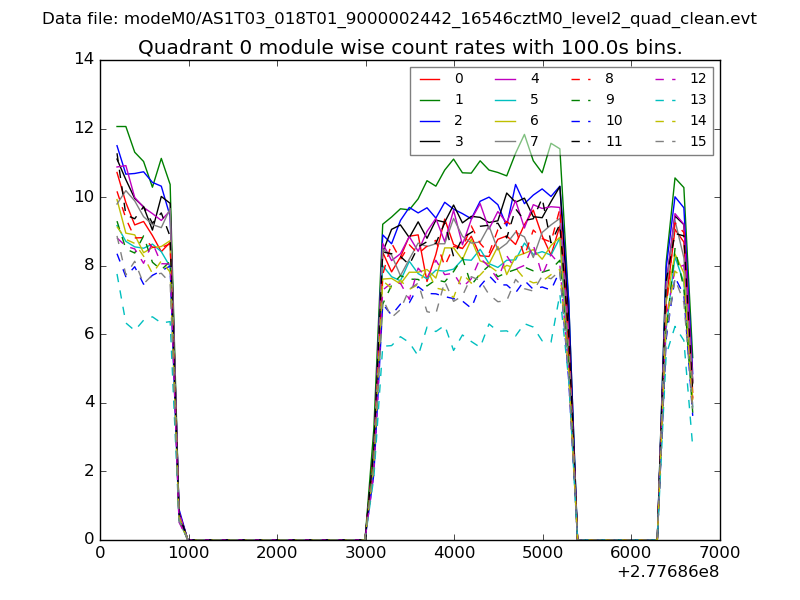

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

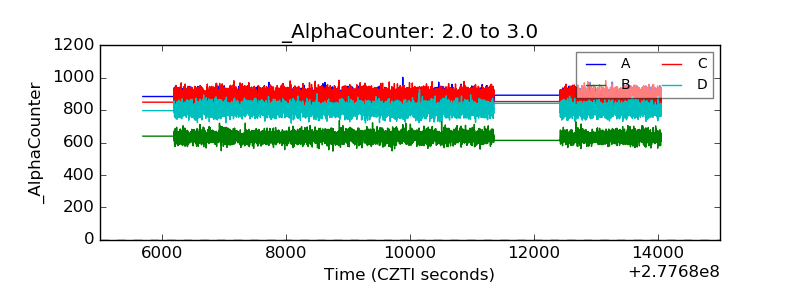

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

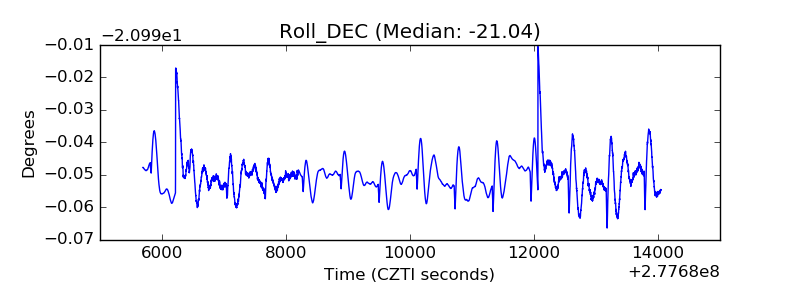

| _Roll_DEC |  |

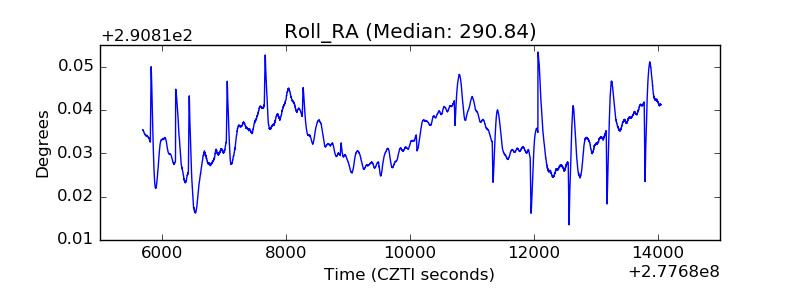

| _Roll_RA |  |
| Veto Counter |  |
