| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_018T01_9000002442_16549cztM0_level2.evt | modeM0/AS1T03_018T01_9000002442_16549cztM0_level2_quad_clean.evt |
| Size (bytes) | 630,789,120 | 77,135,040 |
| Size | 601.6 MB | 73.6 MB |
| Events in quadrant A | 5,005,361 | 456,006 |
| Events in quadrant B | 3,862,783 | 470,313 |
| Events in quadrant C | 6,133,120 | 453,041 |
| Events in quadrant D | 3,606,937 | 447,324 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19691 | 2 |
| B | 0 | 16031 | 1 |
| C | 0 | 23085 | 1 |
| D | 0 | 15884 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7310 | 658 | 9.001368% |
| B | 7310 | 199 | 2.722298% |
| C | 7310 | 598 | 8.180575% |
| D | 7310 | 181 | 2.476060% |

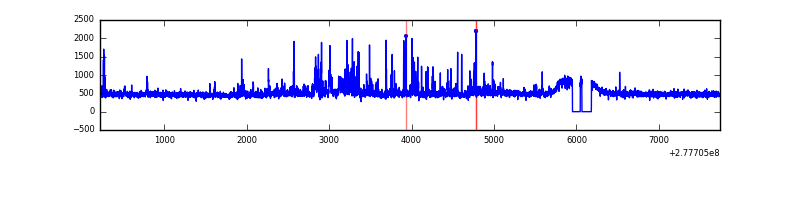

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7521 | 7311 | 405 | 405 | 5.38% | 5.54% |  |
| B | 7521 | 7311 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7521 | 7311 | 221 | 221 | 2.94% | 3.02% |  |
| D | 7521 | 7311 | 41 | 41 | 0.55% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1662566 | 9468.43 | 861 | 839 | 175.5 |
| A | 15 | 223 | 20014 | 109.26 | 861 | 839 | 175.5 |
| A | 15 | 239 | 11750 | 62.17 | 861 | 839 | 175.5 |
| B | 15 | 35 | 118775 | 686.56 | 884 | 860 | 171.7 |
| B | 7 | 220 | 71538 | 411.52 | 884 | 860 | 171.7 |
| B | 3 | 209 | 52702 | 301.85 | 884 | 860 | 171.7 |
| C | 3 | 233 | 2732666 | 13853.65 | 837 | 842 | 197.2 |
| C | 14 | 238 | 129502 | 652.46 | 837 | 842 | 197.2 |
| C | 13 | 61 | 6071 | 26.52 | 837 | 842 | 197.2 |
| D | 2 | 33 | 228512 | 1077.96 | 860 | 833 | 211.2 |
| D | 10 | 70 | 91300 | 428.32 | 860 | 833 | 211.2 |
| D | 2 | 234 | 30891 | 142.31 | 860 | 833 | 211.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

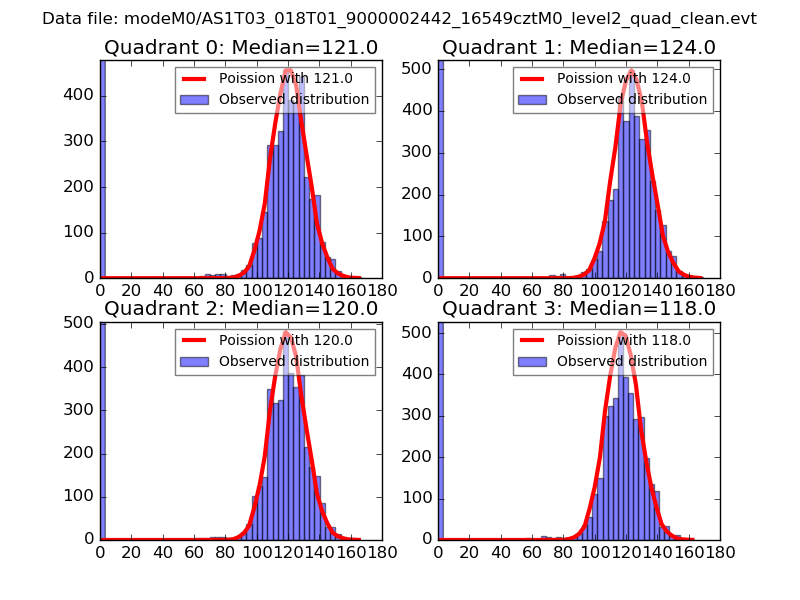

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

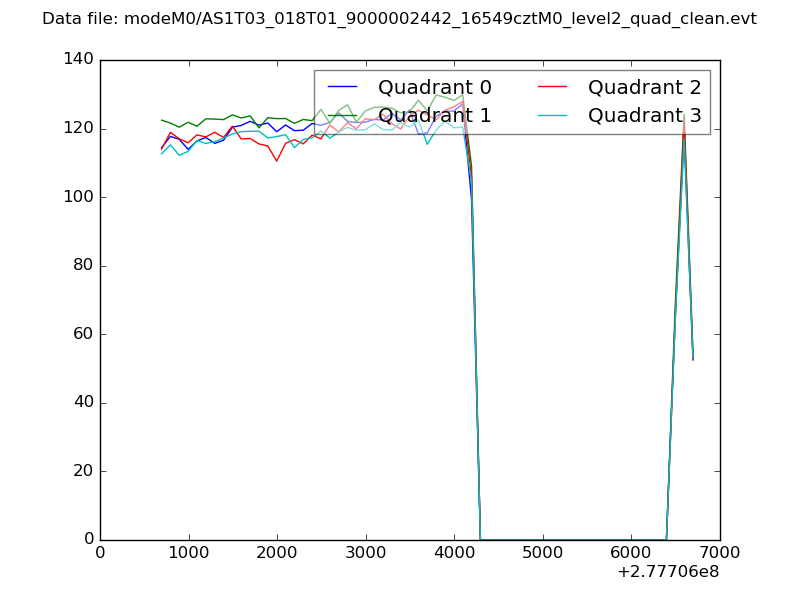

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

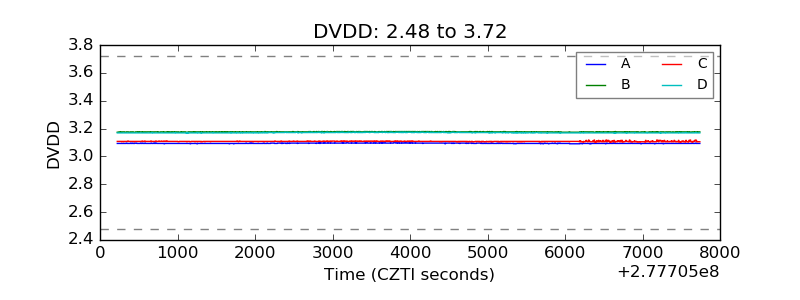

| D_VDD |  |

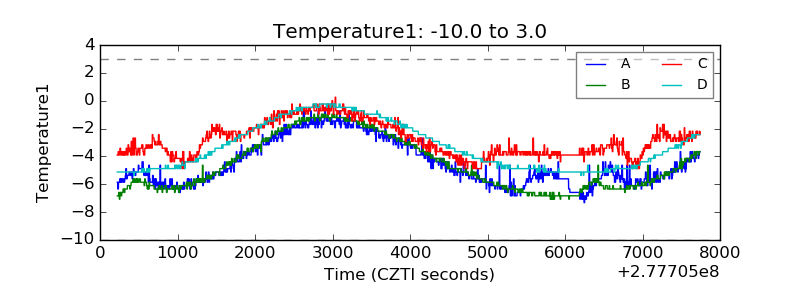

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

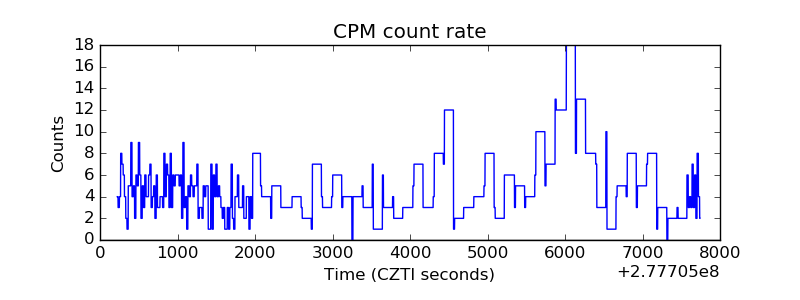

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

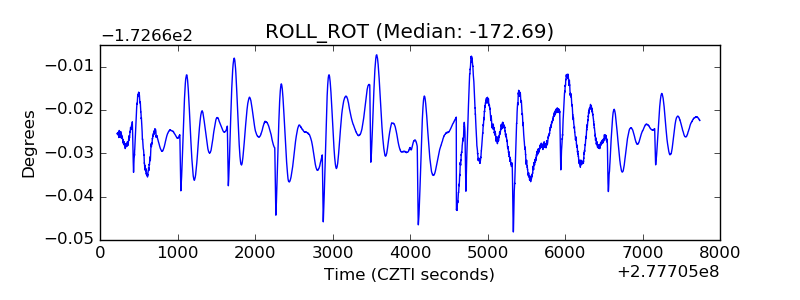

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

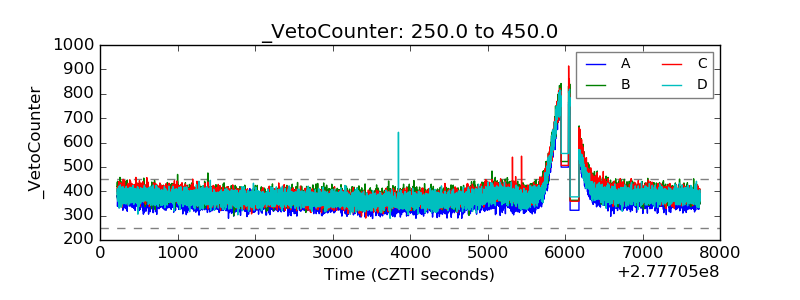

| Veto Counter |  |
