| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_018T01_9000002442_16559cztM0_level2.evt | modeM0/AS1T03_018T01_9000002442_16559cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,700,480 | 83,675,520 |
| Size | 463.2 MB | 79.8 MB |
| Events in quadrant A | 3,511,199 | 536,004 |
| Events in quadrant B | 3,572,612 | 556,842 |
| Events in quadrant C | 3,544,233 | 535,548 |
| Events in quadrant D | 3,661,519 | 473,654 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14203 | 3 |
| B | 0 | 14429 | 2 |
| C | 0 | 14202 | 2 |
| D | 0 | 15081 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6182 | 200 | 3.235199% |
| B | 6182 | 99 | 1.601423% |
| C | 6182 | 99 | 1.601423% |
| D | 6182 | 438 | 7.085086% |

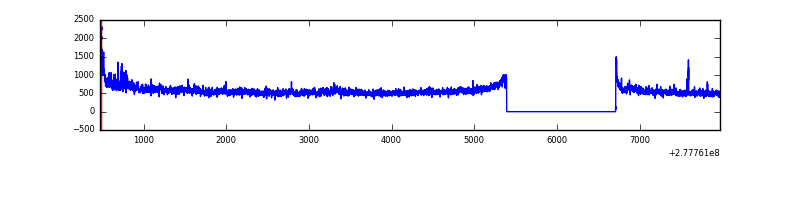

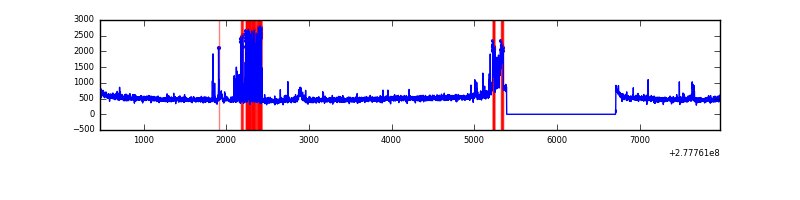

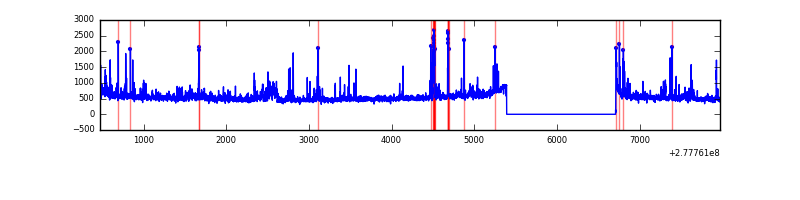

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7503 | 6184 | 110 | 110 | 1.47% | 1.78% |  |
| B | 7503 | 6184 | 28 | 28 | 0.37% | 0.45% |  |
| C | 7503 | 6184 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7503 | 6184 | 145 | 145 | 1.93% | 2.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 491153 | 3154.23 | 778 | 765 | 155.5 |
| A | 15 | 223 | 16384 | 100.46 | 778 | 765 | 155.5 |
| A | 0 | 226 | 6841 | 39.08 | 778 | 765 | 155.5 |
| B | 15 | 35 | 149058 | 981.43 | 798 | 780 | 151.1 |
| B | 0 | 85 | 81473 | 534.09 | 798 | 780 | 151.1 |
| B | 0 | 229 | 56931 | 371.65 | 798 | 780 | 151.1 |
| C | 3 | 233 | 397738 | 2232.86 | 760 | 766 | 177.8 |
| C | 14 | 238 | 118081 | 659.86 | 760 | 766 | 177.8 |
| C | 7 | 247 | 65089 | 361.8 | 760 | 766 | 177.8 |
| D | 2 | 33 | 386758 | 2203.5 | 724 | 703 | 175.2 |
| D | 1 | 52 | 269805 | 1535.96 | 724 | 703 | 175.2 |
| D | 5 | 222 | 168885 | 959.94 | 724 | 703 | 175.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

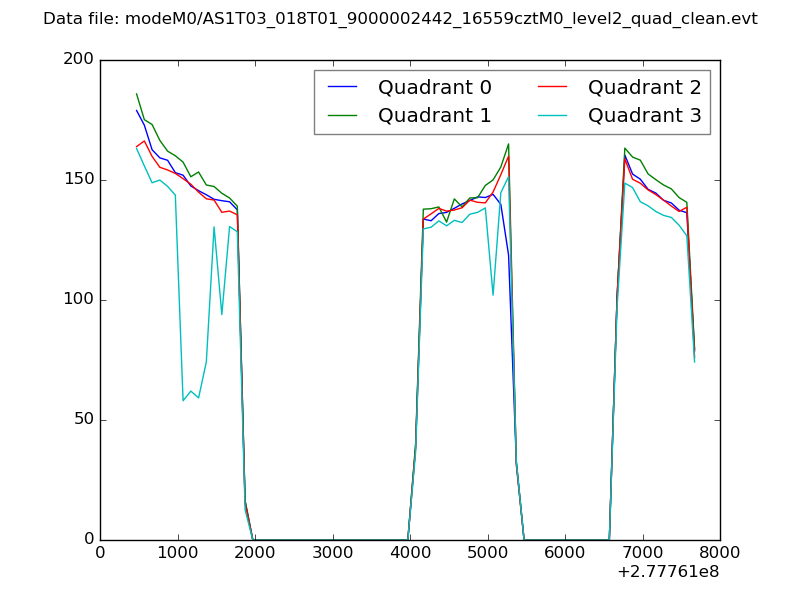

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

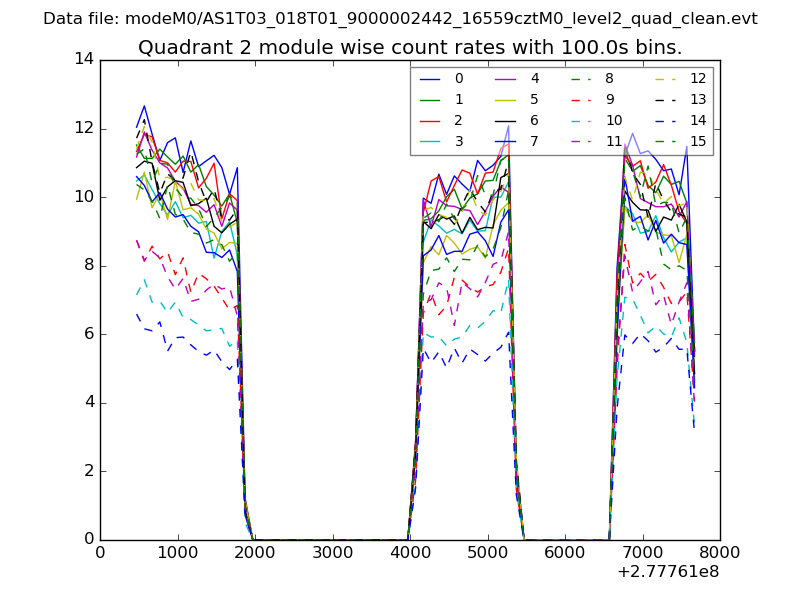

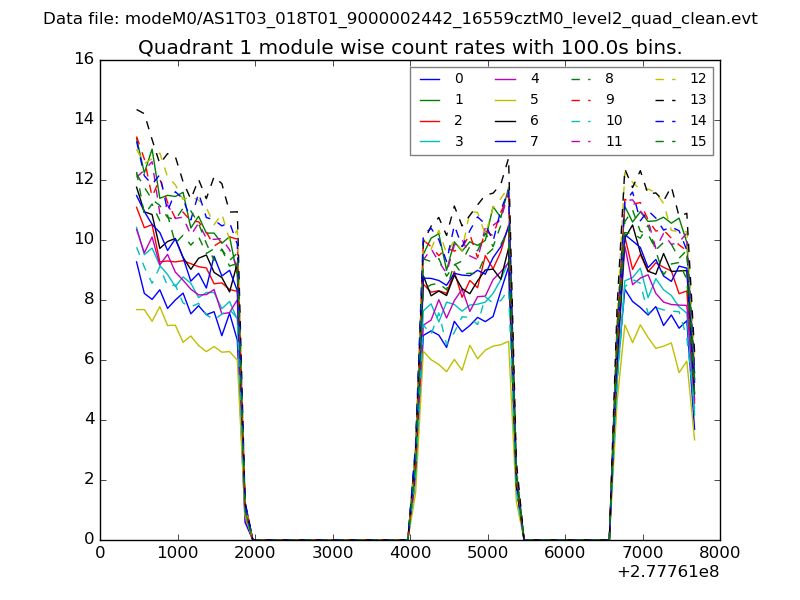

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

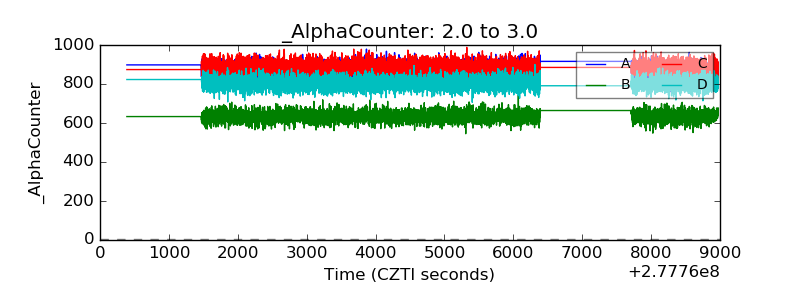

| Alpha Counter |  |

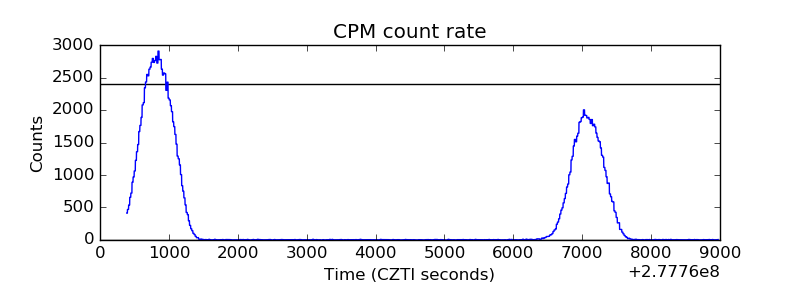

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
