| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_018T01_9000002442_16560cztM0_level2.evt | modeM0/AS1T03_018T01_9000002442_16560cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,863,360 | 76,037,760 |
| Size | 439.5 MB | 72.5 MB |
| Events in quadrant A | 3,295,196 | 463,710 |
| Events in quadrant B | 3,406,253 | 485,471 |
| Events in quadrant C | 3,321,451 | 470,236 |
| Events in quadrant D | 3,512,264 | 449,191 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13698 | 4 |
| B | 0 | 14001 | 2 |
| C | 0 | 13447 | 2 |
| D | 0 | 14712 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6216 | 91 | 1.463964% |
| B | 6216 | 55 | 0.884813% |
| C | 6216 | 53 | 0.852638% |
| D | 6216 | 162 | 2.606178% |

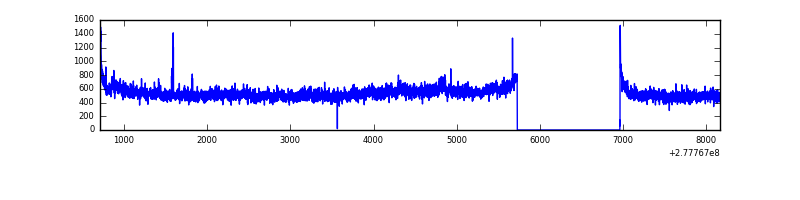

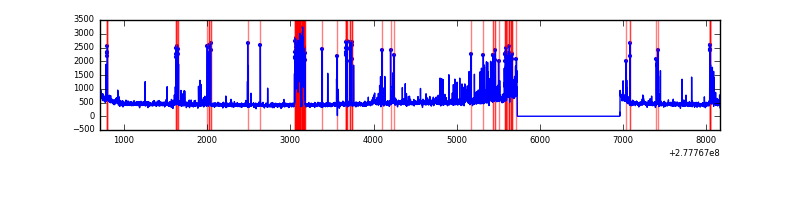

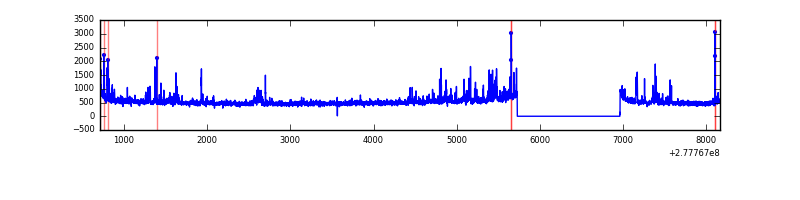

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7453 | 6219 | 65 | 65 | 0.87% | 1.05% |  |
| B | 7453 | 6219 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7453 | 6219 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7453 | 6219 | 129 | 129 | 1.73% | 2.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 318430 | 2057.3 | 765 | 748 | 154.4 |
| A | 15 | 223 | 19603 | 122.1 | 765 | 748 | 154.4 |
| A | 9 | 143 | 11954 | 72.57 | 765 | 748 | 154.4 |
| B | 15 | 35 | 141845 | 965.77 | 781 | 764 | 146.1 |
| B | 0 | 229 | 53657 | 362.08 | 781 | 764 | 146.1 |
| B | 7 | 220 | 33895 | 226.8 | 781 | 764 | 146.1 |
| C | 3 | 233 | 270444 | 1538.78 | 746 | 752 | 175.3 |
| C | 14 | 238 | 114500 | 649.01 | 746 | 752 | 175.3 |
| C | 7 | 247 | 28696 | 159.44 | 746 | 752 | 175.3 |
| D | 5 | 222 | 545106 | 3011.11 | 738 | 716 | 180.8 |
| D | 10 | 70 | 127940 | 703.7 | 738 | 716 | 180.8 |
| D | 7 | 38 | 30523 | 164.87 | 738 | 716 | 180.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

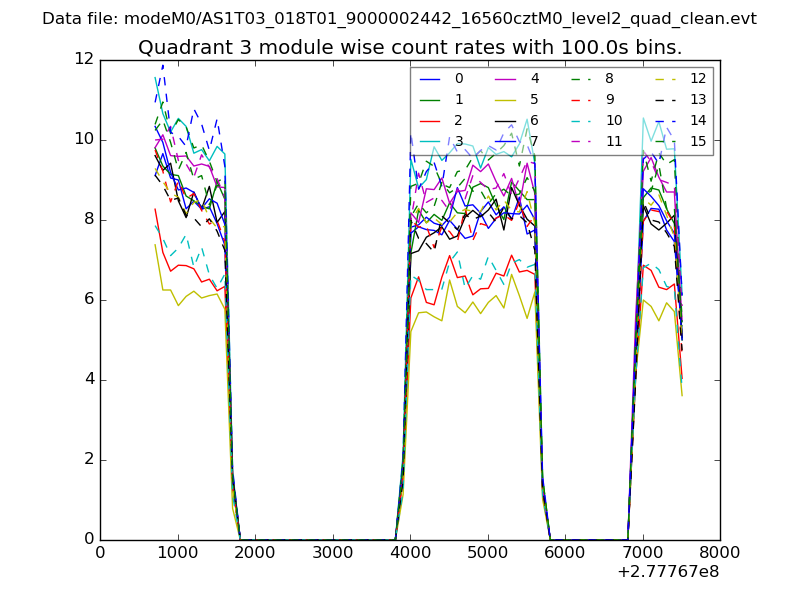

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

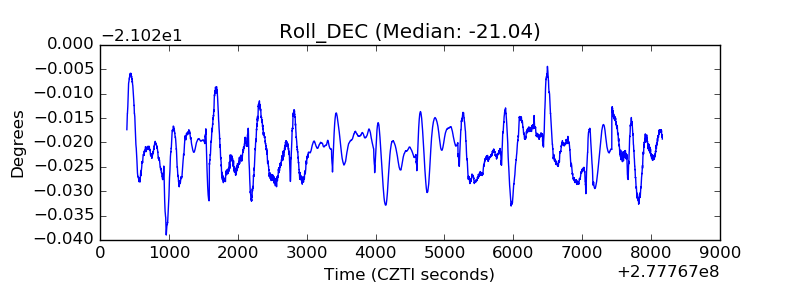

| _Roll_DEC |  |

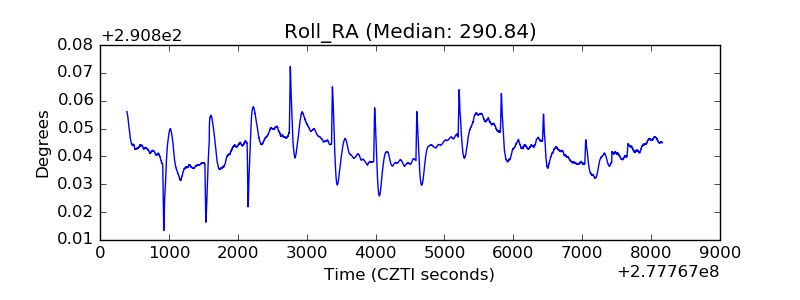

| _Roll_RA |  |

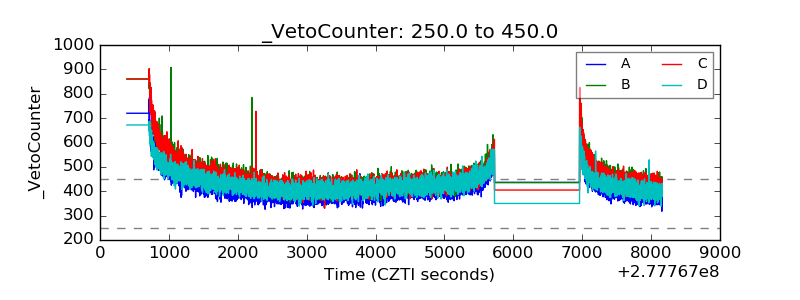

| Veto Counter |  |
