| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_018T01_9000002442_16562cztM0_level2.evt | modeM0/AS1T03_018T01_9000002442_16562cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,246,080 | 75,640,320 |
| Size | 504.7 MB | 72.1 MB |
| Events in quadrant A | 3,699,236 | 447,271 |
| Events in quadrant B | 4,147,771 | 453,221 |
| Events in quadrant C | 3,945,039 | 449,577 |
| Events in quadrant D | 3,732,023 | 423,375 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15657 | 3 |
| B | 0 | 17033 | 2 |
| C | 0 | 16106 | 2 |
| D | 0 | 16382 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7418 | 126 | 1.698571% |
| B | 7418 | 207 | 2.790510% |
| C | 7418 | 175 | 2.359126% |
| D | 7418 | 305 | 4.111620% |

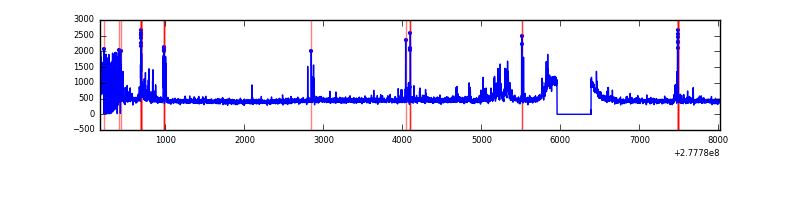

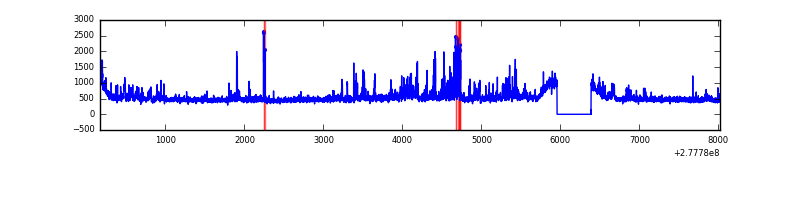

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7849 | 7420 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7849 | 7419 | 12 | 12 | 0.15% | 0.16% |  |
| C | 7849 | 7419 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7849 | 7420 | 27 | 27 | 0.34% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 137239 | 738.28 | 905 | 885 | 184.7 |
| A | 9 | 143 | 61414 | 327.73 | 905 | 885 | 184.7 |
| A | 15 | 223 | 12632 | 63.6 | 905 | 885 | 184.7 |
| B | 15 | 35 | 323255 | 1833.16 | 912 | 889 | 175.9 |
| B | 4 | 216 | 42186 | 234.84 | 912 | 889 | 175.9 |
| B | 0 | 198 | 39669 | 220.53 | 912 | 889 | 175.9 |
| C | 3 | 233 | 365751 | 1752.22 | 875 | 881 | 208.2 |
| C | 14 | 238 | 135466 | 646.32 | 875 | 881 | 208.2 |
| C | 7 | 247 | 25992 | 120.59 | 875 | 881 | 208.2 |
| D | 5 | 222 | 178178 | 838.6 | 865 | 839 | 211.5 |
| D | 1 | 52 | 145212 | 682.71 | 865 | 839 | 211.5 |
| D | 7 | 38 | 93525 | 438.29 | 865 | 839 | 211.5 |

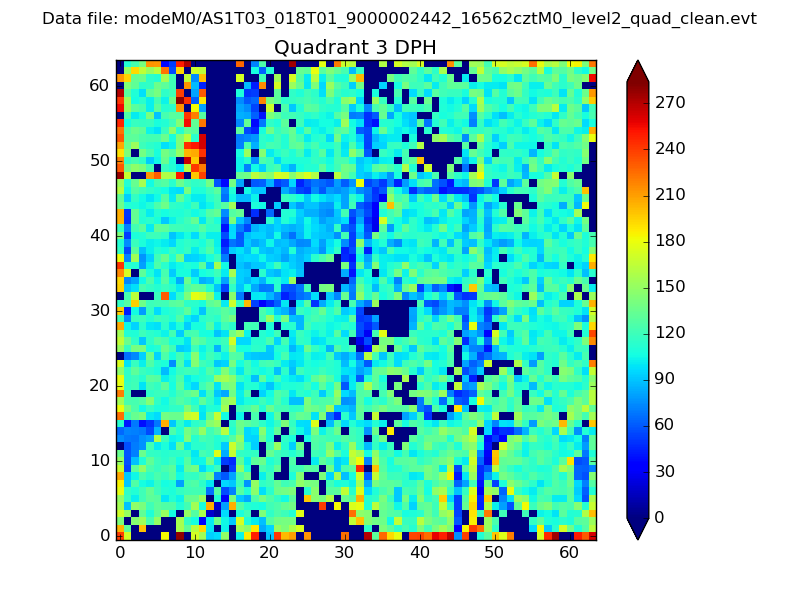

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

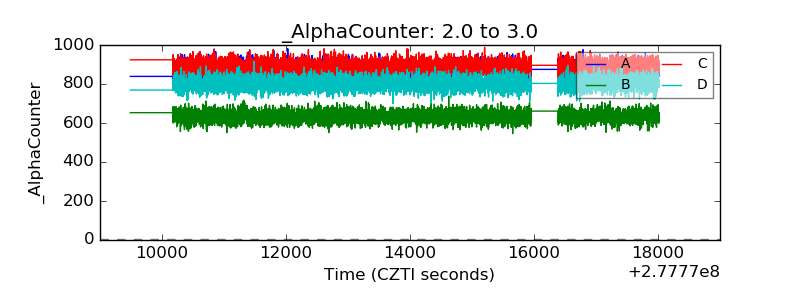

| Alpha Counter |  |

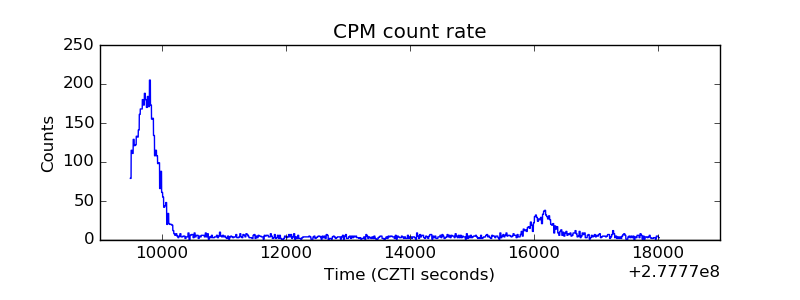

| _CPM_Rate |  |

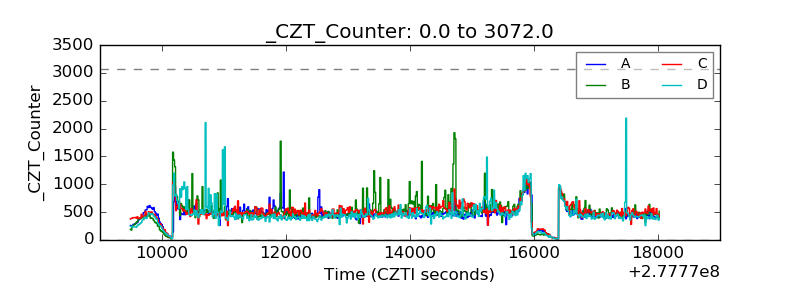

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
