| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_018T01_9000002442_16567cztM0_level2.evt | modeM0/AS1T03_018T01_9000002442_16567cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,568,157,120 | 231,088,320 |
| Size | 1.5 GB | 220.4 MB |
| Events in quadrant A | 11,091,384 | 1,414,434 |
| Events in quadrant B | 10,398,072 | 1,491,105 |
| Events in quadrant C | 12,747,550 | 1,456,513 |
| Events in quadrant D | 11,995,511 | 1,350,051 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 45125 | 5 |
| B | 0 | 42591 | 4 |
| C | 0 | 50505 | 4 |
| D | 0 | 48500 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18661 | 969 | 5.192648% |
| B | 18661 | 425 | 2.277477% |
| C | 18661 | 516 | 2.765125% |
| D | 18661 | 1836 | 9.838701% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21017 | 18665 | 673 | 673 | 3.20% | 3.61% |  |
| B | 21017 | 18665 | 72 | 72 | 0.34% | 0.39% |  |
| C | 21017 | 18665 | 1 | 1 | 0.00% | 0.01% |  |
| D | 21017 | 18666 | 702 | 702 | 3.34% | 3.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 2518880 | 5658.5 | 2202 | 2151 | 444.8 |
| A | 15 | 223 | 41732 | 88.99 | 2202 | 2151 | 444.8 |
| A | 11 | 29 | 27687 | 57.41 | 2202 | 2151 | 444.8 |
| B | 15 | 35 | 704978 | 1636.83 | 2244 | 2186 | 429.4 |
| B | 7 | 220 | 214958 | 495.56 | 2244 | 2186 | 429.4 |
| B | 4 | 216 | 135660 | 310.87 | 2244 | 2186 | 429.4 |
| C | 3 | 233 | 3604734 | 7162.21 | 2147 | 2161 | 503.0 |
| C | 7 | 247 | 431858 | 854.27 | 2147 | 2161 | 503.0 |
| C | 14 | 238 | 326928 | 645.66 | 2147 | 2161 | 503.0 |
| D | 1 | 52 | 1390933 | 2752.8 | 2084 | 2025 | 504.5 |
| D | 2 | 16 | 821119 | 1623.44 | 2084 | 2025 | 504.5 |
| D | 7 | 38 | 546958 | 1080.05 | 2084 | 2025 | 504.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

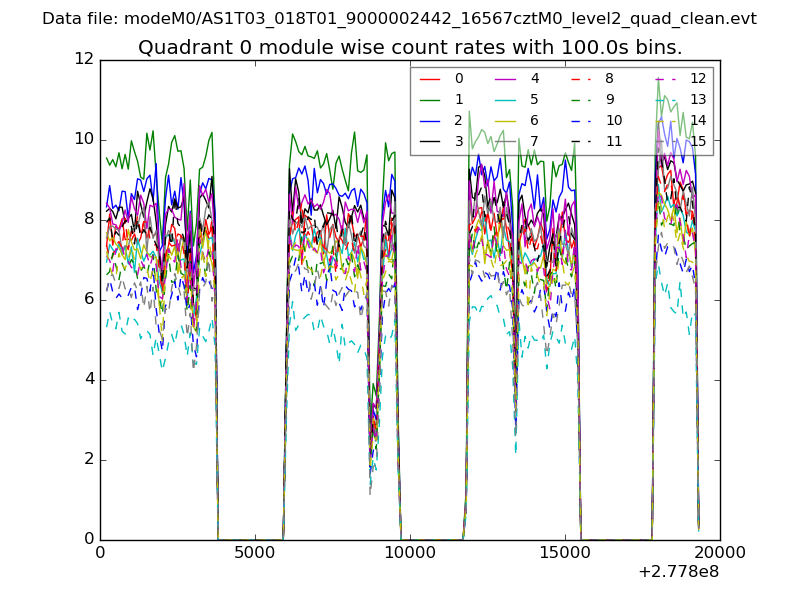

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

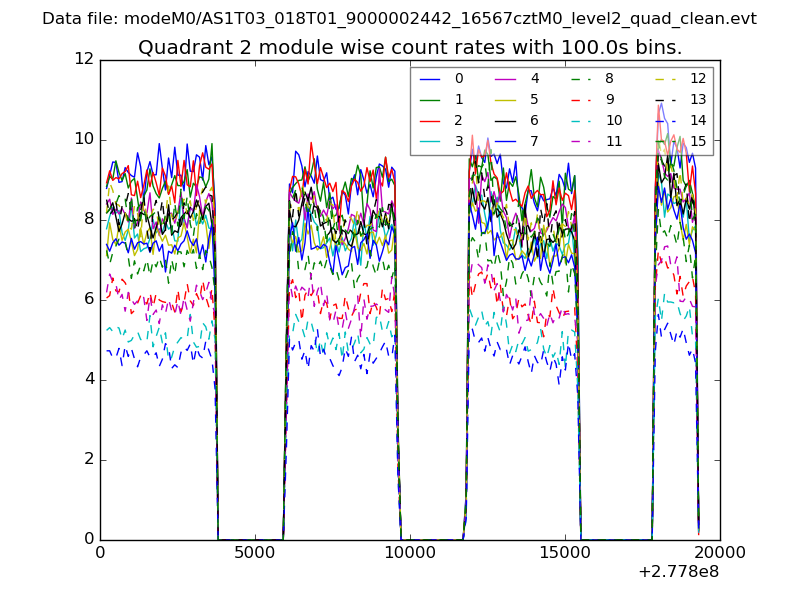

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

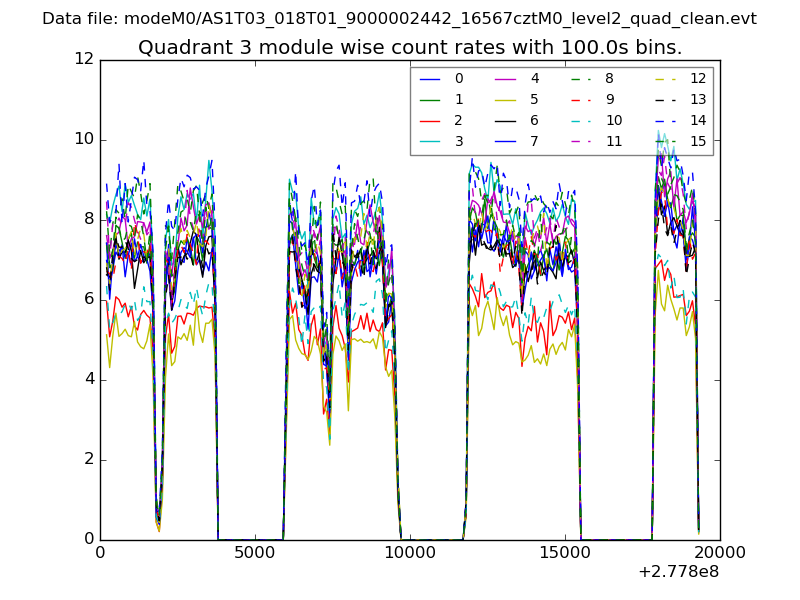

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

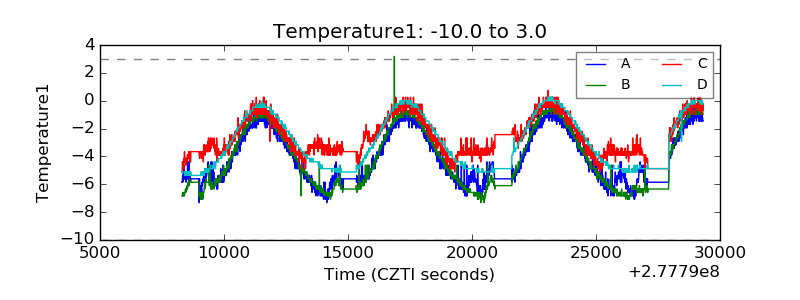

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

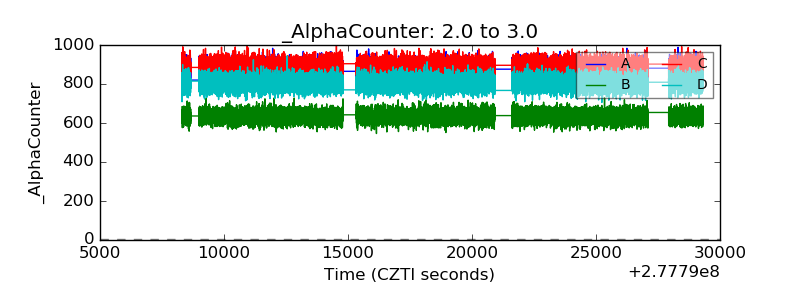

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

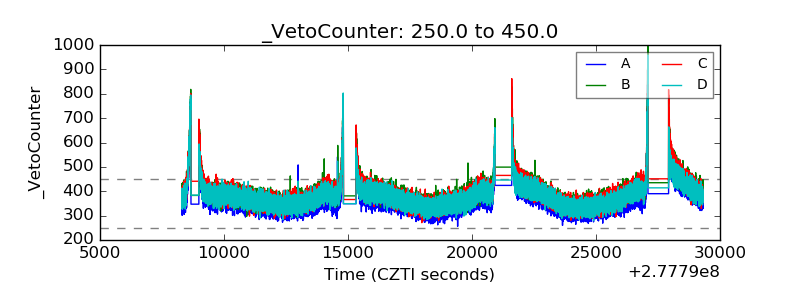

| Veto Counter |  |
