| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_018T01_9000002442_16568cztM0_level2.evt | modeM0/AS1T03_018T01_9000002442_16568cztM0_level2_quad_clean.evt |
| Size (bytes) | 563,745,600 | 88,056,000 |
| Size | 537.6 MB | 84.0 MB |
| Events in quadrant A | 3,785,490 | 569,250 |
| Events in quadrant B | 3,822,183 | 587,322 |
| Events in quadrant C | 4,721,179 | 569,220 |
| Events in quadrant D | 4,307,395 | 491,121 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15309 | 2 |
| B | 0 | 15579 | 1 |
| C | 0 | 18530 | 1 |
| D | 0 | 17170 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6441 | 234 | 3.632976% |
| B | 6441 | 136 | 2.111473% |
| C | 6441 | 168 | 2.608291% |
| D | 6441 | 1073 | 16.658904% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7432 | 6443 | 182 | 182 | 2.45% | 2.82% |  |
| B | 7432 | 6443 | 50 | 50 | 0.67% | 0.78% |  |
| C | 7432 | 6443 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7432 | 6442 | 322 | 322 | 4.33% | 5.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 764872 | 4852.75 | 775 | 758 | 157.5 |
| A | 11 | 29 | 25276 | 155.71 | 775 | 758 | 157.5 |
| A | 15 | 223 | 10498 | 61.86 | 775 | 758 | 157.5 |
| B | 15 | 35 | 244582 | 1621.86 | 780 | 761 | 150.3 |
| B | 7 | 220 | 177397 | 1174.96 | 780 | 761 | 150.3 |
| B | 0 | 229 | 96715 | 638.27 | 780 | 761 | 150.3 |
| C | 3 | 233 | 1616394 | 9256.29 | 744 | 748 | 174.5 |
| C | 14 | 238 | 114922 | 654.12 | 744 | 748 | 174.5 |
| C | 7 | 247 | 90942 | 516.74 | 744 | 748 | 174.5 |
| D | 1 | 52 | 1191340 | 7023.12 | 690 | 669 | 169.5 |
| D | 10 | 70 | 214702 | 1262.46 | 690 | 669 | 169.5 |
| D | 7 | 38 | 137512 | 807.16 | 690 | 669 | 169.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

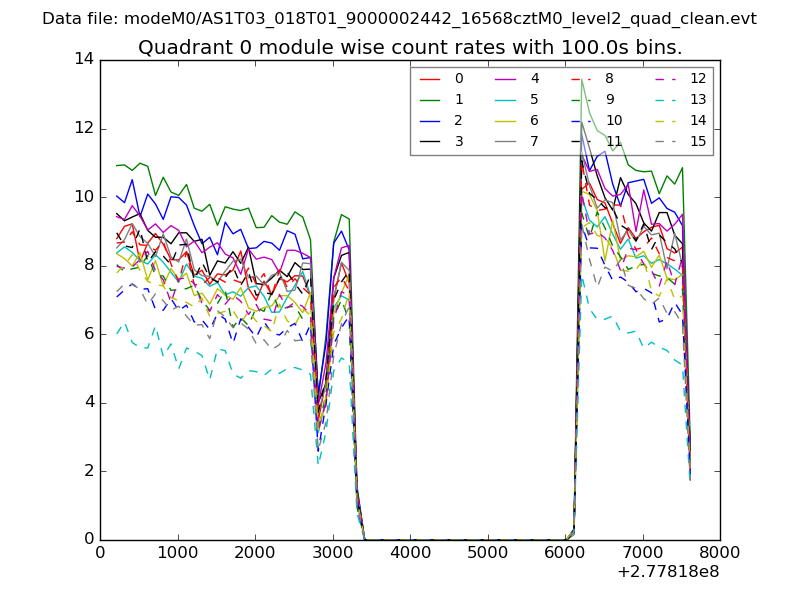

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

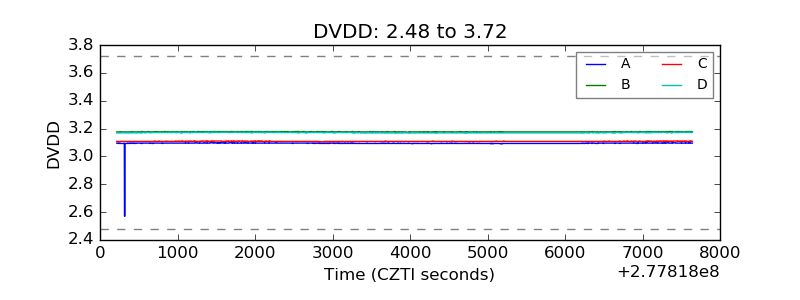

| D_VDD |  |

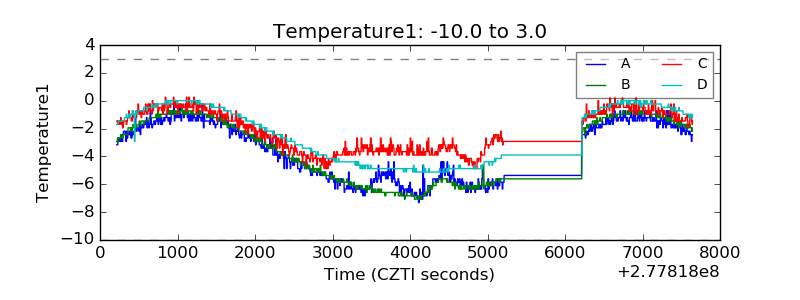

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

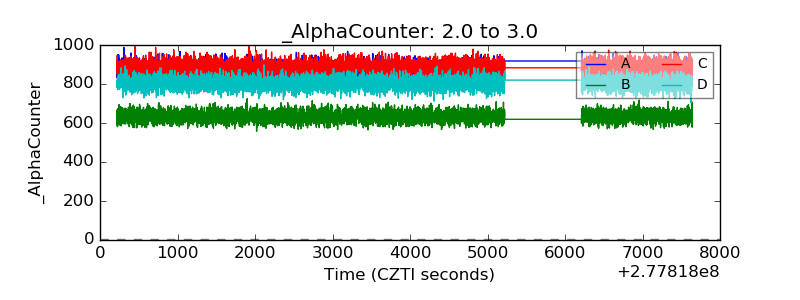

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

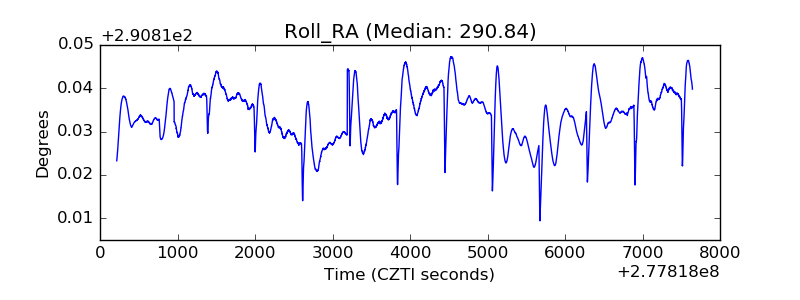

| _Roll_RA |  |

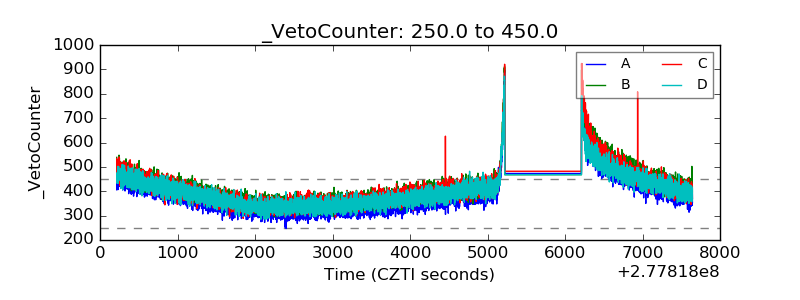

| Veto Counter |  |
