| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_020T01_9000002444_16577cztM0_level2.evt | modeM0/AS1T03_020T01_9000002444_16577cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,259,757,440 | 368,380,800 |
| Size | 2.1 GB | 351.3 MB |
| Events in quadrant A | 13,567,264 | 2,480,756 |
| Events in quadrant B | 14,999,450 | 2,541,301 |
| Events in quadrant C | 19,647,140 | 2,361,626 |
| Events in quadrant D | 18,344,736 | 1,862,929 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70 | 15 |
| B | 0 | 73 | 16 |
| C | 0 | 87 | 30 |
| D | 0 | 71 | 16 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 578 | 5 |
| B | 0 | 580 | 25 |
| C | 0 | 597 | 21 |
| D | 0 | 599 | 19 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61233 | 2061 |
| B | 0 | 65614 | 2496 |
| C | 0 | 80902 | 3994 |
| D | 0 | 77934 | 3392 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 27880 | 204 | 0.731707% |
| B | 27781 | 405 | 1.457831% |
| C | 27581 | 1068 | 3.872231% |
| D | 27693 | 7771 | 28.061243% |

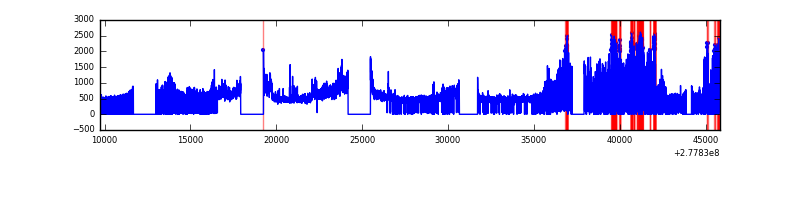

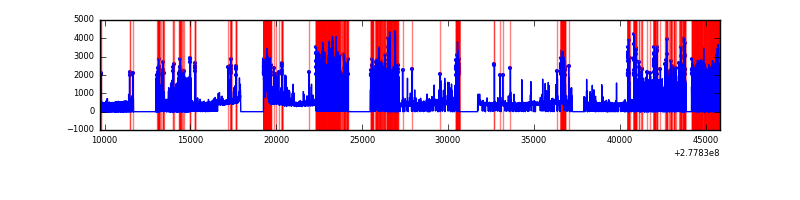

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 36107 | 29508 | 58 | 58 | 0.16% | 0.20% |  |
| B | 36107 | 29509 | 34 | 34 | 0.09% | 0.12% |  |
| C | 36107 | 29455 | 232 | 232 | 0.64% | 0.79% |  |
| D | 36108 | 29256 | 1268 | 1268 | 3.51% | 4.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 532055 | 800.23 | 3296 | 3221 | 660.9 |
| A | 15 | 174 | 292004 | 436.99 | 3296 | 3221 | 660.9 |
| A | 2 | 79 | 70953 | 102.49 | 3296 | 3221 | 660.9 |
| B | 0 | 85 | 715869 | 1162.21 | 3318 | 3227 | 613.2 |
| B | 15 | 35 | 701515 | 1138.8 | 3318 | 3227 | 613.2 |
| B | 0 | 229 | 139731 | 222.62 | 3318 | 3227 | 613.2 |
| C | 3 | 233 | 6828019 | 9442.37 | 3146 | 3166 | 722.8 |
| C | 14 | 238 | 491694 | 675.89 | 3146 | 3166 | 722.8 |
| C | 7 | 247 | 44429 | 57.09 | 3146 | 3166 | 722.8 |
| D | 1 | 52 | 6378971 | 10571.08 | 2516 | 2445 | 603.2 |
| D | 2 | 33 | 1020976 | 1688.53 | 2516 | 2445 | 603.2 |
| D | 10 | 70 | 852075 | 1408.53 | 2516 | 2445 | 603.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

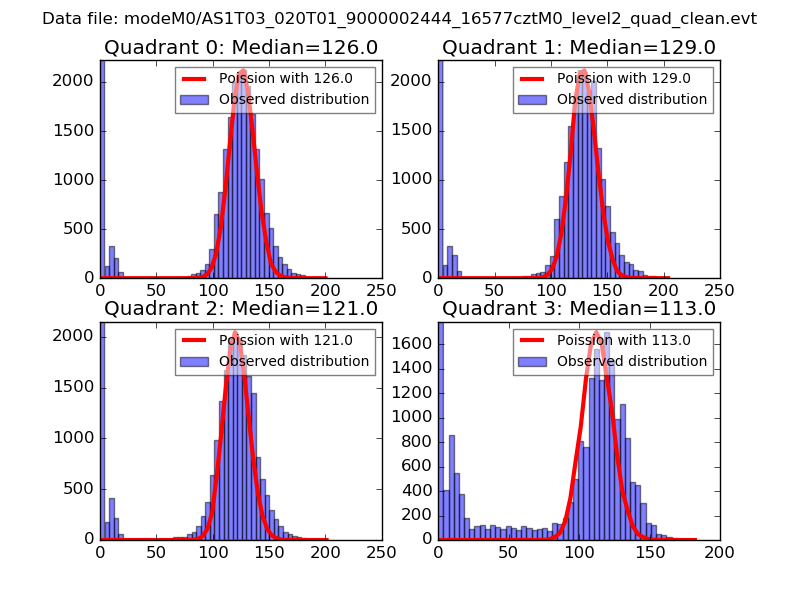

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

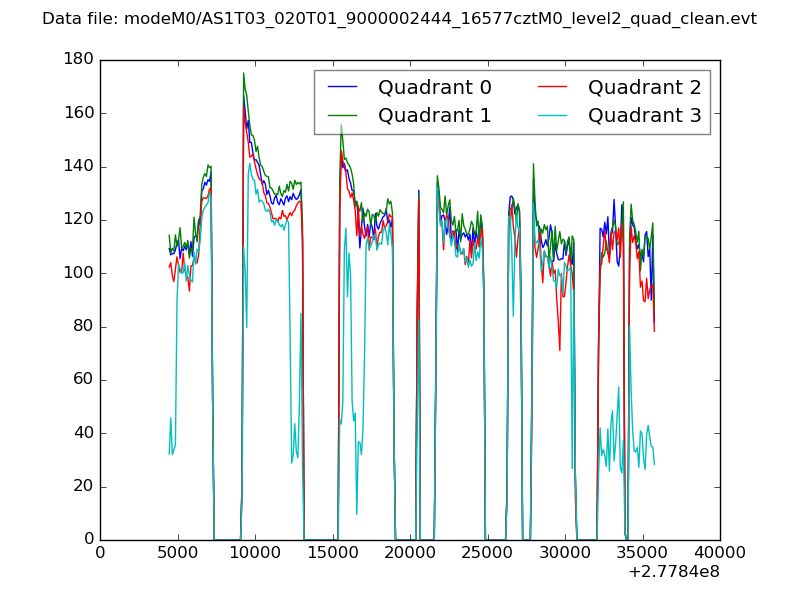

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

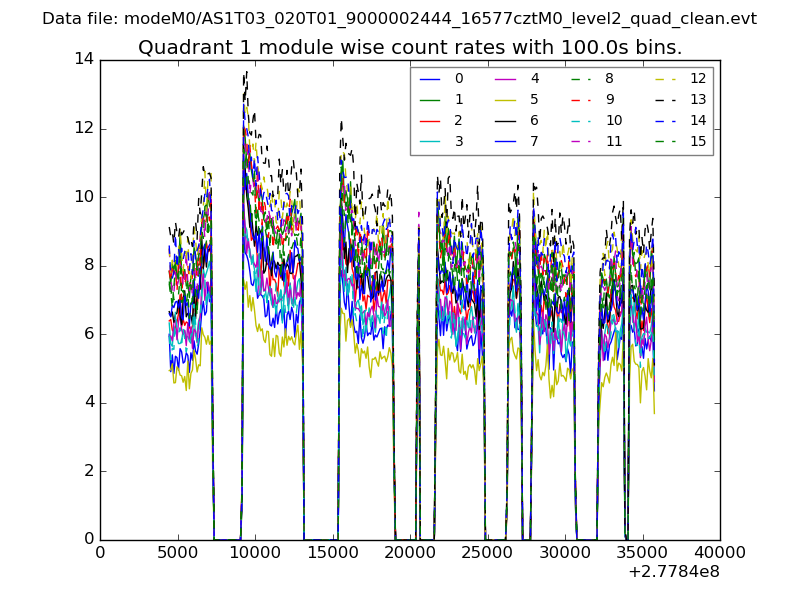

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

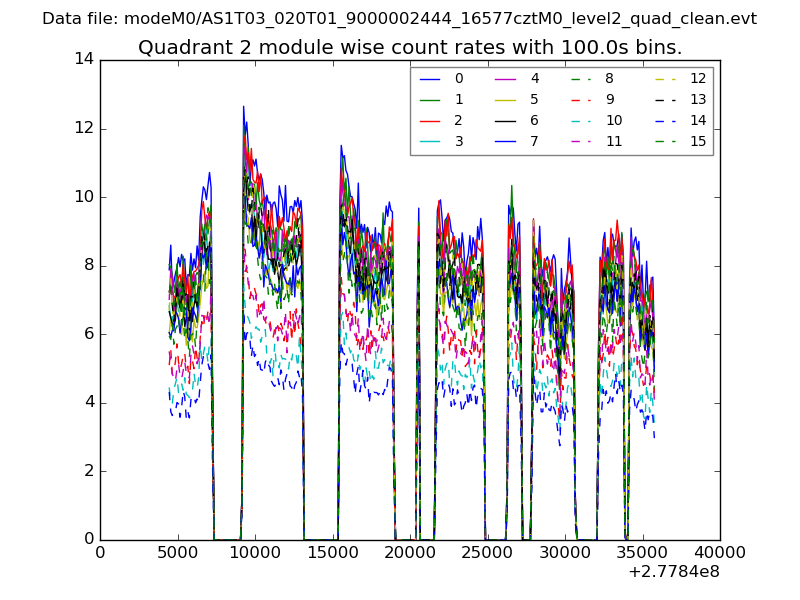

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

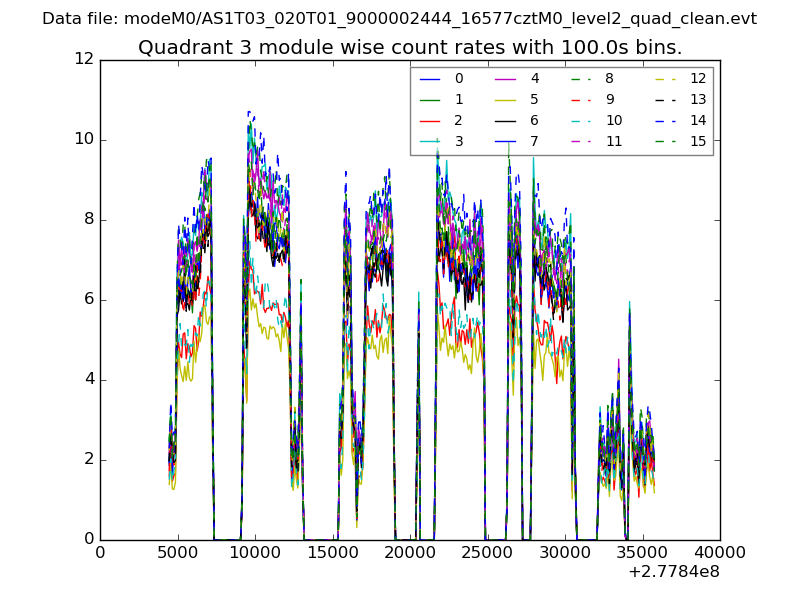

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

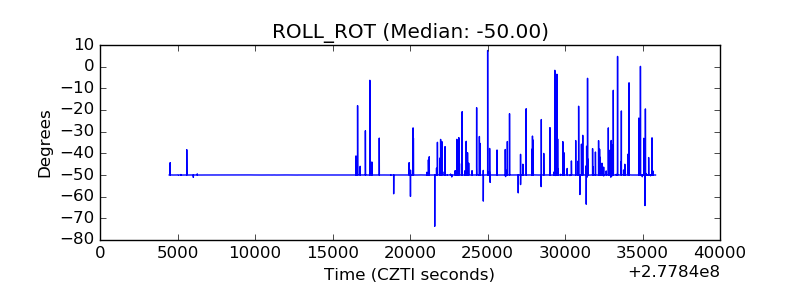

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
