| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_020T01_9000002444_16582cztM0_level2.evt | modeM0/AS1T03_020T01_9000002444_16582cztM0_level2_quad_clean.evt |
| Size (bytes) | 591,756,480 | 86,581,440 |
| Size | 564.3 MB | 82.6 MB |
| Events in quadrant A | 3,747,310 | 549,898 |
| Events in quadrant B | 3,842,794 | 575,628 |
| Events in quadrant C | 5,864,744 | 530,407 |
| Events in quadrant D | 3,974,505 | 461,992 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16088 | 1 |
| B | 0 | 16009 | 0 |
| C | 0 | 22450 | 0 |
| D | 0 | 16966 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7229 | 335 | 4.634113% |
| B | 7229 | 118 | 1.632314% |
| C | 7229 | 595 | 8.230737% |
| D | 7229 | 2276 | 31.484299% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7775 | 7231 | 141 | 141 | 1.81% | 1.95% |  |
| B | 7775 | 7231 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7775 | 7231 | 267 | 267 | 3.43% | 3.69% |  |
| D | 7775 | 7225 | 76 | 76 | 0.98% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 535446 | 3166.59 | 830 | 809 | 168.8 |
| A | 9 | 143 | 14251 | 79.61 | 830 | 809 | 168.8 |
| A | 0 | 226 | 7296 | 38.42 | 830 | 809 | 168.8 |
| B | 15 | 35 | 169197 | 1045.25 | 841 | 814 | 161.1 |
| B | 0 | 85 | 98540 | 606.64 | 841 | 814 | 161.1 |
| B | 4 | 216 | 91841 | 565.05 | 841 | 814 | 161.1 |
| C | 3 | 233 | 2642435 | 14206.32 | 794 | 799 | 185.9 |
| C | 14 | 238 | 121422 | 648.69 | 794 | 799 | 185.9 |
| C | 13 | 61 | 5601 | 25.82 | 794 | 799 | 185.9 |
| D | 1 | 52 | 1267351 | 7983.98 | 645 | 625 | 158.7 |
| D | 10 | 70 | 195476 | 1228.12 | 645 | 625 | 158.7 |
| D | 2 | 14 | 31261 | 193.09 | 645 | 625 | 158.7 |

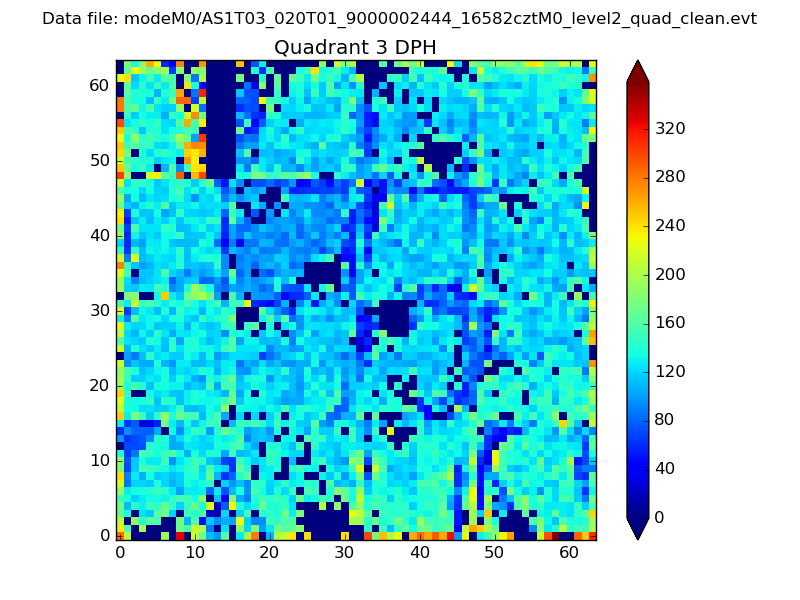

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

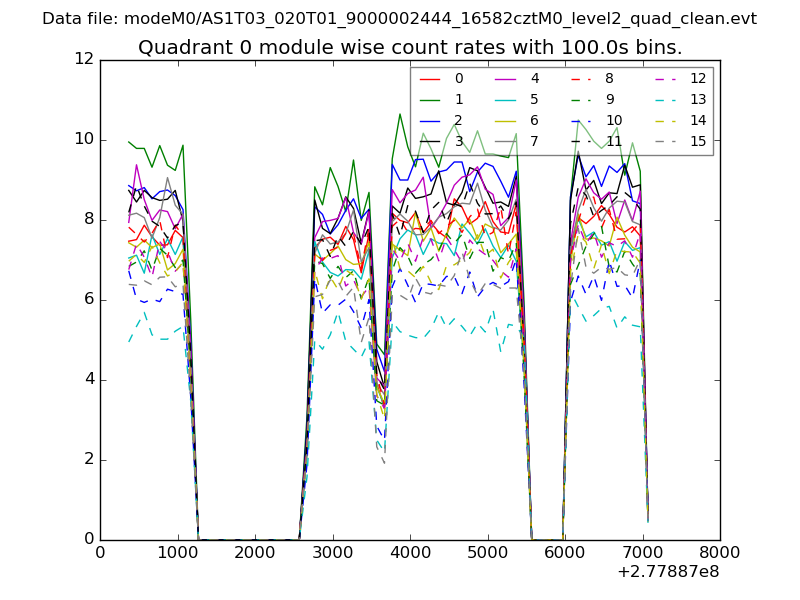

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

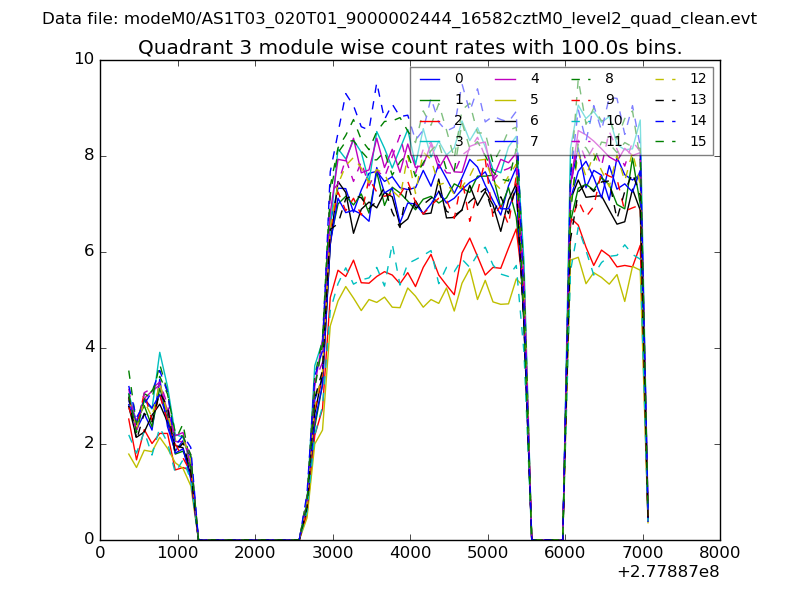

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

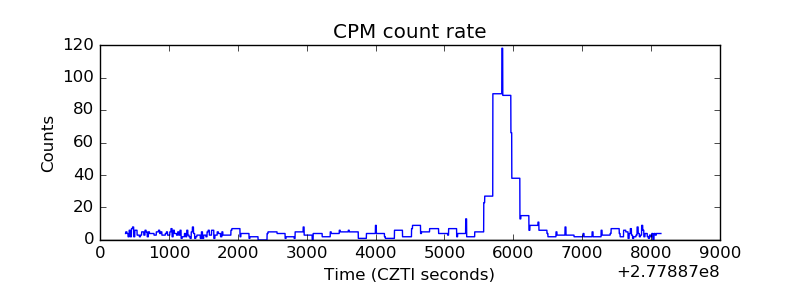

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

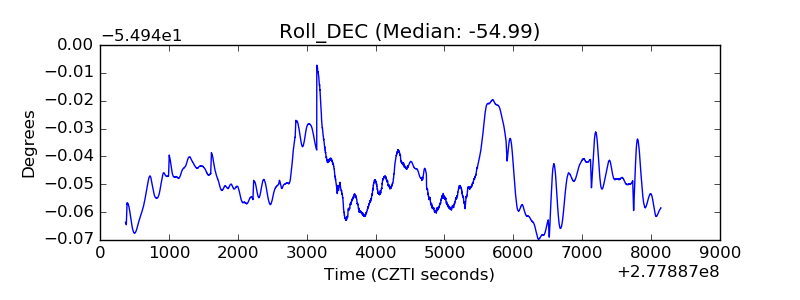

| _Roll_DEC |  |

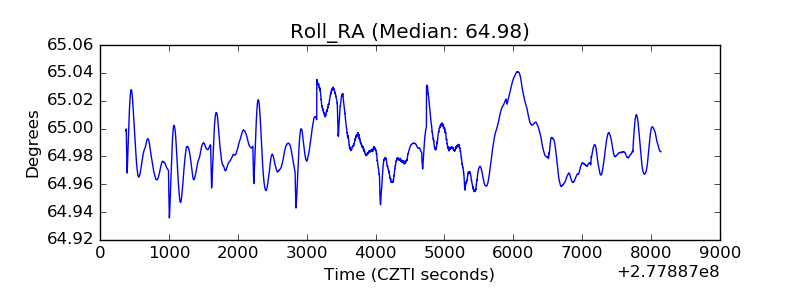

| _Roll_RA |  |
| Veto Counter |  |
