| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002446_16591cztM0_level2.evt | modeM0/AS1C04_001T01_9000002446_16591cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,160,000 | 137,534,400 |
| Size | 499.9 MB | 131.2 MB |
| Events in quadrant A | 3,476,475 | 926,933 |
| Events in quadrant B | 4,018,933 | 928,522 |
| Events in quadrant C | 4,327,569 | 900,064 |
| Events in quadrant D | 3,541,918 | 888,113 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15612 | 3 |
| B | 0 | 17117 | 2 |
| C | 0 | 17735 | 2 |
| D | 0 | 16101 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7502 | 53 | 0.706478% |
| B | 7502 | 164 | 2.186084% |
| C | 7502 | 110 | 1.466276% |
| D | 7502 | 93 | 1.239669% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7863 | 7504 | 8 | 8 | 0.10% | 0.11% |  |
| B | 7863 | 7504 | 19 | 19 | 0.24% | 0.25% |  |
| C | 7863 | 7504 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7863 | 7504 | 44 | 44 | 0.56% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 122373 | 701.22 | 864 | 845 | 173.3 |
| A | 9 | 143 | 17568 | 96.49 | 864 | 845 | 173.3 |
| A | 15 | 223 | 11909 | 63.84 | 864 | 845 | 173.3 |
| B | 0 | 229 | 172306 | 1057.25 | 865 | 842 | 162.2 |
| B | 15 | 35 | 147635 | 905.13 | 865 | 842 | 162.2 |
| B | 4 | 48 | 56990 | 346.21 | 865 | 842 | 162.2 |
| C | 3 | 233 | 928218 | 4774.67 | 836 | 838 | 194.2 |
| C | 14 | 238 | 130053 | 665.27 | 836 | 838 | 194.2 |
| C | 13 | 61 | 5946 | 26.3 | 836 | 838 | 194.2 |
| D | 10 | 70 | 208978 | 1018.86 | 838 | 812 | 204.3 |
| D | 1 | 52 | 90968 | 441.27 | 838 | 812 | 204.3 |
| D | 2 | 234 | 31046 | 147.98 | 838 | 812 | 204.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

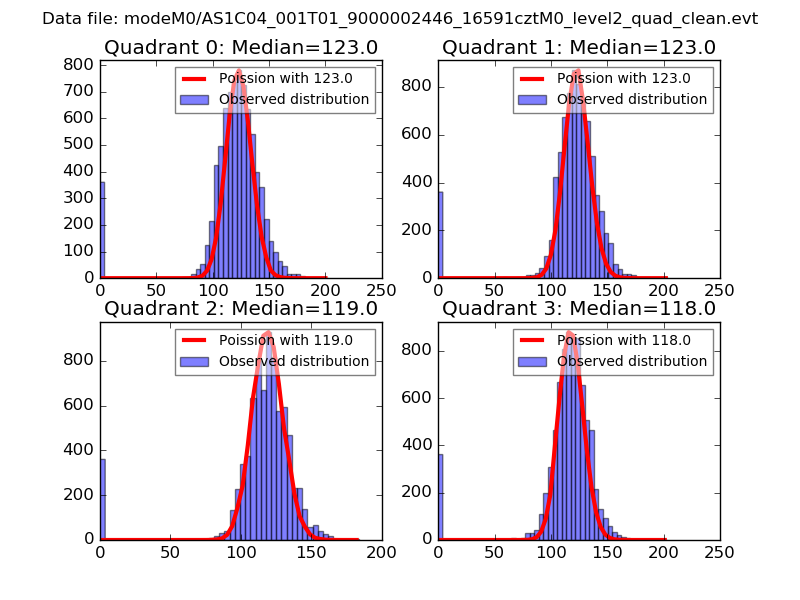

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

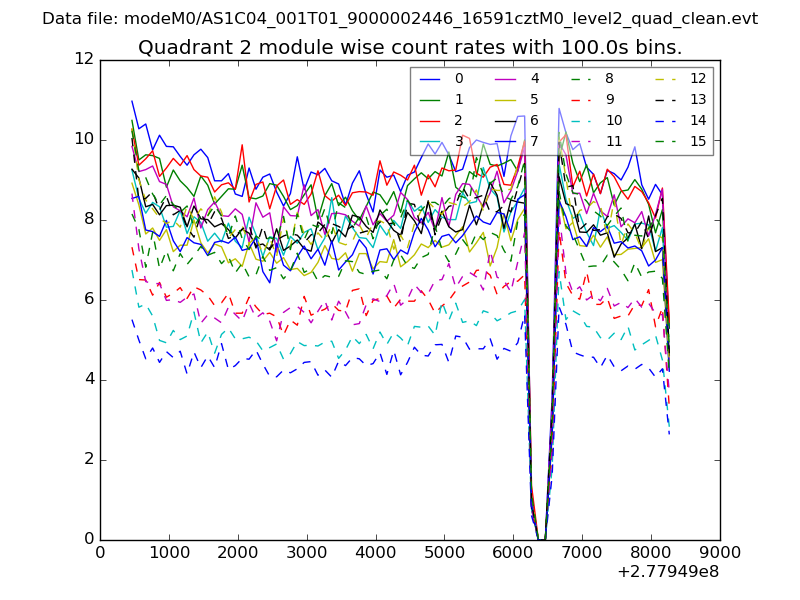

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

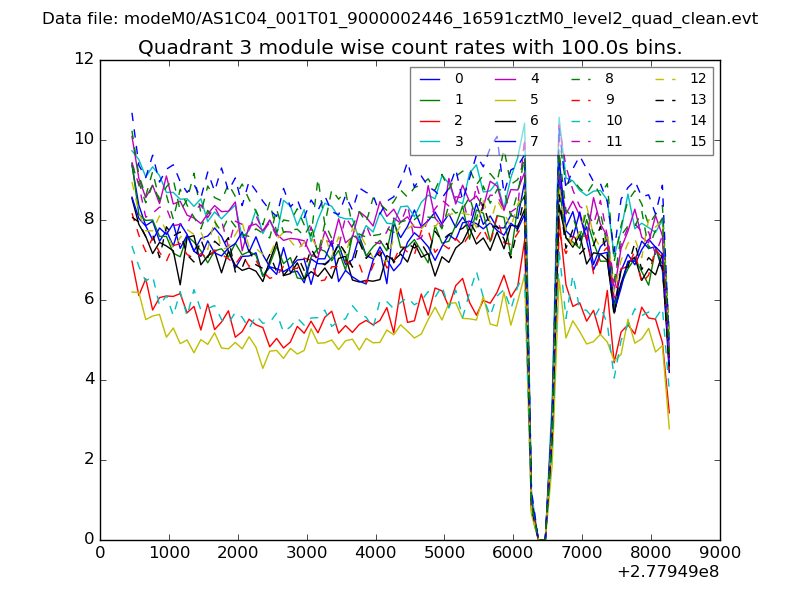

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

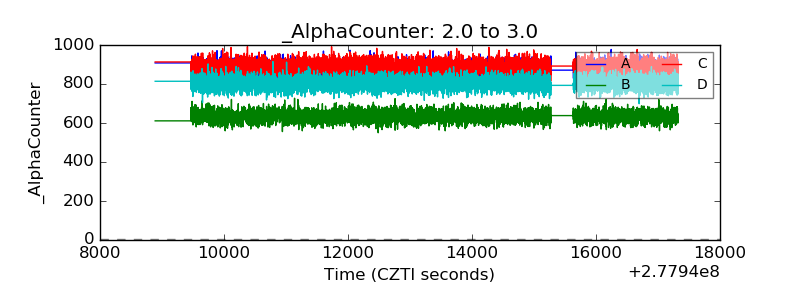

| Alpha Counter |  |

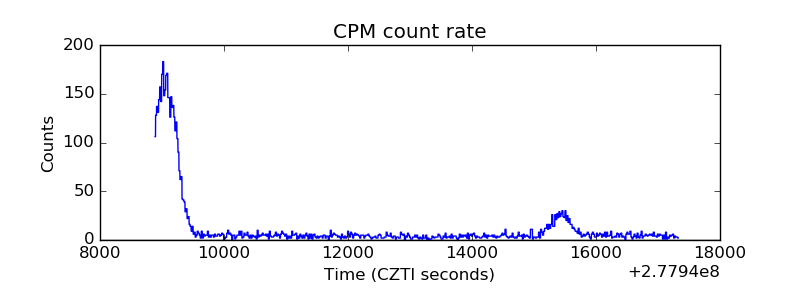

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

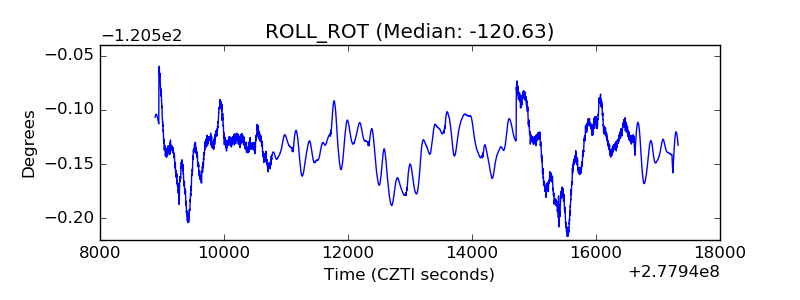

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
