| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002446_16593cztM0_level2.evt | modeM0/AS1C04_001T01_9000002446_16593cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,593,600 | 124,470,720 |
| Size | 433.5 MB | 118.7 MB |
| Events in quadrant A | 3,140,529 | 836,429 |
| Events in quadrant B | 3,642,514 | 837,206 |
| Events in quadrant C | 3,361,548 | 812,556 |
| Events in quadrant D | 3,150,879 | 800,247 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14243 | 2 |
| B | 0 | 15537 | 1 |
| C | 0 | 14703 | 1 |
| D | 0 | 14538 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6945 | 54 | 0.777538% |
| B | 6945 | 93 | 1.339093% |
| C | 6945 | 61 | 0.878330% |
| D | 6945 | 39 | 0.561555% |

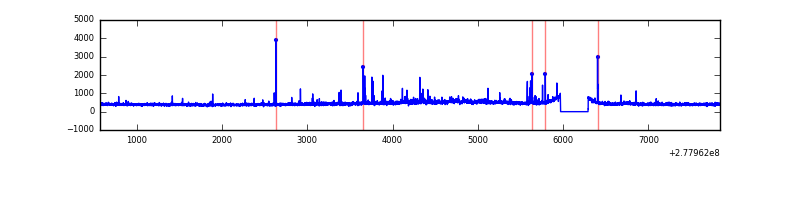

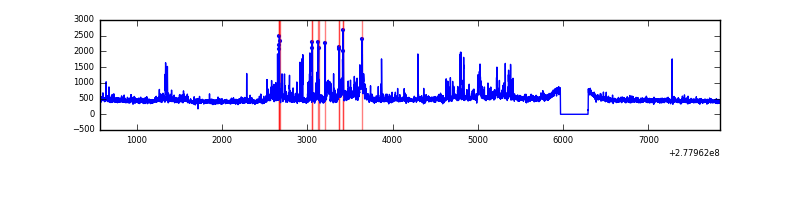

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7271 | 6947 | 7 | 7 | 0.10% | 0.10% |  |
| B | 7271 | 6947 | 14 | 14 | 0.19% | 0.20% |  |
| C | 7271 | 6947 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7271 | 6947 | 5 | 5 | 0.07% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 40686 | 247.78 | 793 | 776 | 161.1 |
| A | 9 | 143 | 37021 | 225.02 | 793 | 776 | 161.1 |
| A | 15 | 223 | 8317 | 46.82 | 793 | 776 | 161.1 |
| B | 15 | 35 | 150668 | 986.4 | 792 | 769 | 152.0 |
| B | 0 | 85 | 142936 | 935.52 | 792 | 769 | 152.0 |
| B | 0 | 229 | 60483 | 392.94 | 792 | 769 | 152.0 |
| C | 3 | 233 | 256556 | 1434.53 | 760 | 763 | 178.3 |
| C | 14 | 238 | 119249 | 664.49 | 760 | 763 | 178.3 |
| C | 8 | 128 | 9576 | 49.42 | 760 | 763 | 178.3 |
| D | 1 | 52 | 139980 | 736.48 | 769 | 745 | 189.1 |
| D | 10 | 70 | 28616 | 147.42 | 769 | 745 | 189.1 |
| D | 2 | 234 | 28280 | 145.65 | 769 | 745 | 189.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

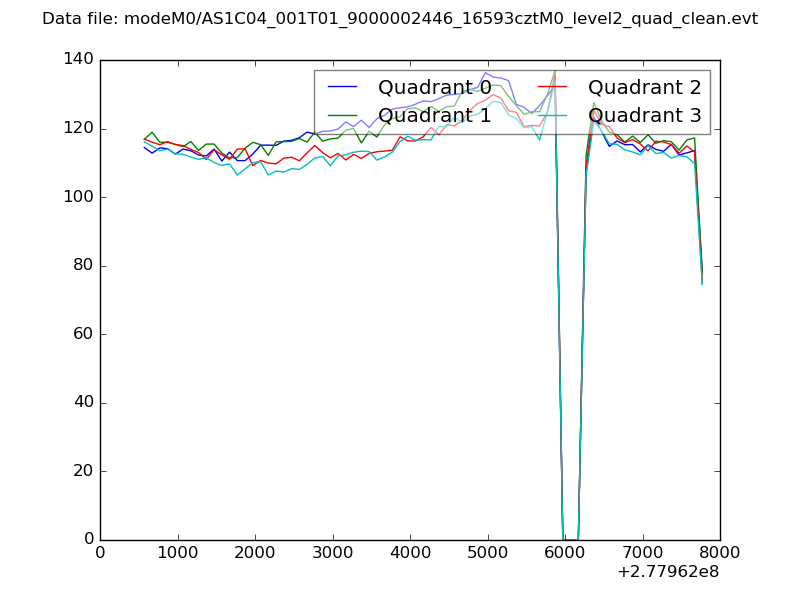

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

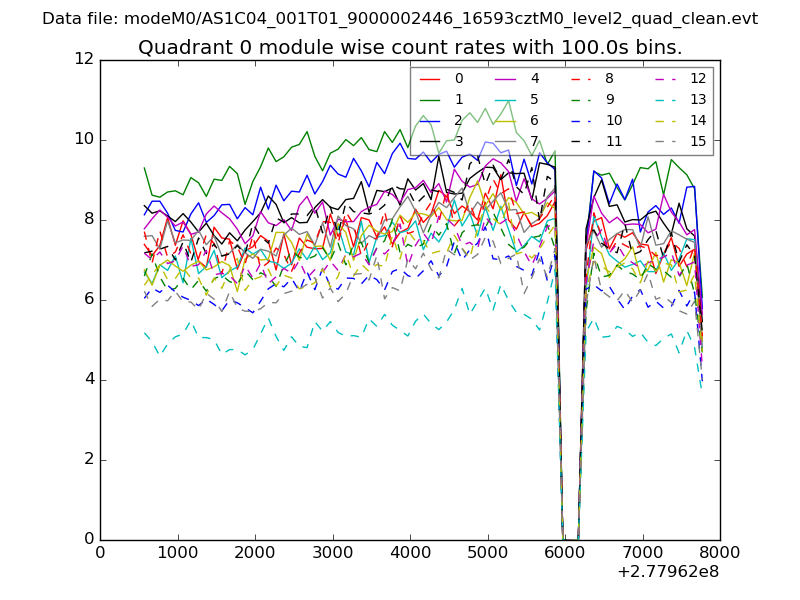

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

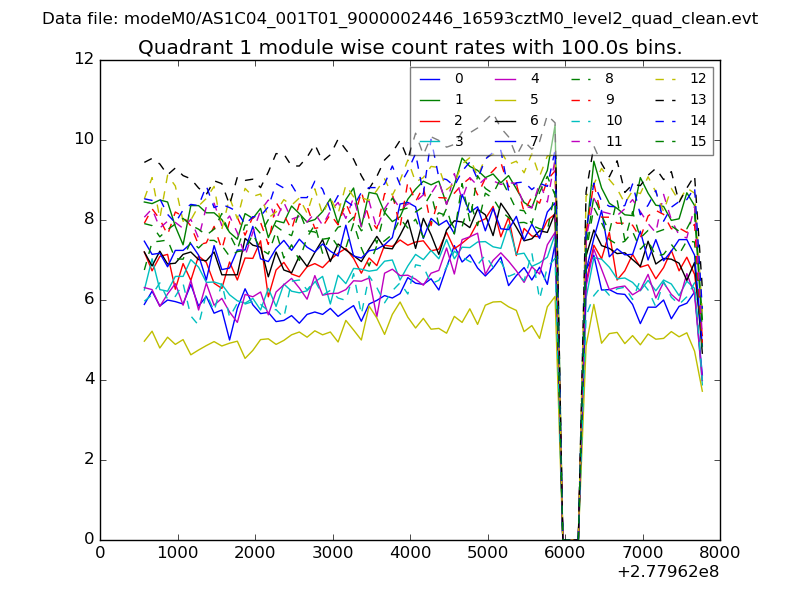

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

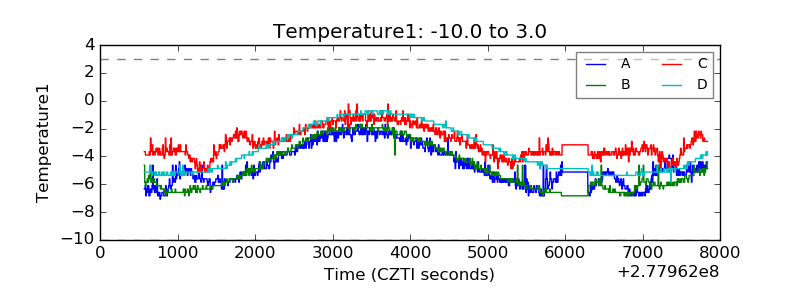

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

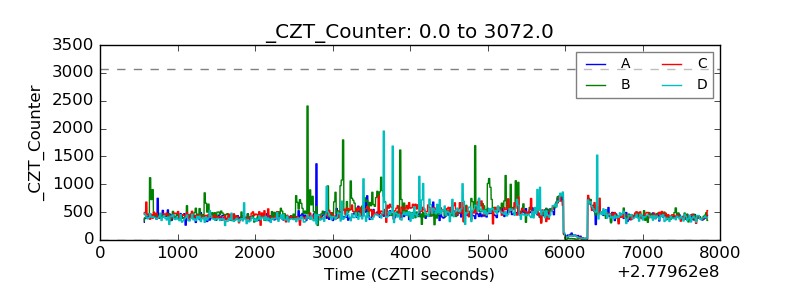

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
