| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_009T01_9000002448_16608cztM0_level2.evt | modeM0/AS1C04_009T01_9000002448_16608cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,106,240 | 129,202,560 |
| Size | 451.2 MB | 123.2 MB |
| Events in quadrant A | 3,168,834 | 852,298 |
| Events in quadrant B | 3,613,856 | 873,008 |
| Events in quadrant C | 3,910,149 | 850,012 |
| Events in quadrant D | 3,143,642 | 834,416 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14612 | 2 |
| B | 0 | 15600 | 1 |
| C | 0 | 16509 | 1 |
| D | 0 | 14783 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7229 | 47 | 0.650159% |
| B | 7229 | 62 | 0.857657% |
| C | 7229 | 73 | 1.009822% |
| D | 7229 | 34 | 0.470328% |

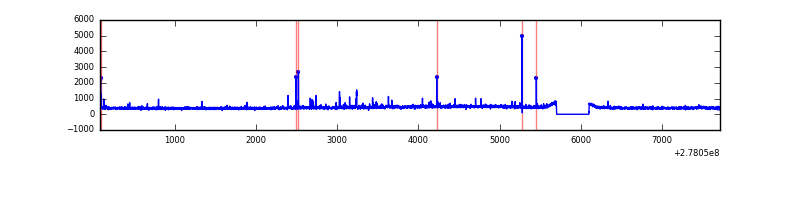

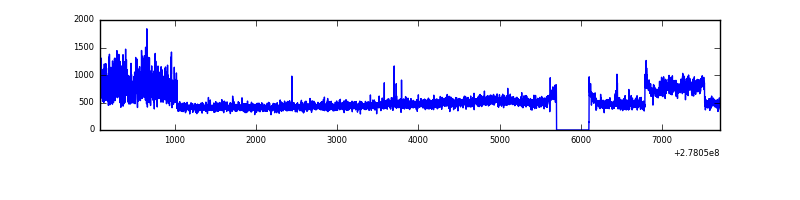

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7630 | 7231 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7630 | 7231 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7630 | 7231 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7630 | 7231 | 7 | 7 | 0.09% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 13318 | 75.28 | 816 | 797 | 166.3 |
| A | 15 | 69 | 9194 | 50.49 | 816 | 797 | 166.3 |
| A | 3 | 1 | 7225 | 38.65 | 816 | 797 | 166.3 |
| B | 3 | 209 | 92341 | 583.06 | 823 | 799 | 157.0 |
| B | 0 | 189 | 79655 | 502.26 | 823 | 799 | 157.0 |
| B | 15 | 35 | 66134 | 416.14 | 823 | 799 | 157.0 |
| C | 7 | 247 | 402787 | 2173.21 | 788 | 793 | 185.0 |
| C | 3 | 233 | 310682 | 1675.29 | 788 | 793 | 185.0 |
| C | 14 | 238 | 123285 | 662.2 | 788 | 793 | 185.0 |
| D | 1 | 52 | 59845 | 306.91 | 794 | 769 | 192.5 |
| D | 10 | 70 | 36626 | 186.28 | 794 | 769 | 192.5 |
| D | 2 | 234 | 31168 | 157.93 | 794 | 769 | 192.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

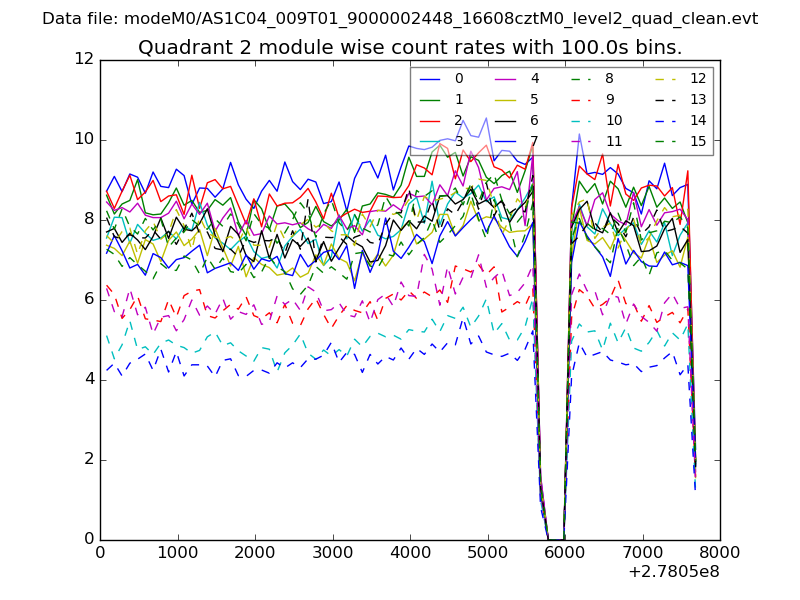

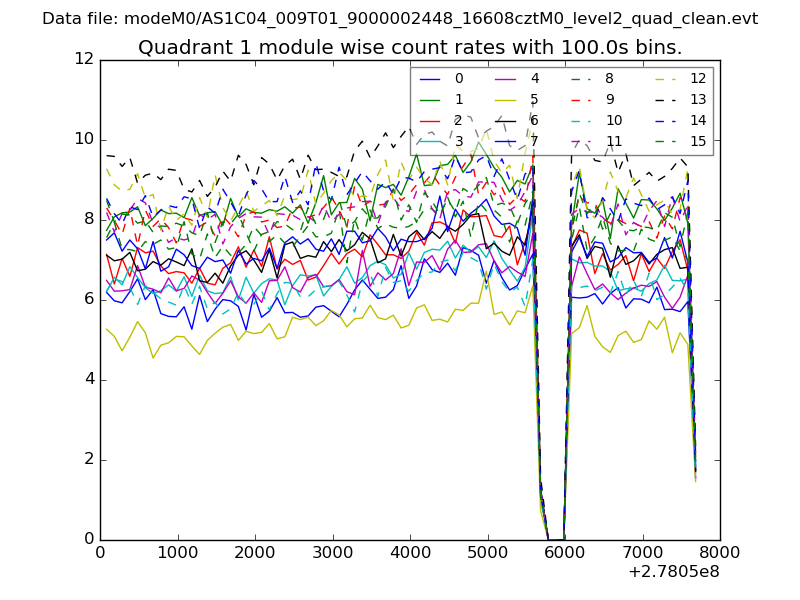

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

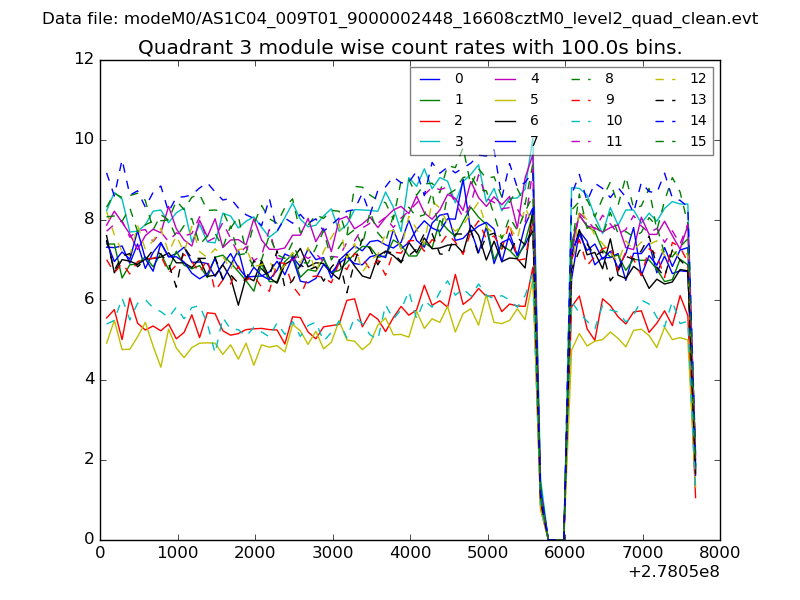

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

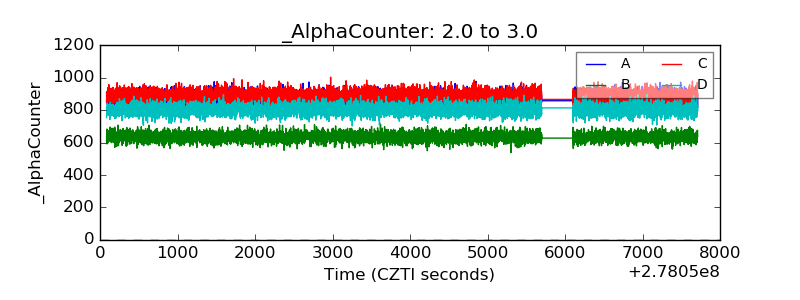

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

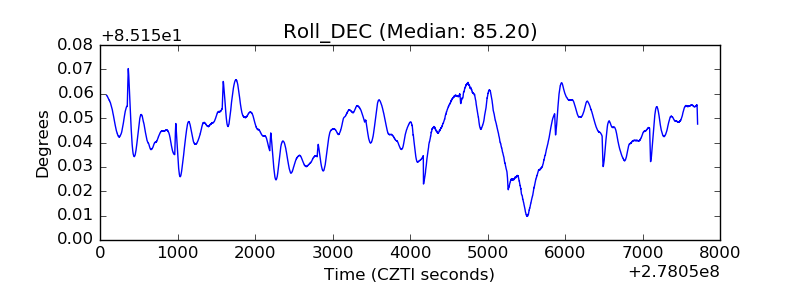

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

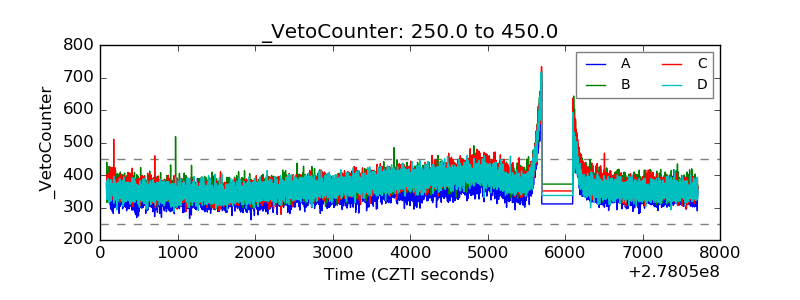

| Veto Counter |  |
