| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_064T01_9000002450_16615cztM0_level2.evt | modeM0/AS1A05_064T01_9000002450_16615cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,952,640 | 123,687,360 |
| Size | 439.6 MB | 118.0 MB |
| Events in quadrant A | 2,956,974 | 844,487 |
| Events in quadrant B | 3,340,505 | 851,895 |
| Events in quadrant C | 3,698,335 | 827,273 |
| Events in quadrant D | 3,566,567 | 813,084 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12667 | 2 |
| B | 0 | 13896 | 1 |
| C | 0 | 14923 | 1 |
| D | 0 | 14581 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5858 | 57 | 0.973028% |
| B | 5858 | 70 | 1.194947% |
| C | 5858 | 101 | 1.724138% |
| D | 5858 | 96 | 1.638785% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

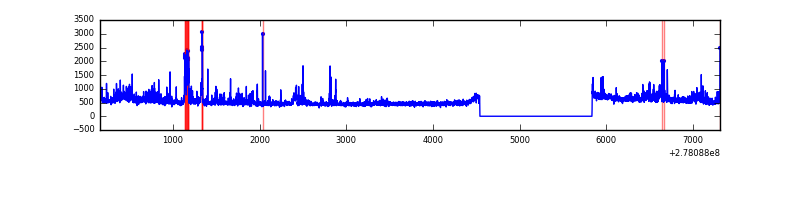

| A | 7154 | 5860 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7154 | 5860 | 19 | 19 | 0.27% | 0.32% |  |
| C | 7154 | 5860 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7154 | 5860 | 56 | 56 | 0.78% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 55559 | 372.56 | 739 | 724 | 147.2 |
| A | 15 | 174 | 36453 | 242.75 | 739 | 724 | 147.2 |
| A | 9 | 143 | 7790 | 48.01 | 739 | 724 | 147.2 |
| B | 15 | 35 | 191835 | 1402.5 | 738 | 722 | 136.3 |
| B | 7 | 220 | 74595 | 542.12 | 738 | 722 | 136.3 |
| B | 0 | 189 | 50465 | 365.04 | 738 | 722 | 136.3 |
| C | 3 | 233 | 702038 | 4218.43 | 722 | 728 | 166.2 |
| C | 14 | 238 | 112019 | 669.42 | 722 | 728 | 166.2 |
| C | 7 | 247 | 68976 | 410.52 | 722 | 728 | 166.2 |
| D | 1 | 52 | 678270 | 3870.94 | 730 | 710 | 175.0 |
| D | 10 | 70 | 76997 | 435.83 | 730 | 710 | 175.0 |
| D | 2 | 16 | 32215 | 179.99 | 730 | 710 | 175.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

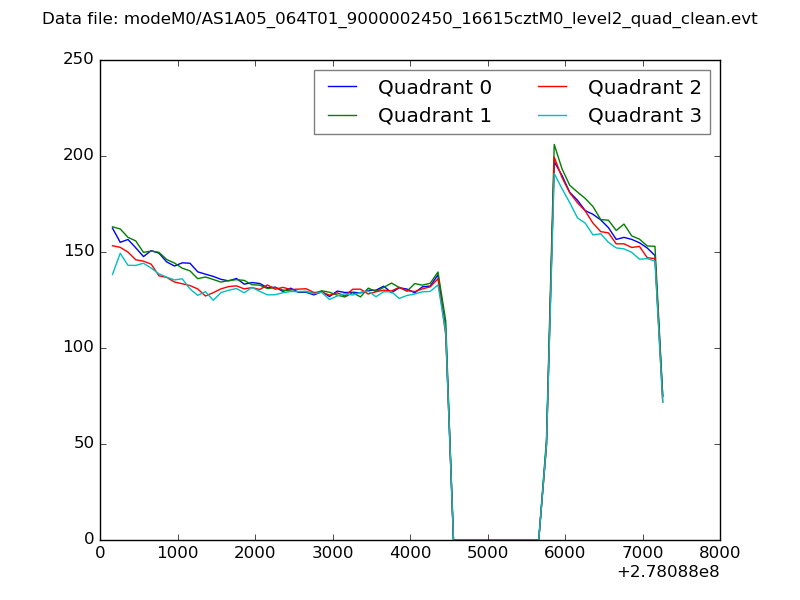

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

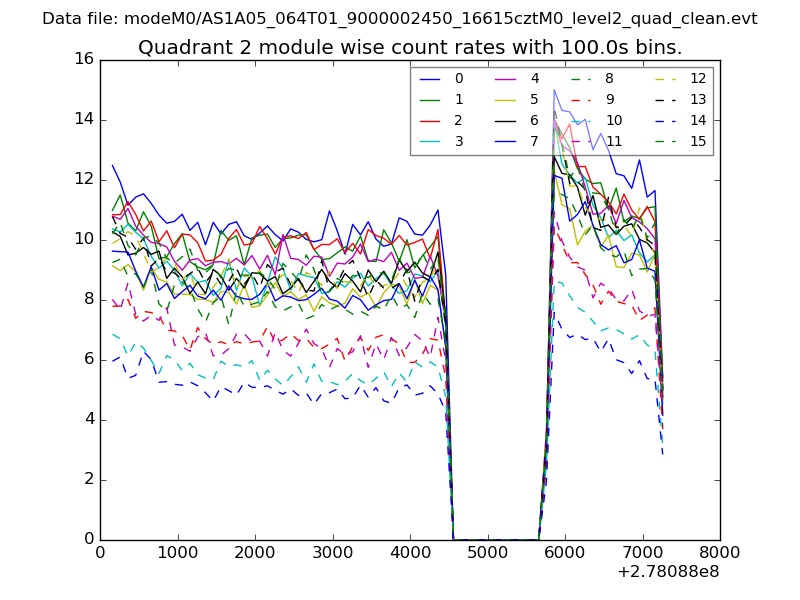

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

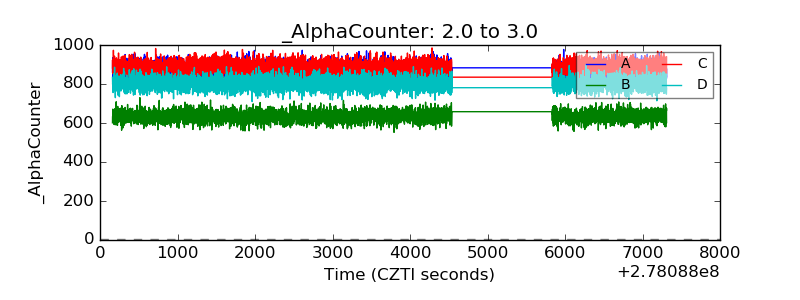

| Alpha Counter |  |

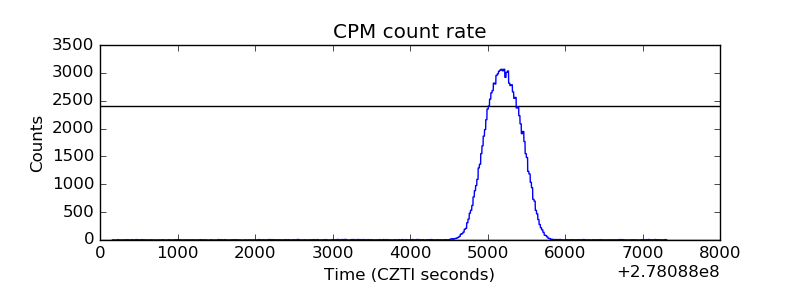

| _CPM_Rate |  |

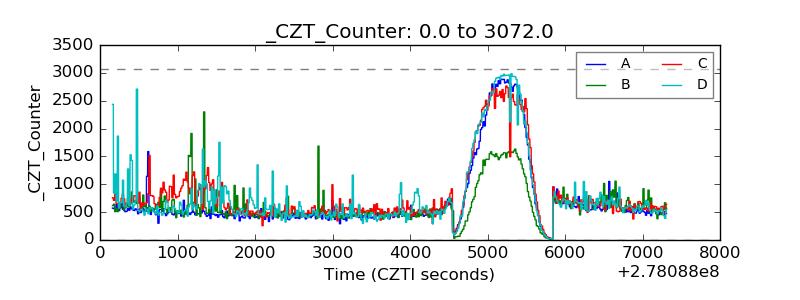

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

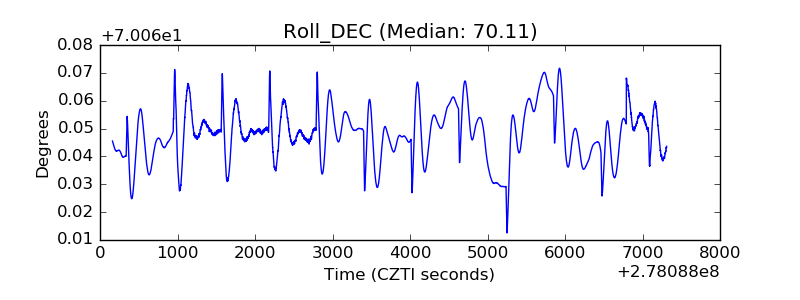

| _Roll_DEC |  |
| _Roll_RA |  |

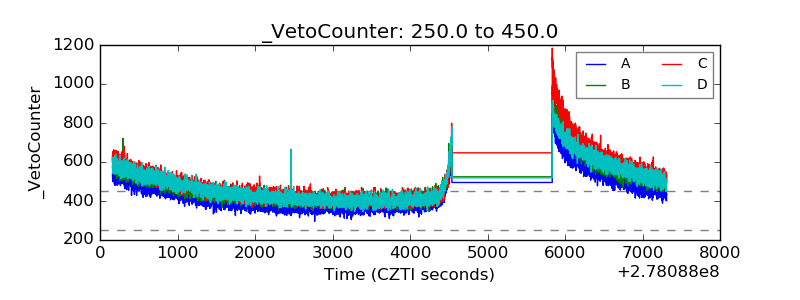

| Veto Counter |  |
