| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_064T01_9000002450_16619cztM0_level2.evt | modeM0/AS1A05_064T01_9000002450_16619cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,607,040 | 132,868,800 |
| Size | 507.9 MB | 126.7 MB |
| Events in quadrant A | 3,491,825 | 892,486 |
| Events in quadrant B | 3,725,018 | 902,274 |
| Events in quadrant C | 4,282,727 | 879,773 |
| Events in quadrant D | 4,152,624 | 859,287 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15360 | 3 |
| B | 0 | 15898 | 2 |
| C | 0 | 17271 | 2 |
| D | 0 | 17108 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7039 | 108 | 1.534309% |
| B | 7039 | 121 | 1.718994% |
| C | 7039 | 207 | 2.940759% |
| D | 7039 | 146 | 2.074158% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7885 | 7041 | 50 | 50 | 0.63% | 0.71% |  |
| B | 7885 | 7041 | 24 | 24 | 0.30% | 0.34% |  |
| C | 7885 | 7041 | 12 | 12 | 0.15% | 0.17% |  |
| D | 7885 | 7041 | 95 | 95 | 1.20% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 331507 | 2018.45 | 814 | 796 | 163.8 |
| A | 9 | 143 | 12020 | 68.5 | 814 | 796 | 163.8 |
| A | 3 | 1 | 9351 | 52.21 | 814 | 796 | 163.8 |
| B | 15 | 35 | 172213 | 1110.65 | 821 | 800 | 154.3 |
| B | 0 | 197 | 80304 | 515.13 | 821 | 800 | 154.3 |
| B | 0 | 229 | 66536 | 425.93 | 821 | 800 | 154.3 |
| C | 3 | 233 | 1039338 | 5662.35 | 793 | 798 | 183.4 |
| C | 14 | 238 | 123936 | 671.38 | 793 | 798 | 183.4 |
| C | 0 | 207 | 24434 | 128.87 | 793 | 798 | 183.4 |
| D | 1 | 52 | 679429 | 3520.09 | 796 | 772 | 192.8 |
| D | 10 | 70 | 217362 | 1123.42 | 796 | 772 | 192.8 |
| D | 7 | 38 | 115420 | 594.66 | 796 | 772 | 192.8 |

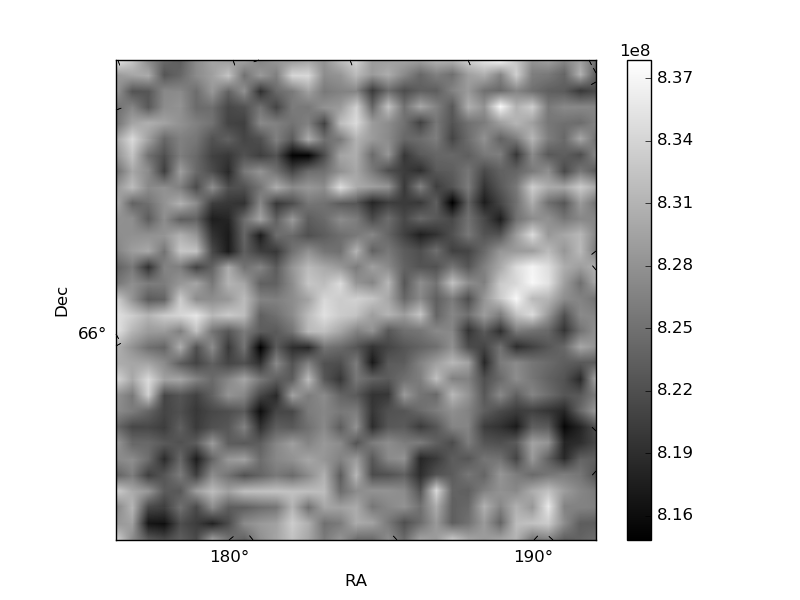

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

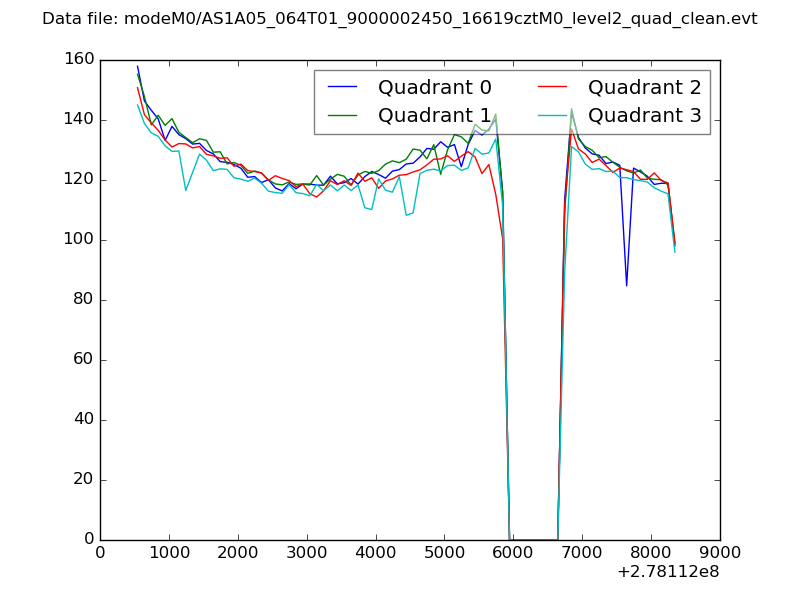

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

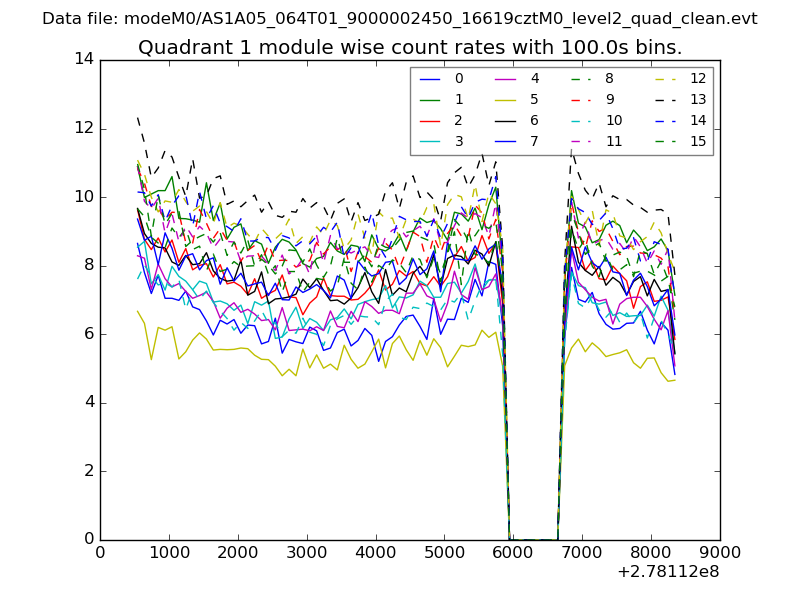

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

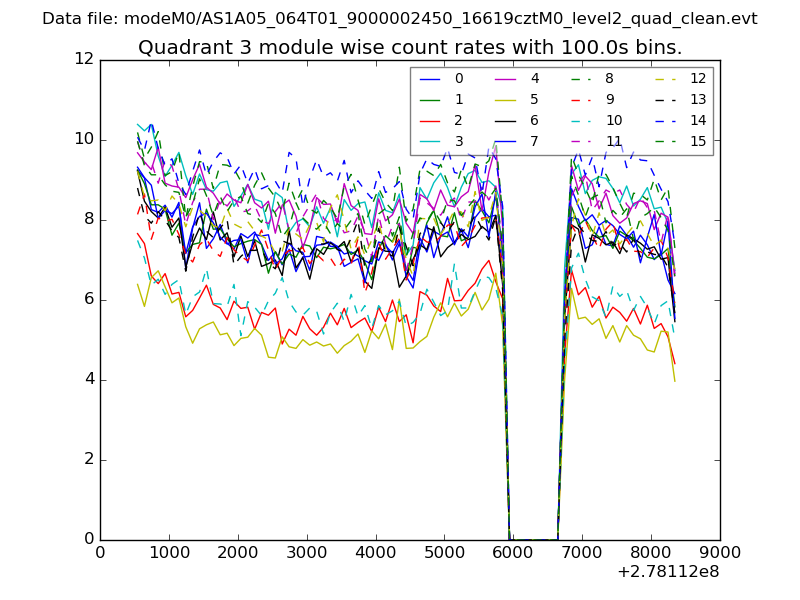

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

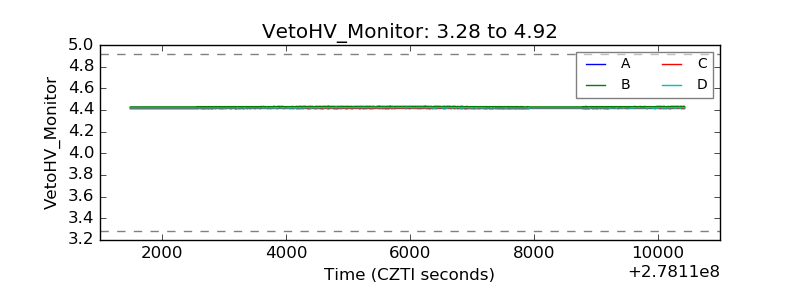

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

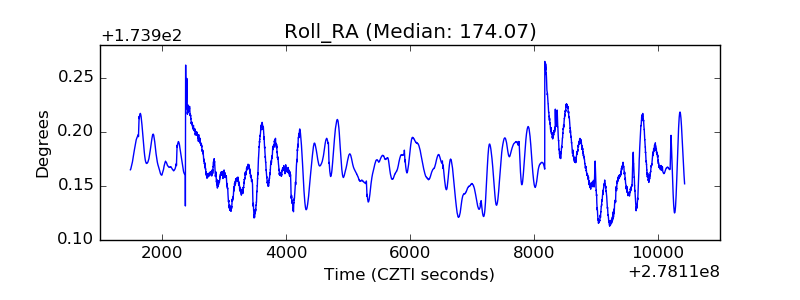

| _Roll_RA |  |

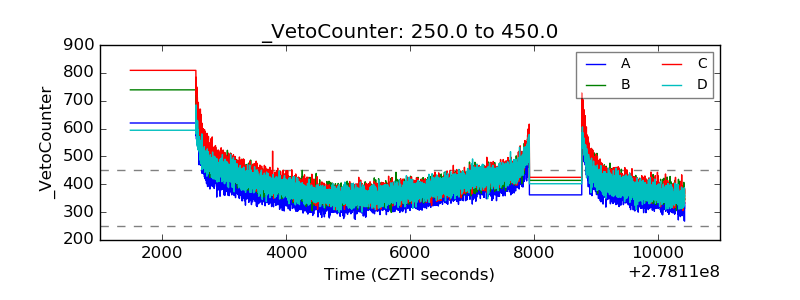

| Veto Counter |  |
