| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_064T01_9000002450_16628cztM0_level2.evt | modeM0/AS1A05_064T01_9000002450_16628cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,373,120 | 113,734,080 |
| Size | 448.6 MB | 108.5 MB |
| Events in quadrant A | 2,990,823 | 776,917 |
| Events in quadrant B | 3,141,106 | 776,677 |
| Events in quadrant C | 3,908,135 | 747,034 |
| Events in quadrant D | 3,811,348 | 738,114 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12730 | 2 |
| B | 0 | 13202 | 1 |
| C | 0 | 15814 | 1 |
| D | 0 | 15261 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5809 | 99 | 1.704252% |
| B | 5809 | 39 | 0.671372% |
| C | 5809 | 51 | 0.877948% |
| D | 5809 | 58 | 0.998451% |

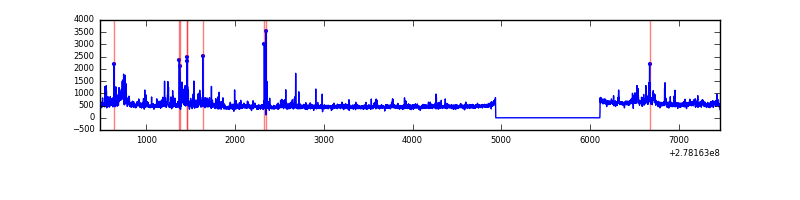

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

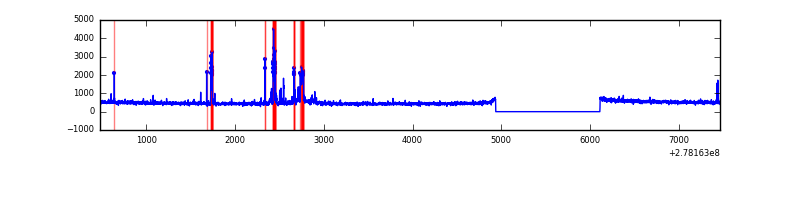

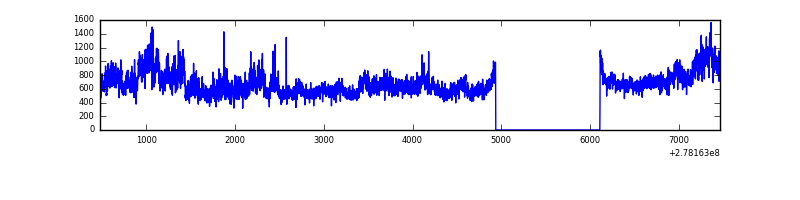

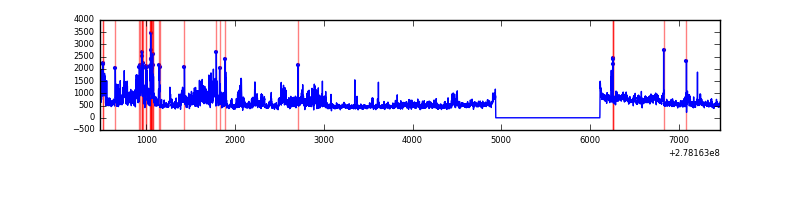

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6985 | 5811 | 56 | 56 | 0.80% | 0.96% |  |
| B | 6985 | 5811 | 9 | 9 | 0.13% | 0.15% |  |
| C | 6985 | 5811 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6985 | 5811 | 34 | 34 | 0.49% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 181535 | 1277.64 | 703 | 689 | 141.5 |
| A | 9 | 143 | 104546 | 733.73 | 703 | 689 | 141.5 |
| A | 0 | 226 | 6427 | 40.54 | 703 | 689 | 141.5 |
| B | 15 | 35 | 125263 | 962.46 | 697 | 679 | 129.4 |
| B | 7 | 220 | 70166 | 536.81 | 697 | 679 | 129.4 |
| B | 0 | 198 | 61607 | 470.69 | 697 | 679 | 129.4 |
| C | 3 | 233 | 1012051 | 6435.17 | 675 | 680 | 157.2 |
| C | 7 | 247 | 155822 | 987.14 | 675 | 680 | 157.2 |
| C | 14 | 238 | 103528 | 654.4 | 675 | 680 | 157.2 |
| D | 1 | 52 | 884329 | 5330.49 | 688 | 668 | 165.8 |
| D | 5 | 222 | 186741 | 1122.44 | 688 | 668 | 165.8 |
| D | 10 | 70 | 69298 | 414.0 | 688 | 668 | 165.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

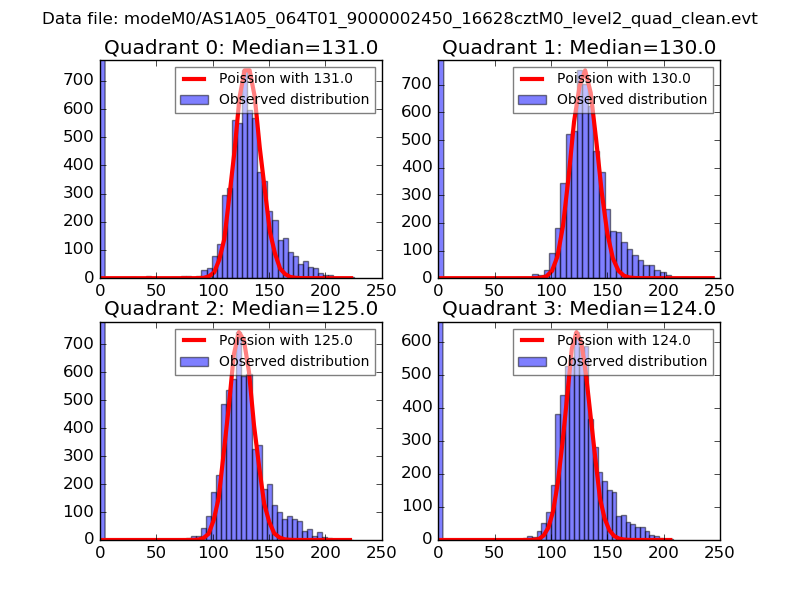

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

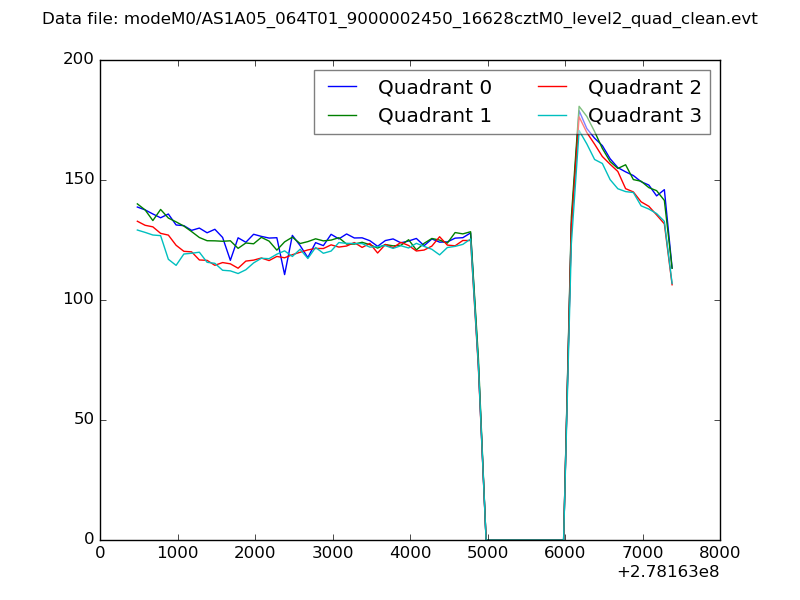

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

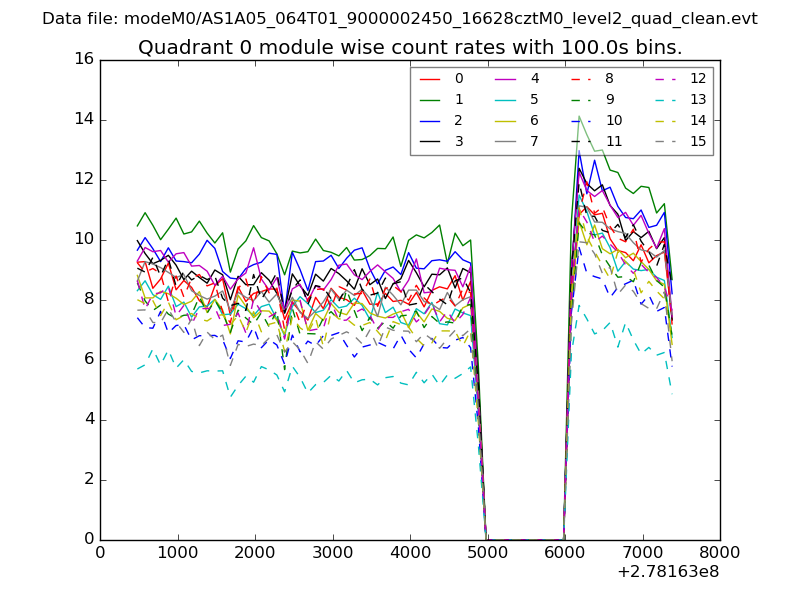

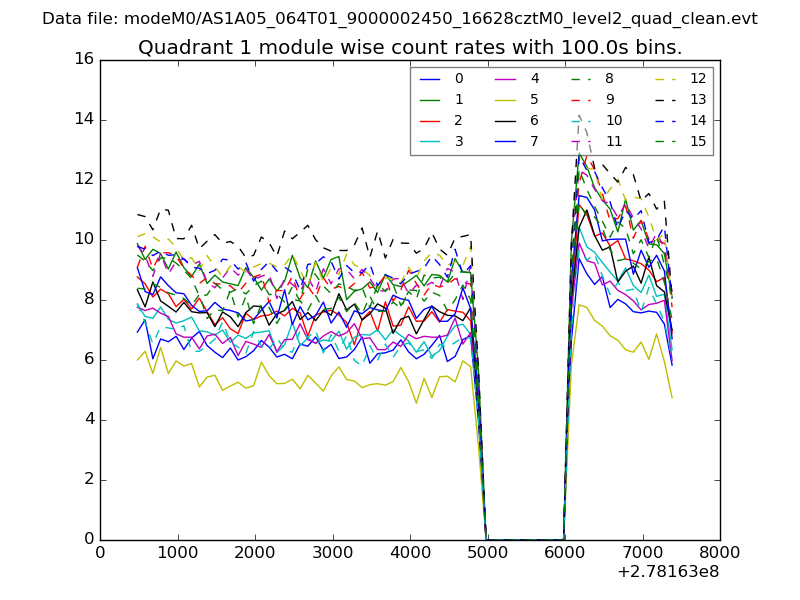

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

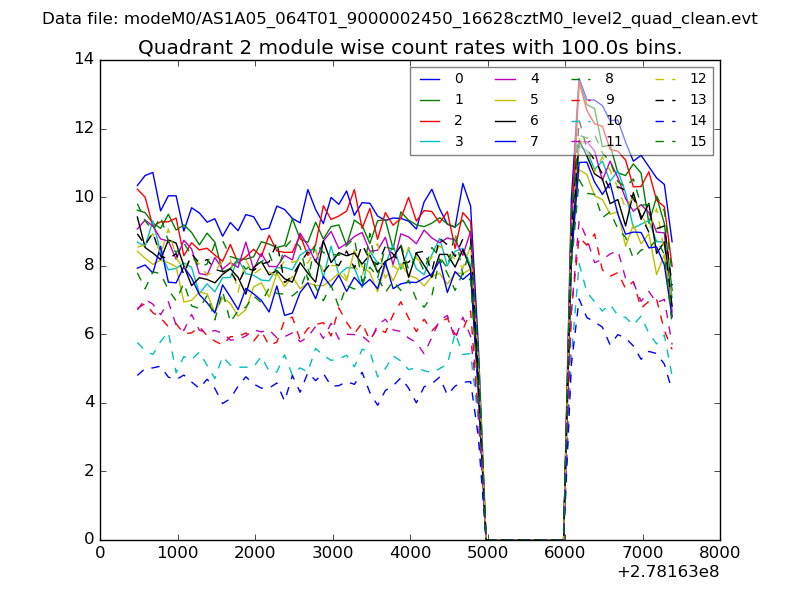

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

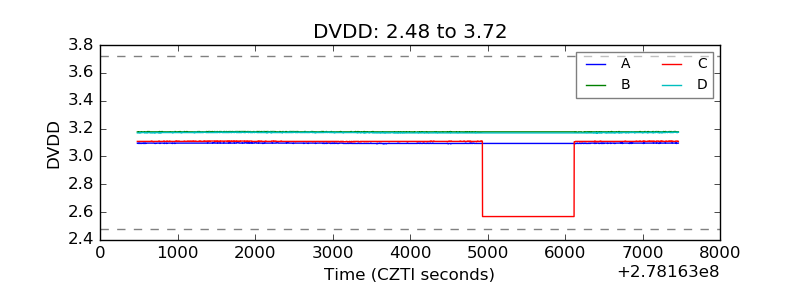

| CZT HV Monitor |  |
| D_VDD |  |

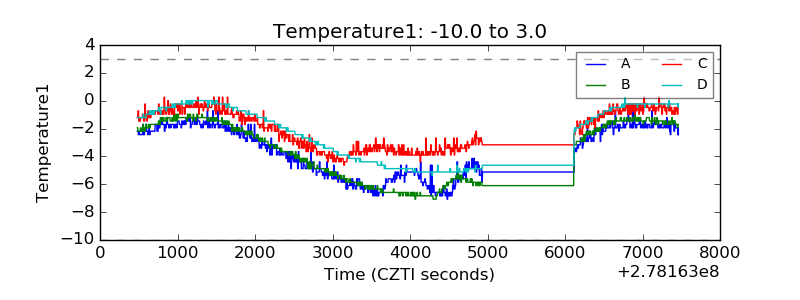

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

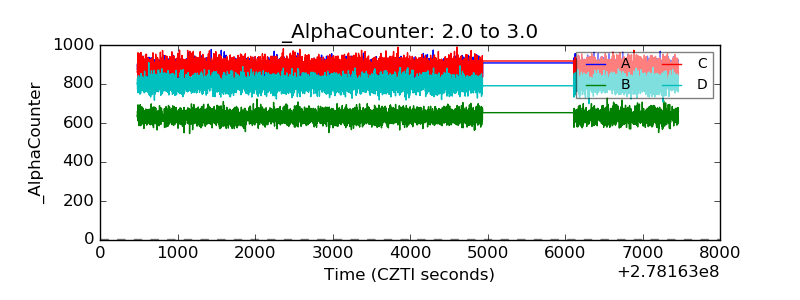

| Alpha Counter |  |

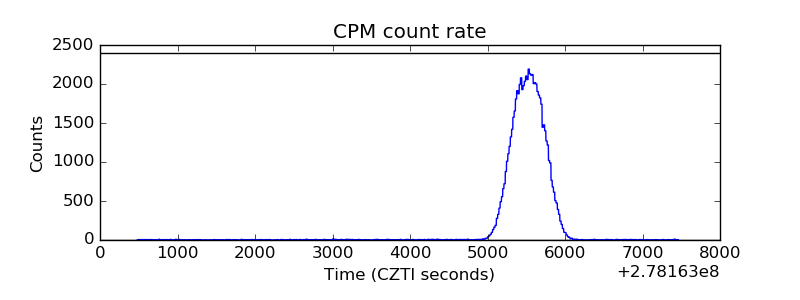

| _CPM_Rate |  |

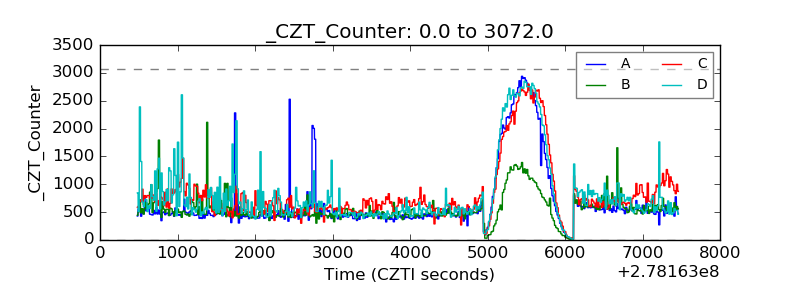

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

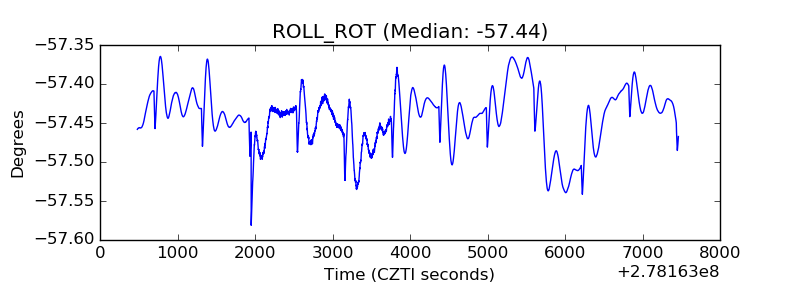

| _ROLL_ROT |  |

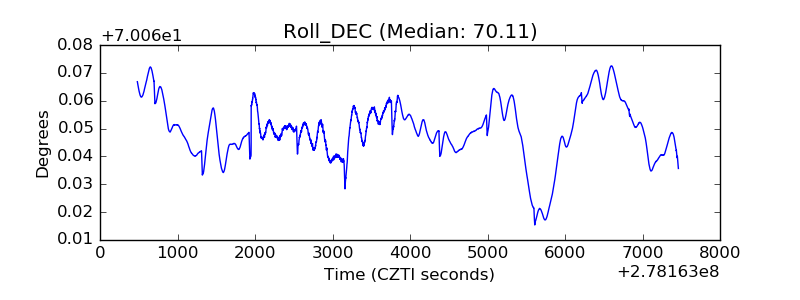

| _Roll_DEC |  |

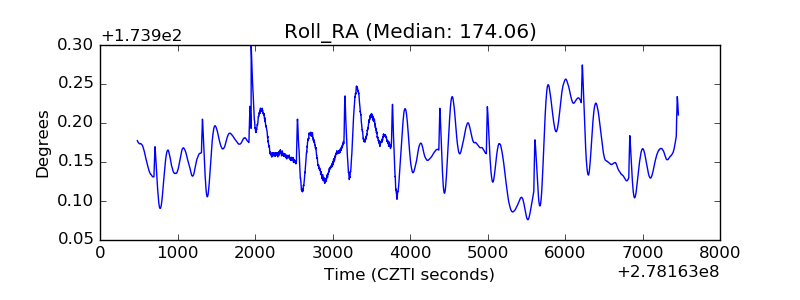

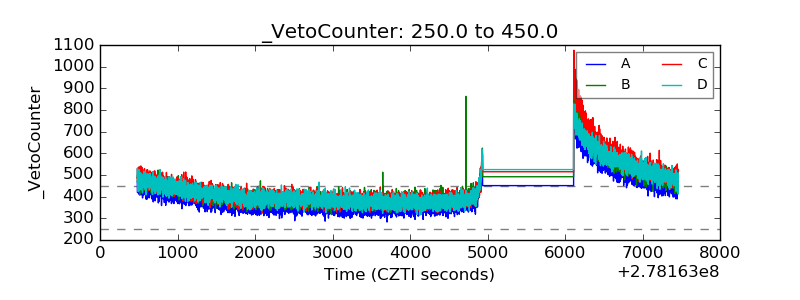

| _Roll_RA |  |
| Veto Counter |  |
