| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_064T01_9000002450_16630cztM0_level2.evt | modeM0/AS1A05_064T01_9000002450_16630cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,612,800 | 134,239,680 |
| Size | 525.1 MB | 128.0 MB |
| Events in quadrant A | 4,435,554 | 899,147 |
| Events in quadrant B | 3,848,599 | 934,573 |
| Events in quadrant C | 3,492,760 | 921,525 |
| Events in quadrant D | 4,474,395 | 873,819 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17248 | 2 |
| B | 0 | 15748 | 1 |
| C | 0 | 14594 | 1 |
| D | 0 | 17328 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6257 | 571 | 9.125779% |
| B | 6257 | 236 | 3.771776% |
| C | 6257 | 142 | 2.269458% |
| D | 6257 | 452 | 7.223909% |

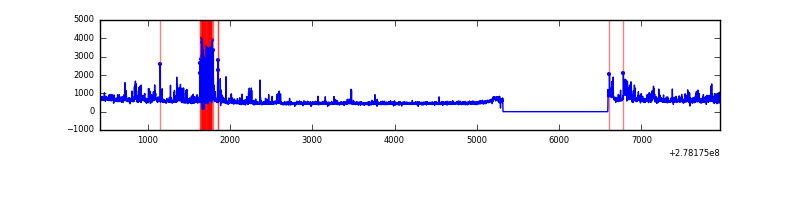

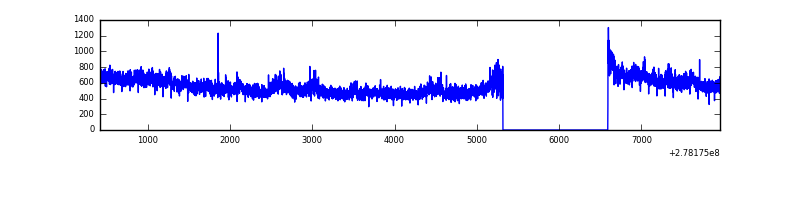

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7533 | 6259 | 287 | 287 | 3.81% | 4.59% |  |
| B | 7533 | 6259 | 57 | 57 | 0.76% | 0.91% |  |
| C | 7533 | 6259 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7533 | 6259 | 244 | 244 | 3.24% | 3.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1378935 | 8833.54 | 790 | 776 | 156.0 |
| A | 9 | 143 | 13107 | 79.04 | 790 | 776 | 156.0 |
| A | 0 | 226 | 7140 | 40.79 | 790 | 776 | 156.0 |
| B | 0 | 85 | 287428 | 1929.24 | 807 | 788 | 148.6 |
| B | 15 | 35 | 173069 | 1159.54 | 807 | 788 | 148.6 |
| B | 0 | 189 | 138571 | 927.35 | 807 | 788 | 148.6 |
| C | 3 | 233 | 241372 | 1317.08 | 798 | 805 | 182.7 |
| C | 14 | 238 | 125381 | 682.04 | 798 | 805 | 182.7 |
| C | 7 | 247 | 13027 | 66.91 | 798 | 805 | 182.7 |
| D | 1 | 52 | 1203393 | 6380.12 | 788 | 766 | 188.5 |
| D | 5 | 222 | 108957 | 573.97 | 788 | 766 | 188.5 |
| D | 10 | 70 | 82261 | 432.34 | 788 | 766 | 188.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

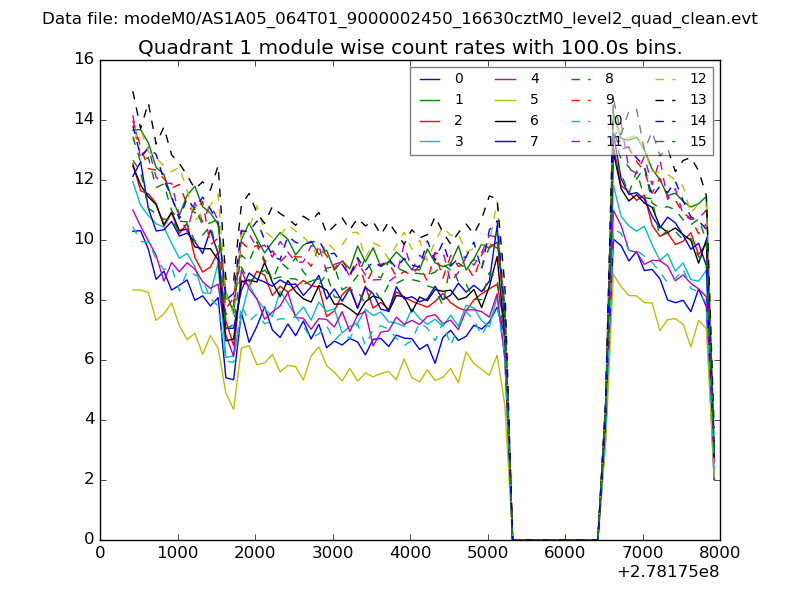

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

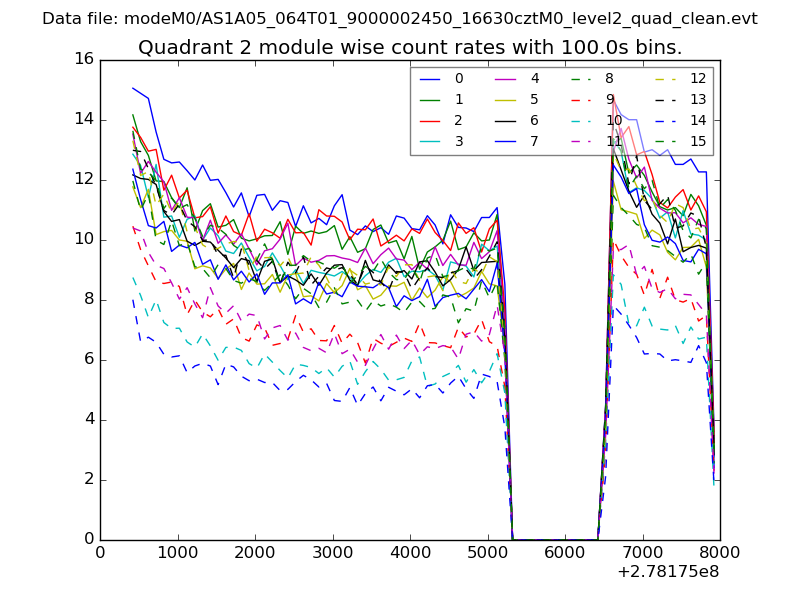

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

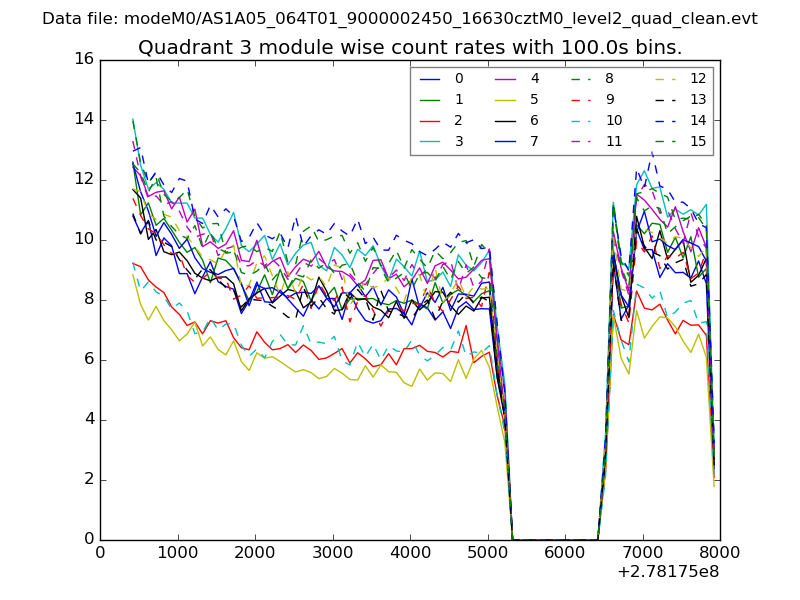

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

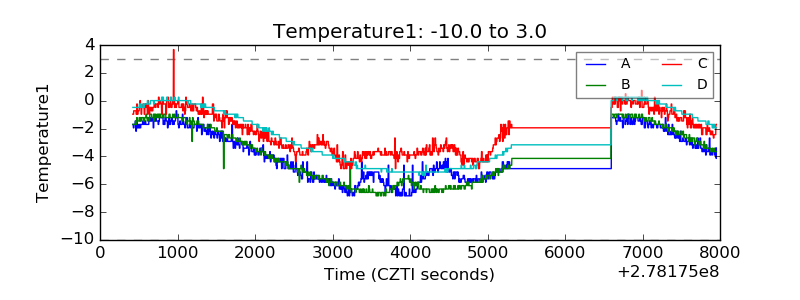

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

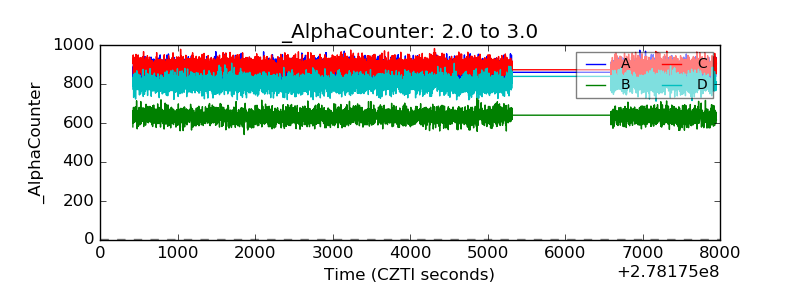

| Alpha Counter |  |

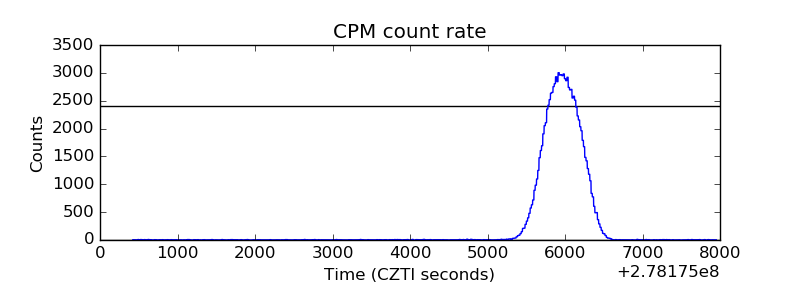

| _CPM_Rate |  |
