| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_002T07_9000002458_16646cztM0_level2.evt | modeM0/AS1A05_002T07_9000002458_16646cztM0_level2_quad_clean.evt |
| Size (bytes) | 234,227,520 | 61,940,160 |
| Size | 223.4 MB | 59.1 MB |
| Events in quadrant A | 1,605,237 | 420,534 |
| Events in quadrant B | 1,761,006 | 431,892 |
| Events in quadrant C | 1,741,746 | 404,439 |
| Events in quadrant D | 1,769,968 | 394,930 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6716 | 2 |
| B | 0 | 7223 | 1 |
| C | 0 | 7201 | 1 |
| D | 0 | 7285 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3150 | 76 | 2.412698% |
| B | 3150 | 99 | 3.142857% |
| C | 3150 | 104 | 3.301587% |
| D | 3150 | 100 | 3.174603% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4466 | 3152 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4466 | 3152 | 6 | 6 | 0.13% | 0.19% |  |
| C | 4466 | 3152 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4466 | 3152 | 30 | 30 | 0.67% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 7482 | 85.22 | 413 | 404 | 83.1 |
| A | 0 | 226 | 3694 | 39.61 | 413 | 404 | 83.1 |
| A | 12 | 194 | 3056 | 31.93 | 413 | 404 | 83.1 |
| B | 15 | 35 | 49977 | 625.67 | 416 | 405 | 79.2 |
| B | 4 | 216 | 28137 | 350.02 | 416 | 405 | 79.2 |
| B | 6 | 36 | 22512 | 279.02 | 416 | 405 | 79.2 |
| C | 3 | 233 | 129557 | 1400.94 | 397 | 399 | 92.2 |
| C | 14 | 238 | 62589 | 674.56 | 397 | 399 | 92.2 |
| C | 13 | 61 | 2971 | 27.9 | 397 | 399 | 92.2 |
| D | 1 | 52 | 215510 | 2228.19 | 398 | 386 | 96.5 |
| D | 5 | 222 | 39330 | 403.37 | 398 | 386 | 96.5 |
| D | 2 | 234 | 14004 | 141.05 | 398 | 386 | 96.5 |

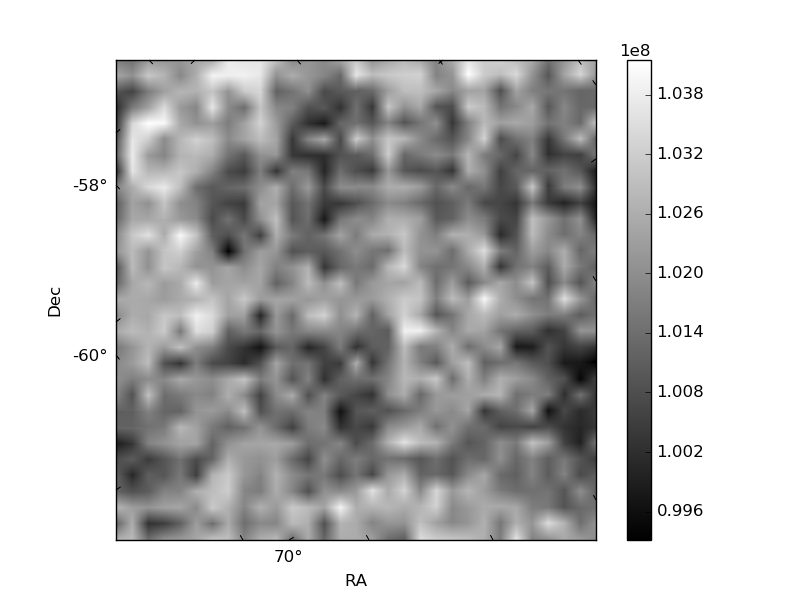

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

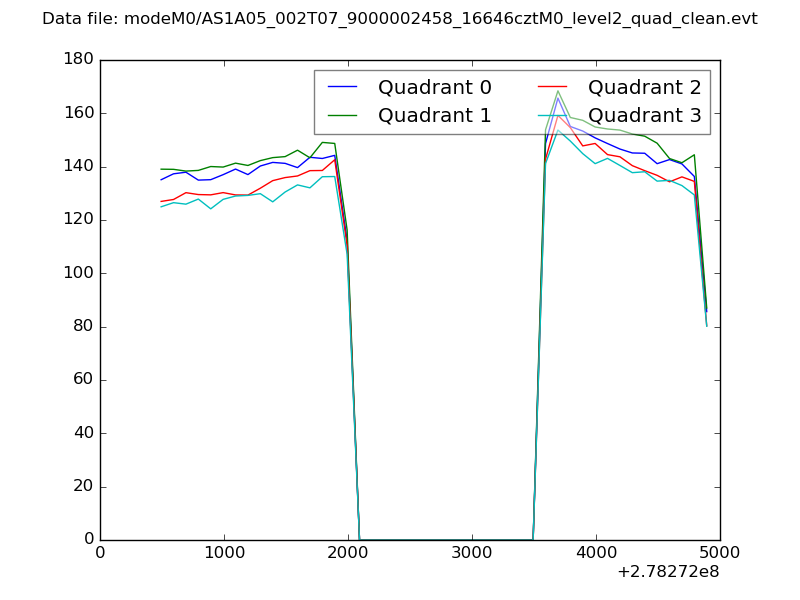

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

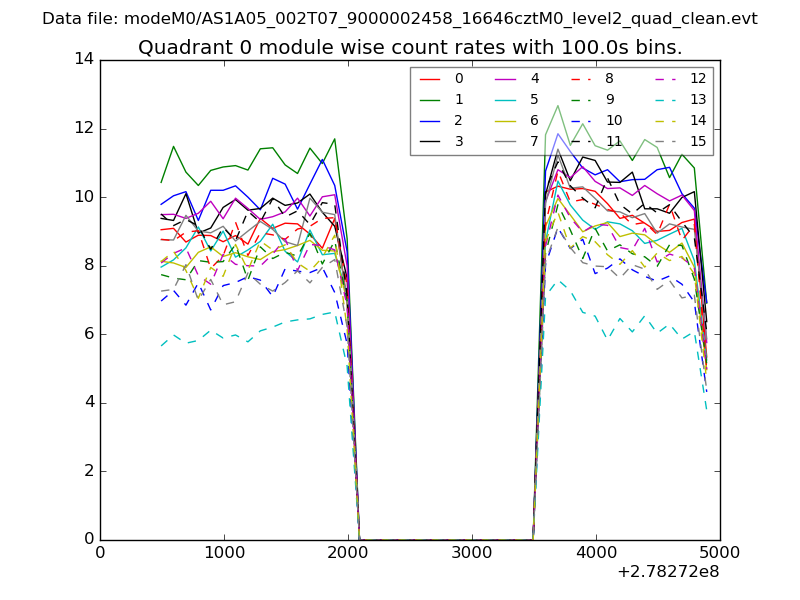

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

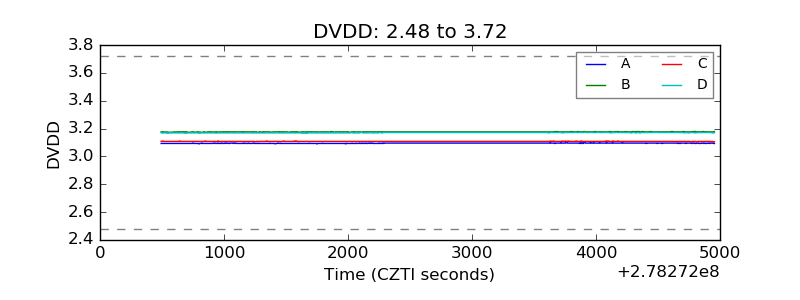

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

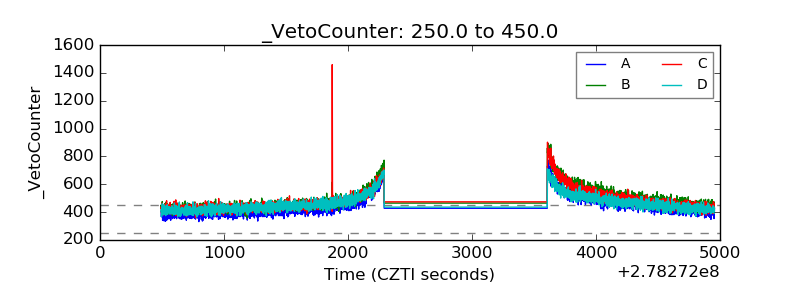

| Veto Counter |  |
