| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_007T07_9000002452_16641cztM0_level2.evt | modeM0/AS1C04_007T07_9000002452_16641cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,831,680 | 92,998,080 |
| Size | 465.2 MB | 88.7 MB |
| Events in quadrant A | 3,478,801 | 593,237 |
| Events in quadrant B | 3,673,398 | 603,045 |
| Events in quadrant C | 3,407,322 | 580,622 |
| Events in quadrant D | 3,759,110 | 572,262 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14669 | 3 |
| B | 0 | 15253 | 2 |
| C | 0 | 14357 | 2 |
| D | 0 | 15521 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6696 | 124 | 1.851852% |
| B | 6696 | 129 | 1.926523% |
| C | 6696 | 146 | 2.180406% |
| D | 6696 | 147 | 2.195341% |

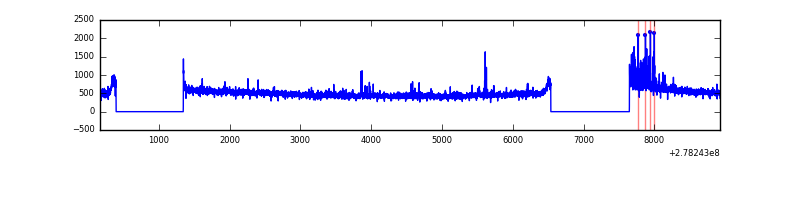

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8757 | 6699 | 4 | 4 | 0.05% | 0.06% |  |
| B | 8757 | 6699 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8757 | 6699 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8757 | 6699 | 44 | 44 | 0.50% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 171850 | 987.9 | 856 | 839 | 173.1 |
| A | 12 | 96 | 8371 | 43.51 | 856 | 839 | 173.1 |
| A | 0 | 226 | 7567 | 38.87 | 856 | 839 | 173.1 |
| B | 15 | 35 | 134535 | 816.44 | 851 | 830 | 163.8 |
| B | 4 | 216 | 62002 | 373.53 | 851 | 830 | 163.8 |
| B | 0 | 189 | 50622 | 304.04 | 851 | 830 | 163.8 |
| C | 14 | 238 | 126830 | 661.7 | 813 | 818 | 190.4 |
| C | 3 | 233 | 74844 | 388.72 | 813 | 818 | 190.4 |
| C | 7 | 247 | 31797 | 162.67 | 813 | 818 | 190.4 |
| D | 1 | 52 | 460940 | 2242.57 | 833 | 807 | 205.2 |
| D | 5 | 222 | 91613 | 442.57 | 833 | 807 | 205.2 |
| D | 2 | 234 | 25688 | 121.26 | 833 | 807 | 205.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

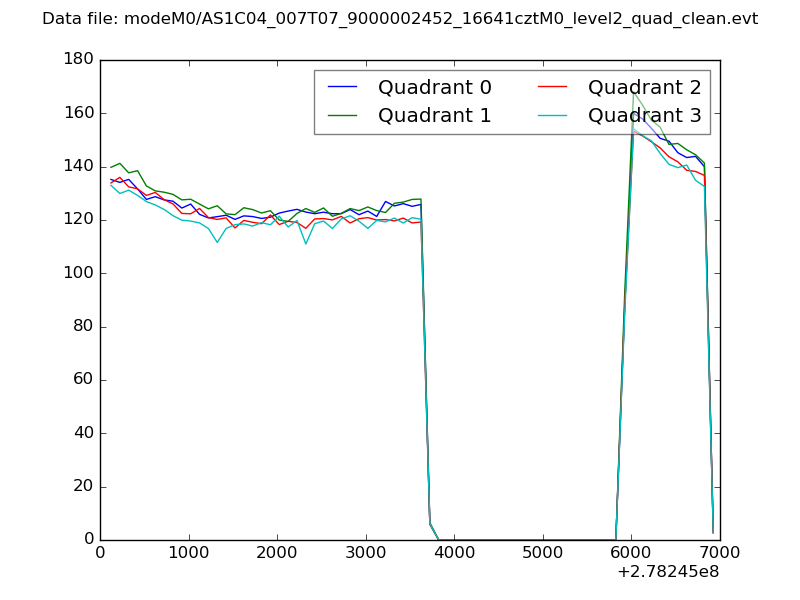

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

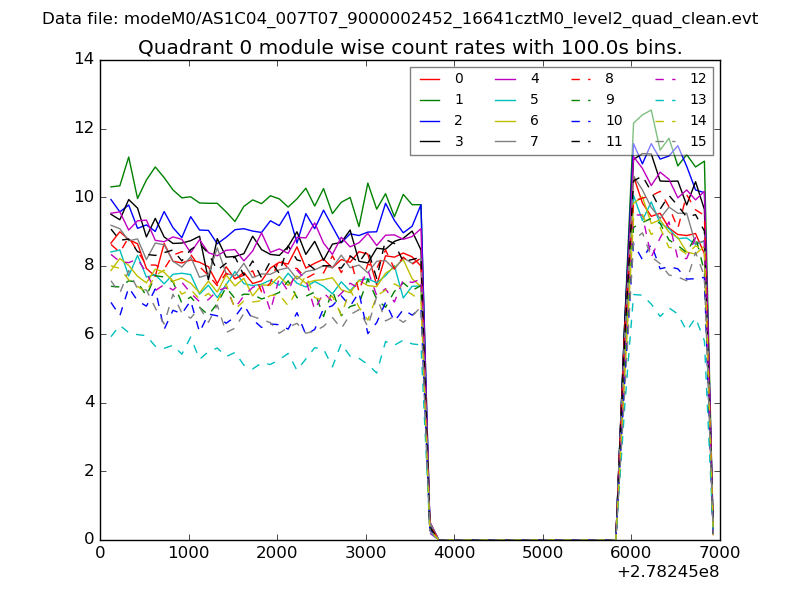

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

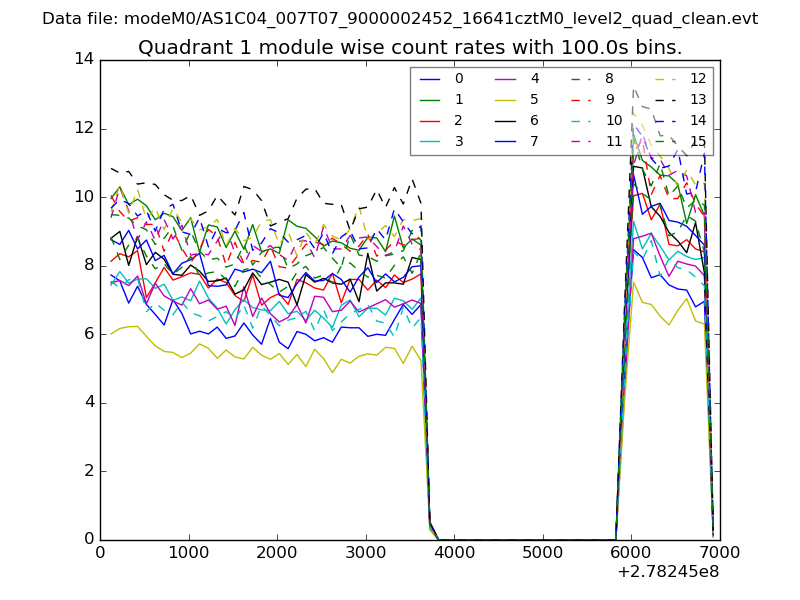

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

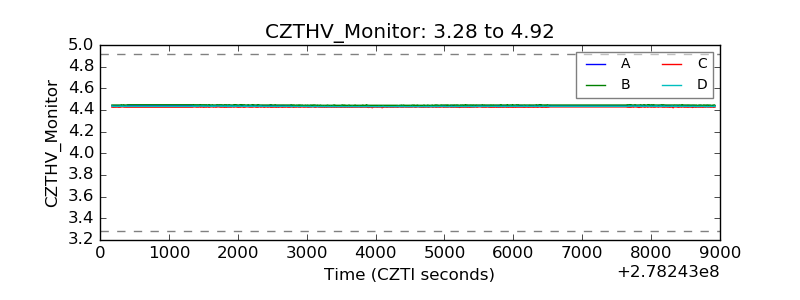

| CZT HV Monitor |  |
| D_VDD |  |

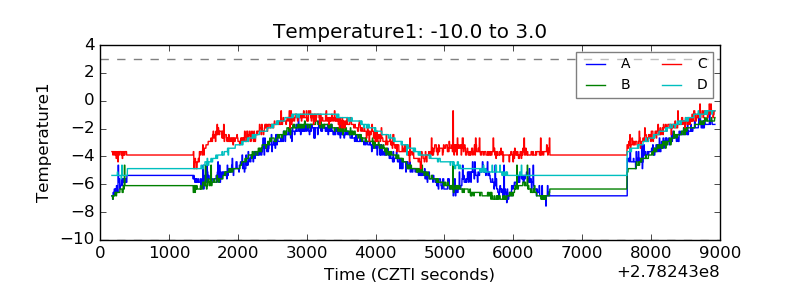

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

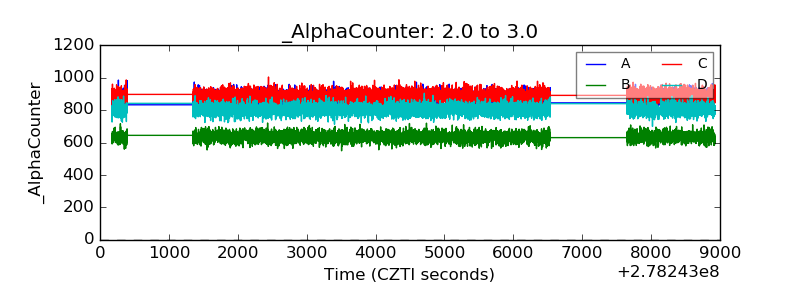

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

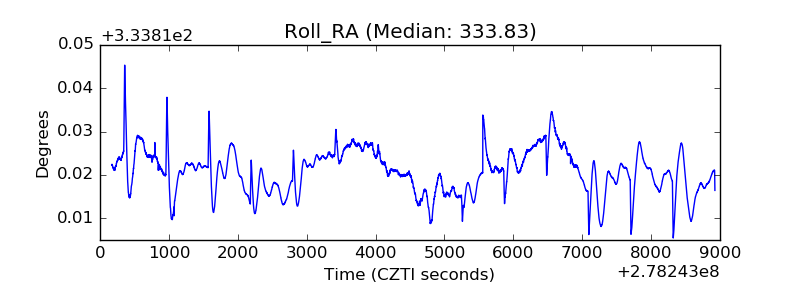

| _Roll_RA |  |
| Veto Counter |  |
