| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_007T07_9000002452_16643cztM0_level2.evt | modeM0/AS1C04_007T07_9000002452_16643cztM0_level2_quad_clean.evt |
| Size (bytes) | 173,707,200 | 40,383,360 |
| Size | 165.7 MB | 38.5 MB |
| Events in quadrant A | 1,338,635 | 269,062 |
| Events in quadrant B | 1,294,976 | 274,173 |
| Events in quadrant C | 1,211,637 | 259,909 |
| Events in quadrant D | 1,261,662 | 258,167 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5390 | 1 |
| B | 0 | 5335 | 1 |
| C | 0 | 5065 | 1 |
| D | 0 | 5222 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2233 | 41 | 1.836095% |
| B | 2233 | 12 | 0.537394% |
| C | 2233 | 39 | 1.746529% |
| D | 2233 | 18 | 0.806090% |

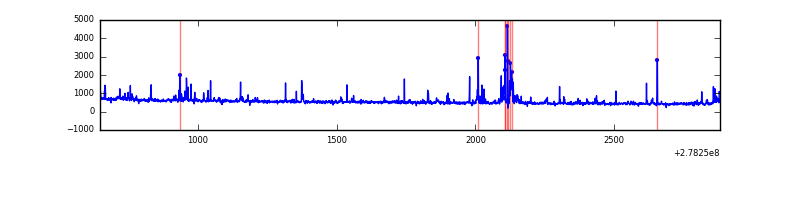

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2234 | 2234 | 13 | 13 | 0.58% | 0.58% |  |
| B | 2234 | 2234 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2234 | 2234 | 18 | 18 | 0.81% | 0.81% |  |
| D | 2234 | 2234 | 9 | 9 | 0.40% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 132650 | 2117.9 | 303 | 297 | 62.5 |
| A | 15 | 174 | 26386 | 417.47 | 303 | 297 | 62.5 |
| A | 12 | 96 | 5802 | 88.09 | 303 | 297 | 62.5 |
| B | 15 | 35 | 51543 | 872.35 | 298 | 291 | 58.8 |
| B | 0 | 198 | 48237 | 816.07 | 298 | 291 | 58.8 |
| B | 0 | 189 | 15647 | 261.37 | 298 | 291 | 58.8 |
| C | 3 | 233 | 69326 | 1038.07 | 280 | 282 | 66.5 |
| C | 14 | 238 | 44968 | 671.85 | 280 | 282 | 66.5 |
| C | 7 | 247 | 2694 | 36.26 | 280 | 282 | 66.5 |
| D | 1 | 52 | 69952 | 971.58 | 291 | 284 | 71.7 |
| D | 10 | 70 | 53233 | 738.42 | 291 | 284 | 71.7 |
| D | 5 | 222 | 14496 | 198.2 | 291 | 284 | 71.7 |

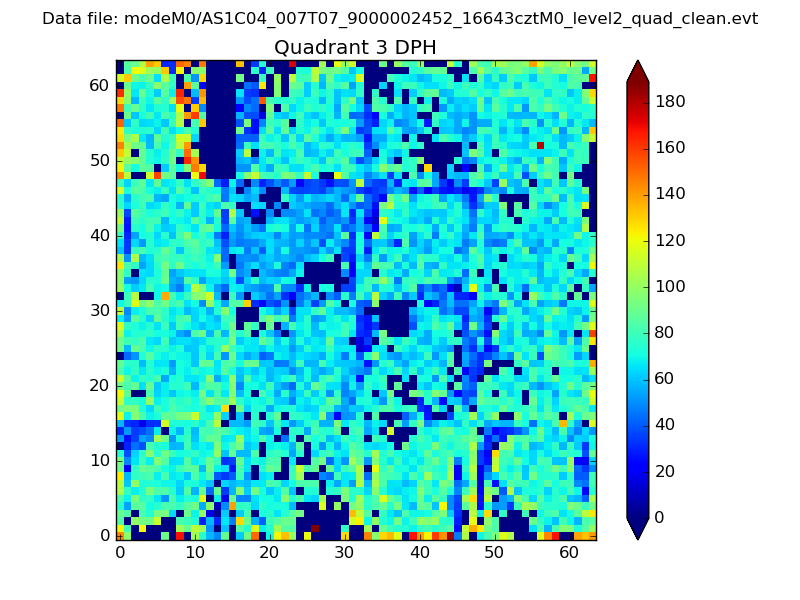

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

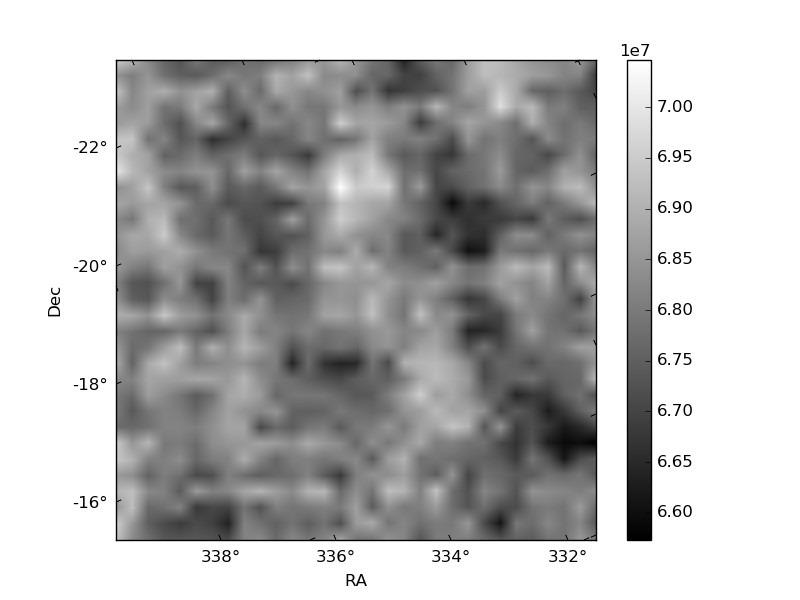

| Plot type | Count rate plots | Images |
|---|---|---|

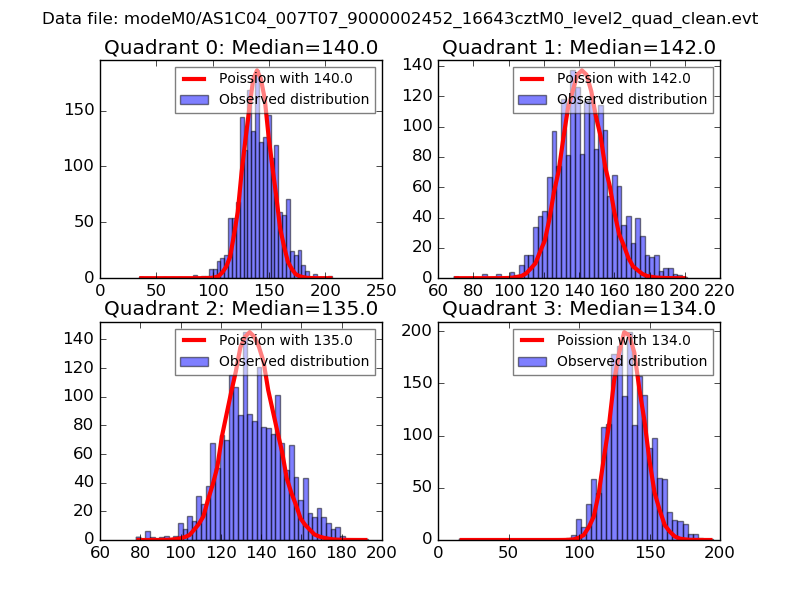

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

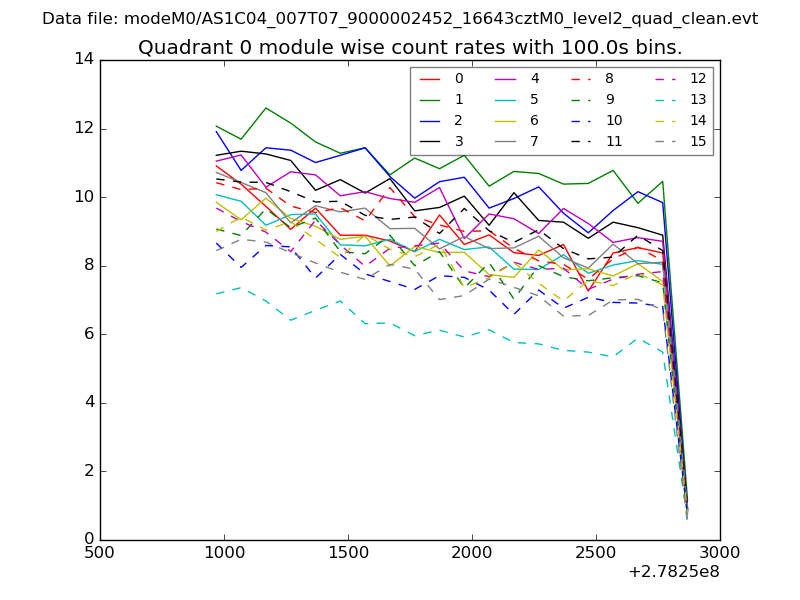

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

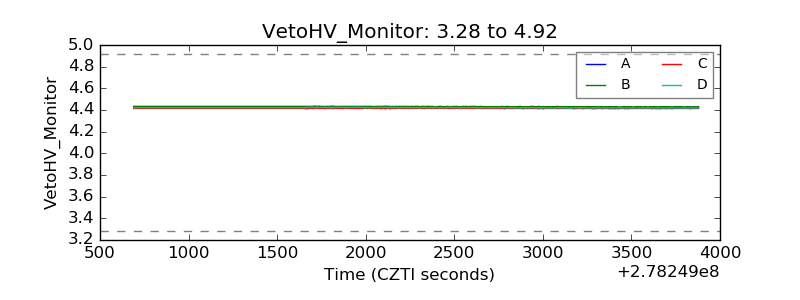

| Veto HV Monitor |  |
| Veto LLD |  |

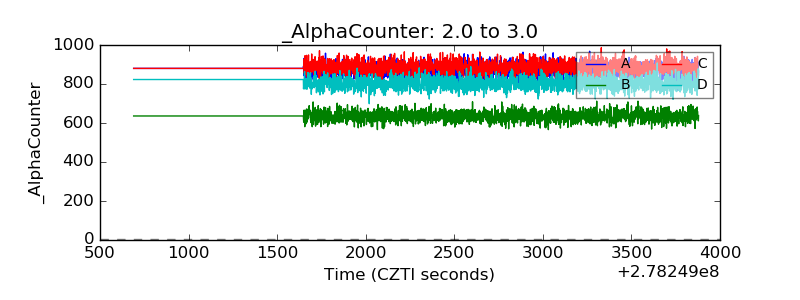

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

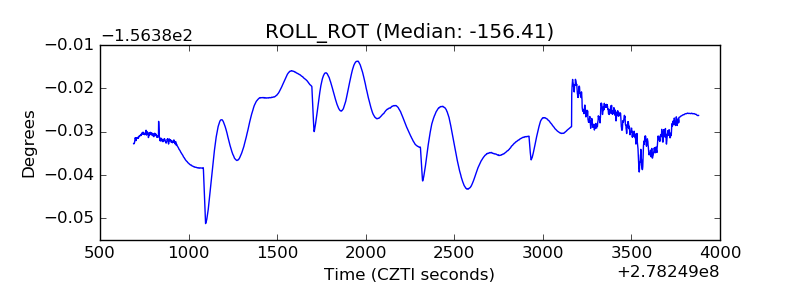

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
