| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_078T01_9000002462_16655cztM0_level2.evt | modeM0/AS1A05_078T01_9000002462_16655cztM0_level2_quad_clean.evt |
| Size (bytes) | 648,262,080 | 138,591,360 |
| Size | 618.2 MB | 132.2 MB |
| Events in quadrant A | 3,585,865 | 943,427 |
| Events in quadrant B | 3,805,103 | 962,410 |
| Events in quadrant C | 3,812,806 | 929,945 |
| Events in quadrant D | 7,912,507 | 831,205 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15679 | 3 |
| B | 0 | 16127 | 2 |
| C | 0 | 15951 | 2 |
| D | 0 | 28966 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7624 | 84 | 1.101784% |
| B | 7624 | 97 | 1.272298% |
| C | 7624 | 143 | 1.875656% |
| D | 7624 | 1144 | 15.005247% |

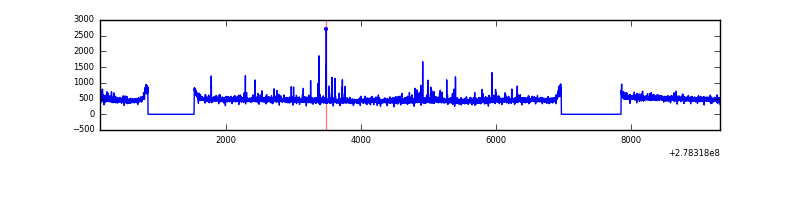

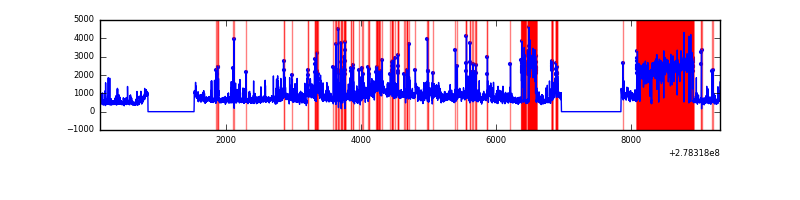

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9195 | 7627 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9195 | 7627 | 2 | 2 | 0.02% | 0.03% |  |
| C | 9195 | 7627 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9195 | 7627 | 980 | 980 | 10.66% | 12.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 78556 | 424.83 | 908 | 889 | 182.8 |
| A | 15 | 174 | 8739 | 42.94 | 908 | 889 | 182.8 |
| A | 15 | 223 | 8215 | 40.07 | 908 | 889 | 182.8 |
| B | 15 | 35 | 102245 | 586.01 | 909 | 884 | 173.0 |
| B | 0 | 198 | 45841 | 259.92 | 909 | 884 | 173.0 |
| B | 0 | 189 | 37825 | 213.57 | 909 | 884 | 173.0 |
| C | 3 | 233 | 251465 | 1228.97 | 877 | 883 | 203.9 |
| C | 14 | 238 | 134811 | 656.85 | 877 | 883 | 203.9 |
| C | 13 | 61 | 6139 | 25.78 | 877 | 883 | 203.9 |
| D | 15 | 0 | 2203066 | 10938.55 | 833 | 807 | 201.3 |
| D | 2 | 16 | 1433430 | 7115.79 | 833 | 807 | 201.3 |
| D | 1 | 52 | 950870 | 4718.93 | 833 | 807 | 201.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

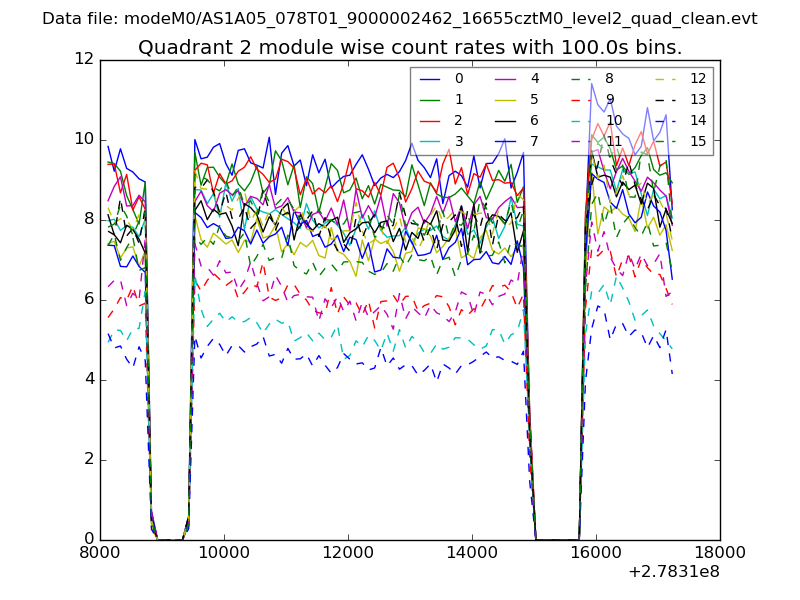

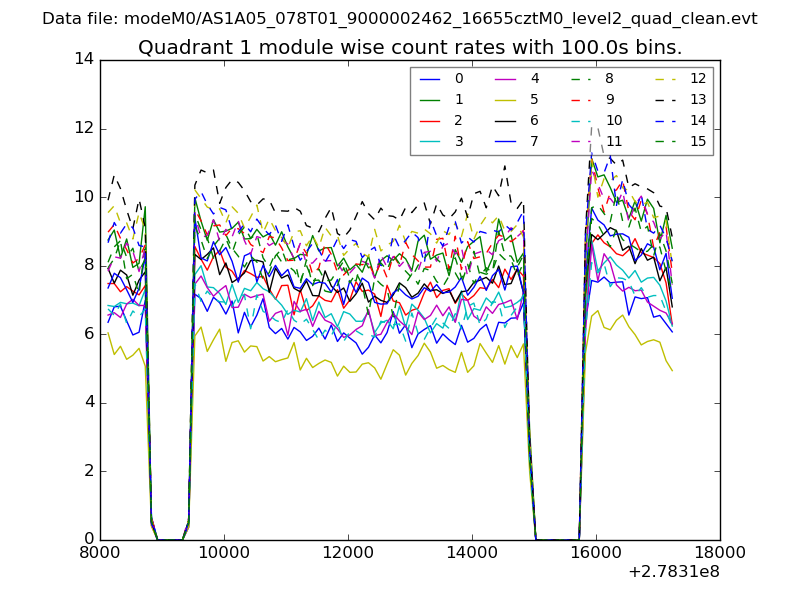

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

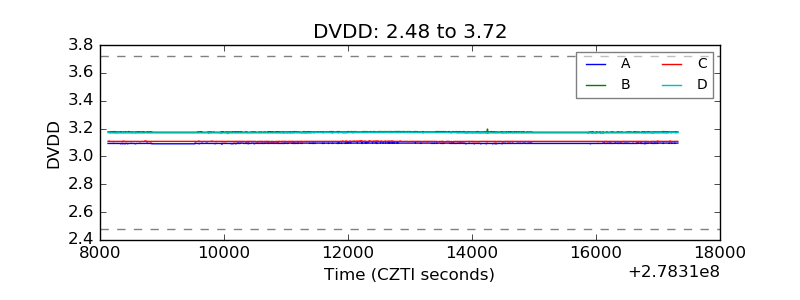

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

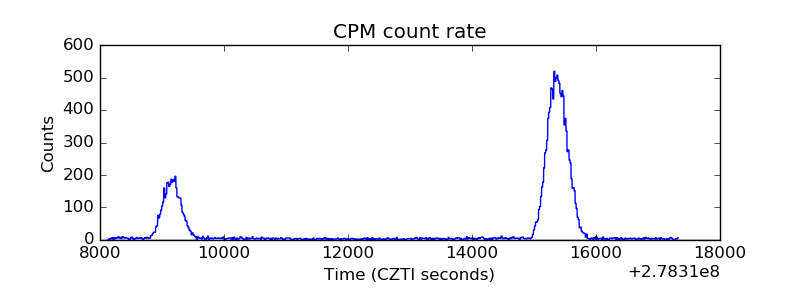

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

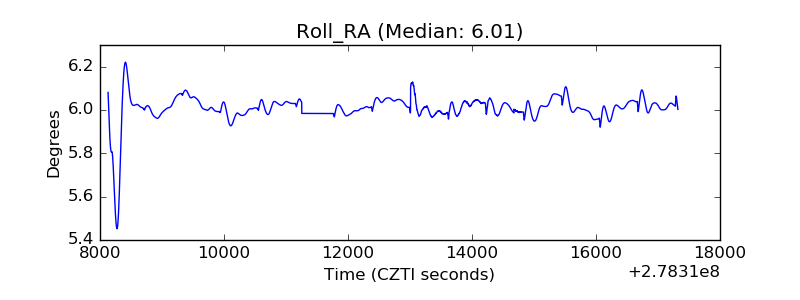

| _Roll_RA |  |

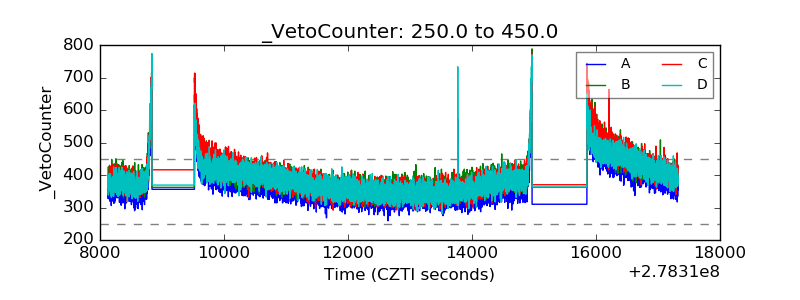

| Veto Counter |  |
