| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_078T01_9000002462_16658cztM0_level2.evt | modeM0/AS1A05_078T01_9000002462_16658cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,528,000 | 127,785,600 |
| Size | 458.3 MB | 121.9 MB |
| Events in quadrant A | 3,512,685 | 877,067 |
| Events in quadrant B | 3,467,471 | 892,942 |
| Events in quadrant C | 3,065,832 | 849,549 |
| Events in quadrant D | 4,093,825 | 825,814 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14533 | 2 |
| B | 0 | 14326 | 1 |
| C | 0 | 13103 | 1 |
| D | 0 | 16421 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6081 | 183 | 3.009373% |
| B | 6081 | 97 | 1.595132% |
| C | 6081 | 83 | 1.364907% |
| D | 6081 | 104 | 1.710245% |

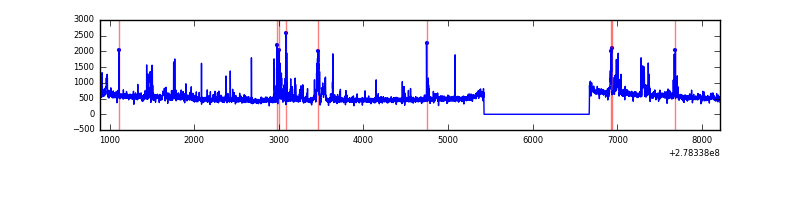

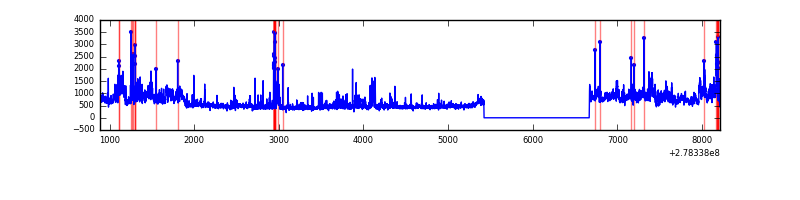

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7327 | 6082 | 55 | 55 | 0.75% | 0.90% |  |
| B | 7327 | 6083 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7327 | 6083 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7327 | 6083 | 39 | 39 | 0.53% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 550602 | 3590.37 | 769 | 755 | 153.1 |
| A | 0 | 226 | 6936 | 40.36 | 769 | 755 | 153.1 |
| A | 12 | 194 | 5818 | 33.06 | 769 | 755 | 153.1 |
| B | 15 | 35 | 196209 | 1381.29 | 772 | 756 | 141.5 |
| B | 0 | 189 | 56082 | 391.0 | 772 | 756 | 141.5 |
| B | 0 | 198 | 40957 | 284.11 | 772 | 756 | 141.5 |
| C | 14 | 238 | 116043 | 686.04 | 729 | 733 | 168.1 |
| C | 3 | 233 | 86164 | 508.27 | 729 | 733 | 168.1 |
| C | 7 | 247 | 18630 | 106.48 | 729 | 733 | 168.1 |
| D | 1 | 52 | 1141788 | 6455.29 | 742 | 721 | 176.8 |
| D | 10 | 70 | 94464 | 530.33 | 742 | 721 | 176.8 |
| D | 2 | 234 | 24879 | 136.67 | 742 | 721 | 176.8 |

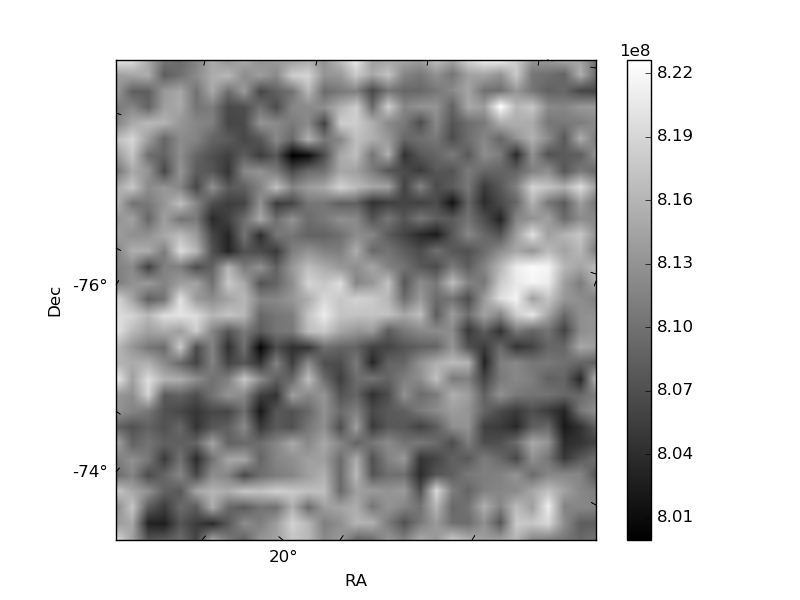

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

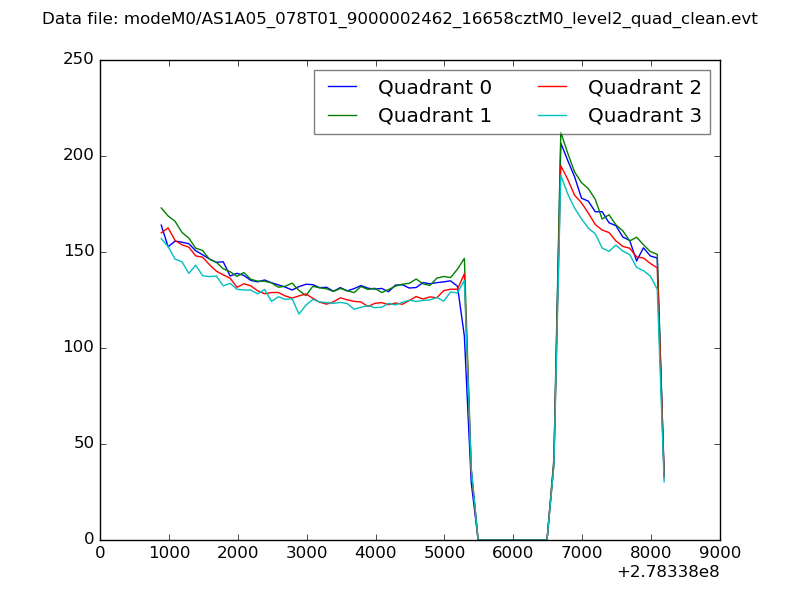

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

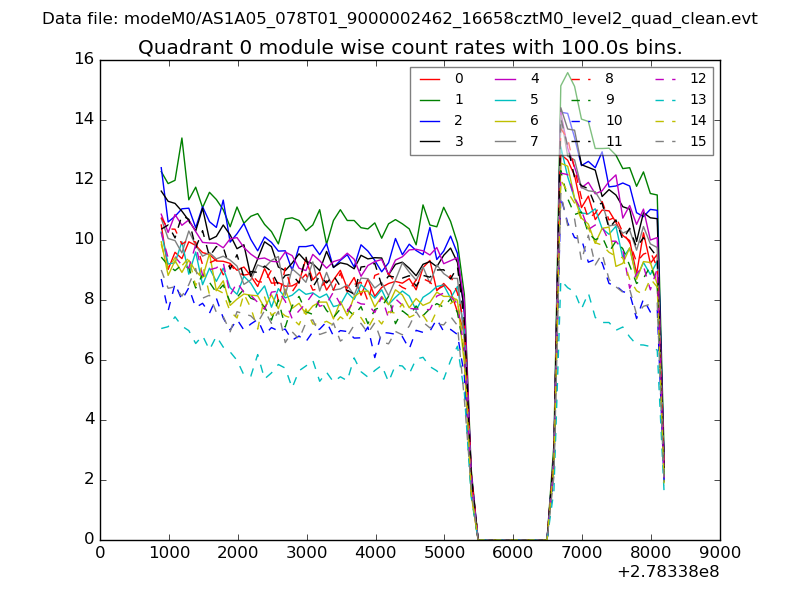

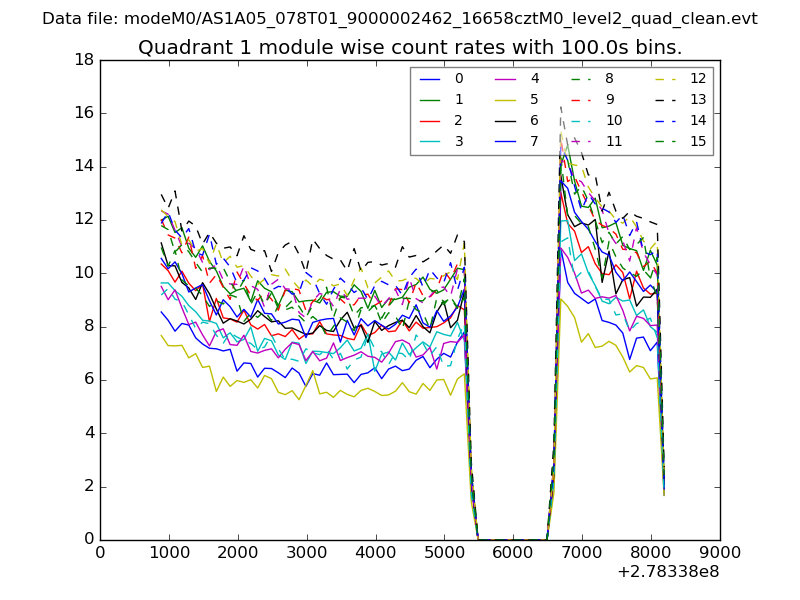

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

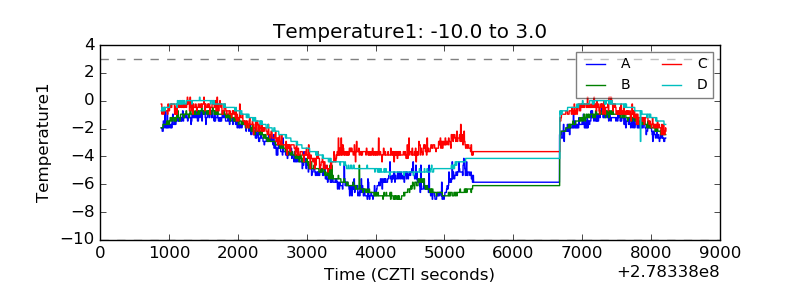

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

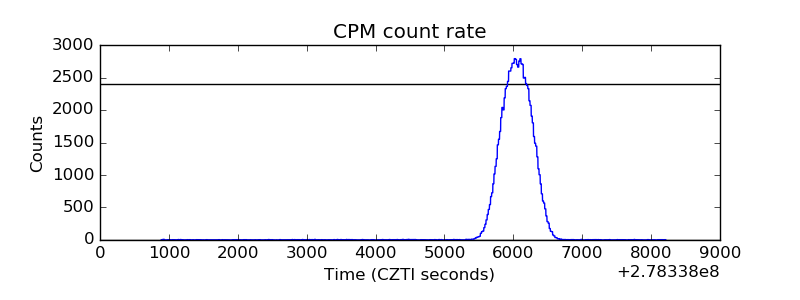

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
