| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_078T01_9000002462_16661cztM0_level2.evt | modeM0/AS1A05_078T01_9000002462_16661cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,064,640 | 122,529,600 |
| Size | 410.1 MB | 116.9 MB |
| Events in quadrant A | 3,060,003 | 838,317 |
| Events in quadrant B | 3,397,767 | 855,675 |
| Events in quadrant C | 2,884,353 | 808,675 |
| Events in quadrant D | 3,269,701 | 784,532 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13168 | 2 |
| B | 0 | 13965 | 1 |
| C | 0 | 12559 | 1 |
| D | 0 | 14057 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6069 | 74 | 1.219311% |
| B | 6069 | 95 | 1.565332% |
| C | 6069 | 63 | 1.038062% |
| D | 6069 | 123 | 2.026693% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7325 | 6071 | 16 | 16 | 0.22% | 0.26% |  |
| B | 7325 | 6071 | 18 | 18 | 0.25% | 0.30% |  |
| C | 7325 | 6071 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7325 | 6071 | 84 | 84 | 1.15% | 1.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 106349 | 716.64 | 740 | 726 | 147.4 |
| A | 3 | 1 | 74631 | 501.44 | 740 | 726 | 147.4 |
| A | 9 | 143 | 32164 | 213.3 | 740 | 726 | 147.4 |
| B | 15 | 35 | 170198 | 1224.59 | 745 | 727 | 138.4 |
| B | 0 | 229 | 120137 | 862.85 | 745 | 727 | 138.4 |
| B | 4 | 48 | 47752 | 339.8 | 745 | 727 | 138.4 |
| C | 14 | 238 | 111942 | 685.86 | 704 | 709 | 162.2 |
| C | 7 | 247 | 14774 | 86.72 | 704 | 709 | 162.2 |
| C | 3 | 233 | 12325 | 71.62 | 704 | 709 | 162.2 |
| D | 2 | 16 | 282187 | 1655.14 | 704 | 683 | 170.1 |
| D | 10 | 70 | 121322 | 709.31 | 704 | 683 | 170.1 |
| D | 1 | 52 | 110558 | 646.02 | 704 | 683 | 170.1 |

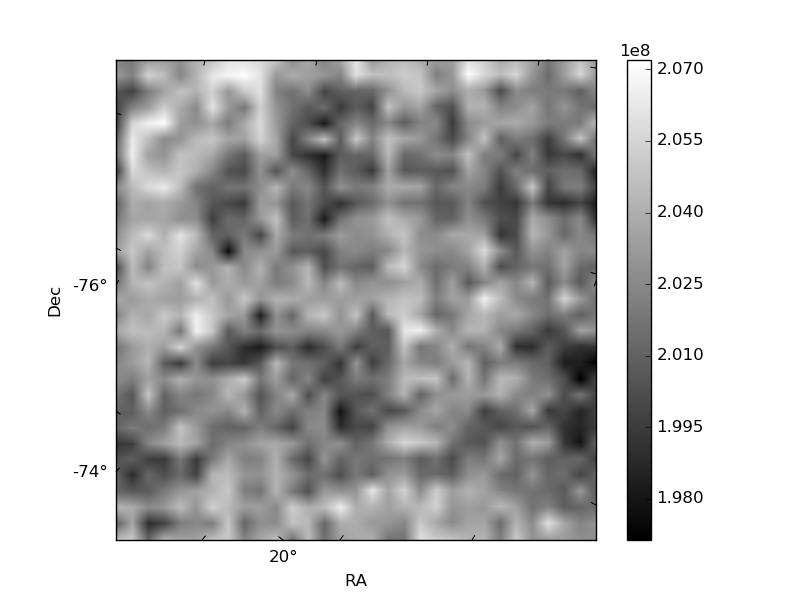

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

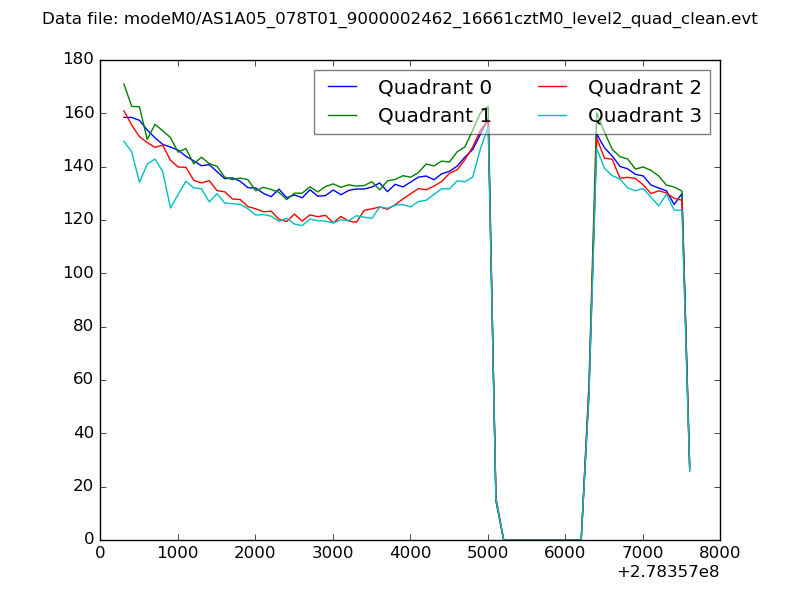

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

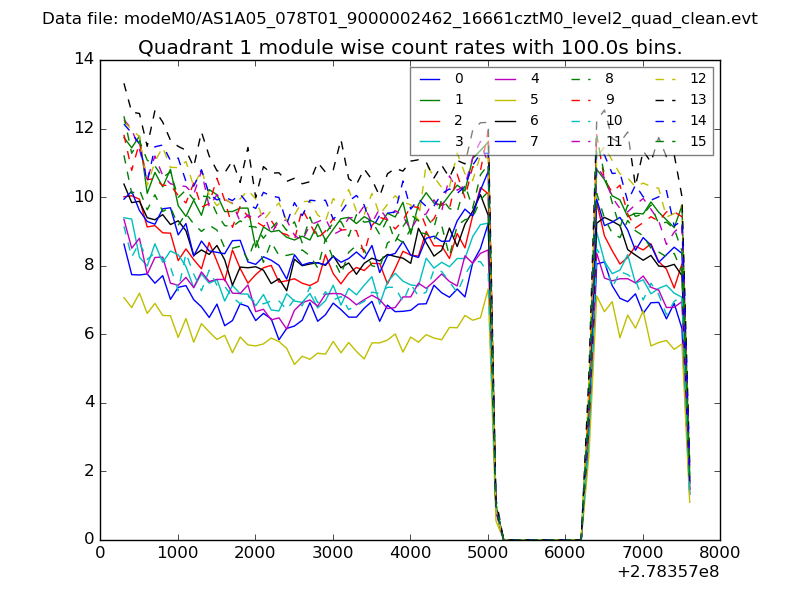

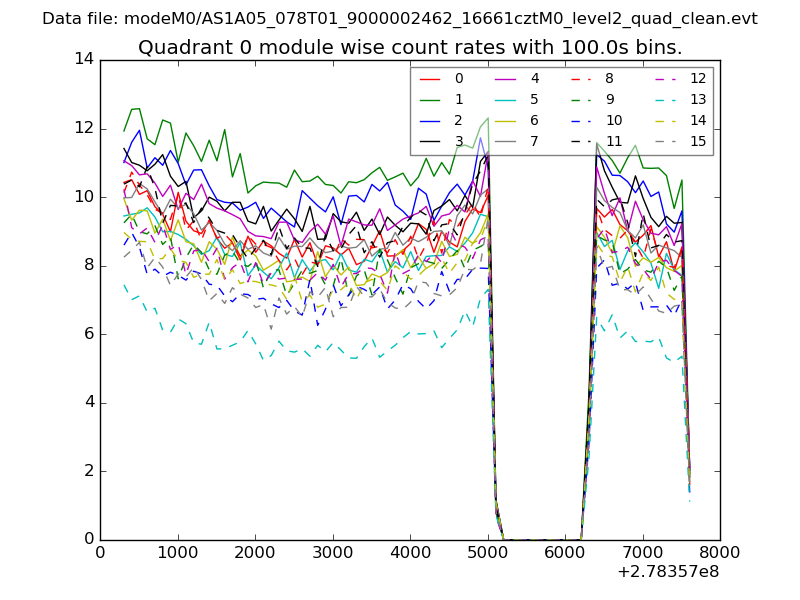

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

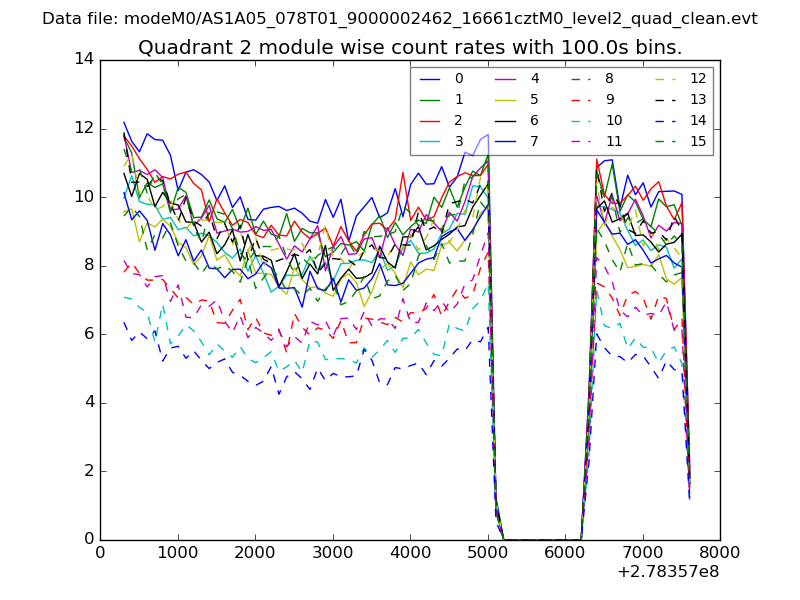

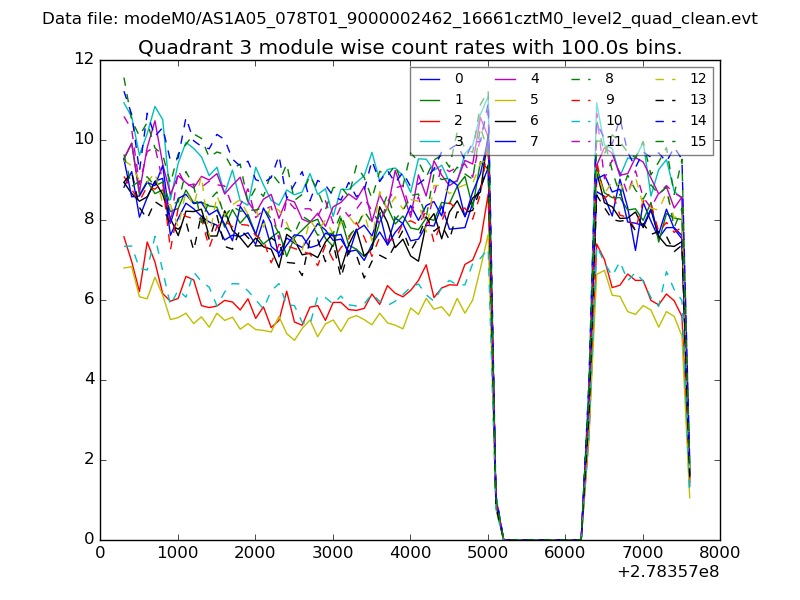

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

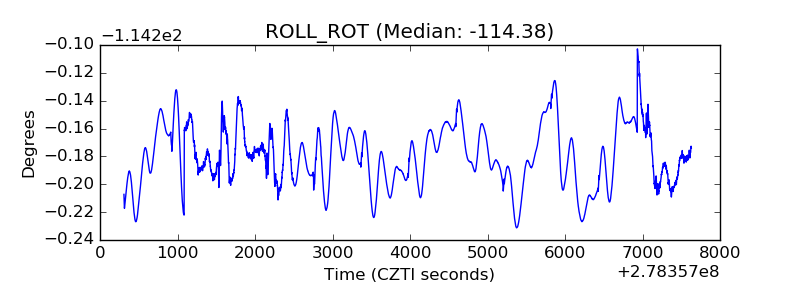

| _ROLL_ROT |  |
| _Roll_DEC |  |

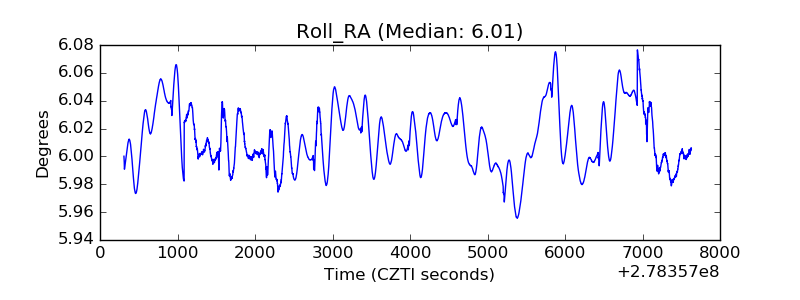

| _Roll_RA |  |
| Veto Counter |  |
