| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_078T01_9000002462_16666cztM0_level2.evt | modeM0/AS1A05_078T01_9000002462_16666cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,808,320 | 127,232,640 |
| Size | 521.5 MB | 121.3 MB |
| Events in quadrant A | 3,520,174 | 855,330 |
| Events in quadrant B | 3,760,660 | 869,940 |
| Events in quadrant C | 3,332,179 | 836,012 |
| Events in quadrant D | 5,464,918 | 797,053 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15437 | 4 |
| B | 0 | 15946 | 3 |
| C | 0 | 14651 | 3 |
| D | 0 | 21070 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7099 | 234 | 3.296239% |
| B | 7099 | 288 | 4.056909% |
| C | 7099 | 229 | 3.225806% |
| D | 7099 | 477 | 6.719256% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

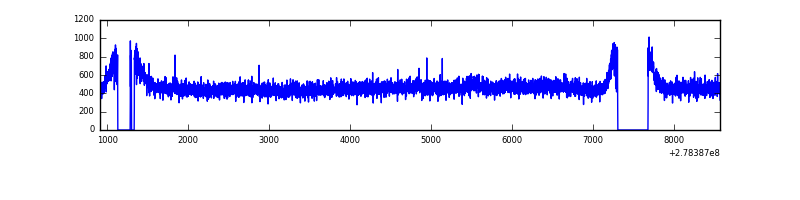

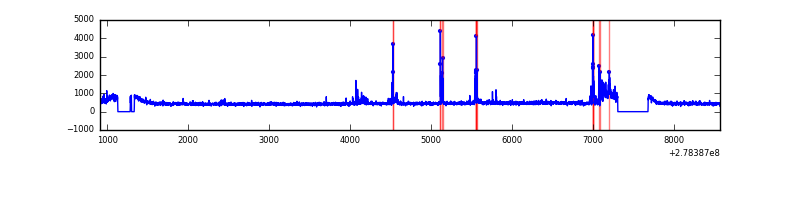

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7665 | 7103 | 18 | 18 | 0.23% | 0.25% |  |
| B | 7665 | 7103 | 12 | 12 | 0.16% | 0.17% |  |
| C | 7665 | 7103 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7665 | 7103 | 256 | 256 | 3.34% | 3.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 256005 | 1511.54 | 833 | 814 | 168.8 |
| A | 9 | 143 | 56112 | 327.54 | 833 | 814 | 168.8 |
| A | 0 | 226 | 7267 | 38.22 | 833 | 814 | 168.8 |
| B | 15 | 35 | 205175 | 1270.15 | 839 | 817 | 160.9 |
| B | 4 | 216 | 94857 | 584.49 | 839 | 817 | 160.9 |
| B | 0 | 229 | 78566 | 483.23 | 839 | 817 | 160.9 |
| C | 14 | 238 | 122654 | 649.75 | 805 | 806 | 187.5 |
| C | 3 | 233 | 58185 | 305.97 | 805 | 806 | 187.5 |
| C | 7 | 247 | 10734 | 52.94 | 805 | 806 | 187.5 |
| D | 1 | 52 | 1829043 | 9457.78 | 799 | 773 | 193.3 |
| D | 7 | 38 | 420600 | 2171.8 | 799 | 773 | 193.3 |
| D | 15 | 0 | 110272 | 566.45 | 799 | 773 | 193.3 |

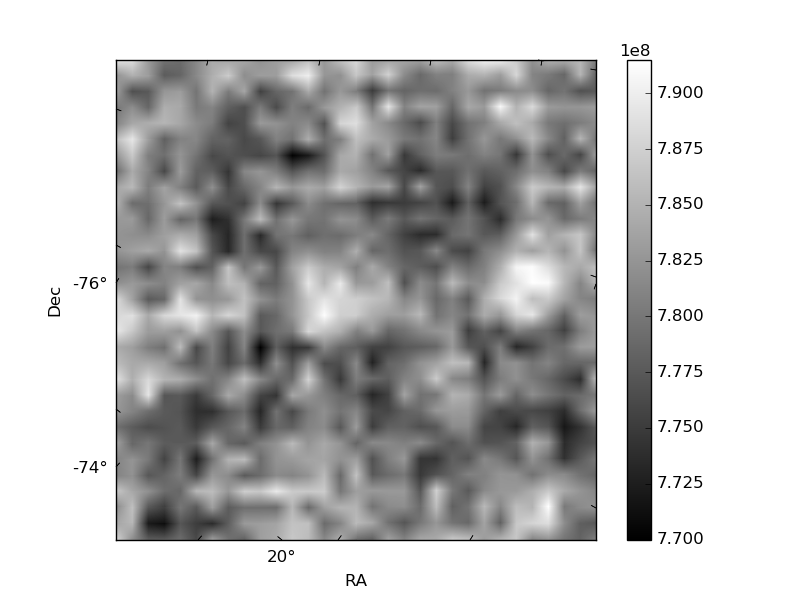

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

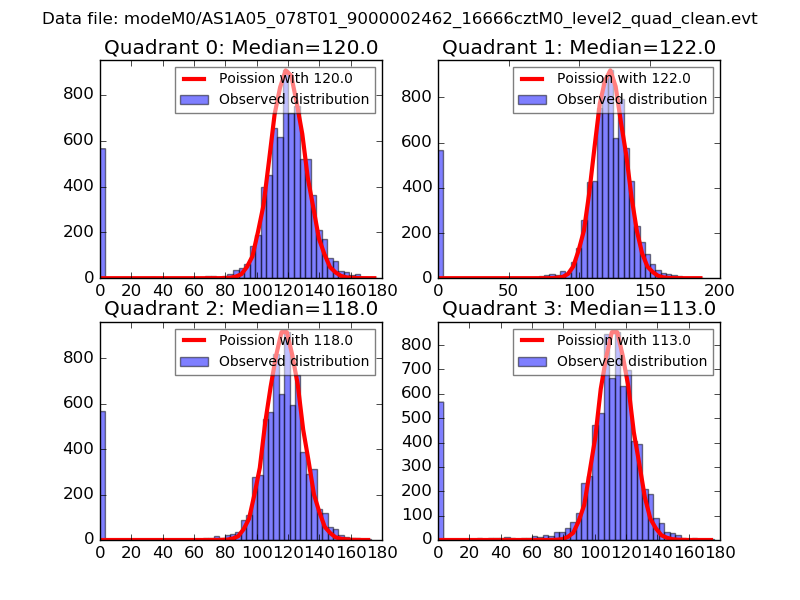

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

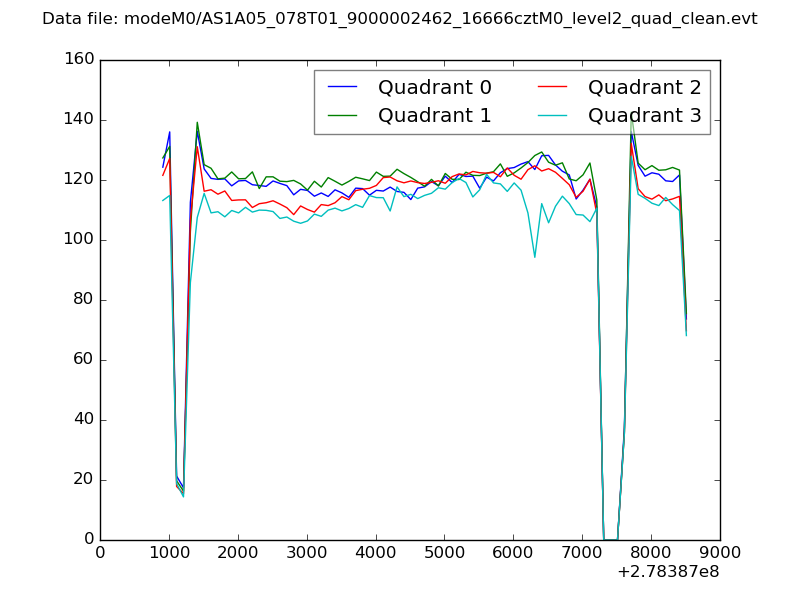

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

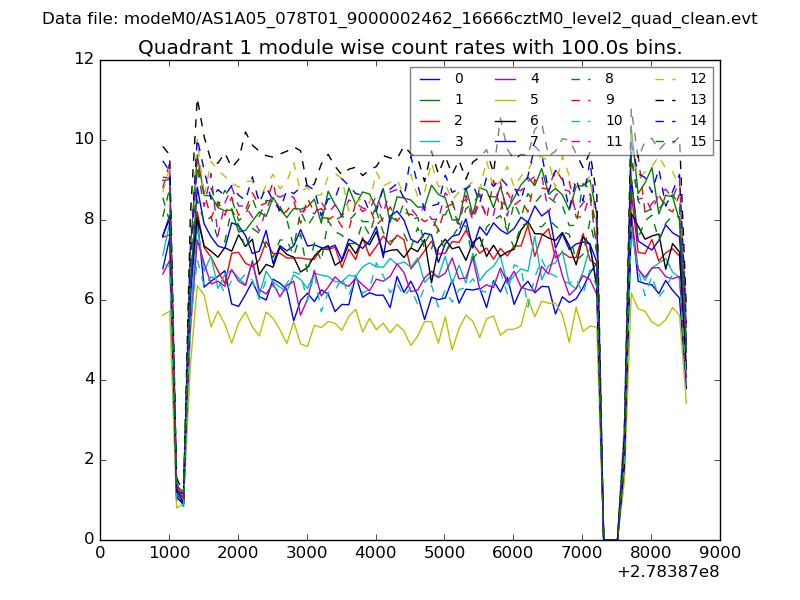

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

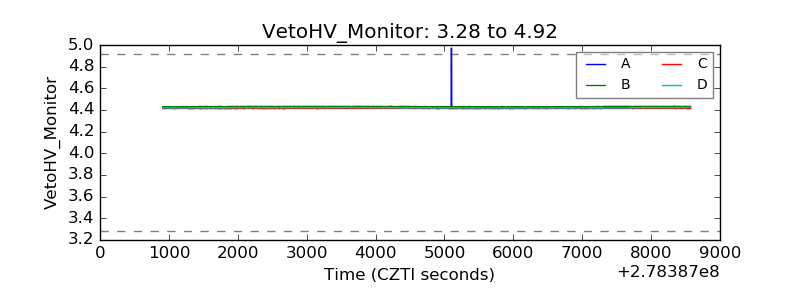

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

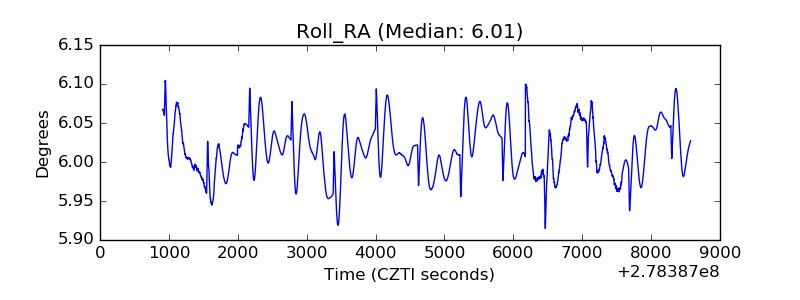

| _Roll_RA |  |
| Veto Counter |  |
